Hazard Curves Contributions by Zone
ZONES: AASZ, KmSZ, KrSZ, TOH, SChSZ, CSZR
Combined ZONES: ALL_CSZR means all above ZONES combined
AASZ had 8 events, KmSZ had 2, KrSZ had 3, TOH had 1, SChSZ had 1, and CSZR is all
17 realizations of the 1 Cascadia event with return time 250 years as described in
the report.

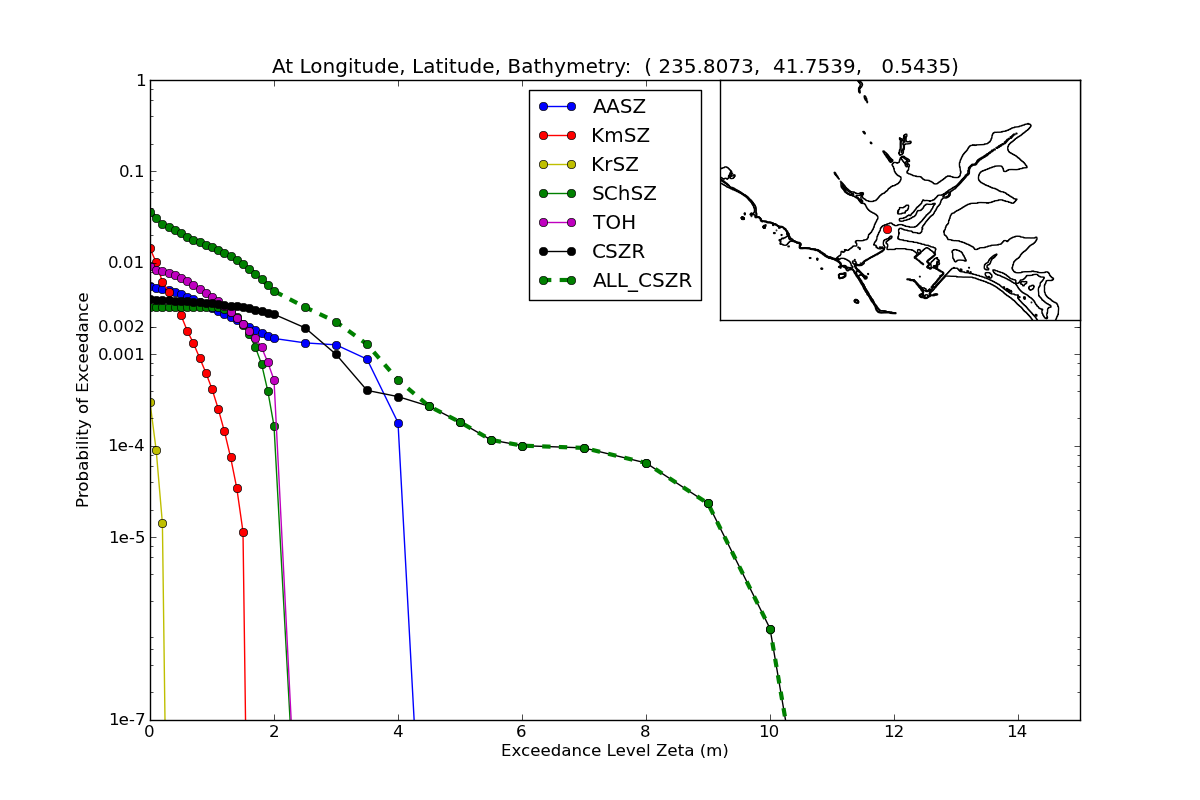

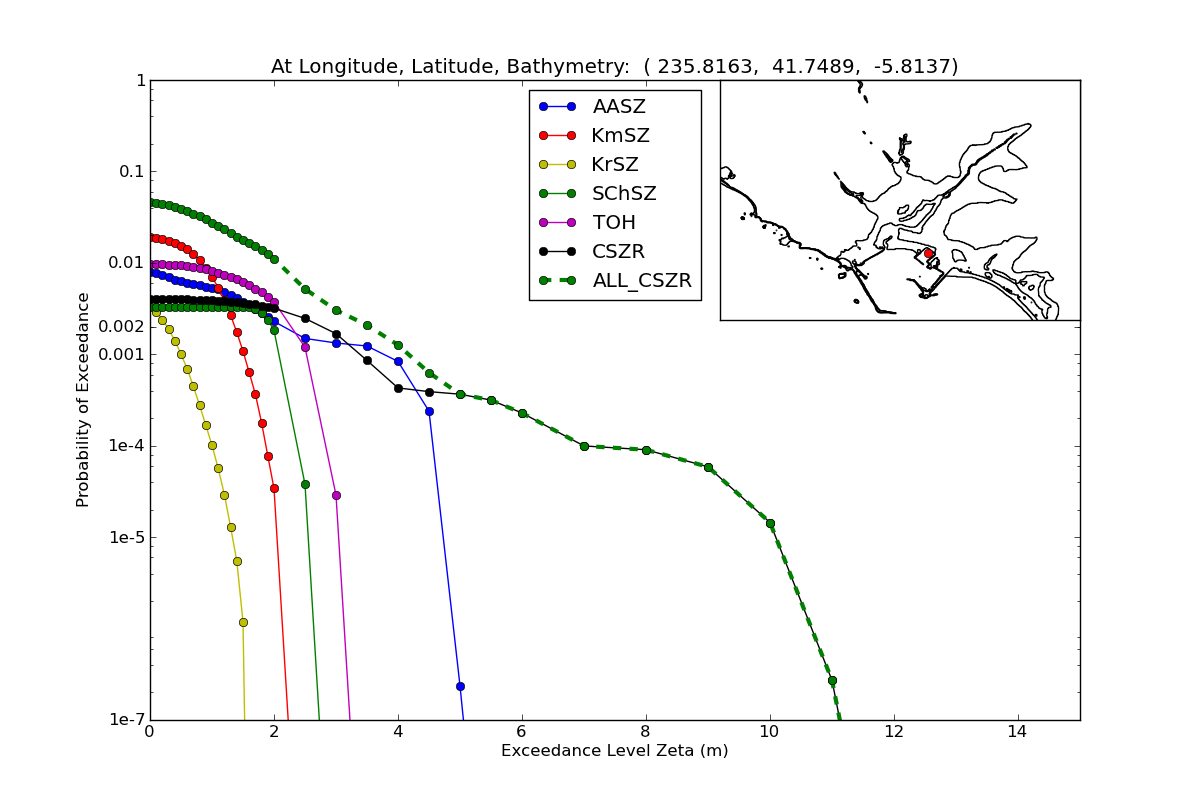

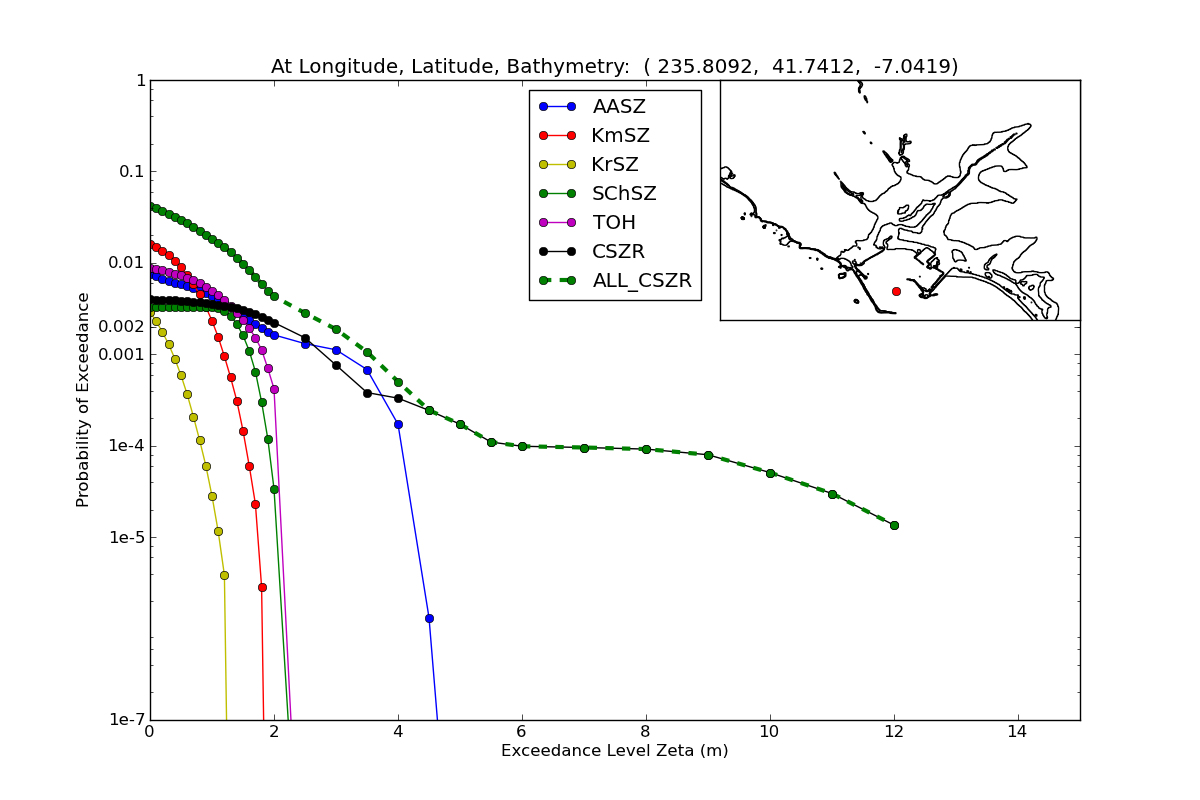

Plots for Zeta:

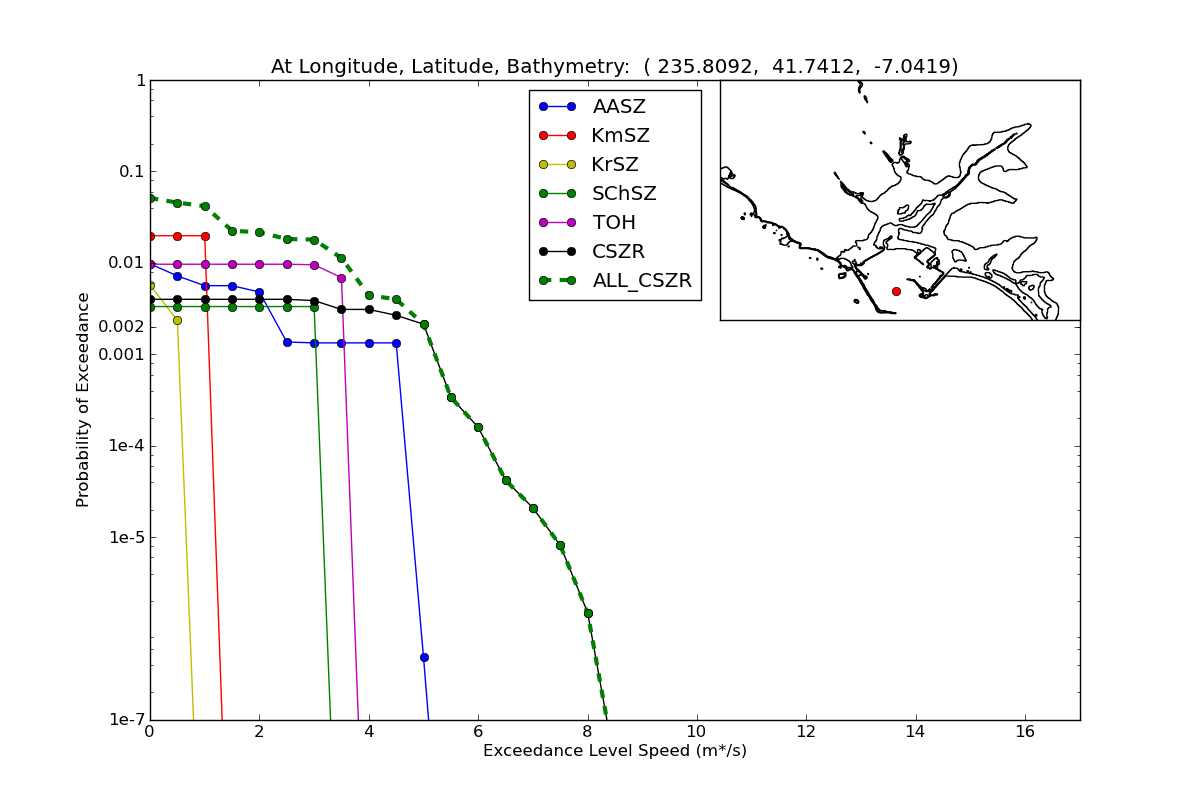

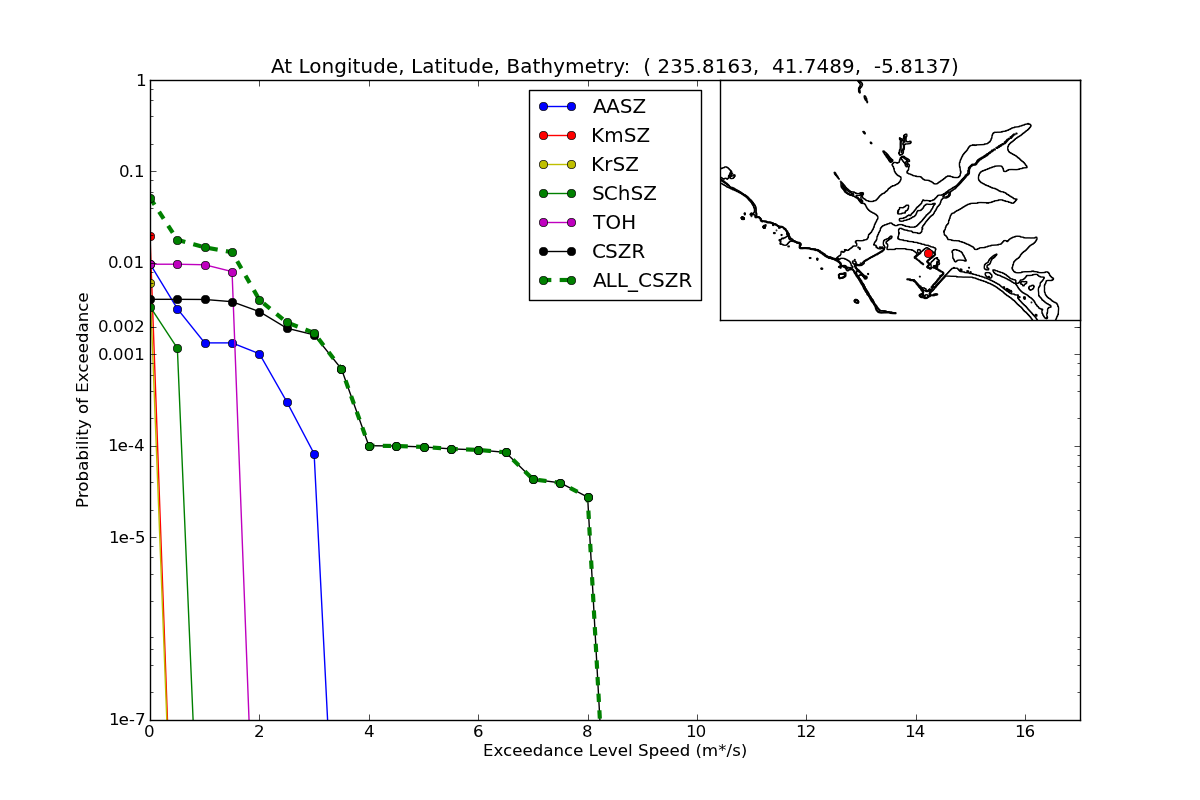

Plots for Speed:

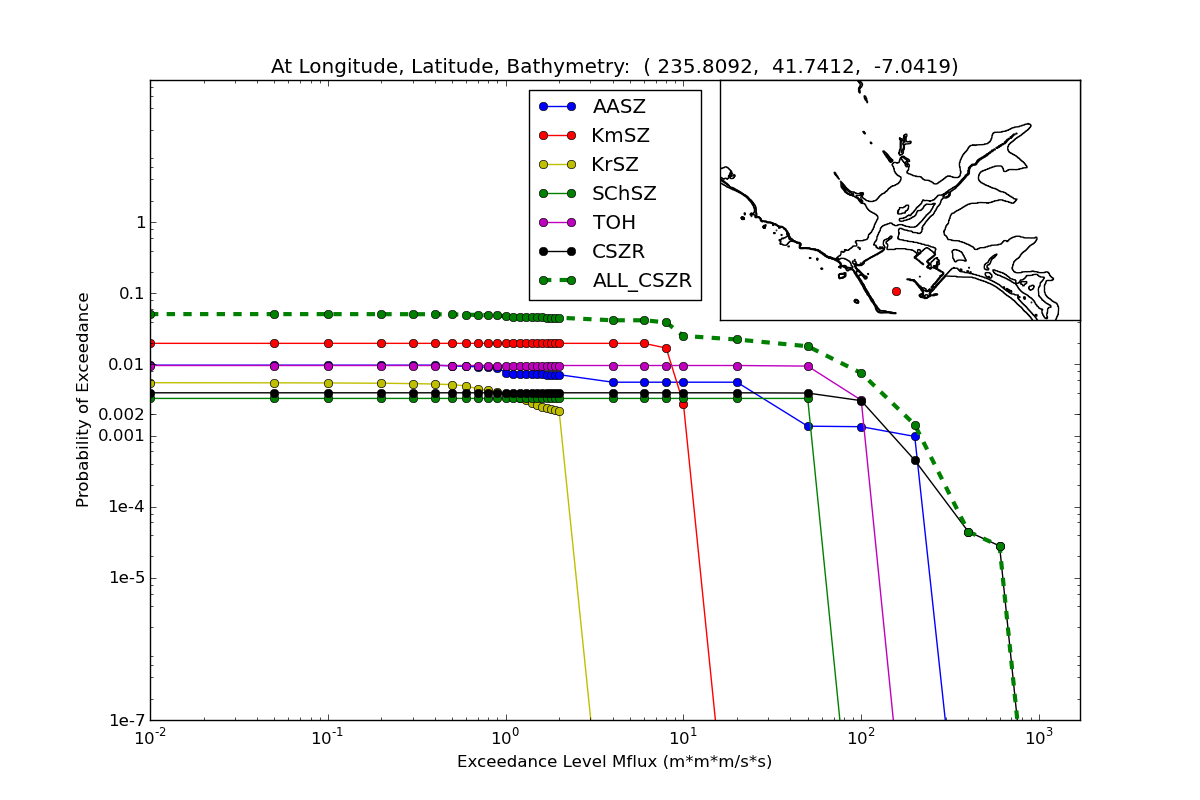

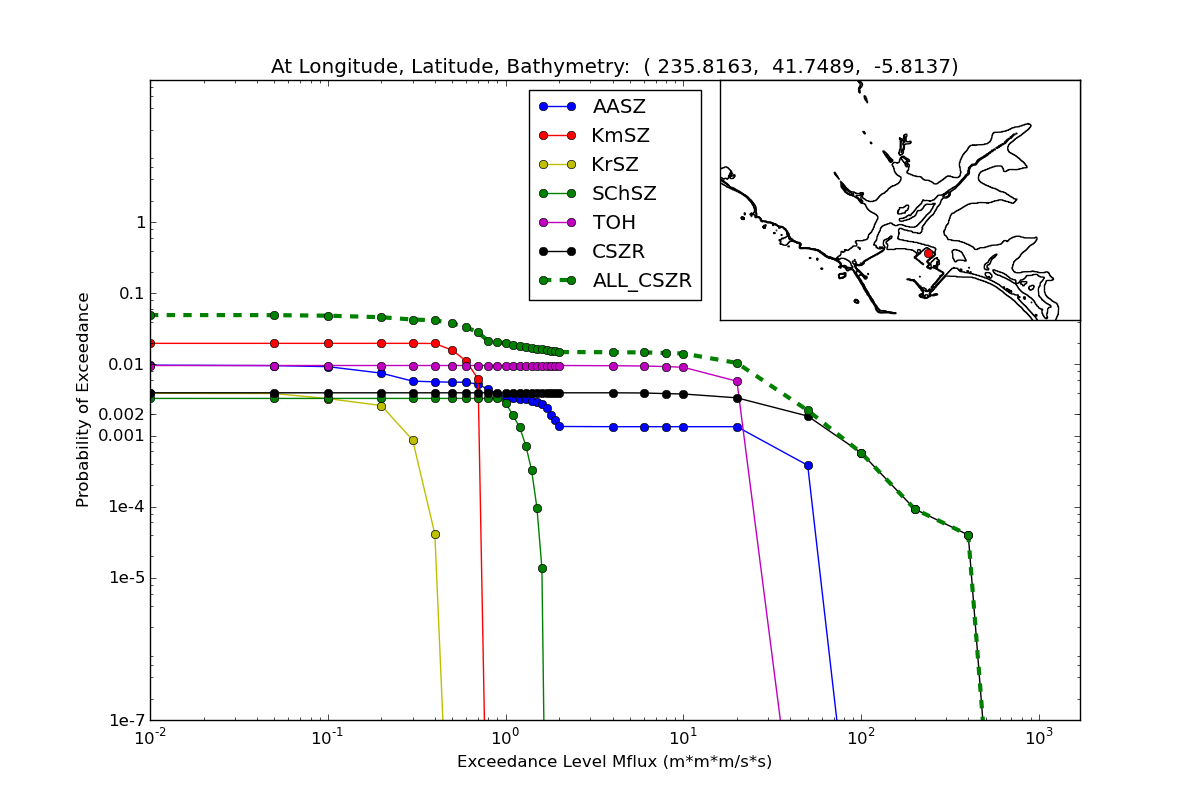

Plots for Momentum Flux:
