Comparison 1, Crescent City
This comparison uses the C1 clustering, consisting of 6 clusters.

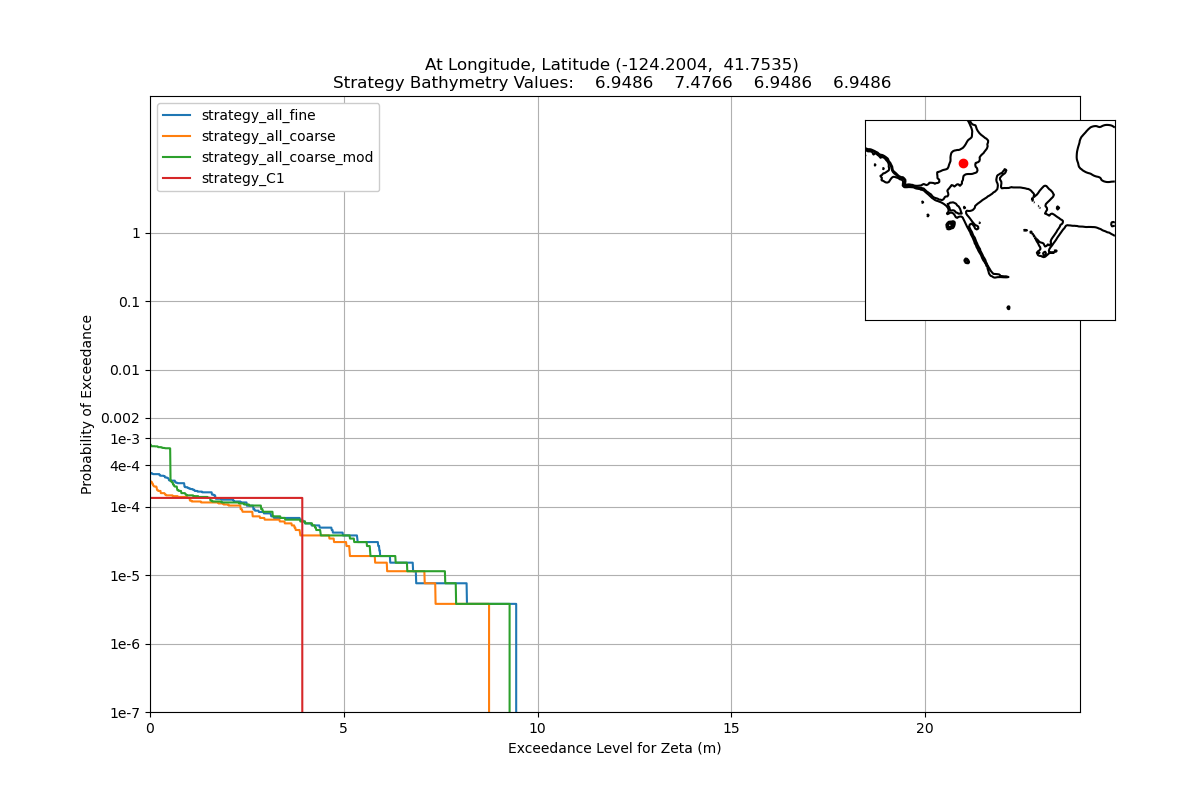

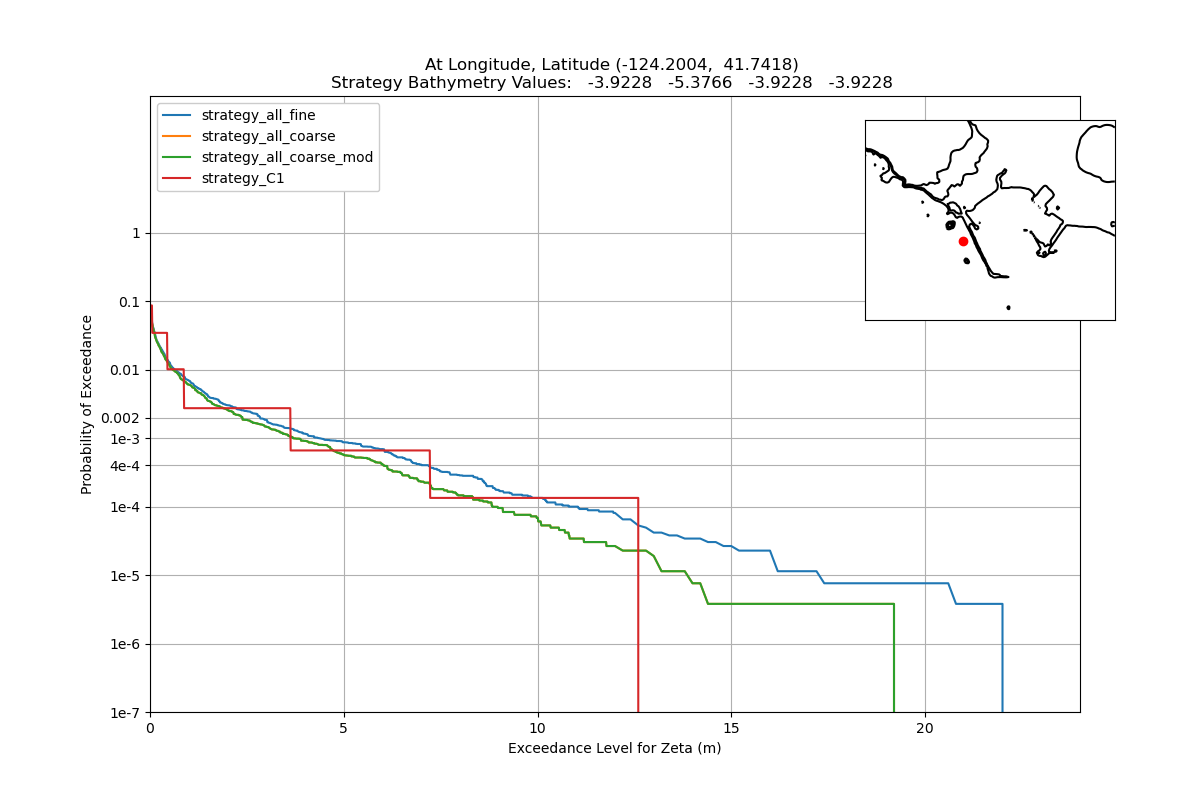

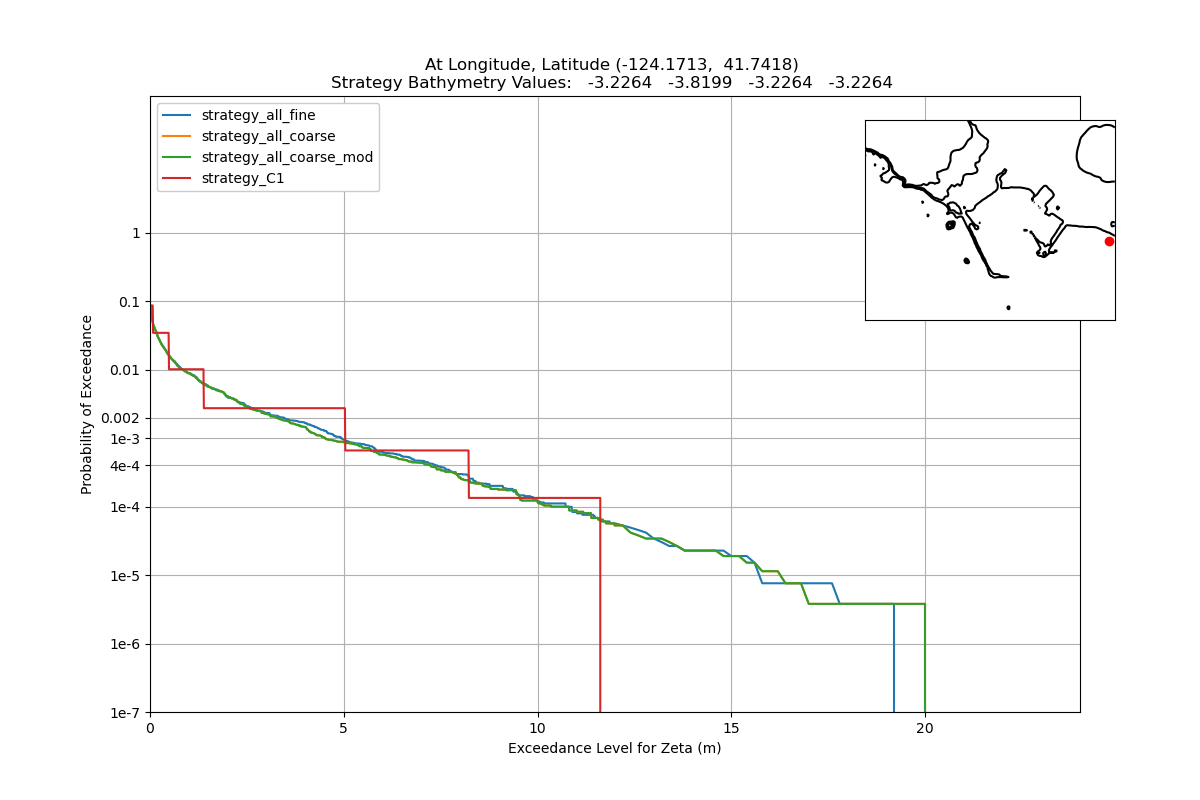

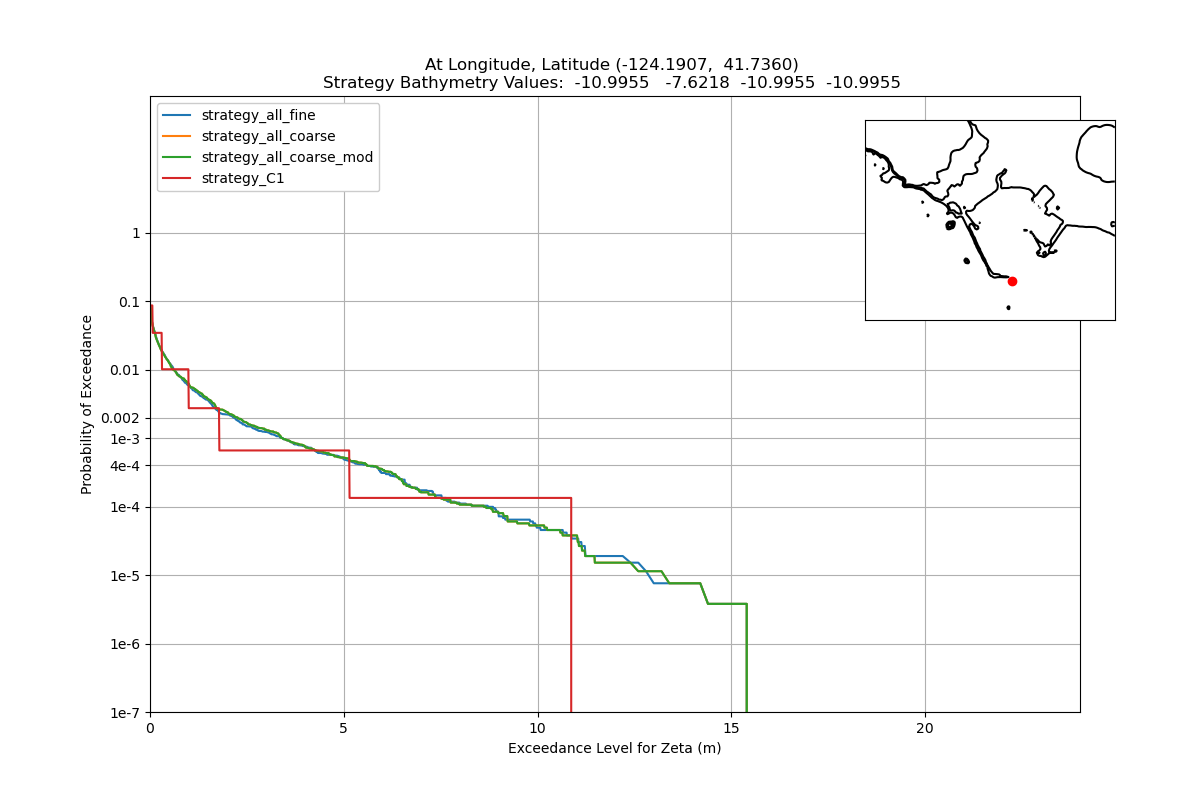

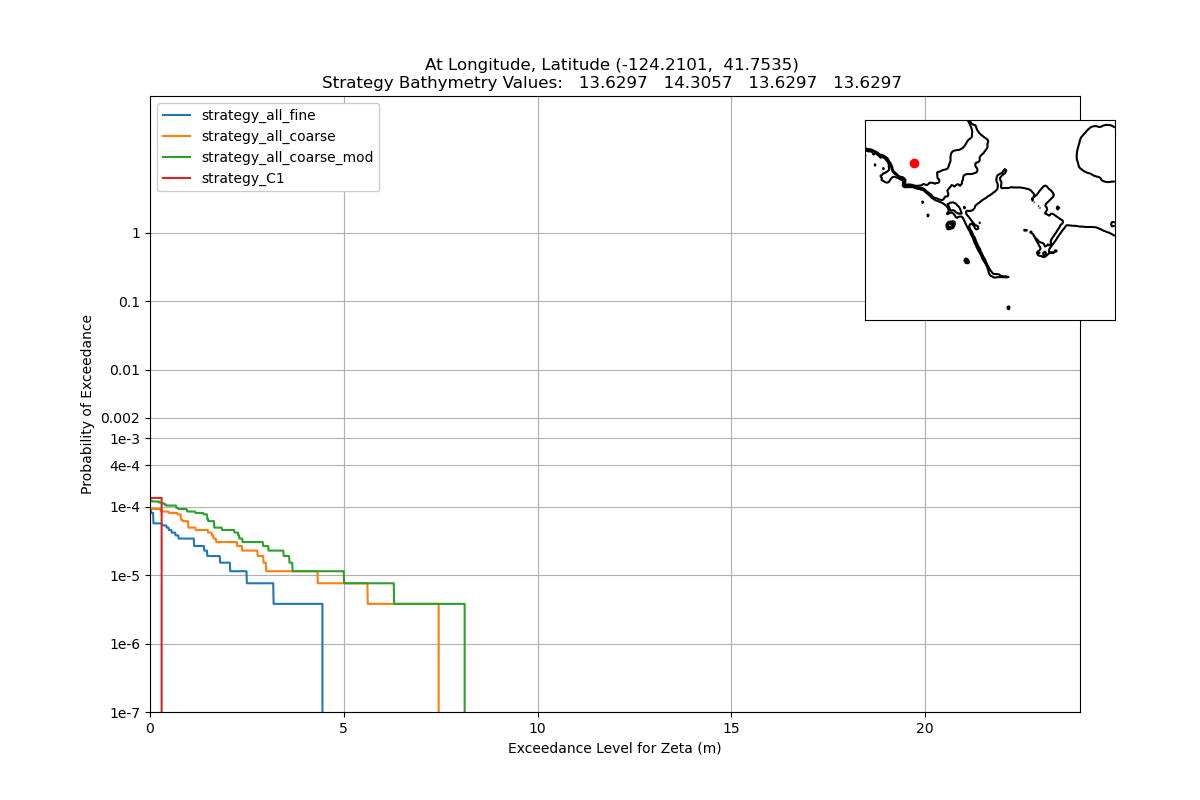

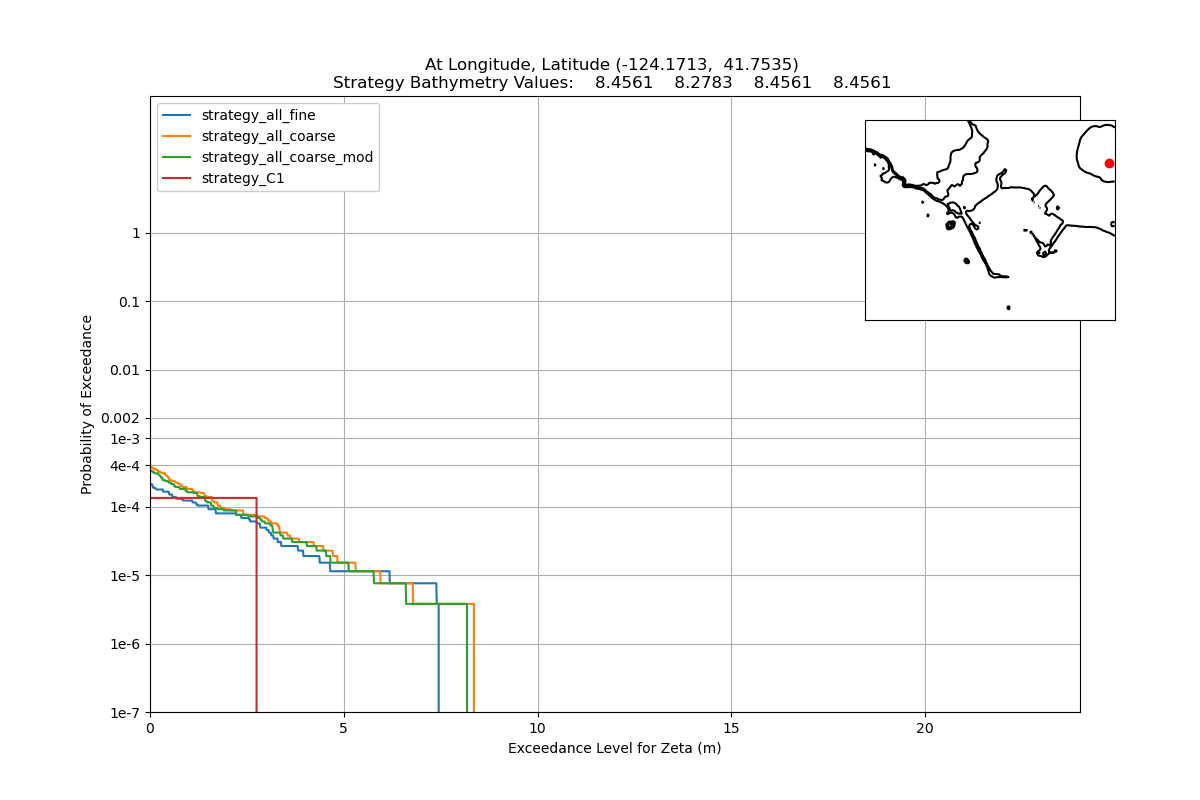

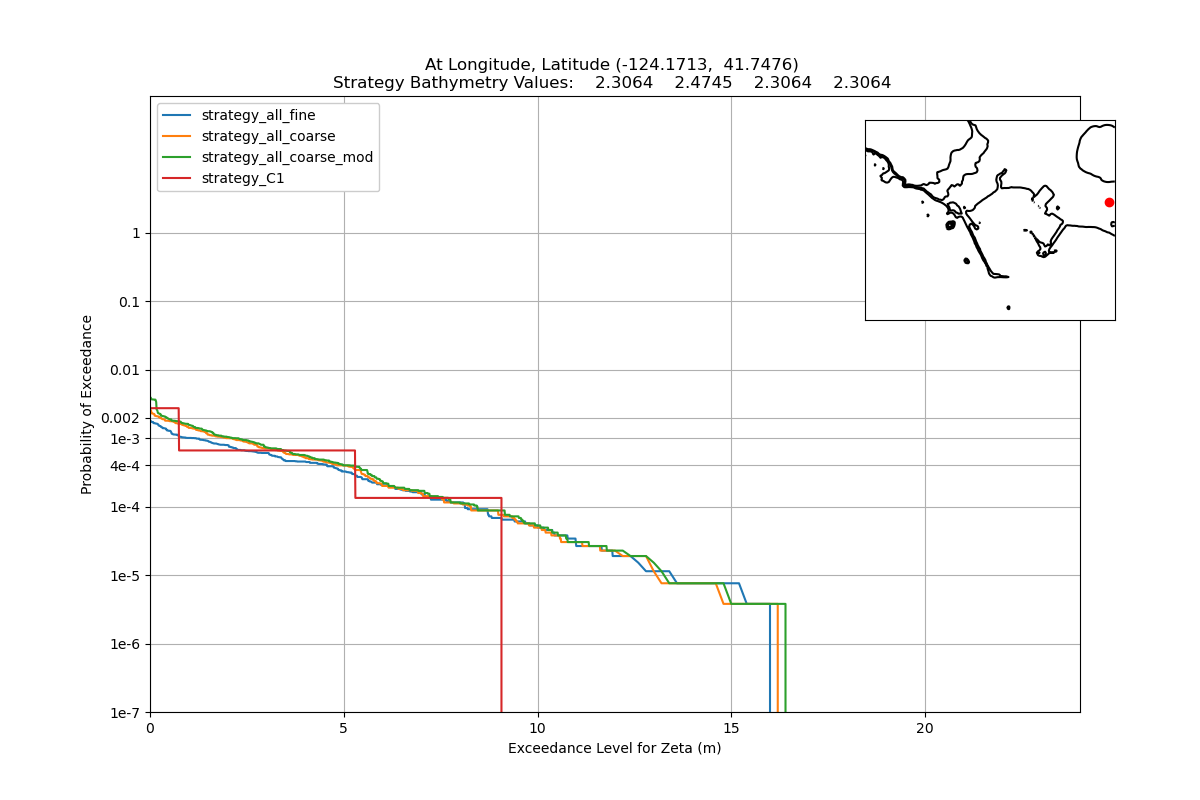

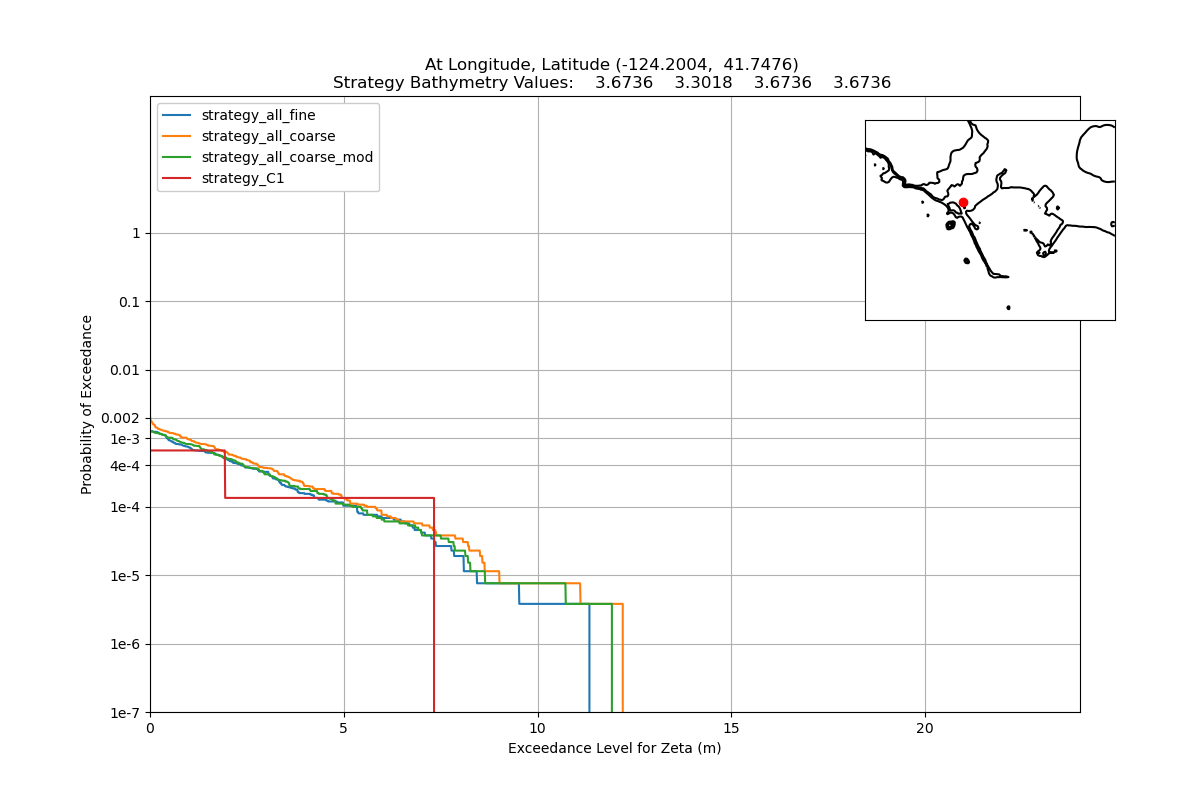

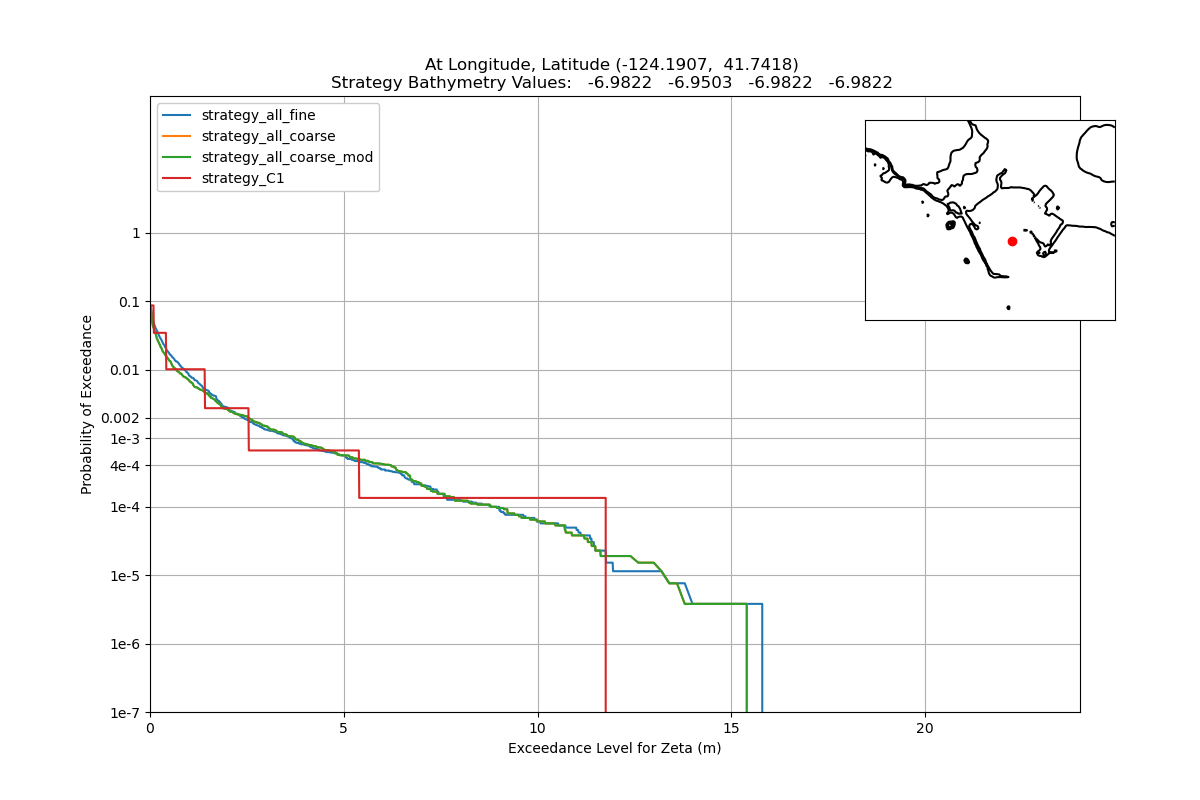

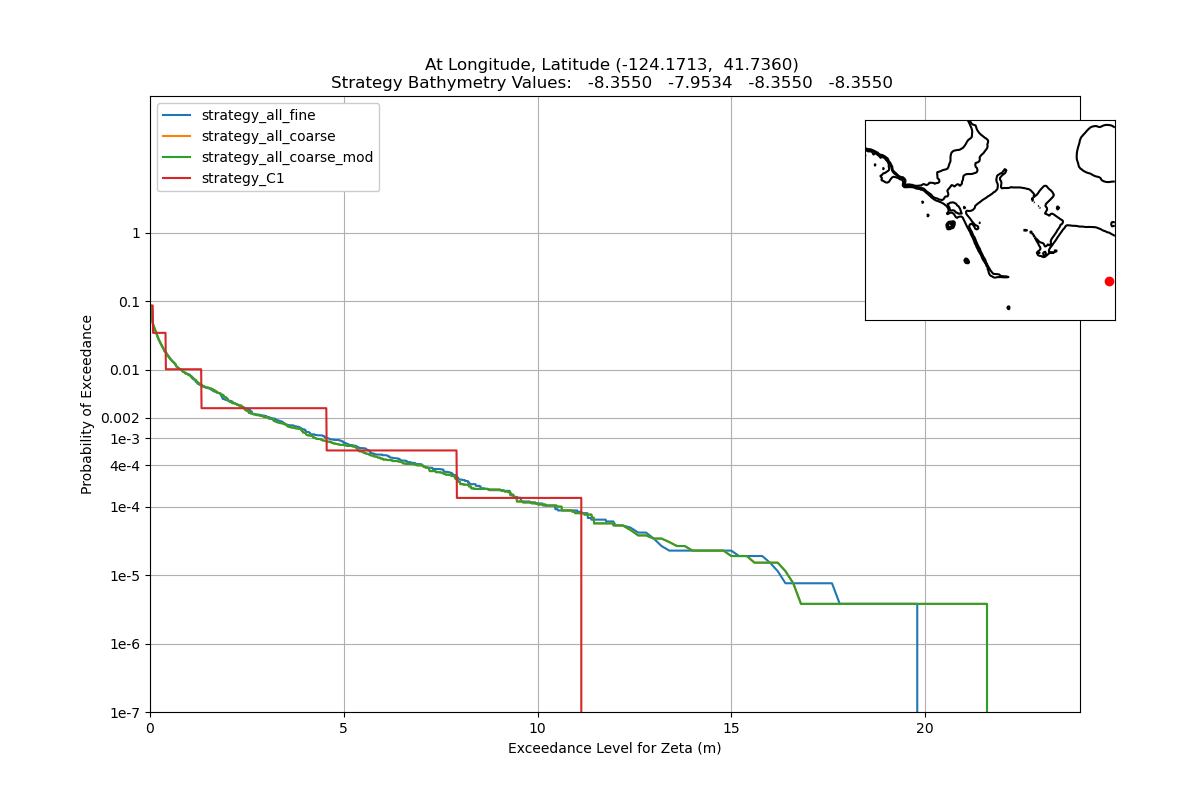

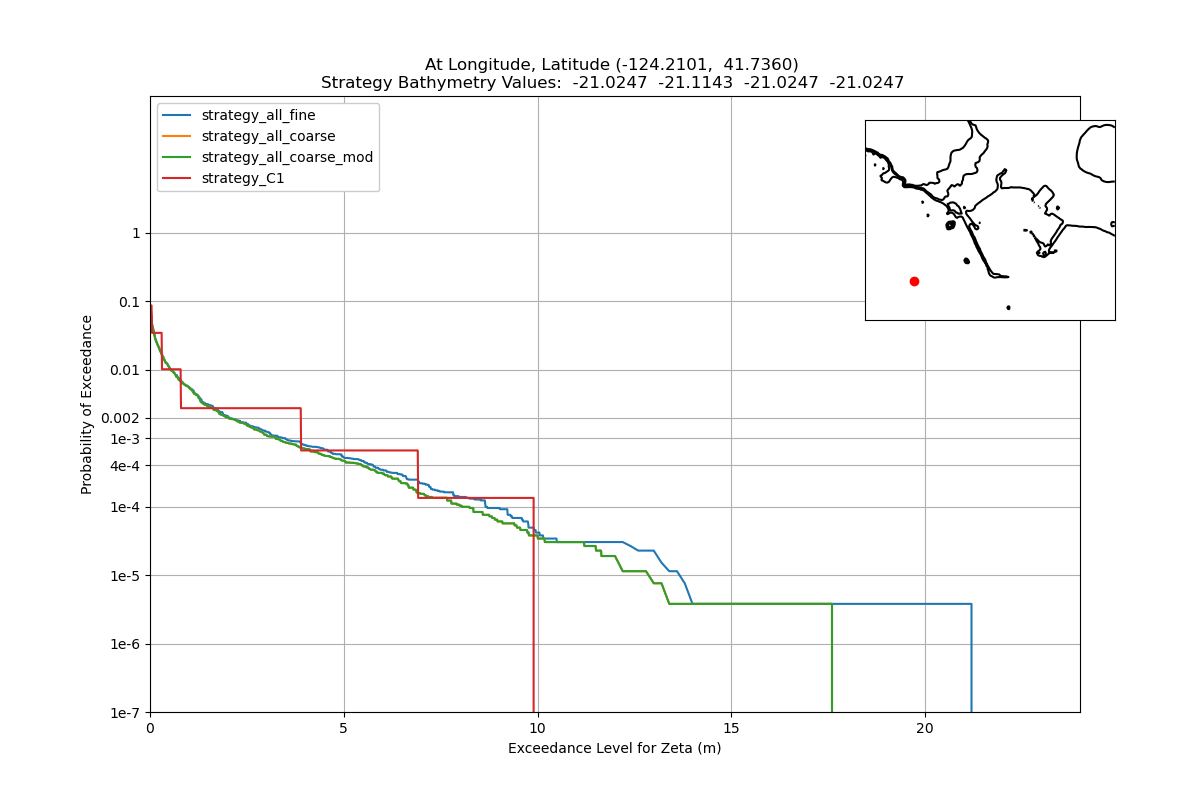

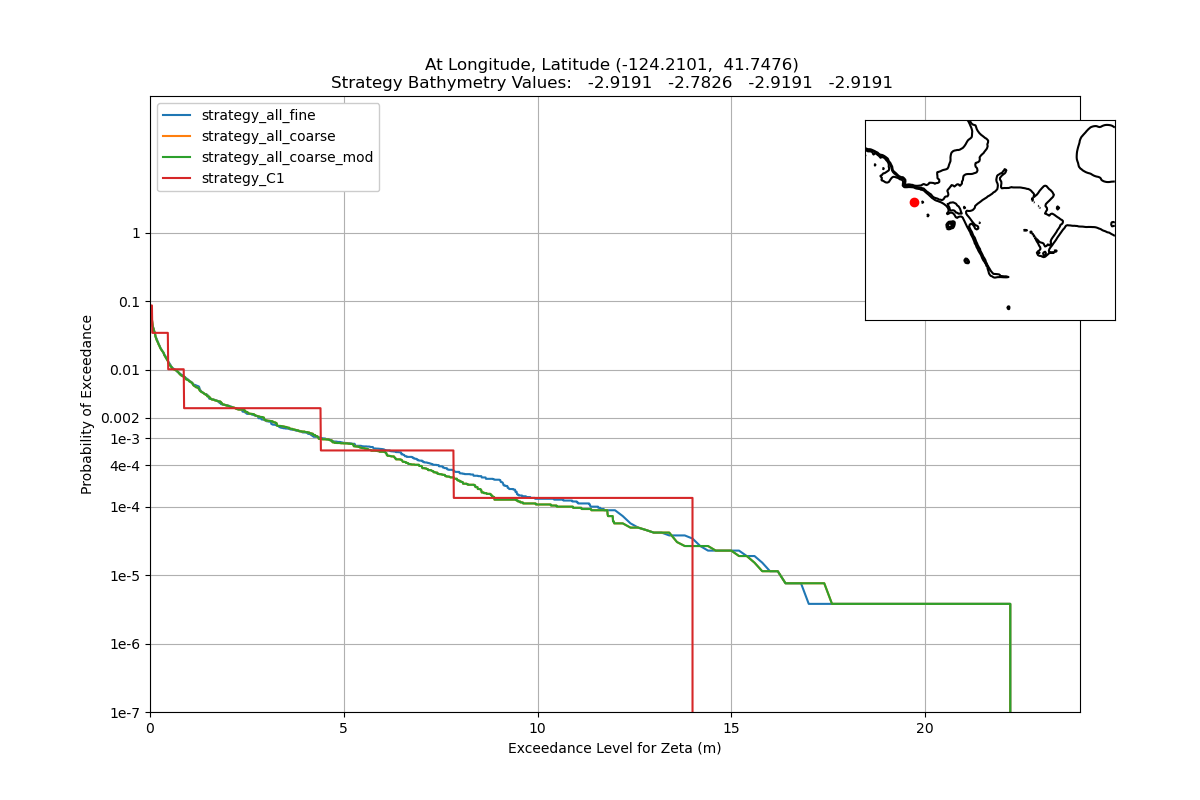

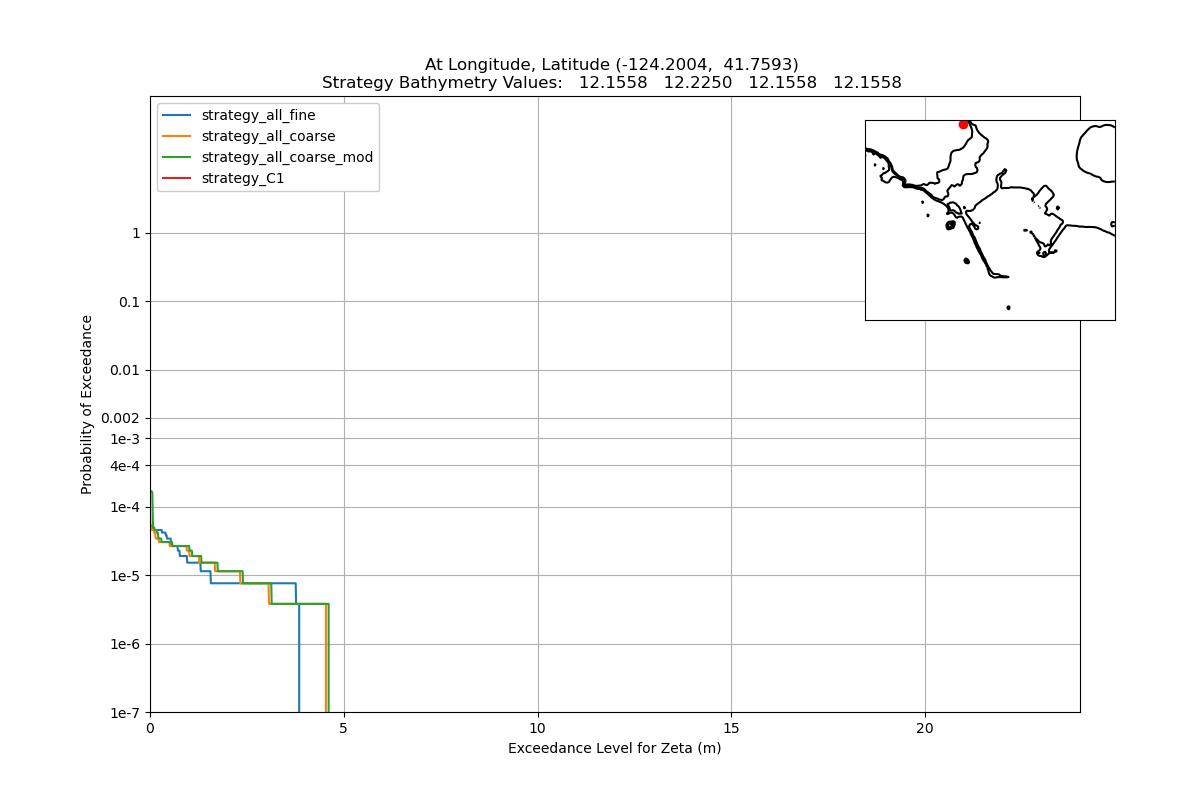

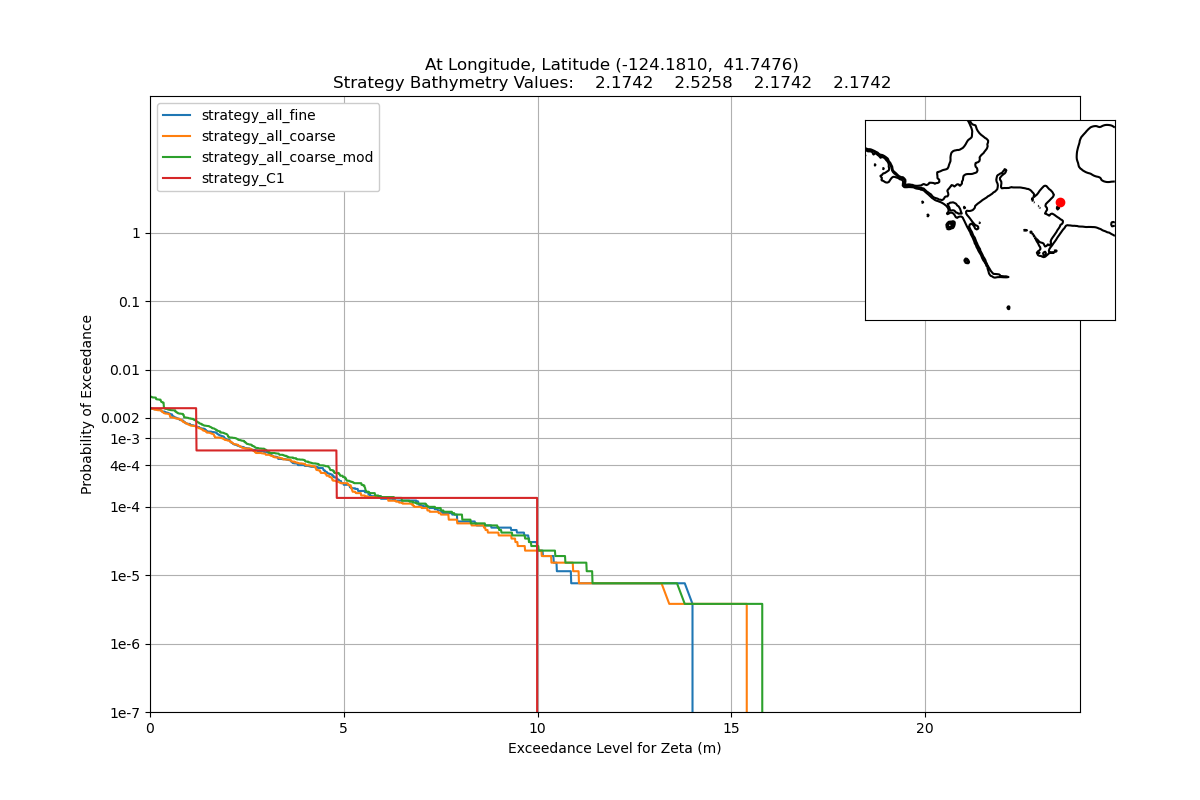

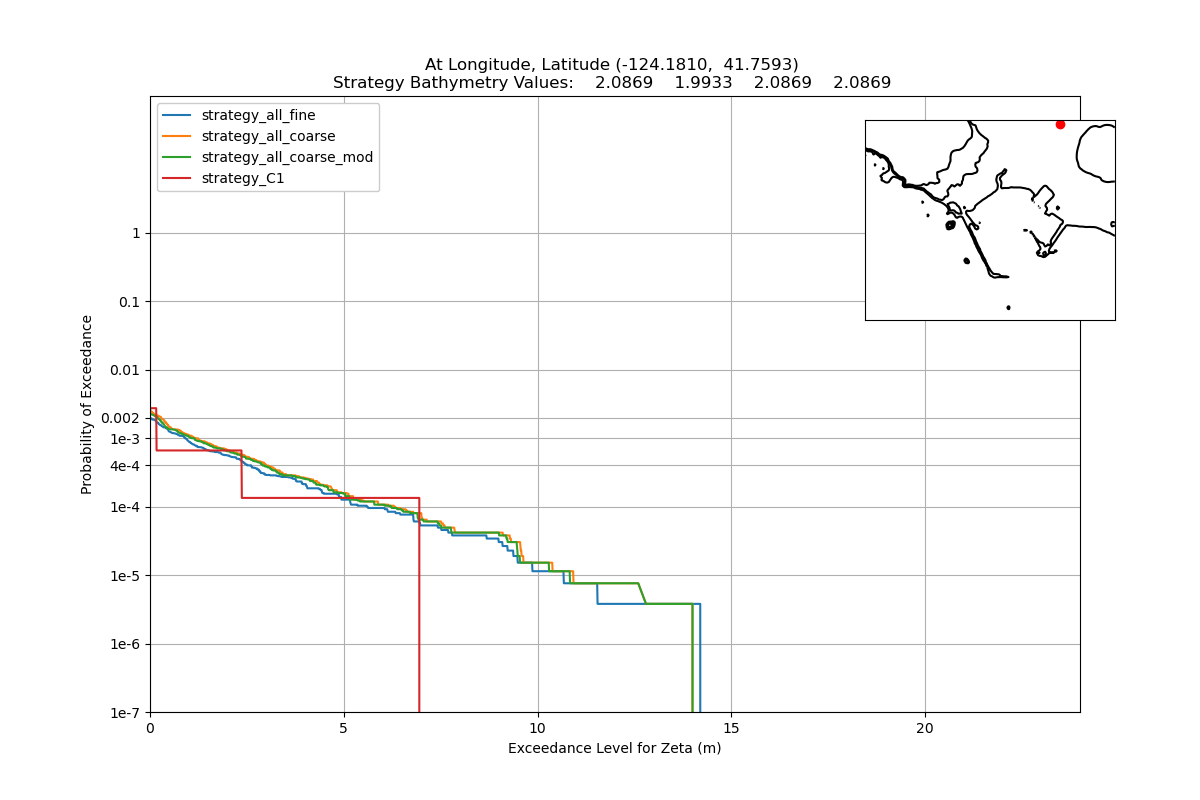

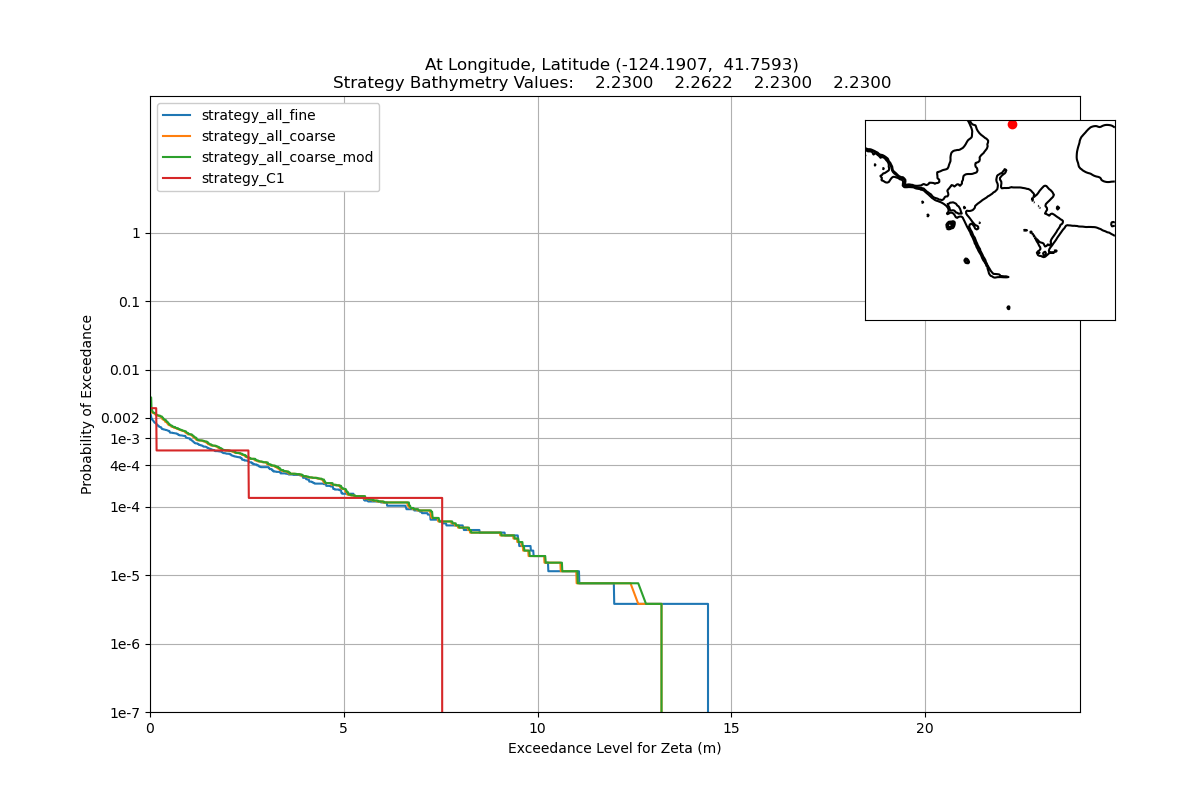

Hazard curves at selected locations
The four curves on each of these plots correspond to what is shown in the
four subplots of the plan view plots, described below.
Plan view plots
Note: All plots below have 4 subplots:
- Upper left: Ground truth using all 2000 fine grid runs,
- Lower left: Using all coarse grid runs after applying the "coarse-mod"
corrections,
- Upper right: Using all coarse grid runs with no corrections,
- Lower right: Using only 6 fine grid runs (the centroid of each cluster).

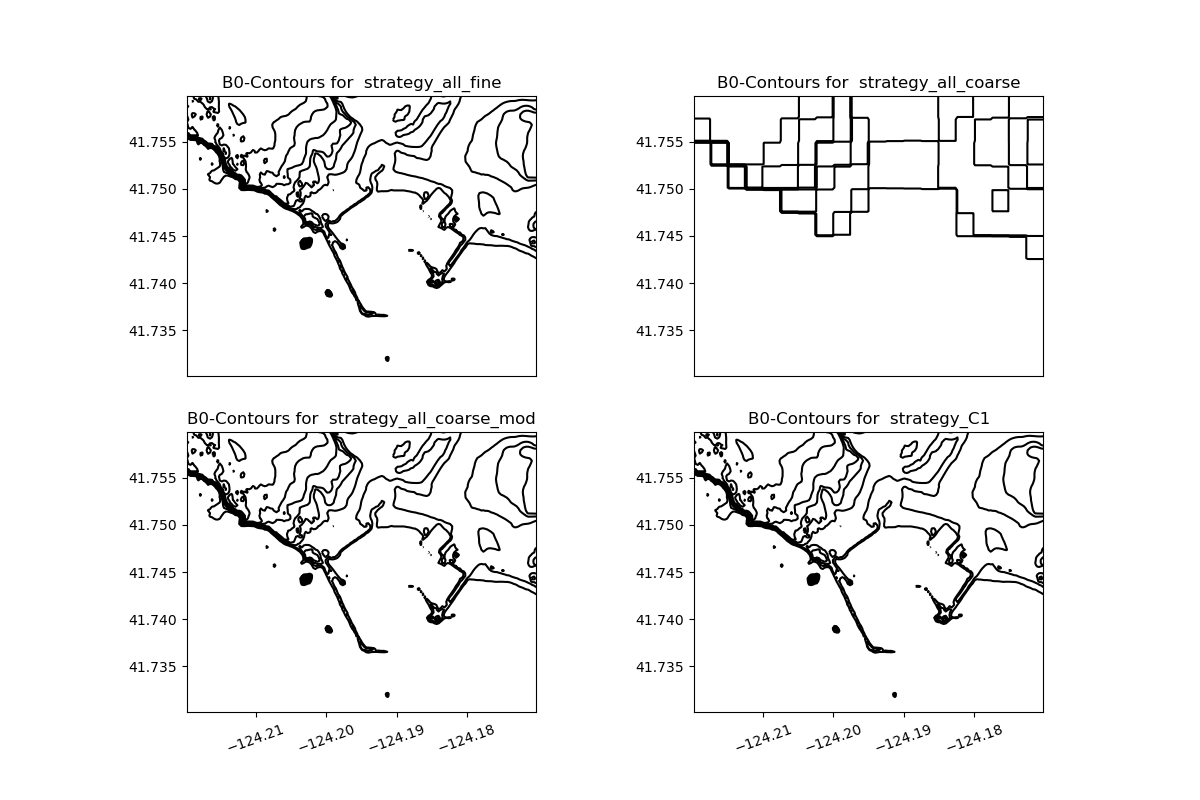

Topo/Bathy contours

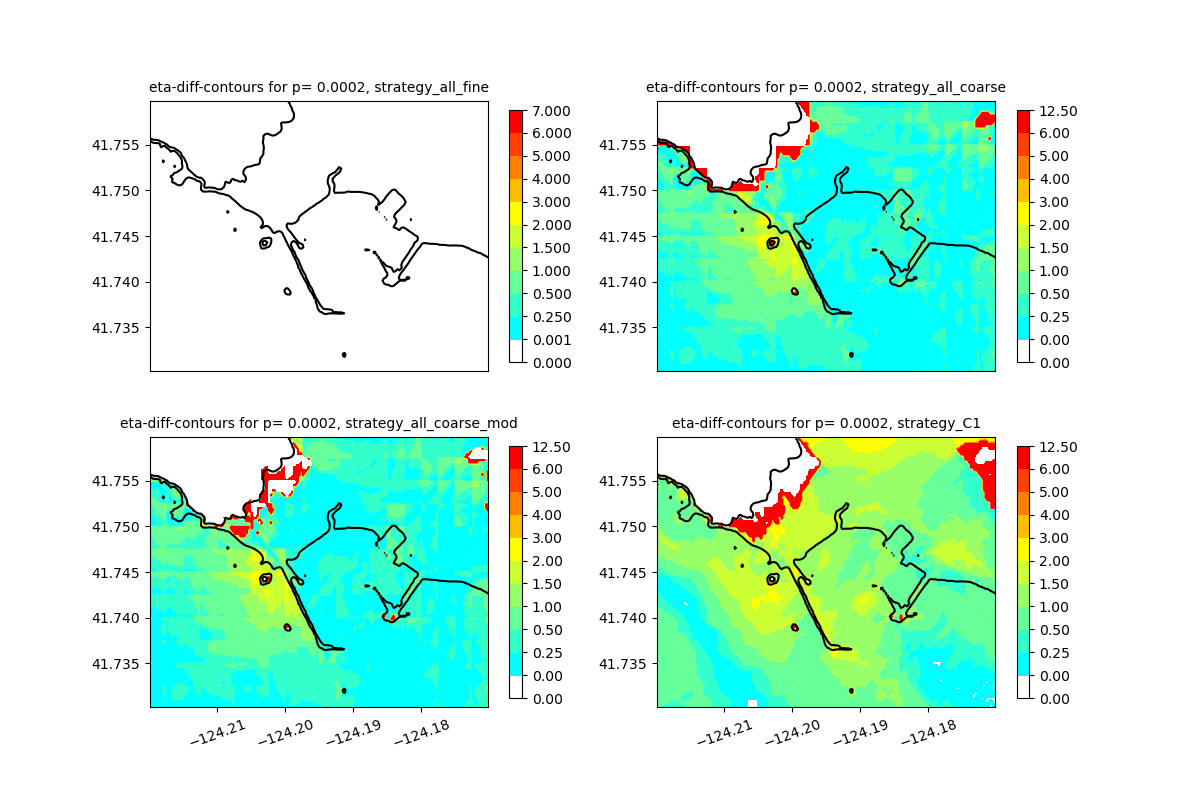

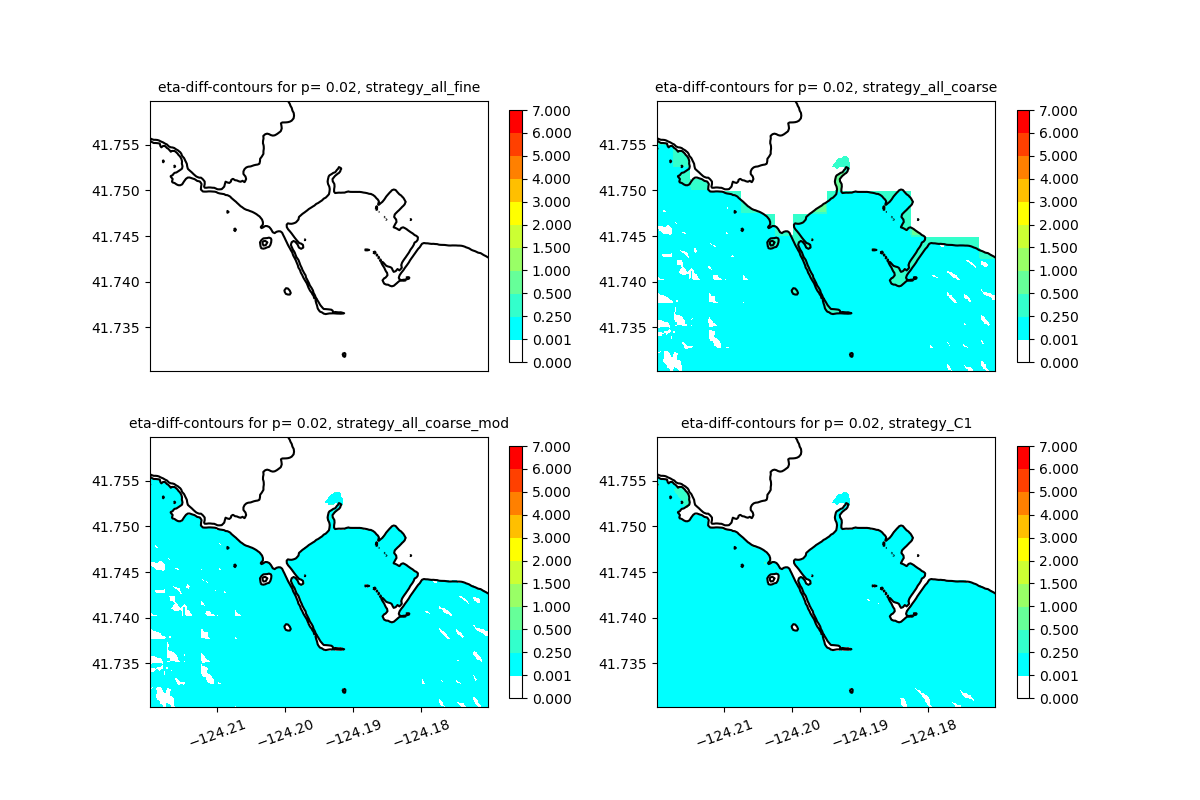

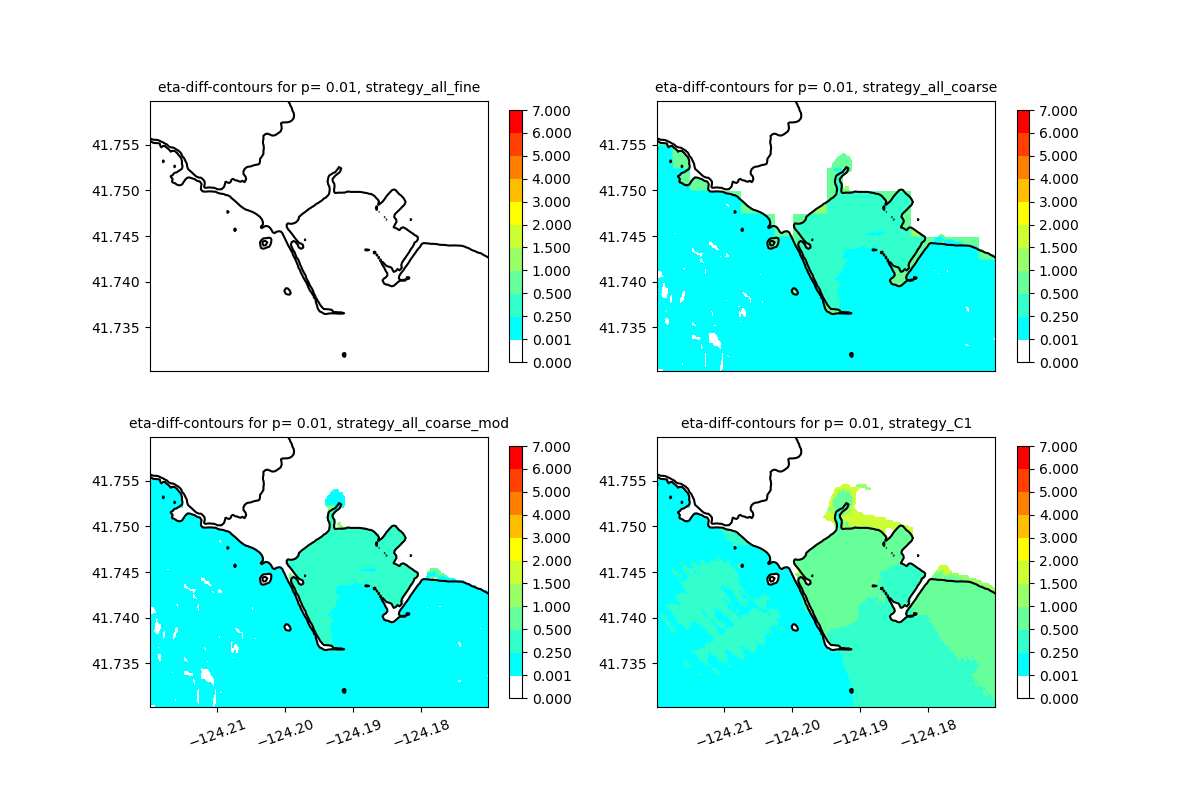

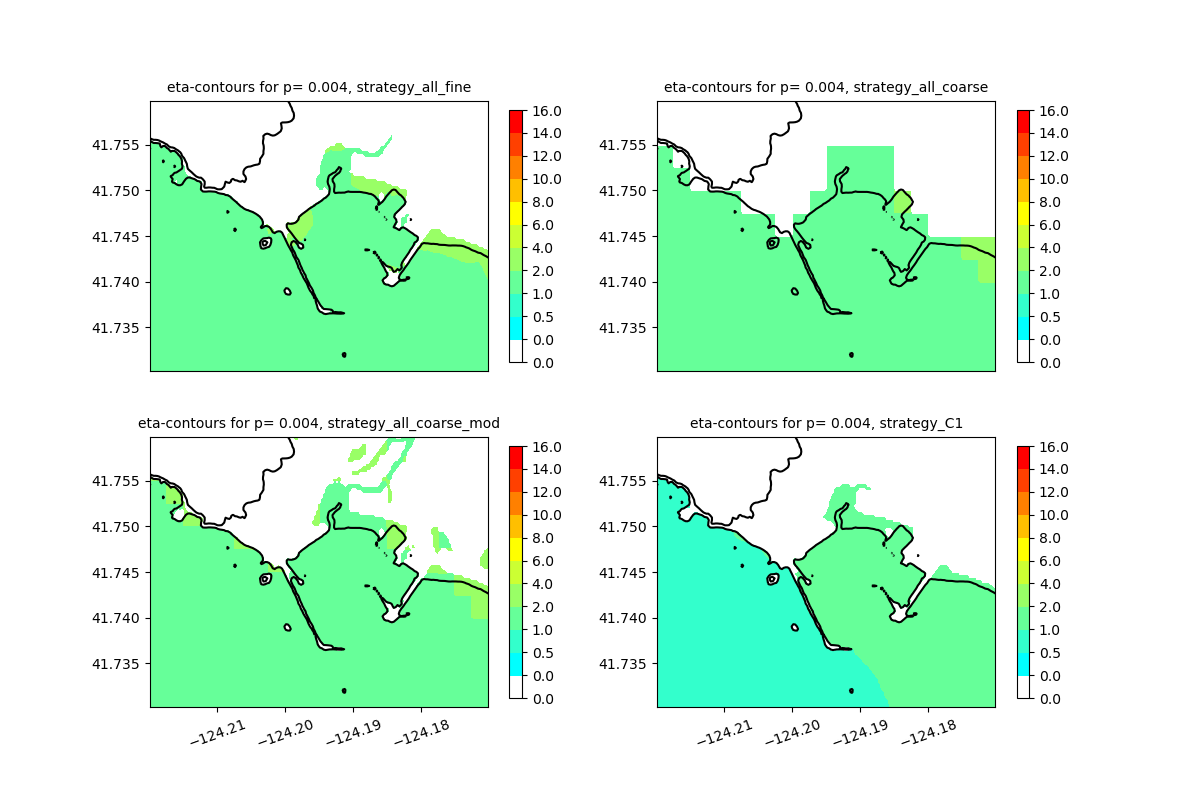

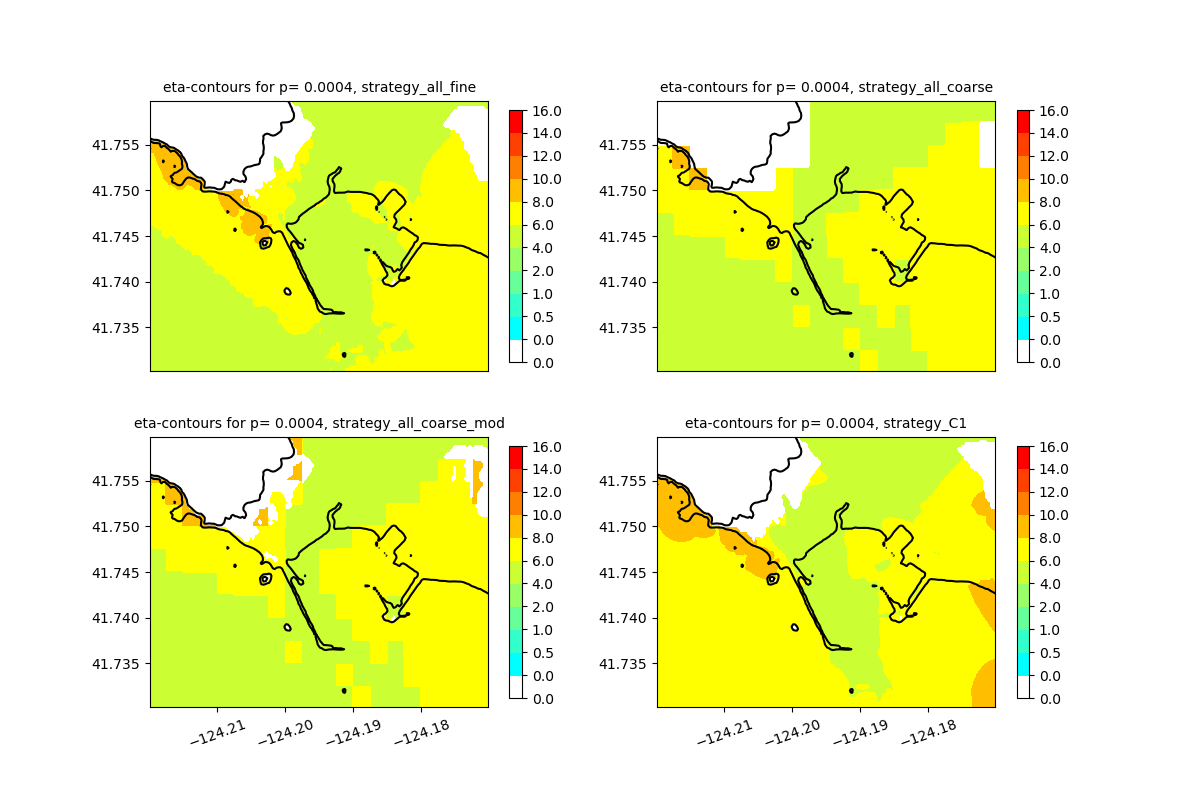

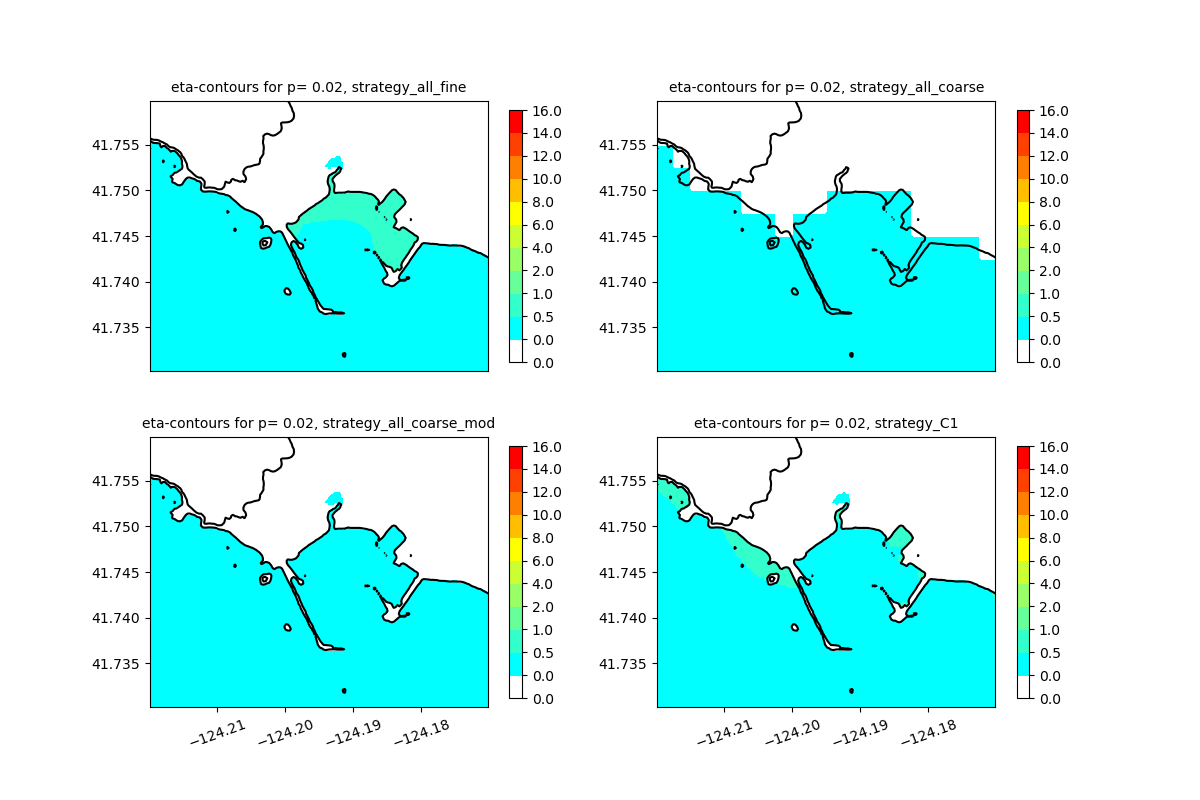

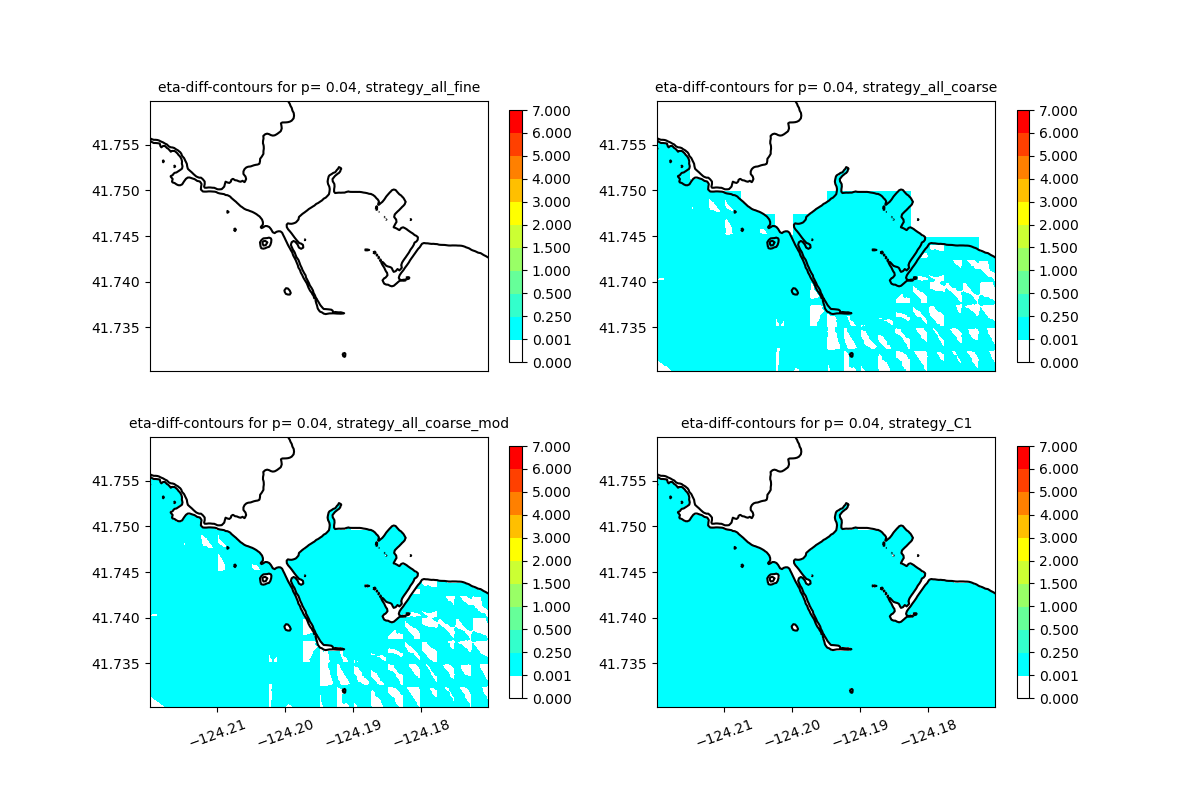

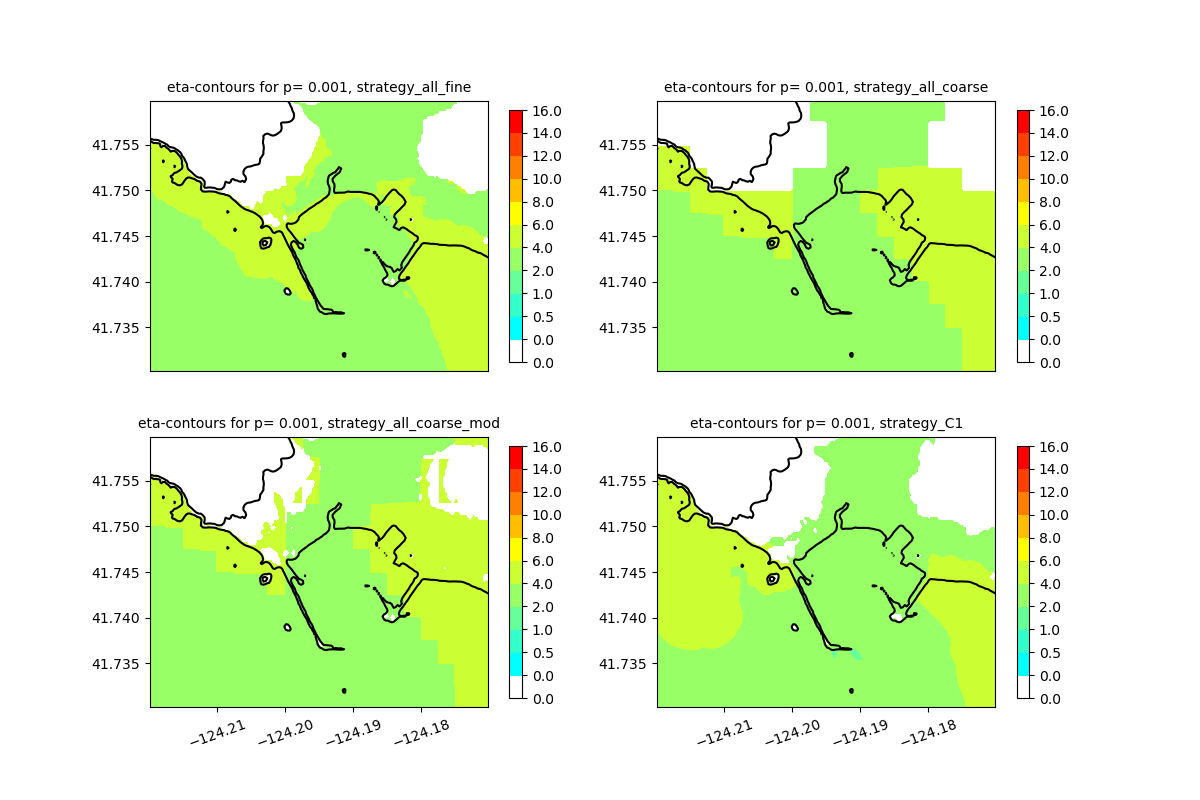

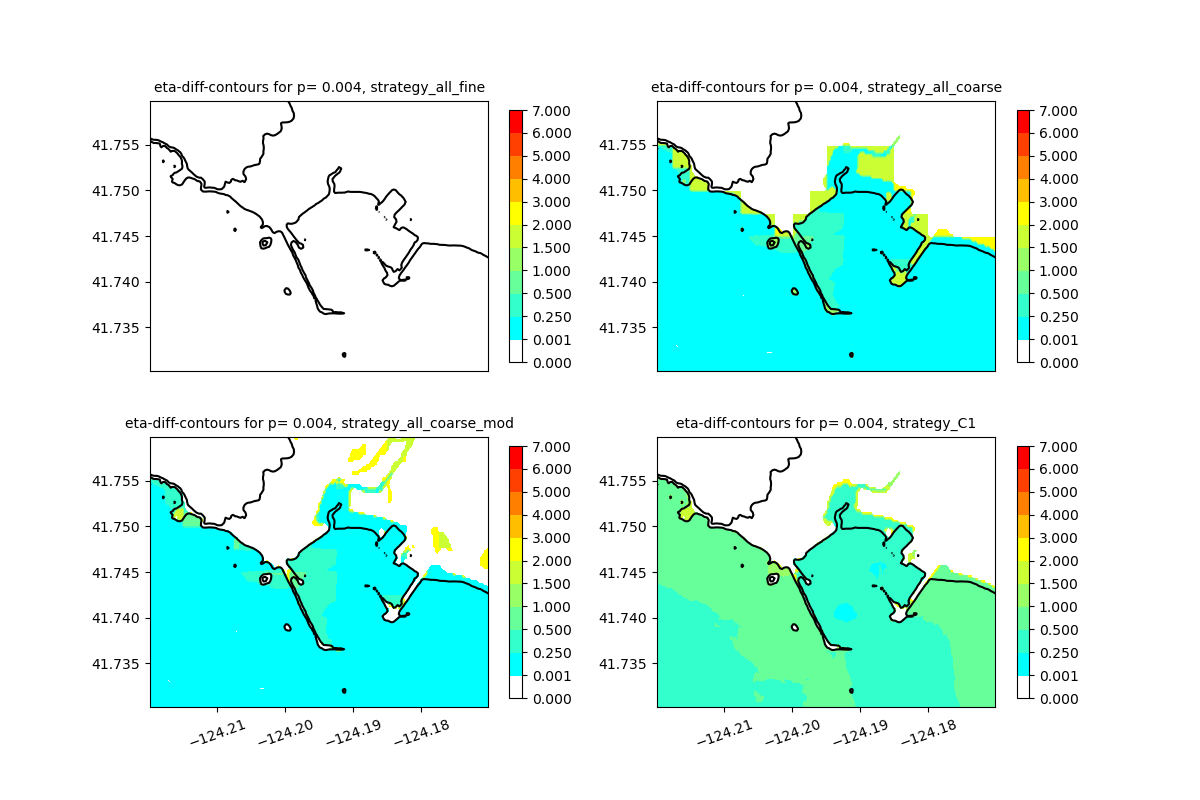

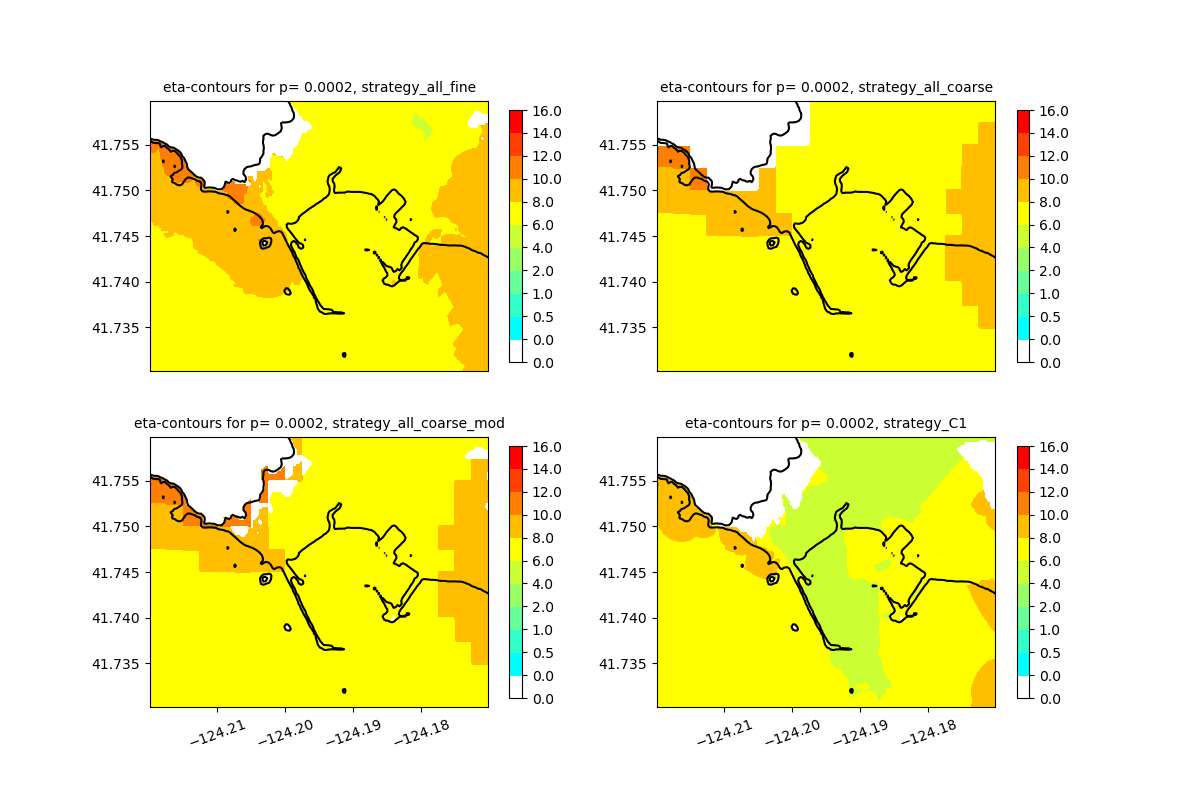

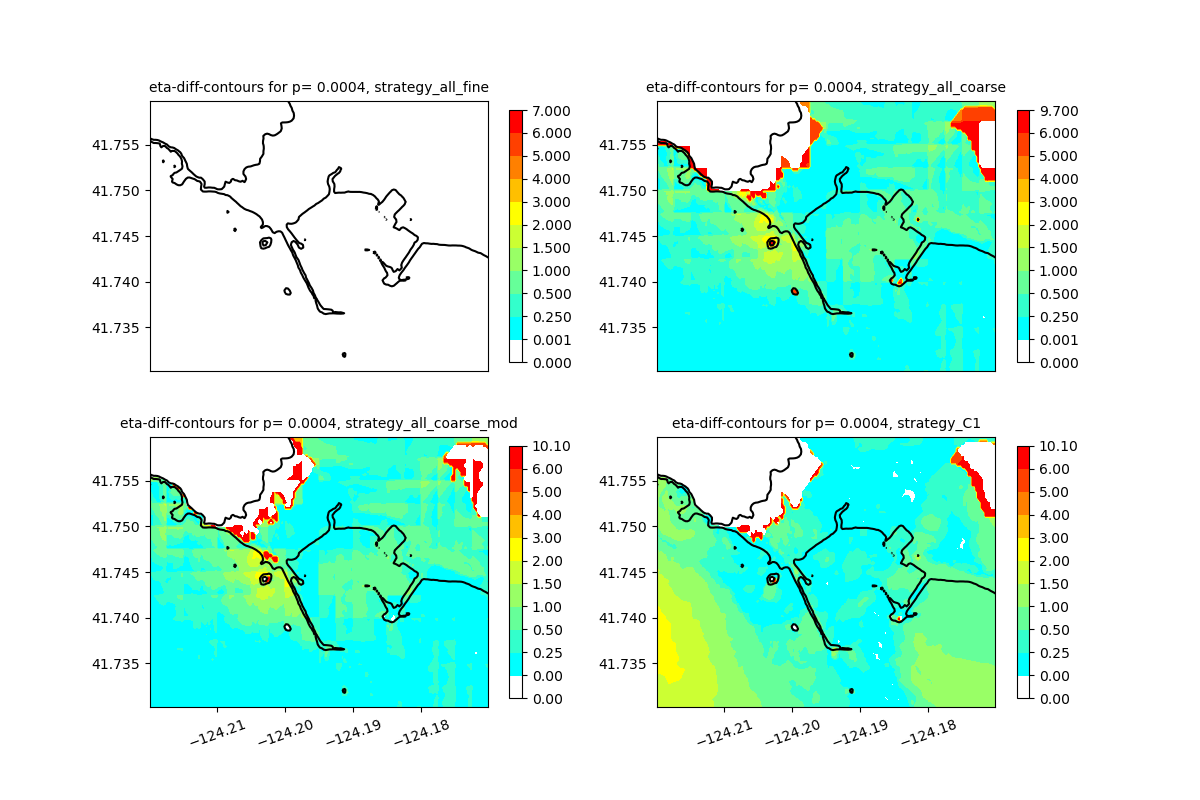

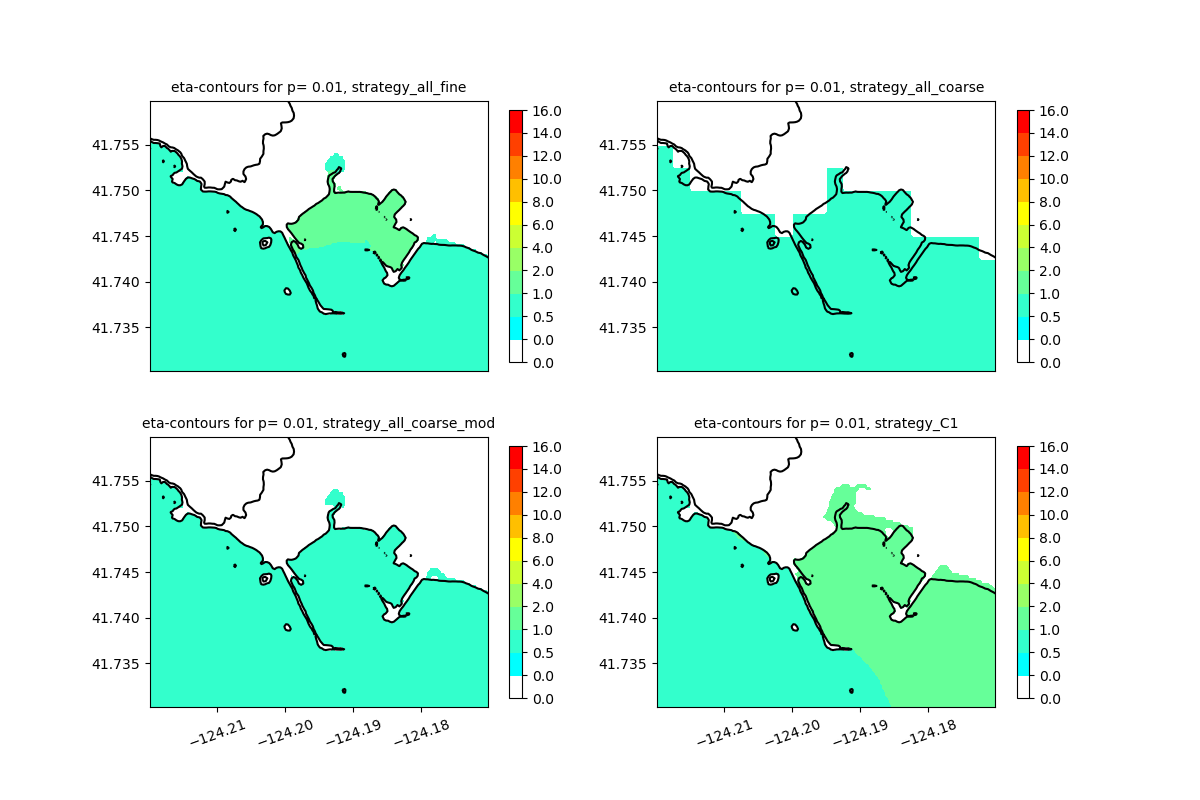

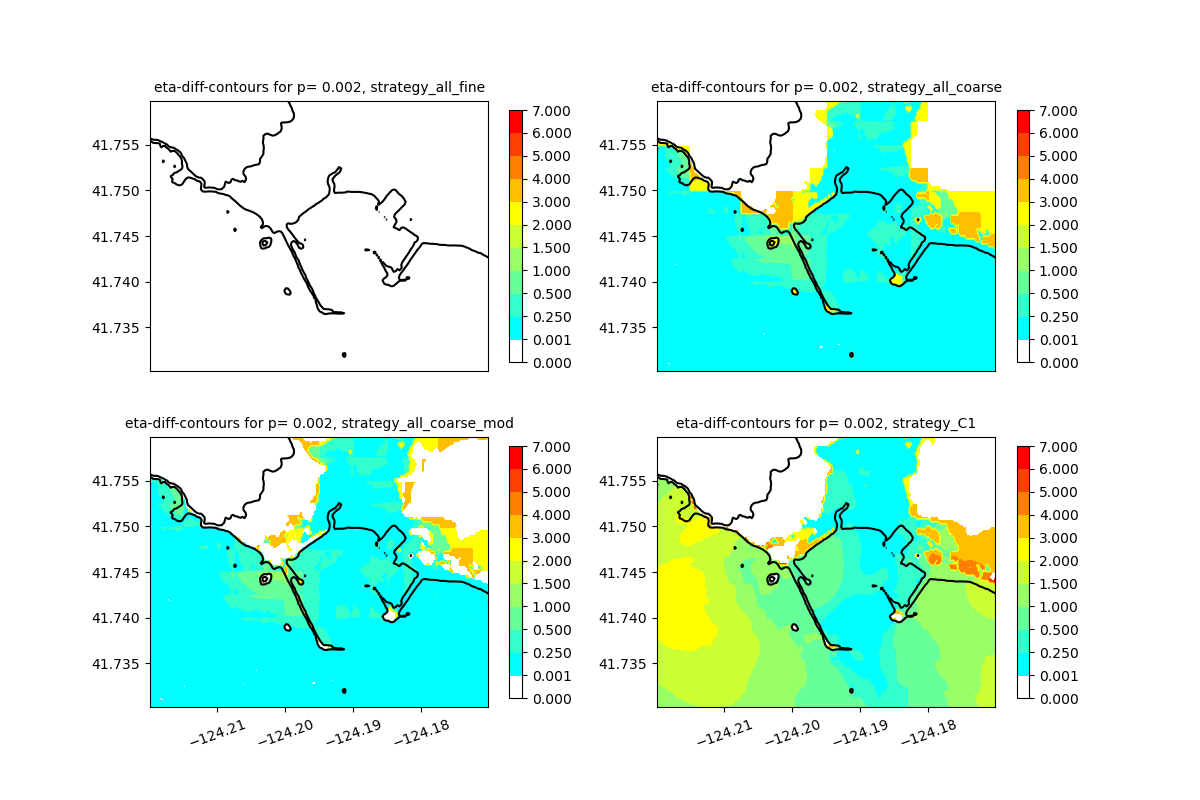

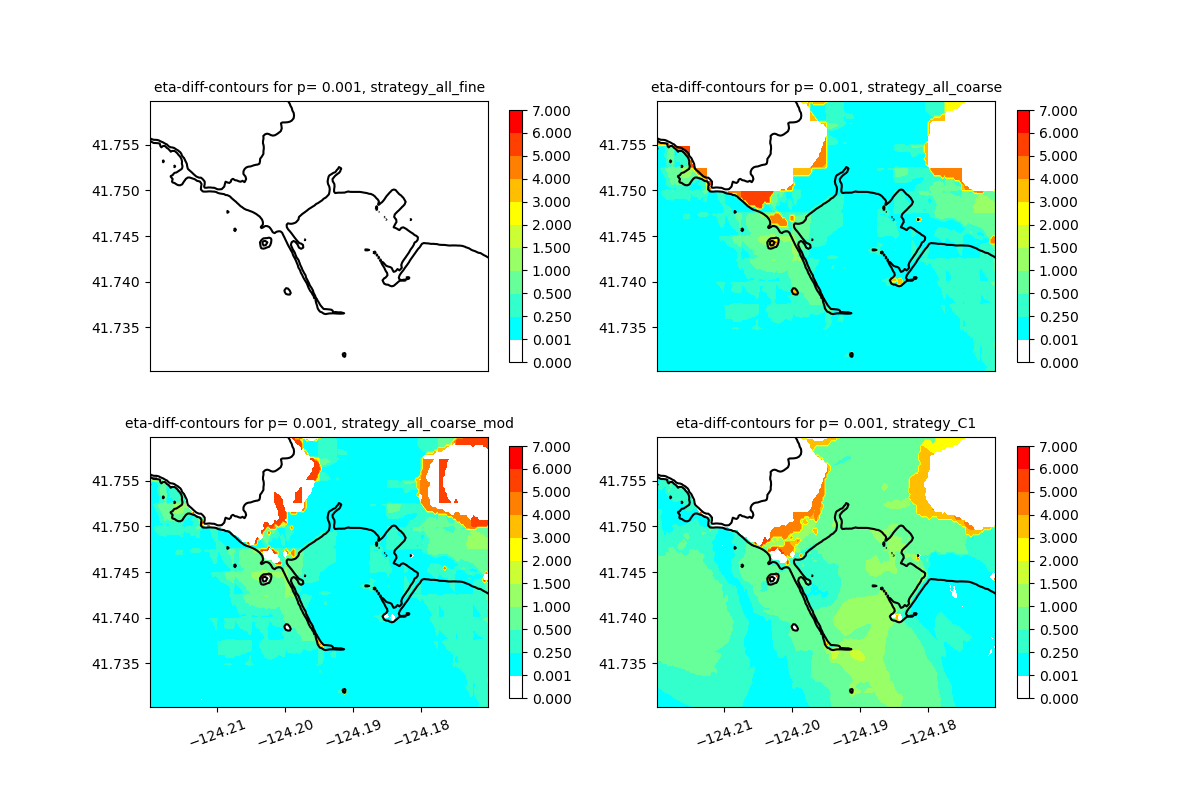

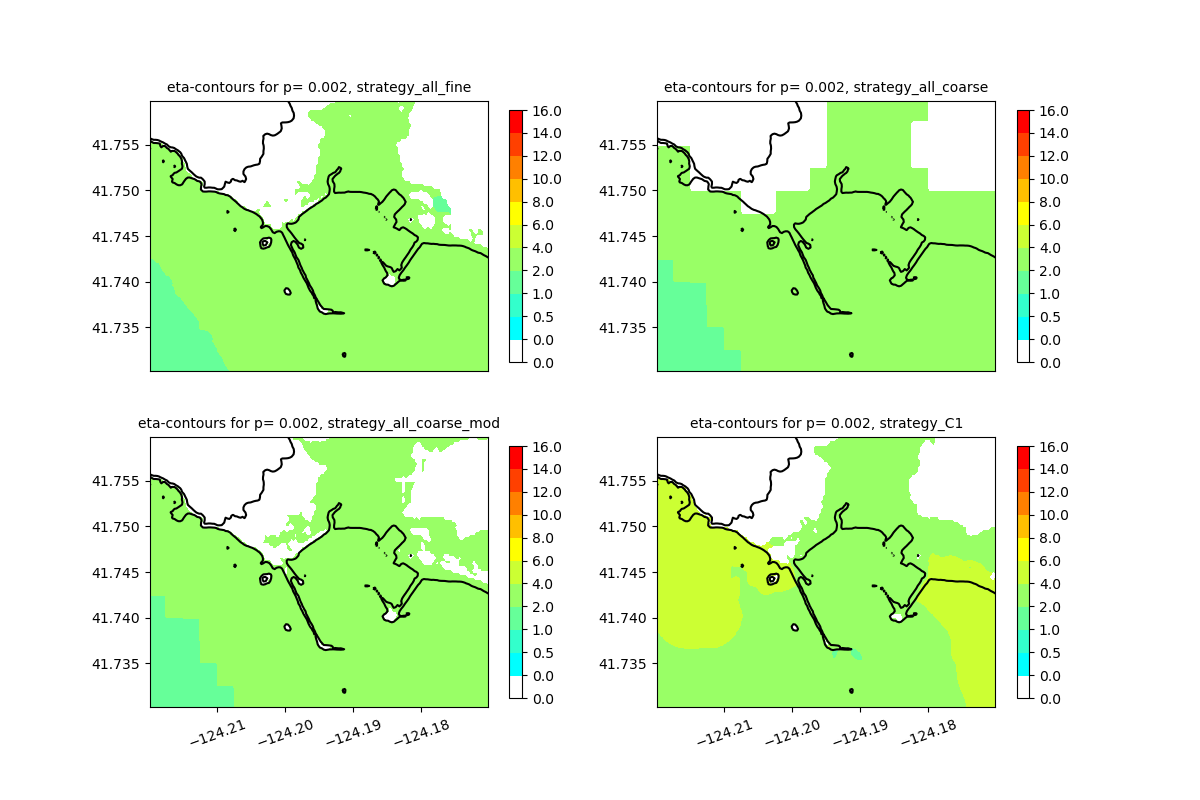

Eta contours for different probabilities (and errors)
Eta = h+B0 everywhere (B0 = original topo)

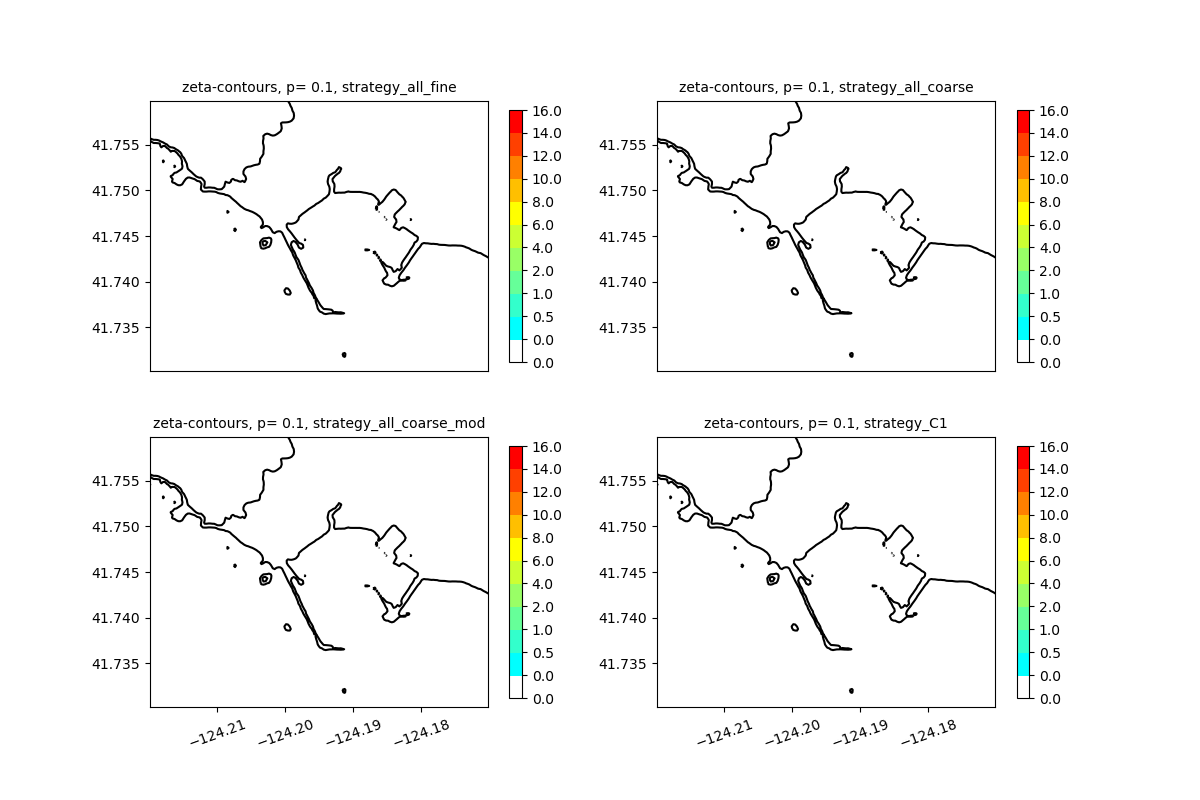

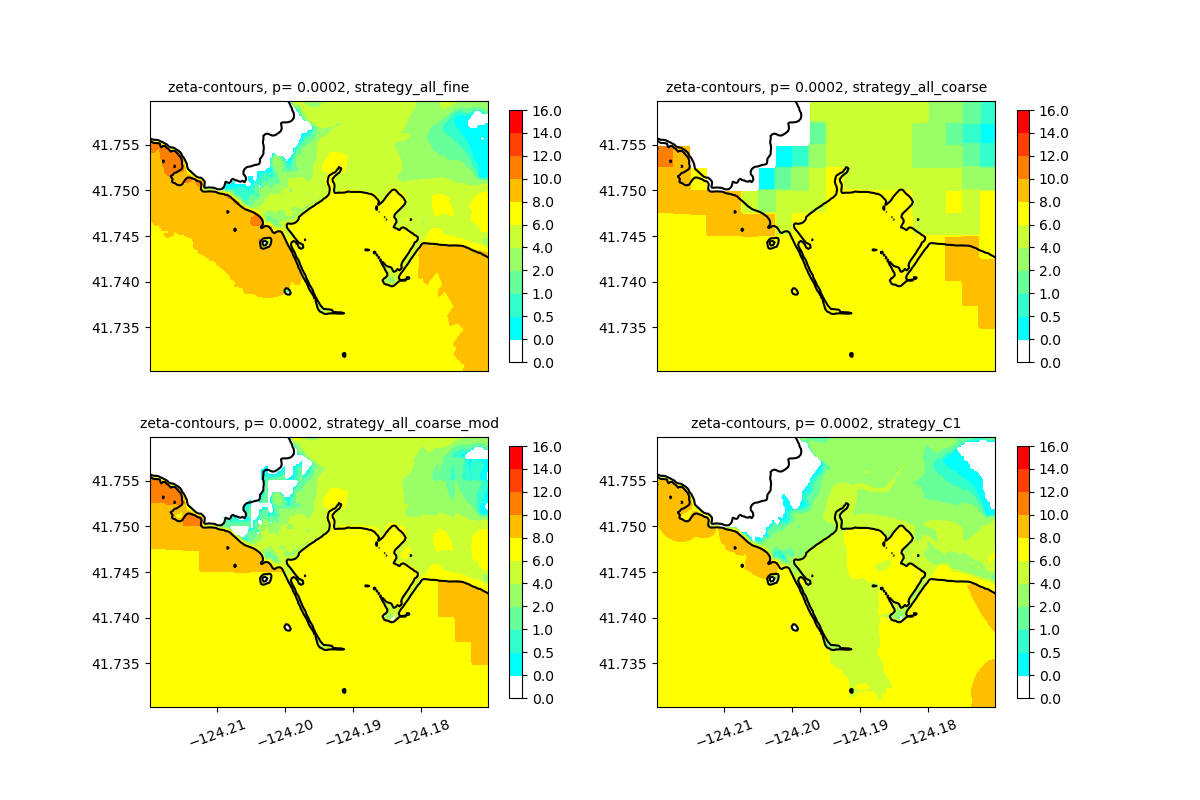

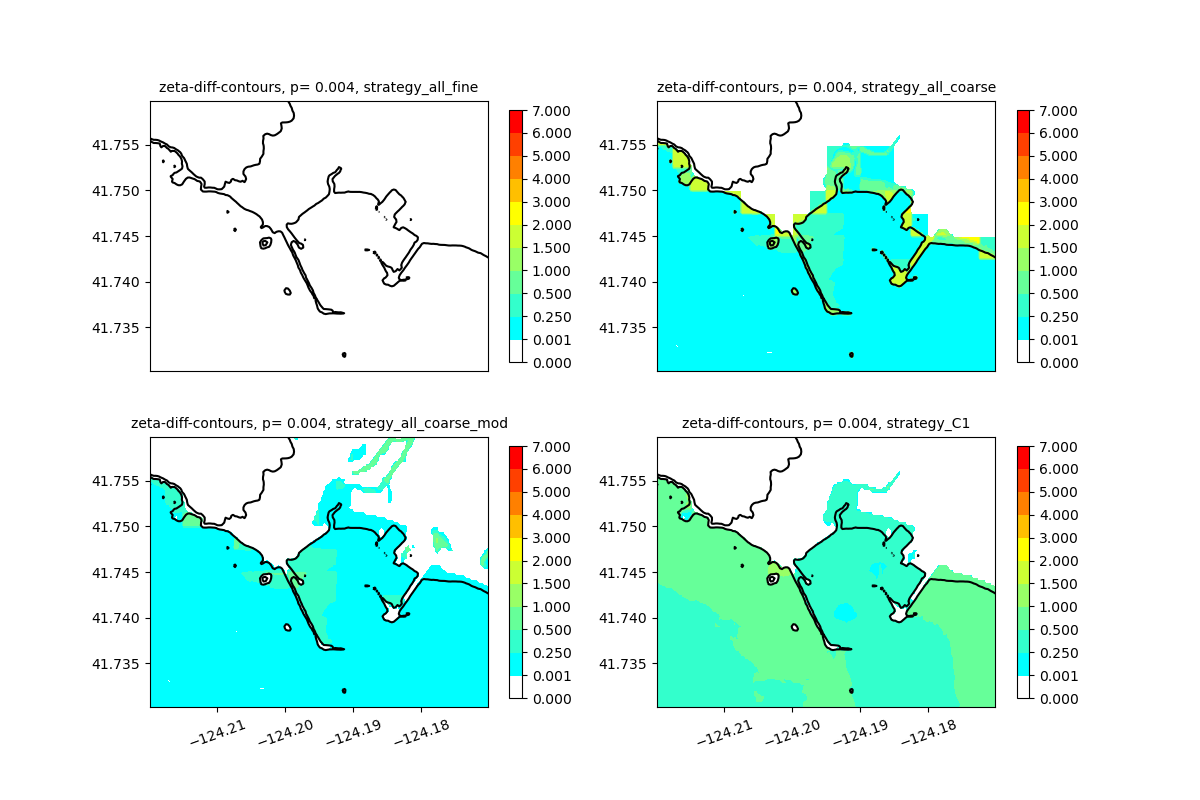

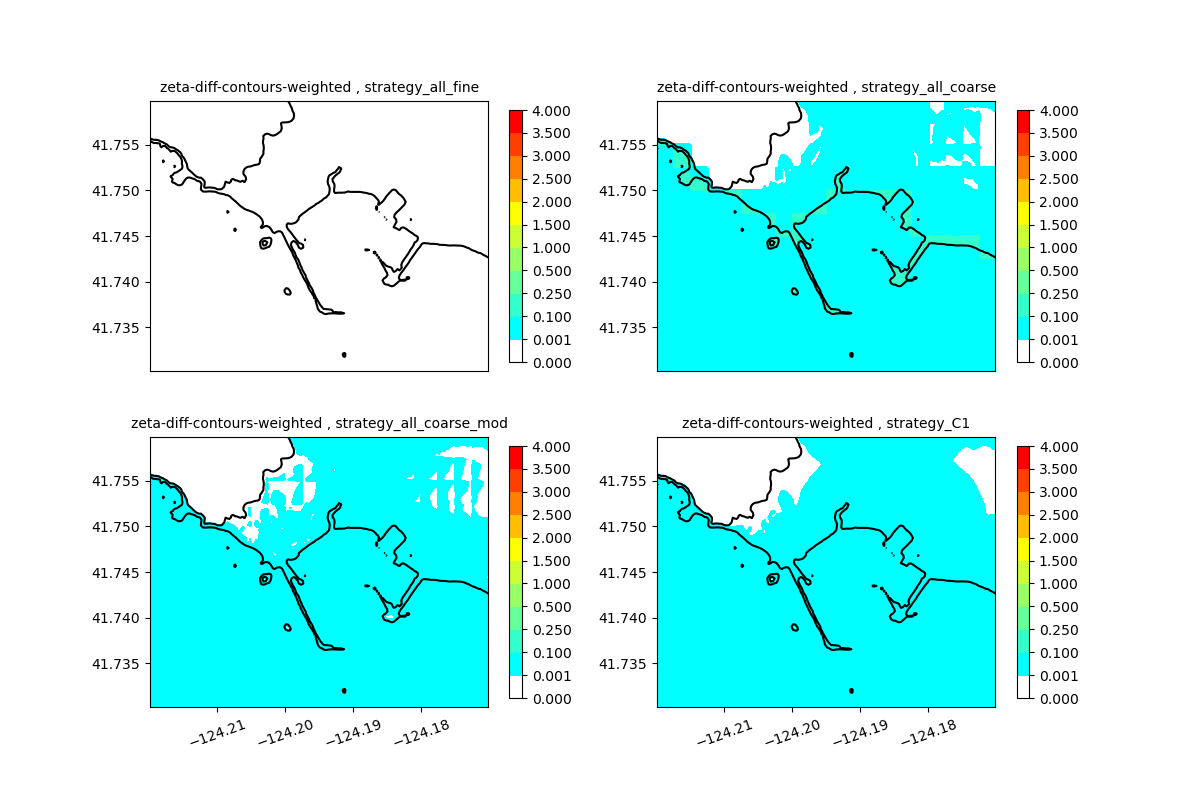

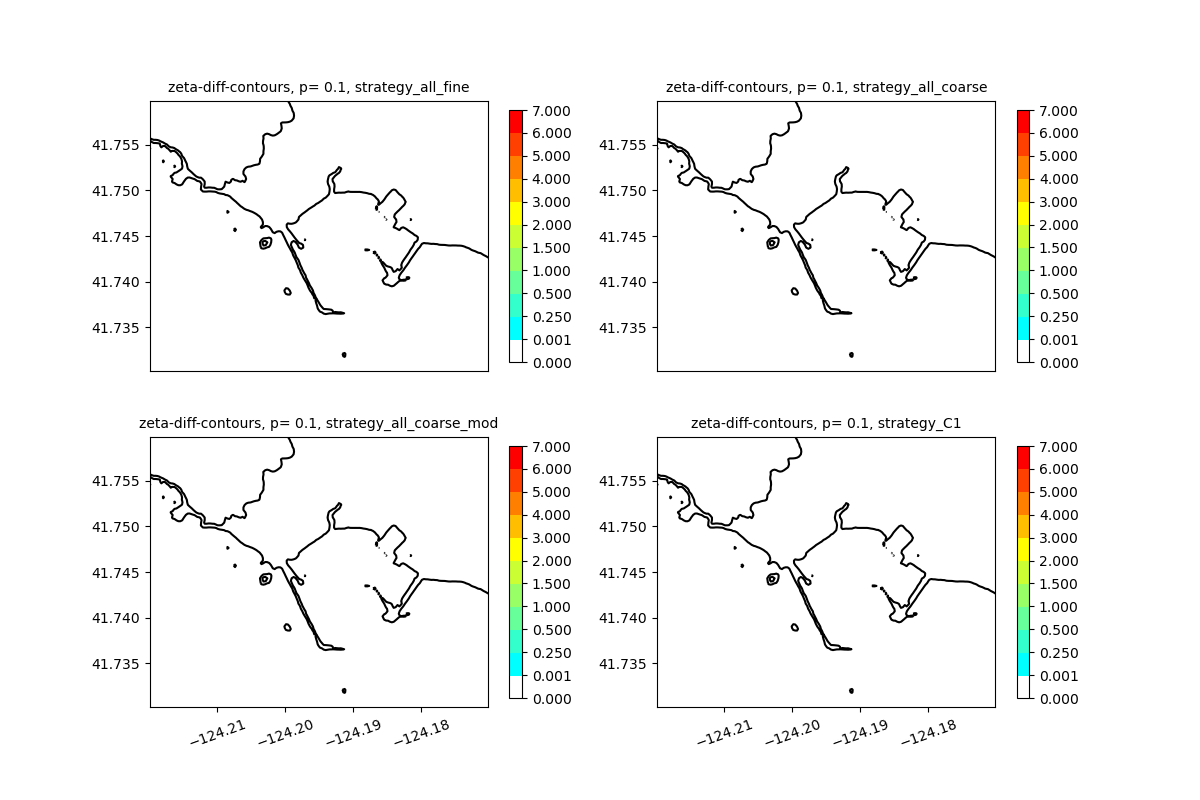

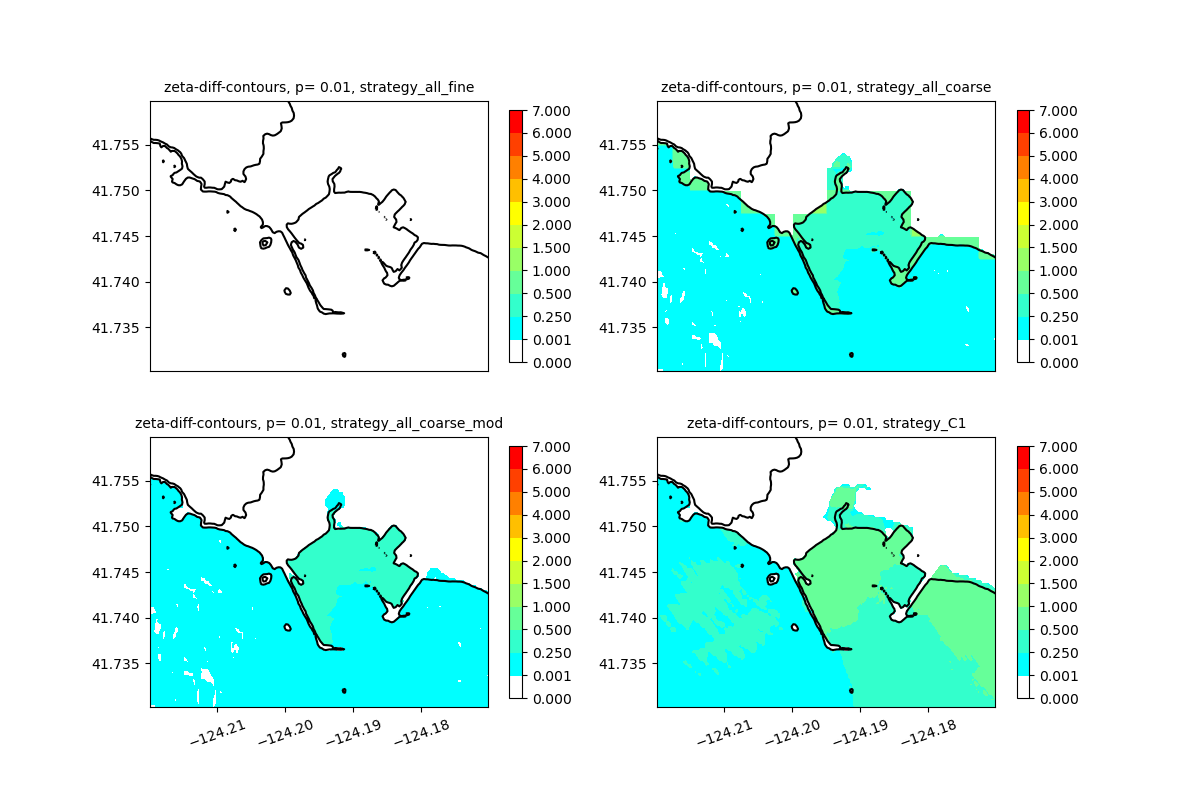

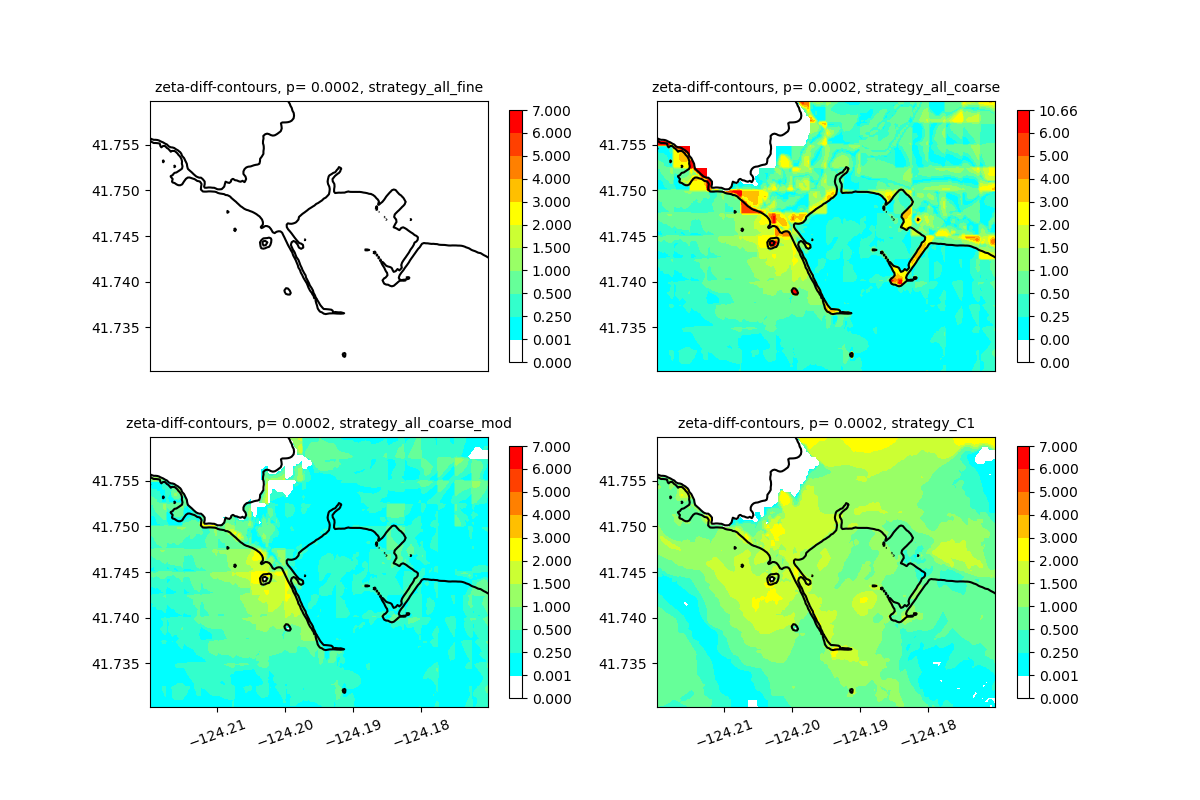

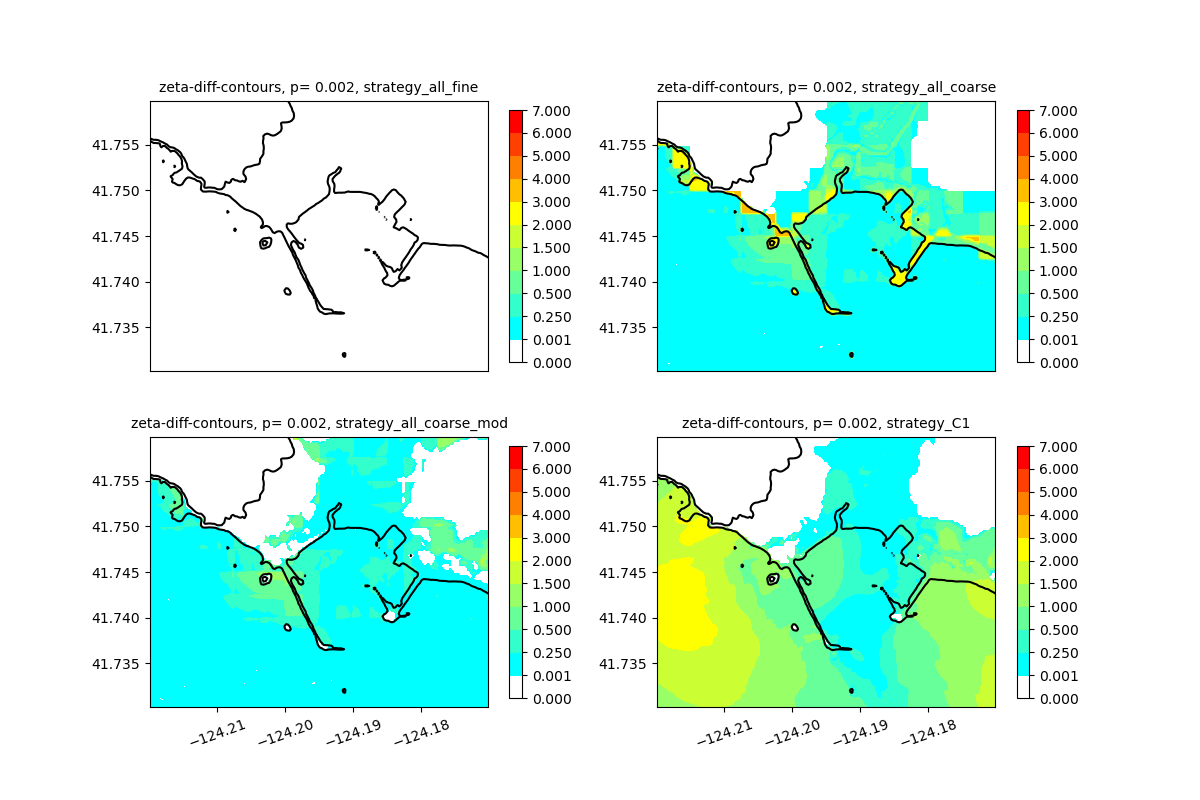

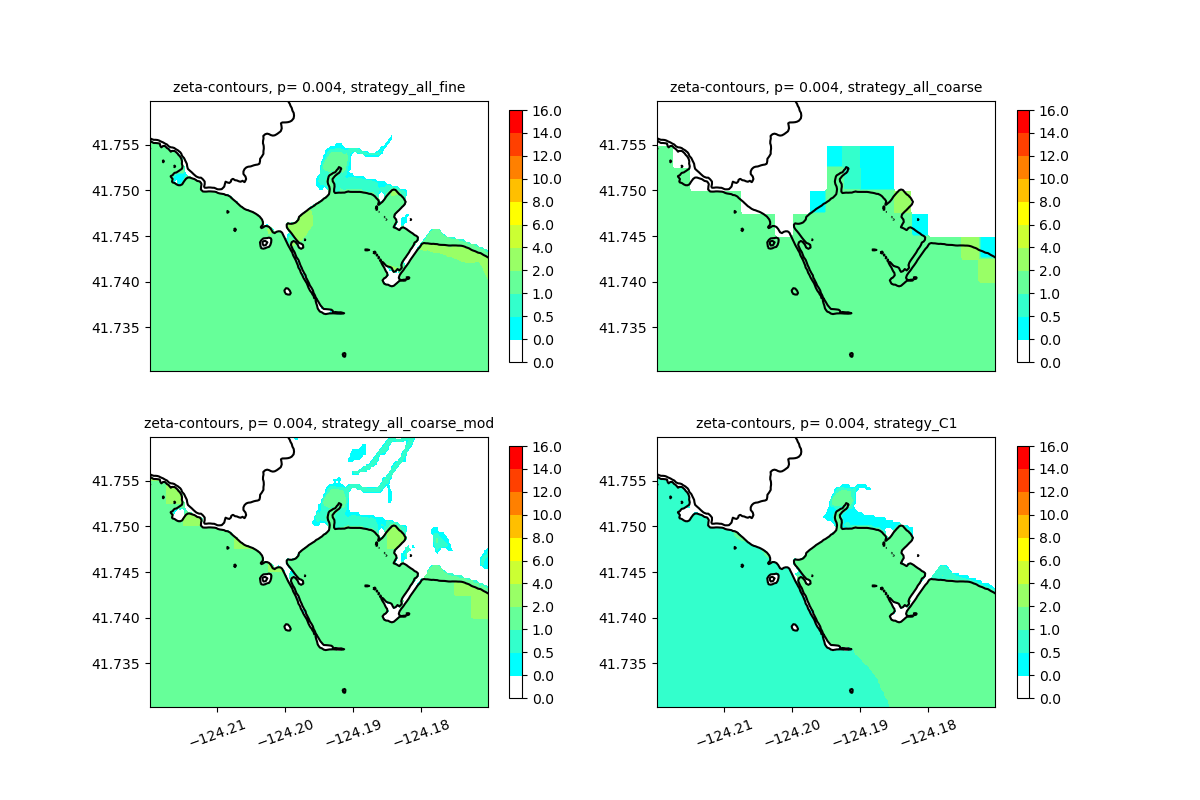

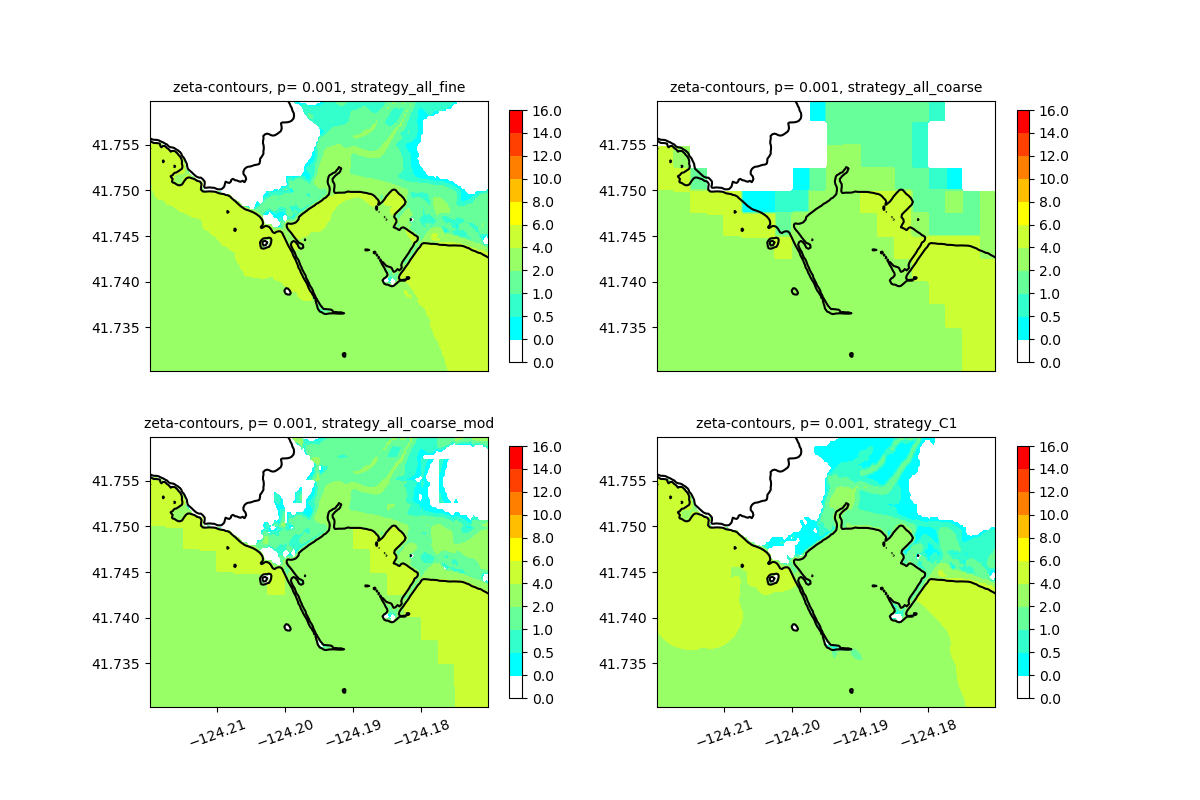

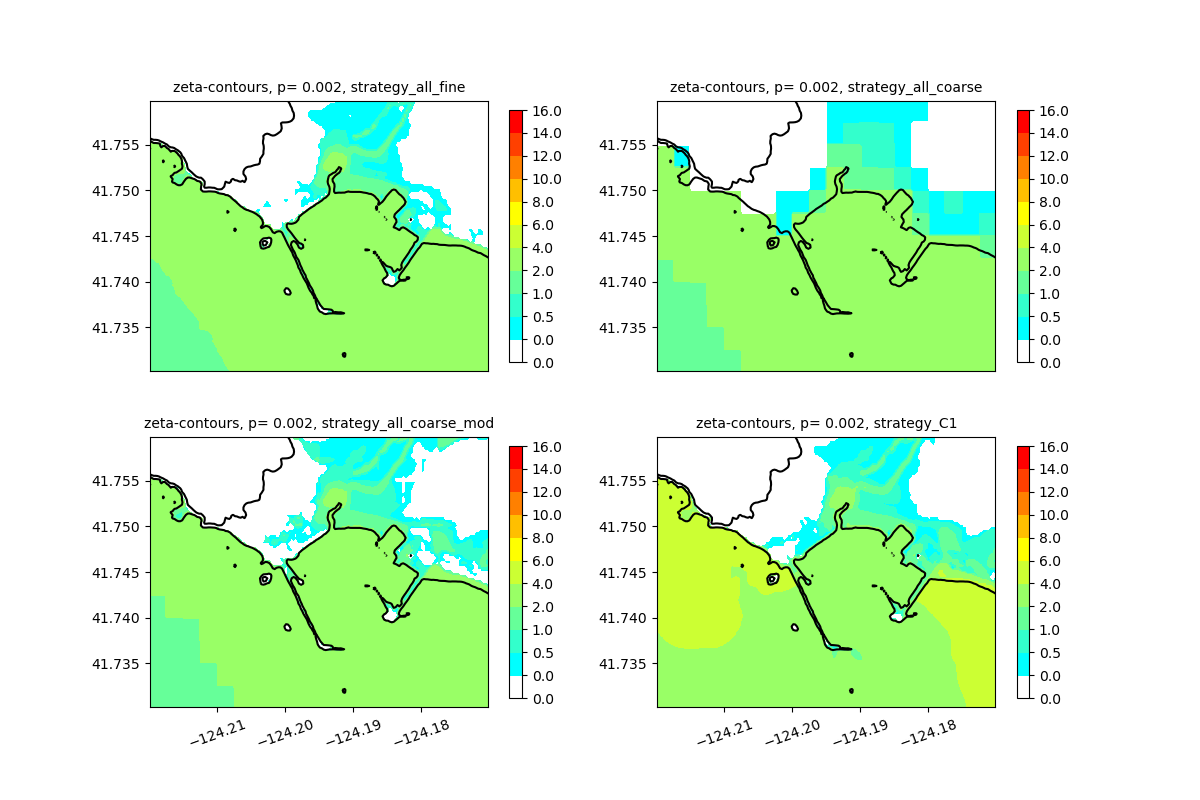

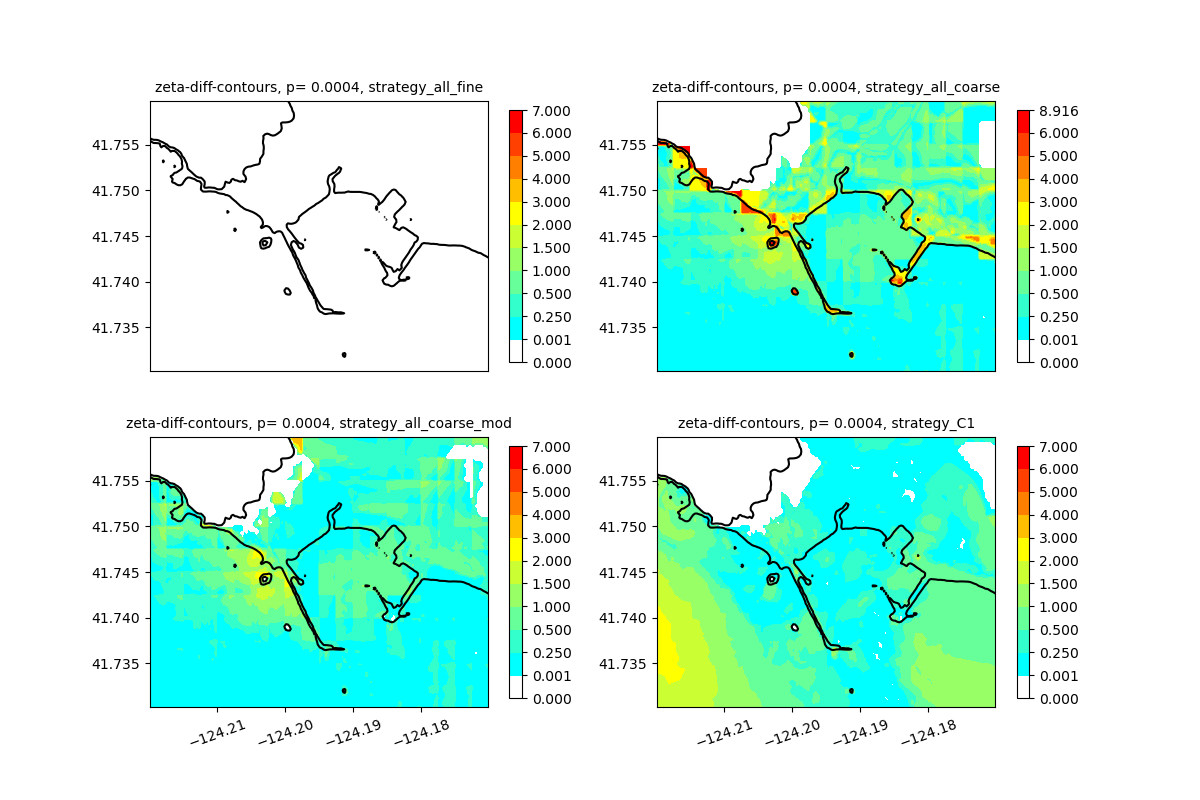

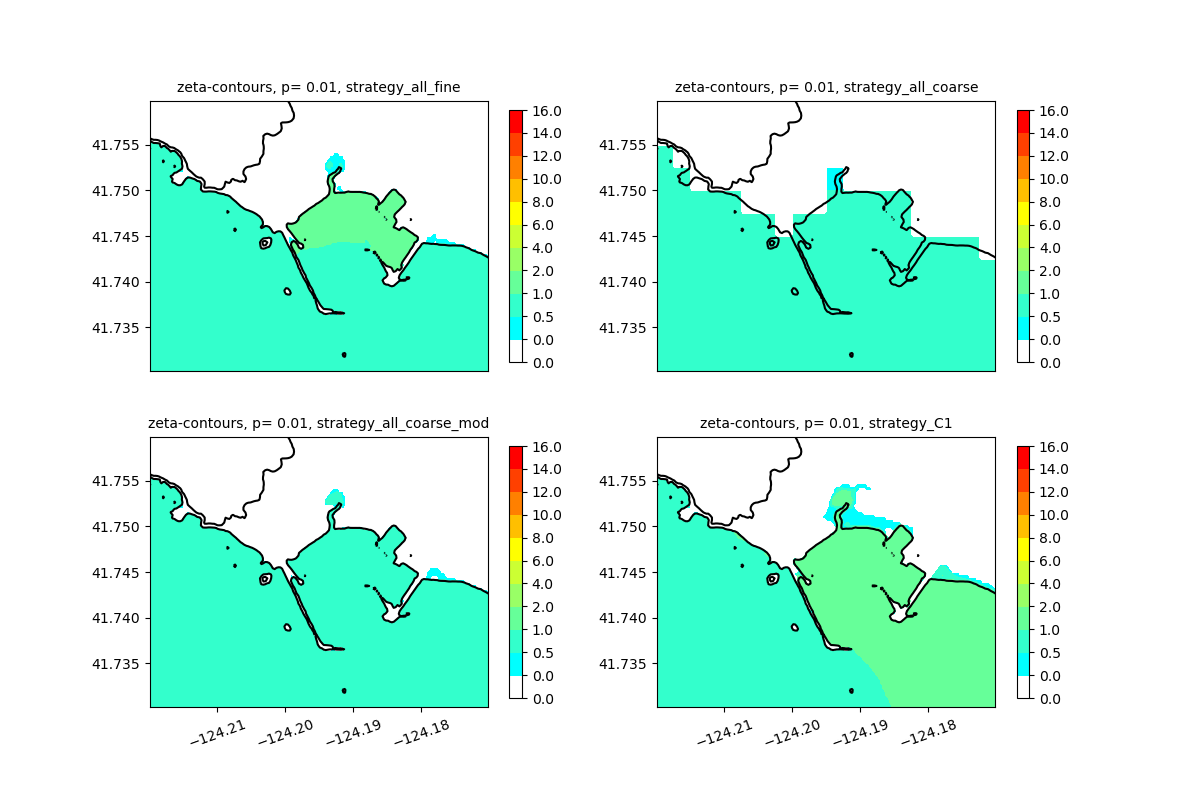

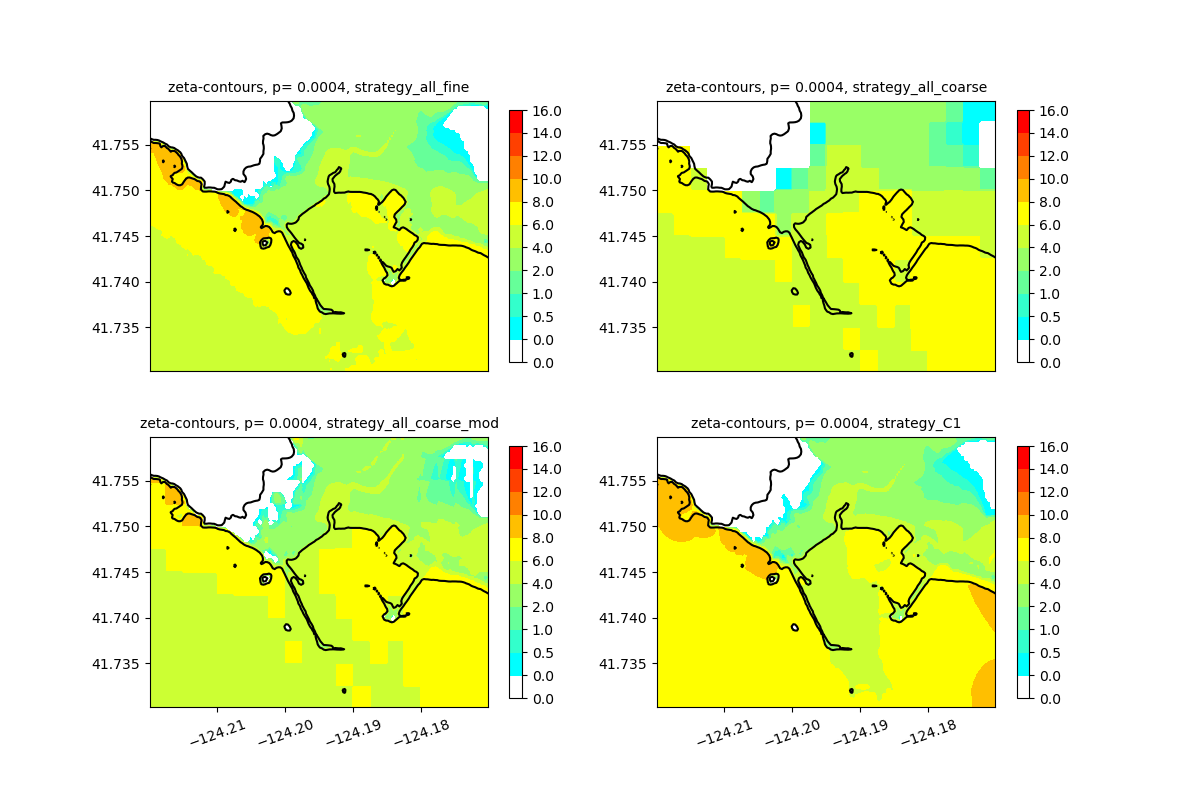

Zeta contours for different probabilities (and errors)
Zeta = h on land (where B0 > 0), Zeta = Eta = h+B0 offshore (where B0 < 0)

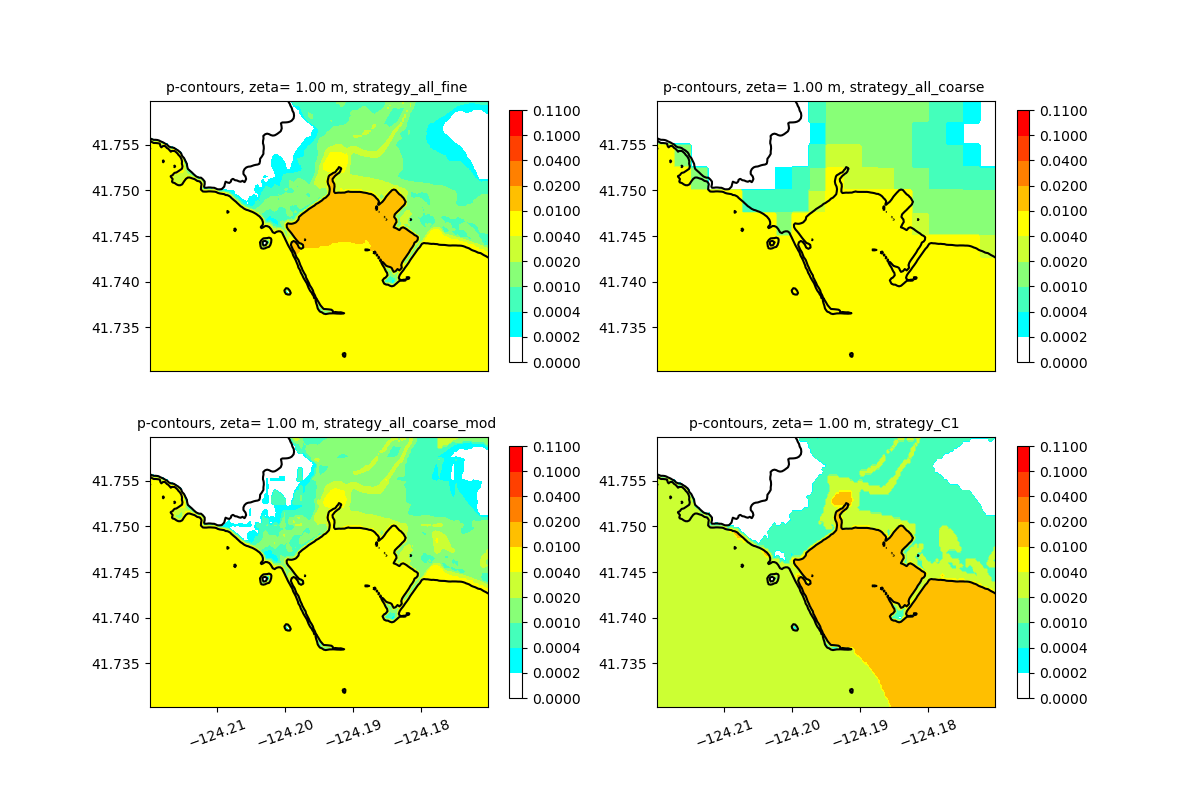

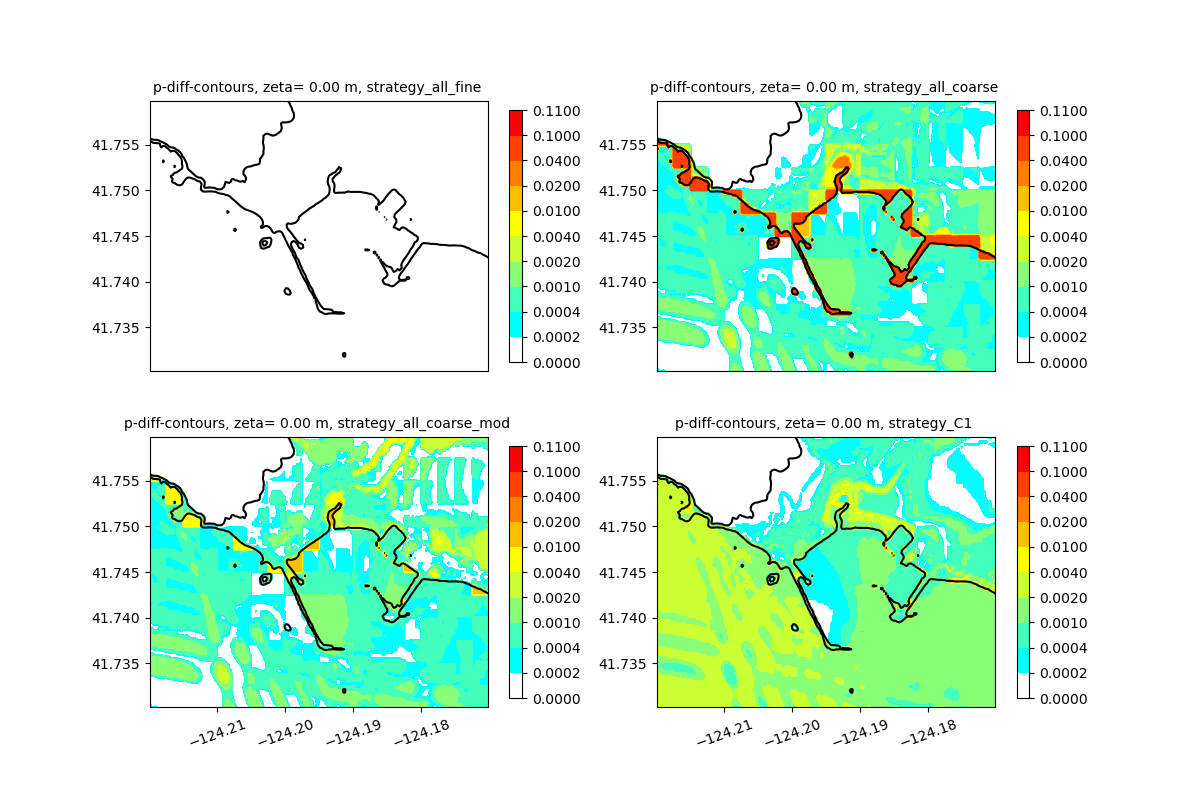

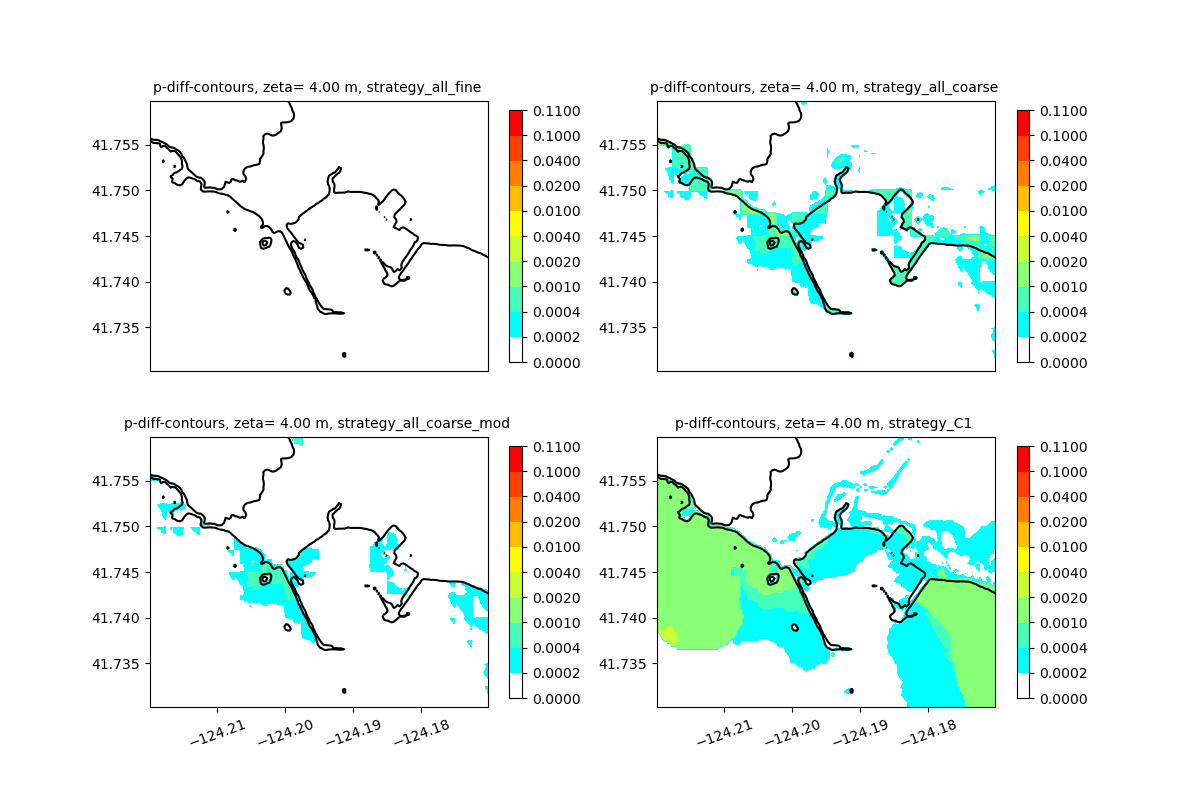

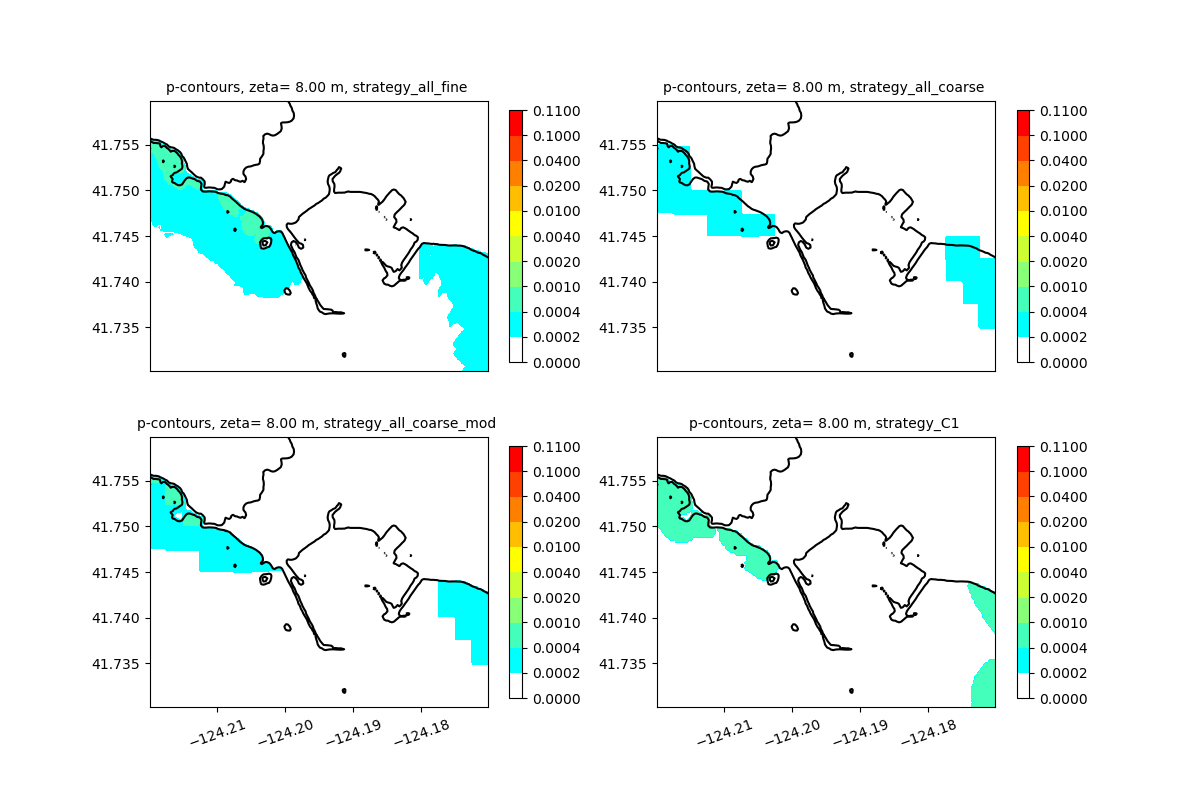

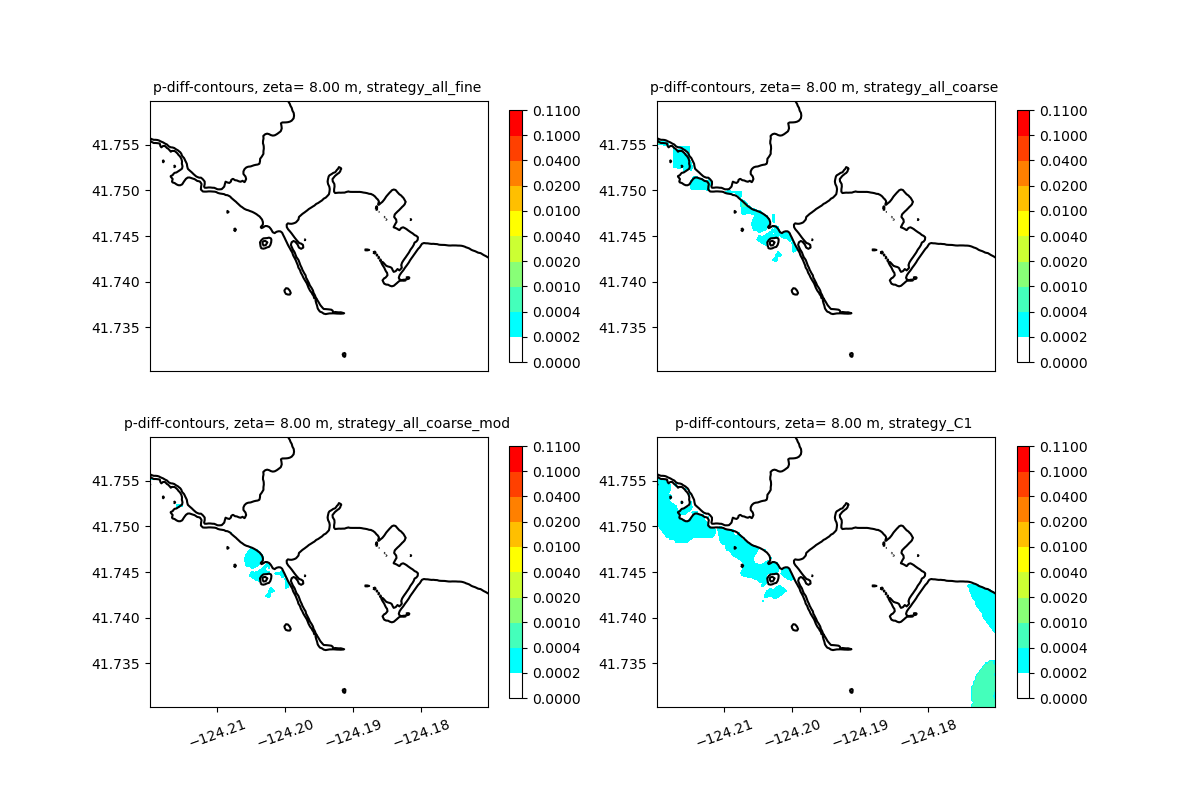

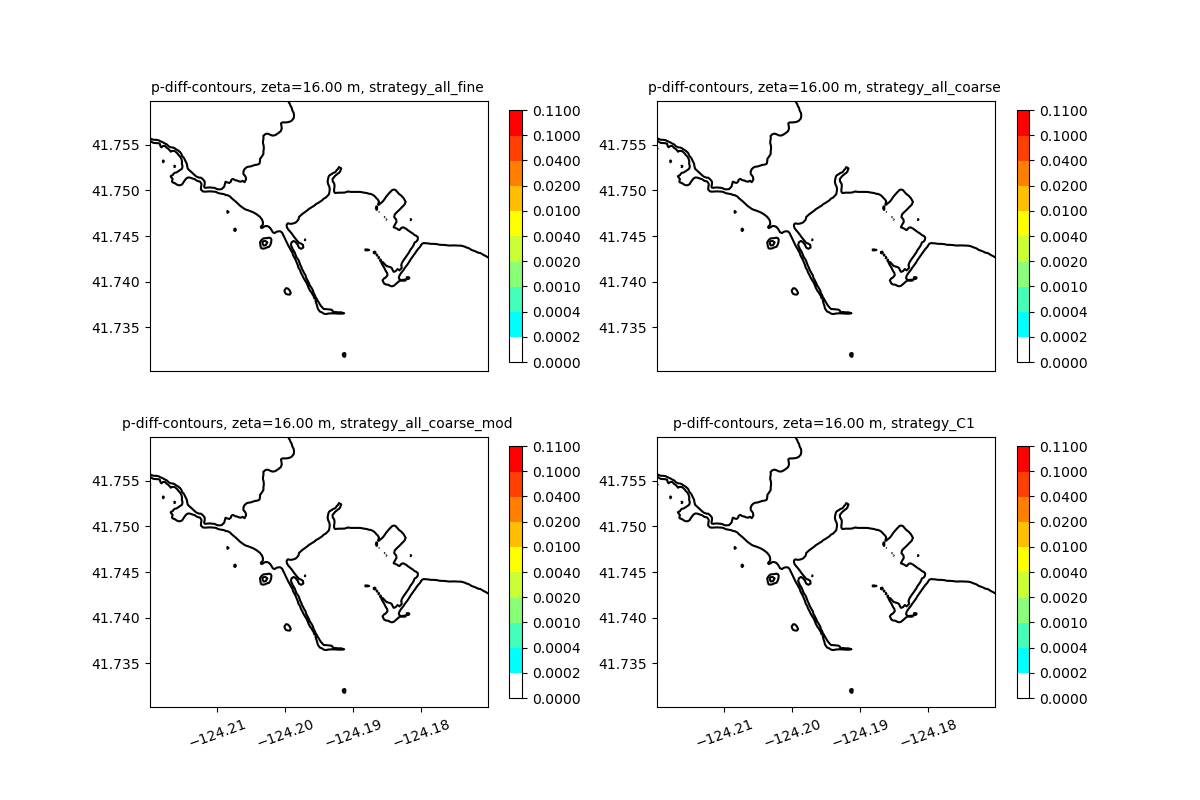

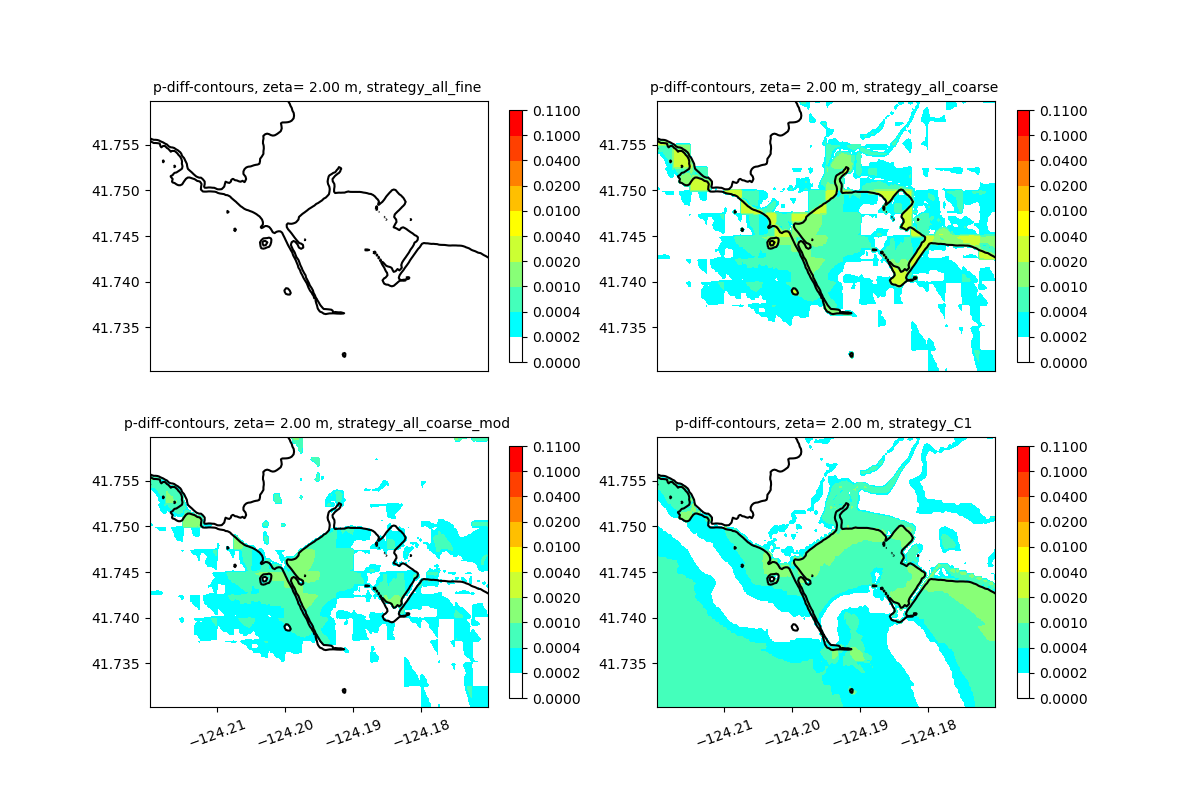

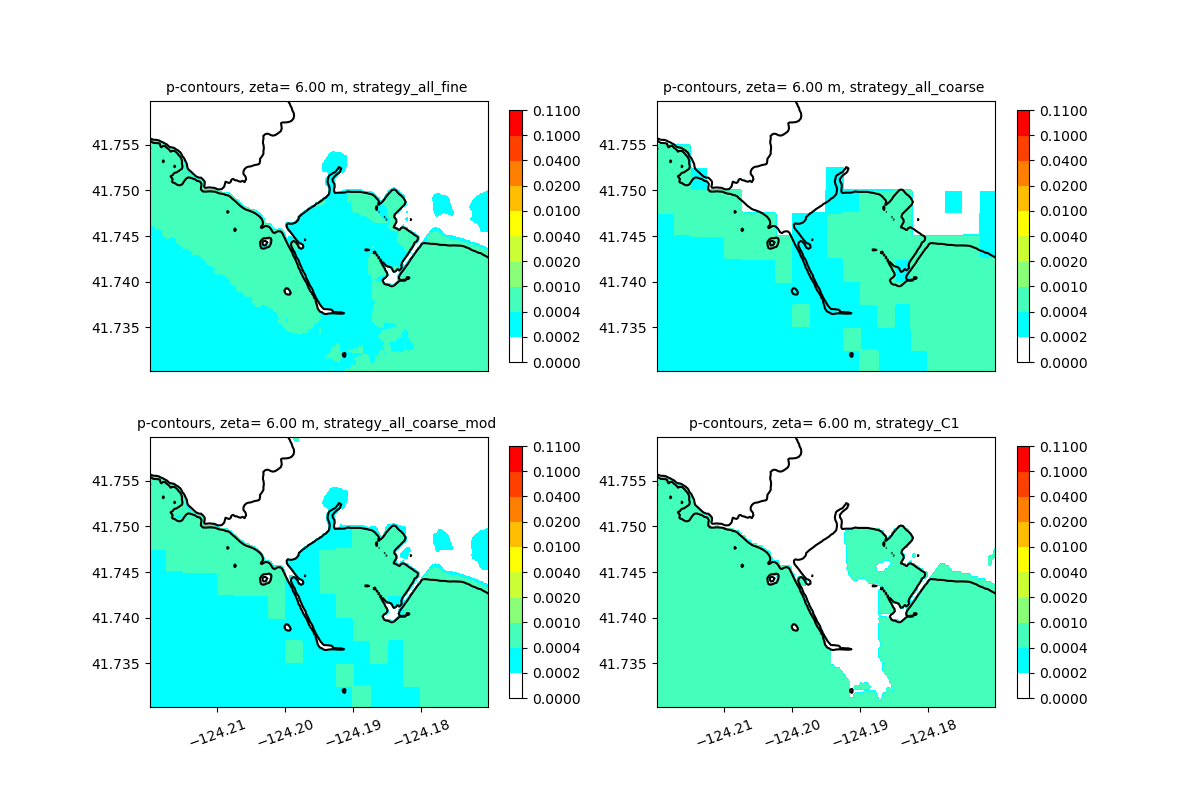

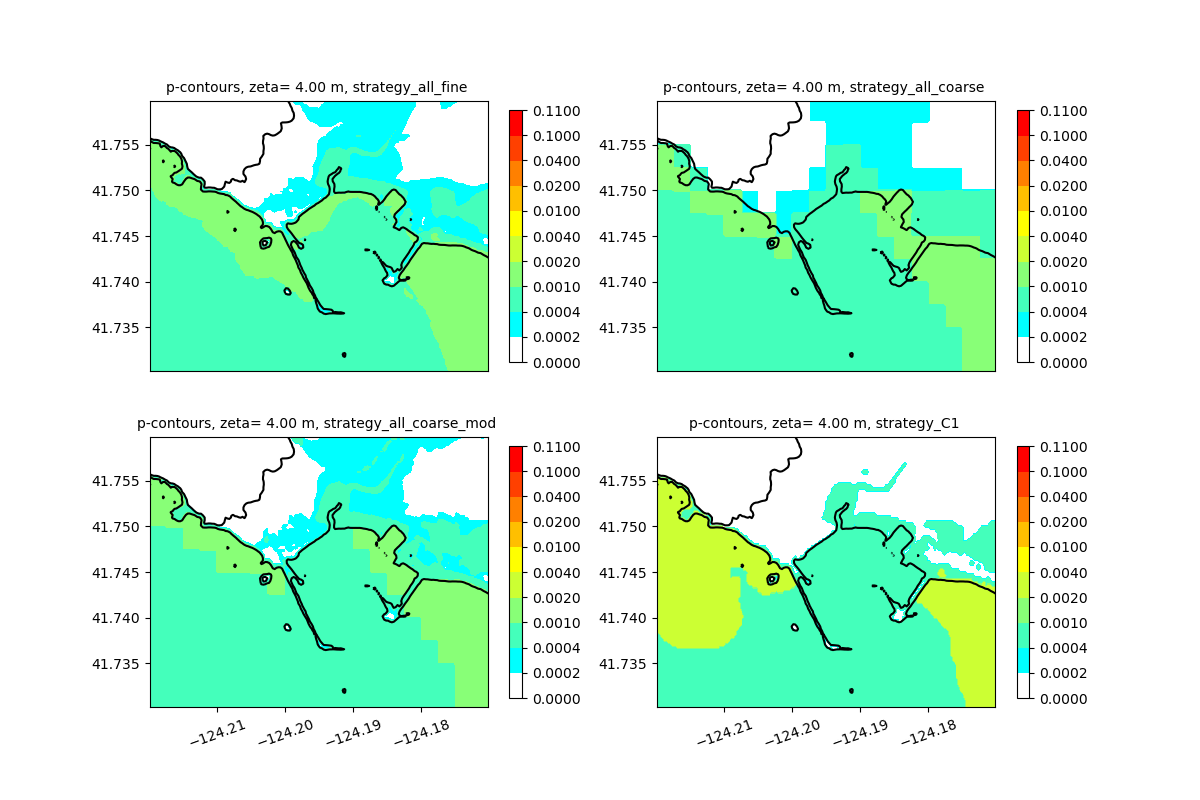

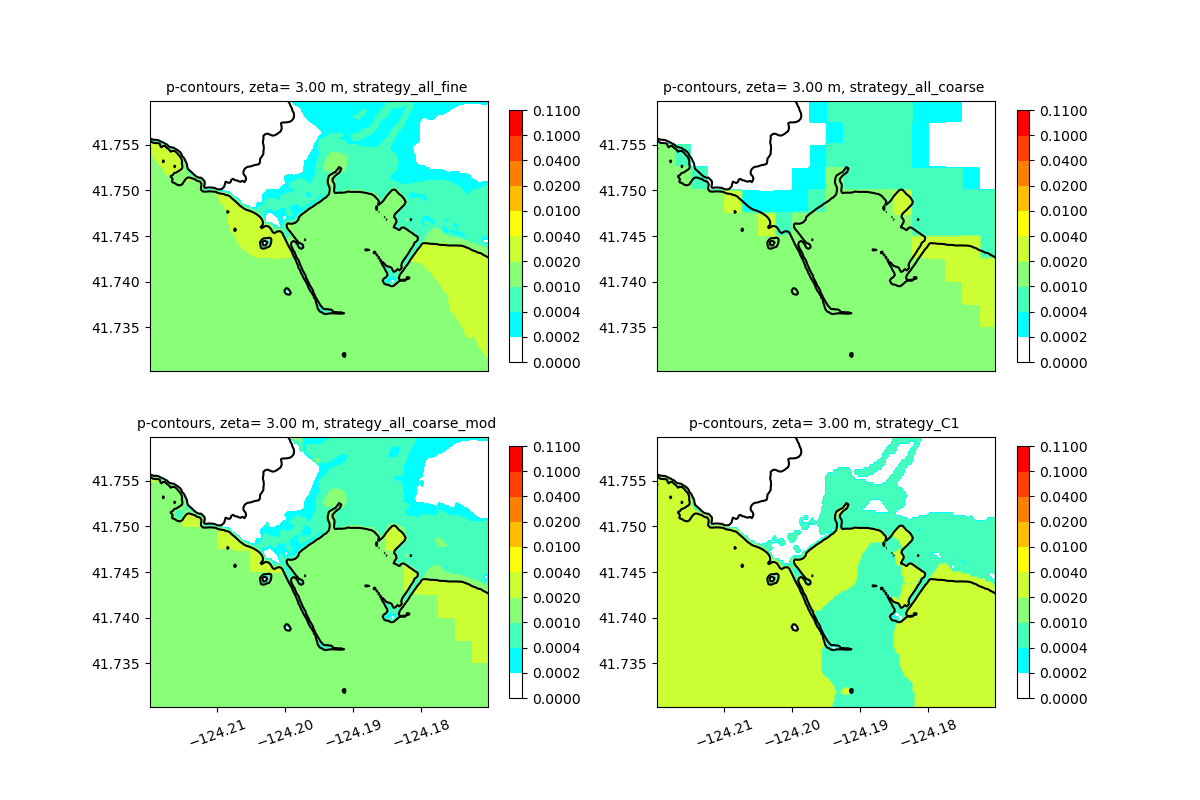

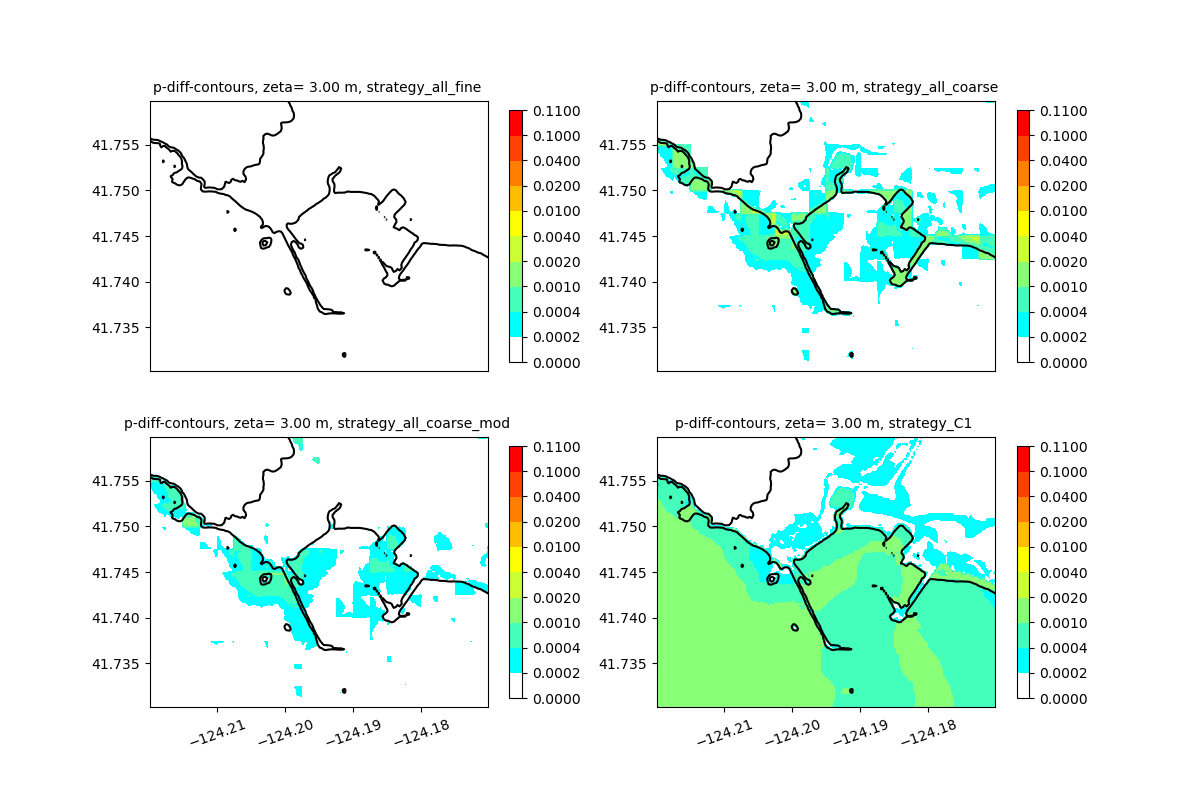

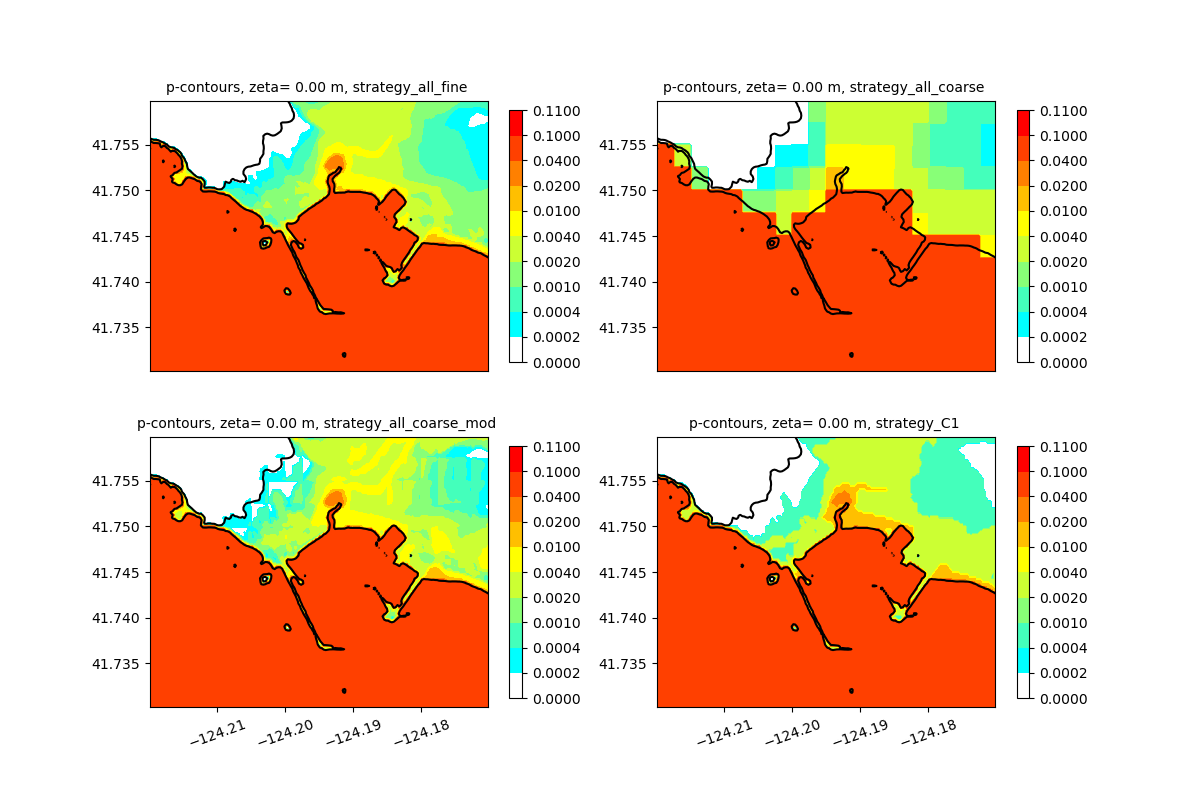

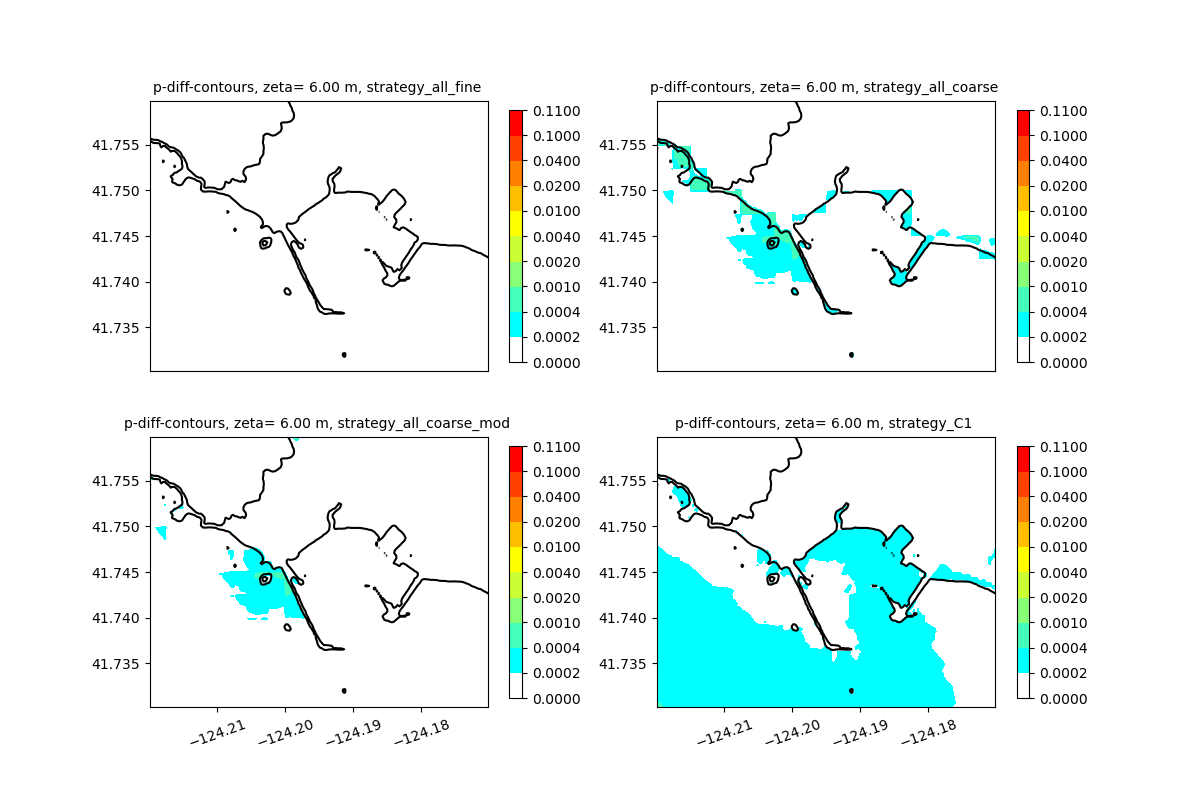

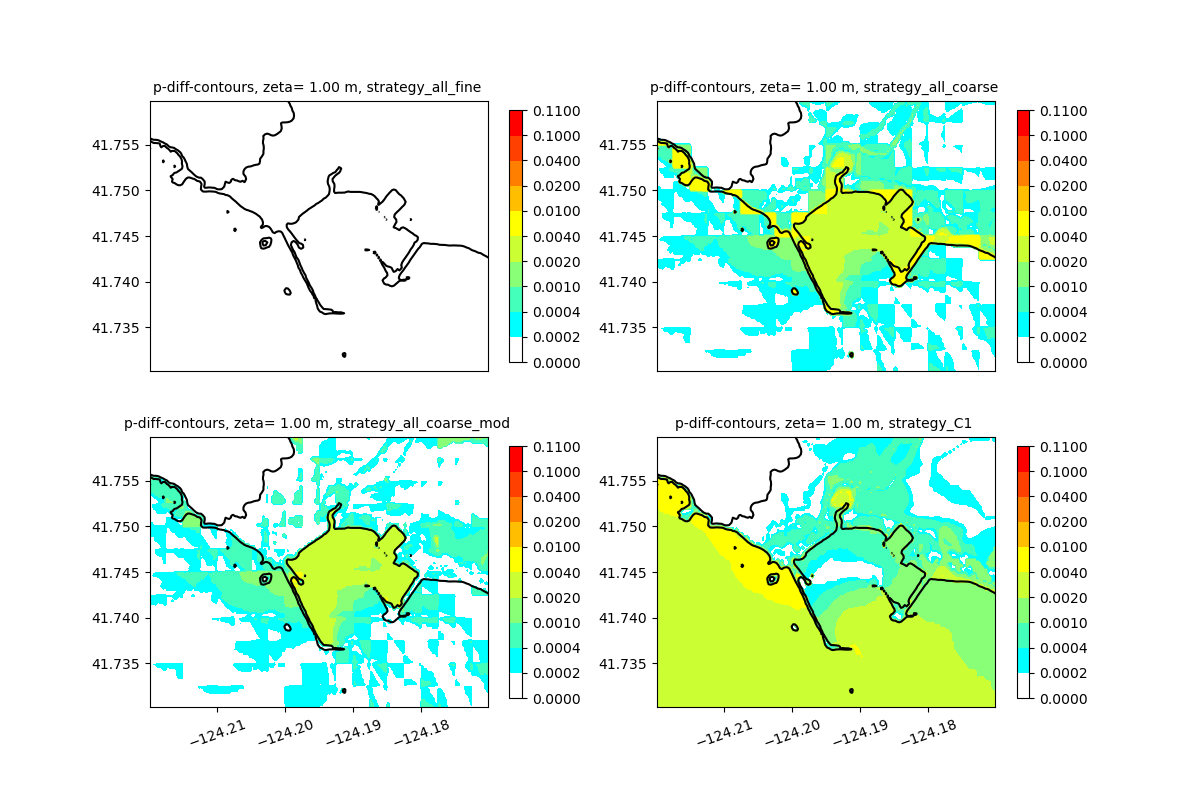

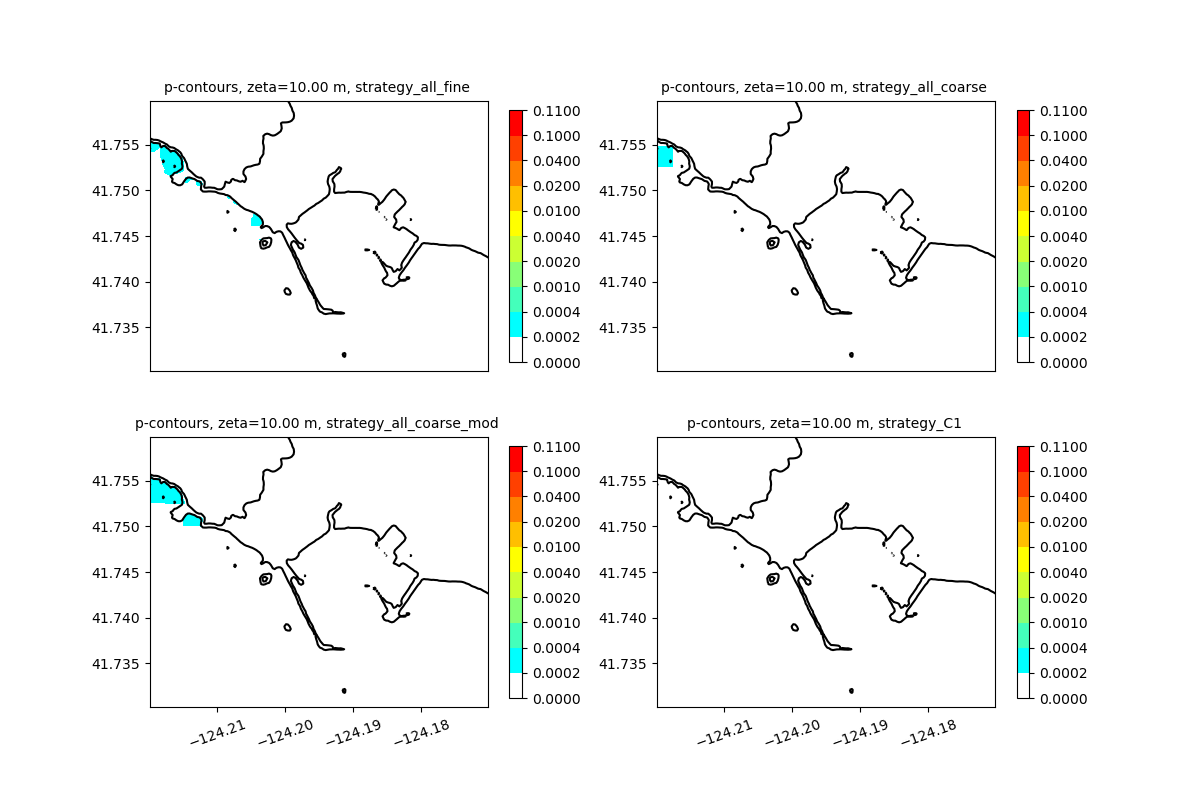

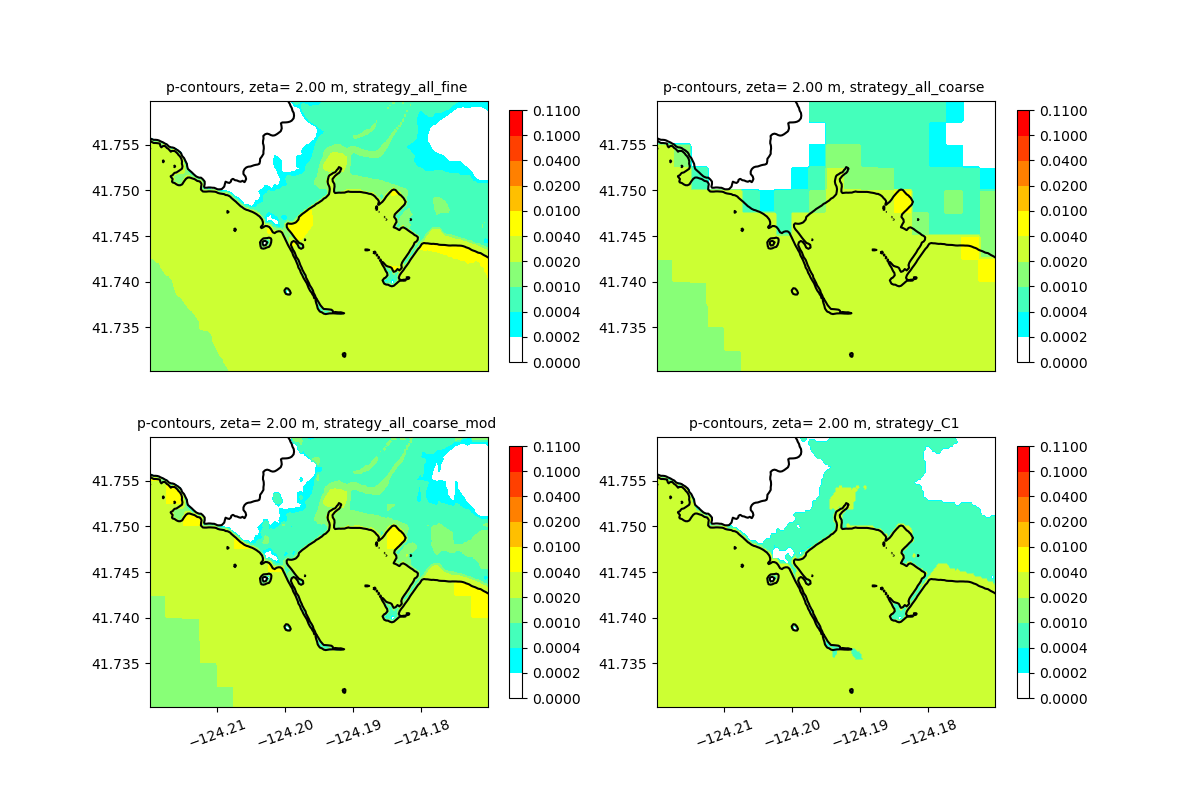

Probability contours for different exceedance values of zeta (and errors)
