Comparison 21, Crescent City

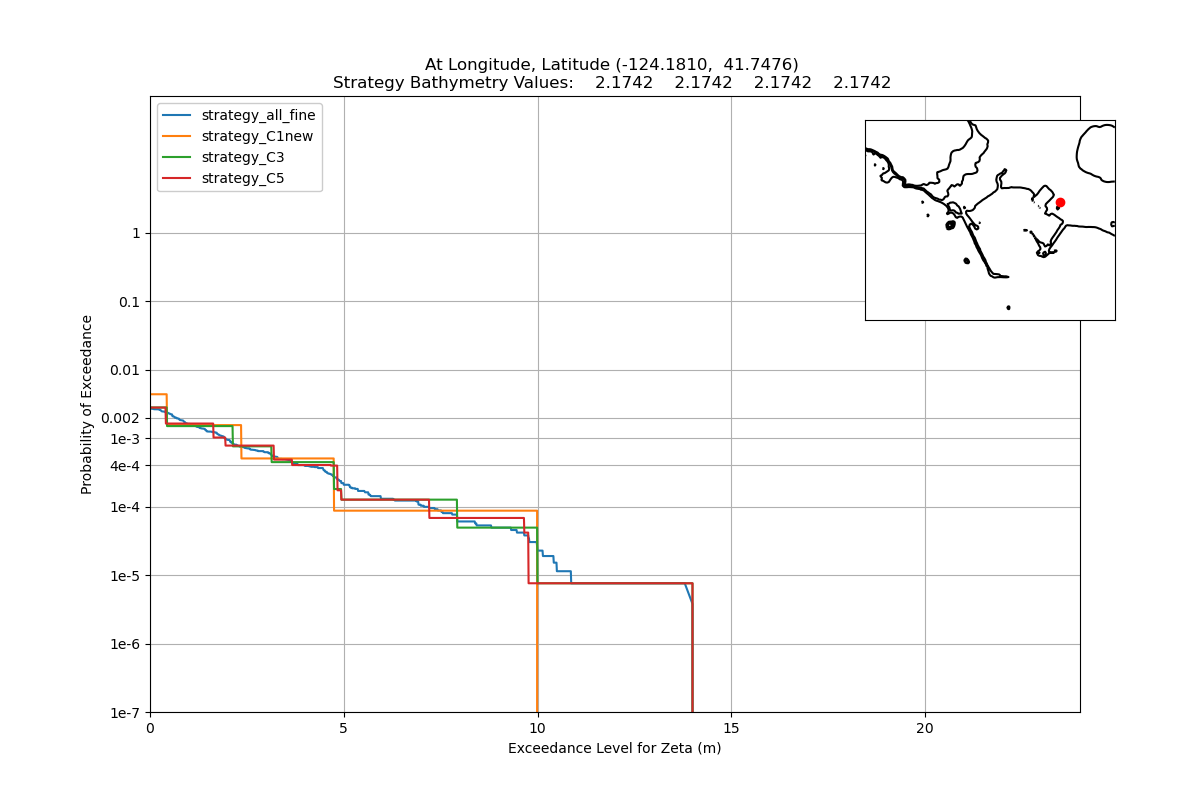

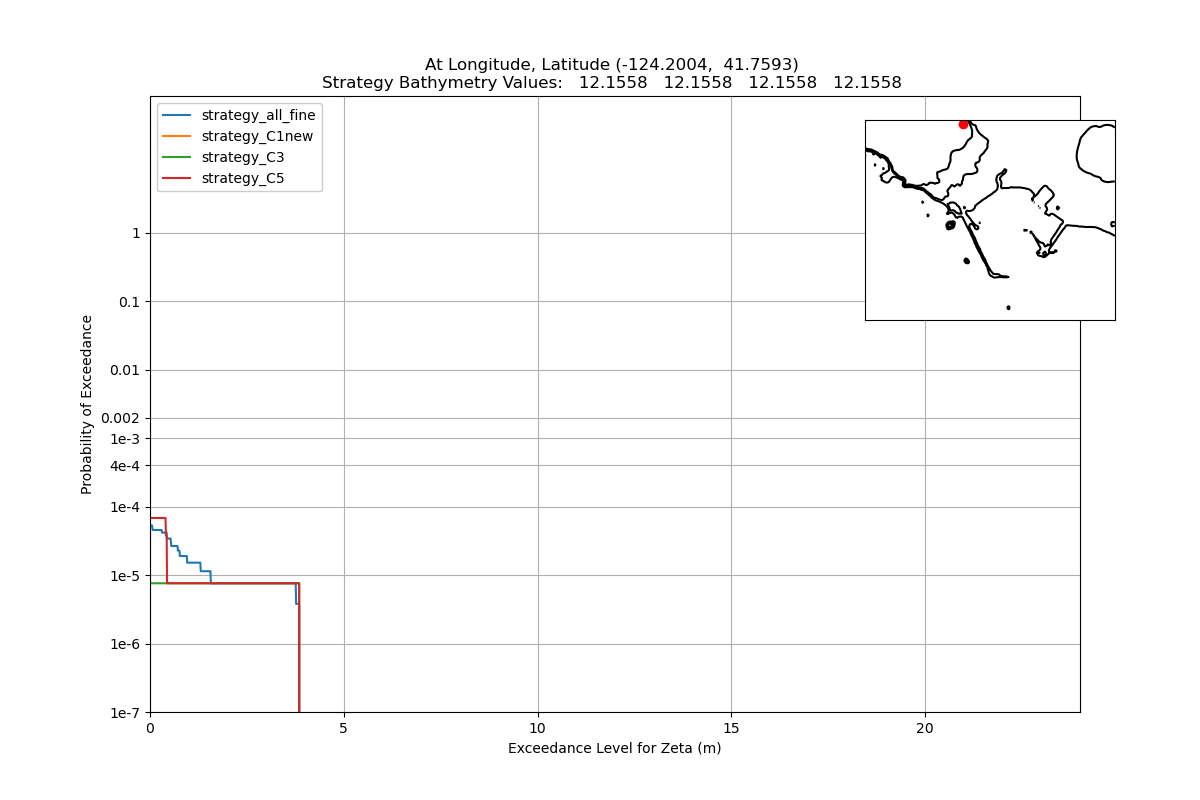

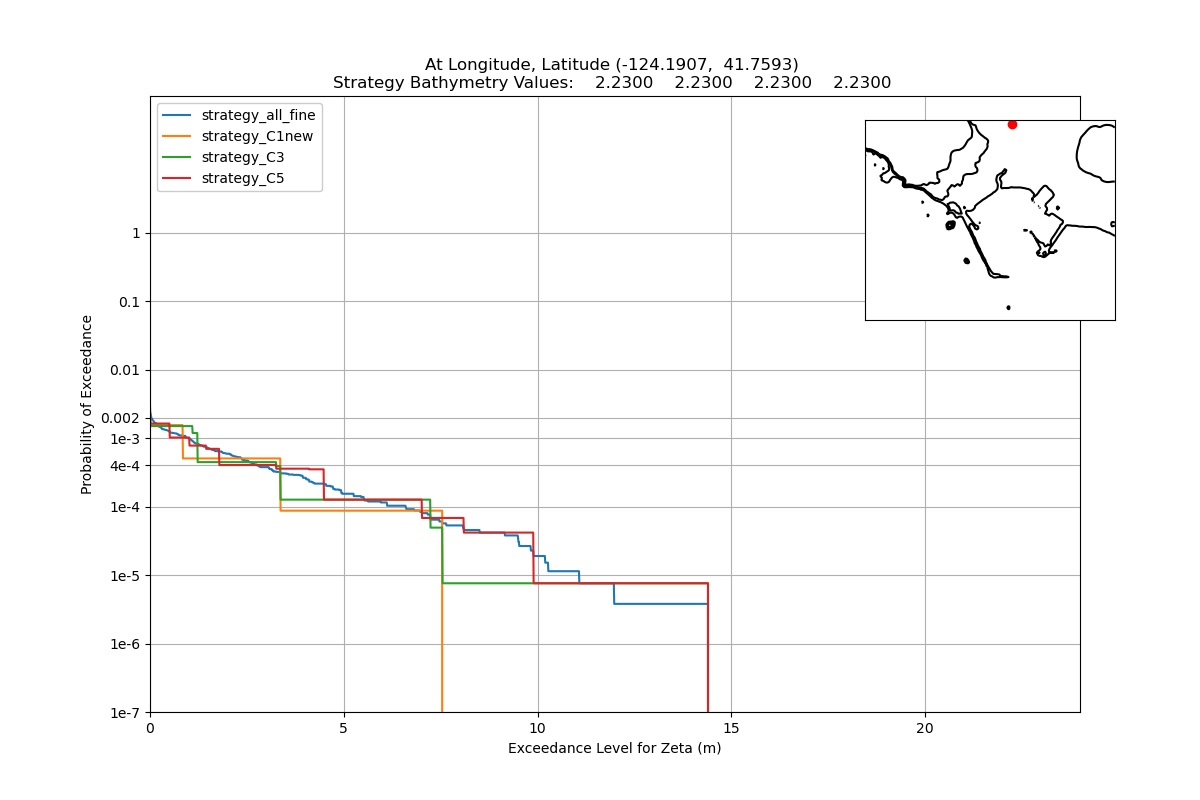

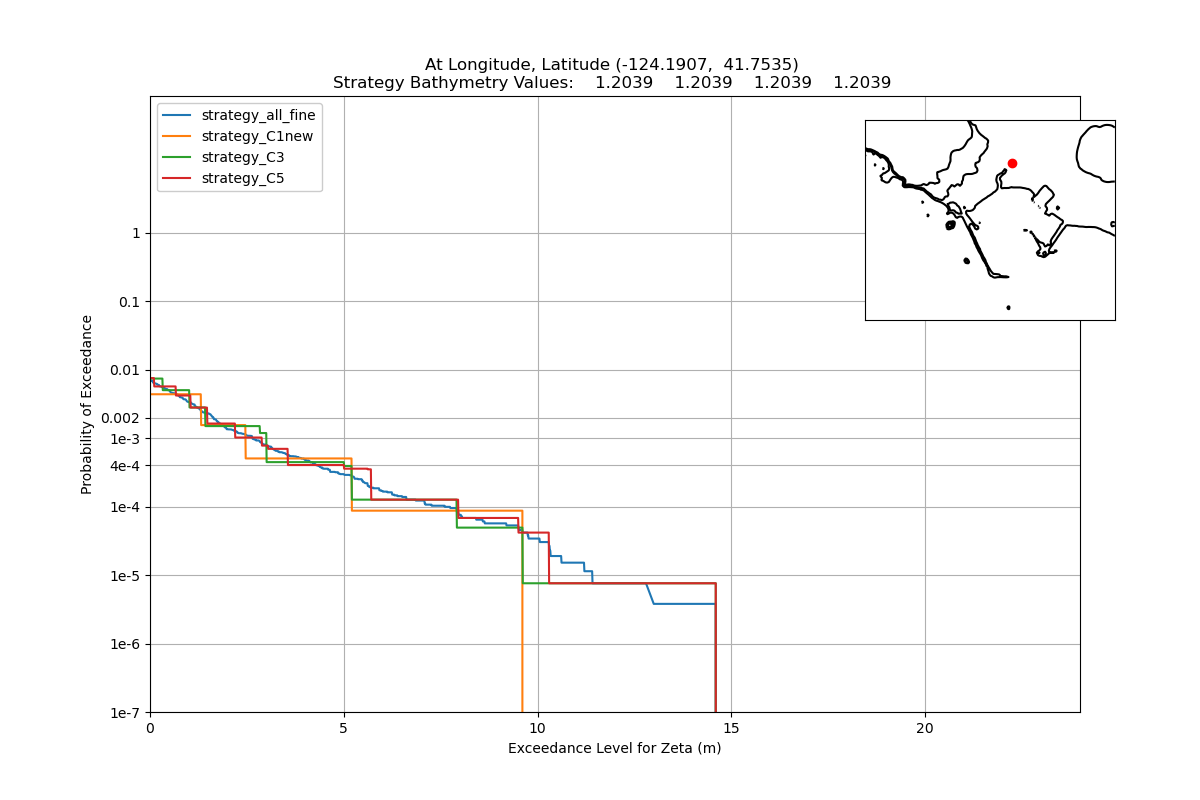

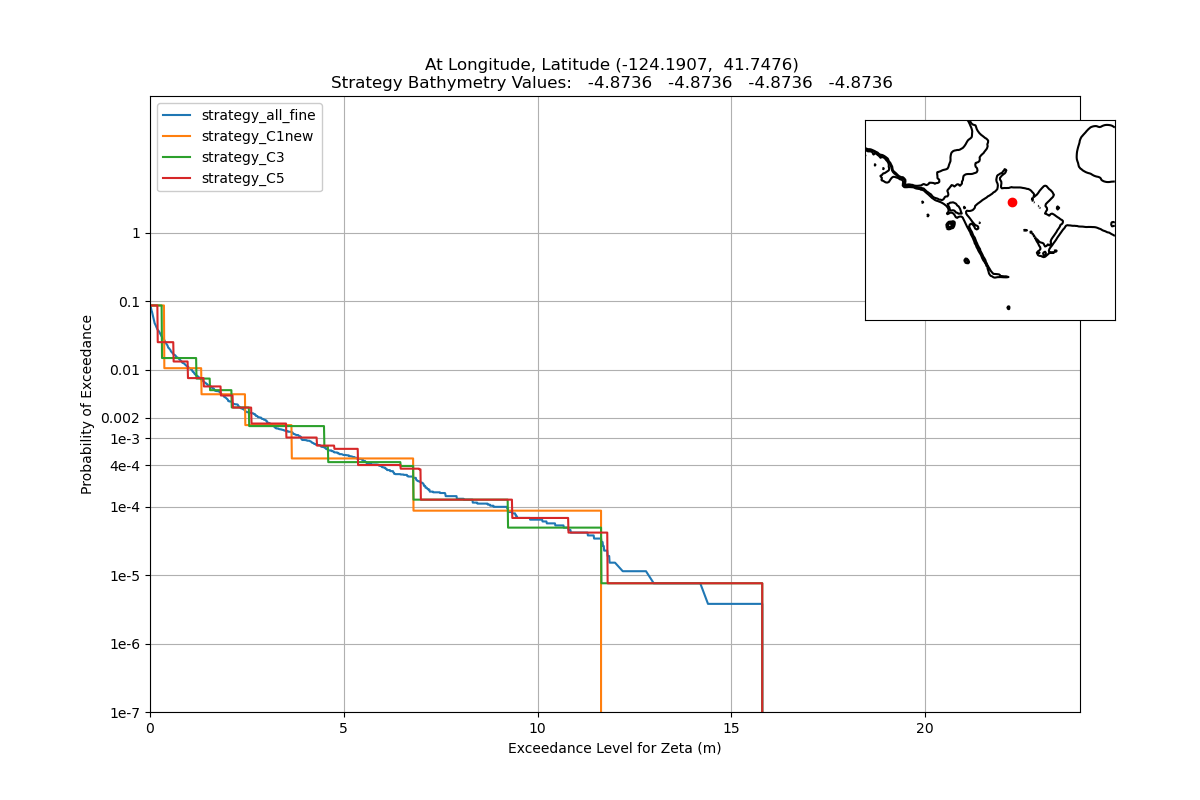

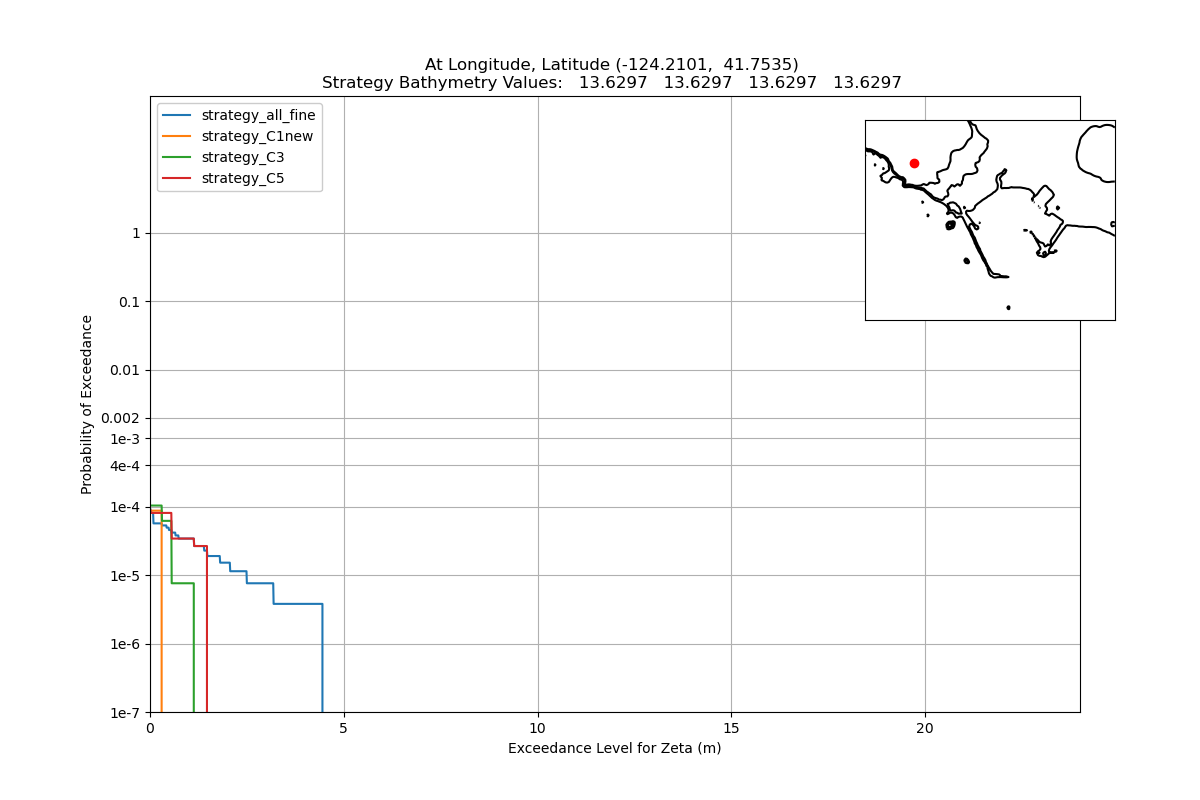

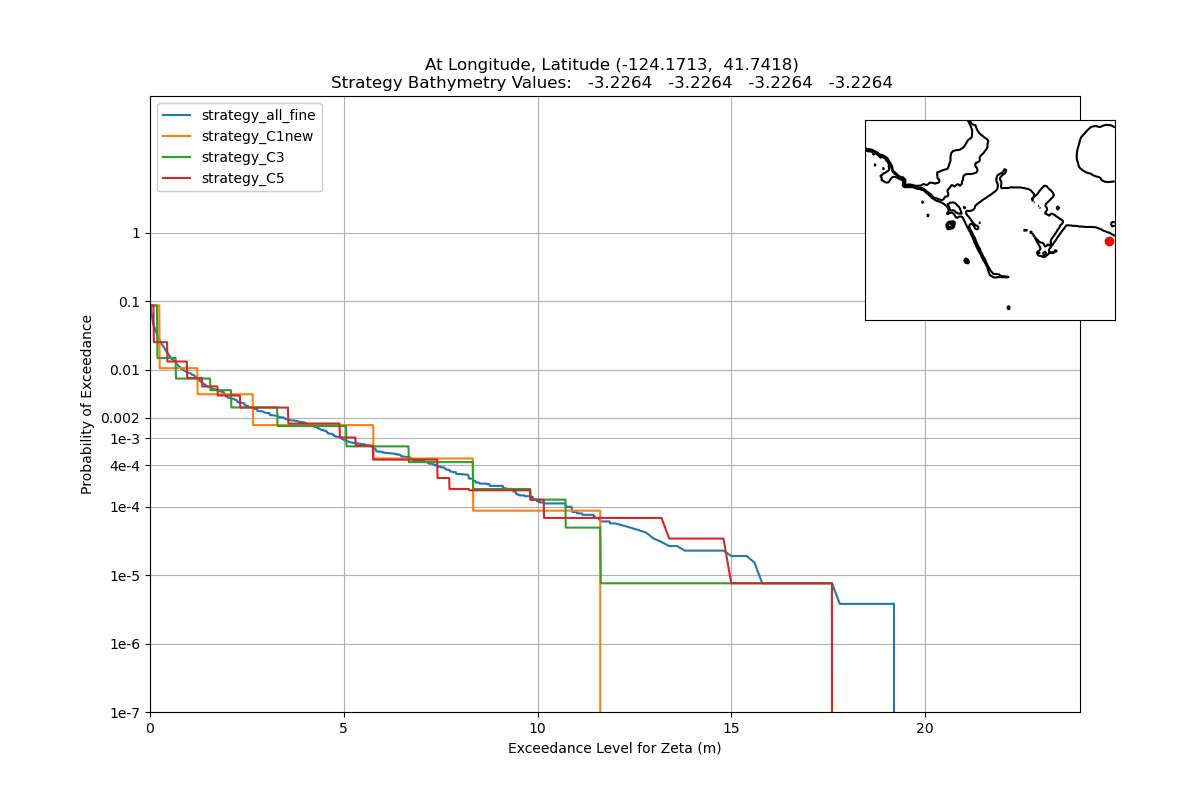

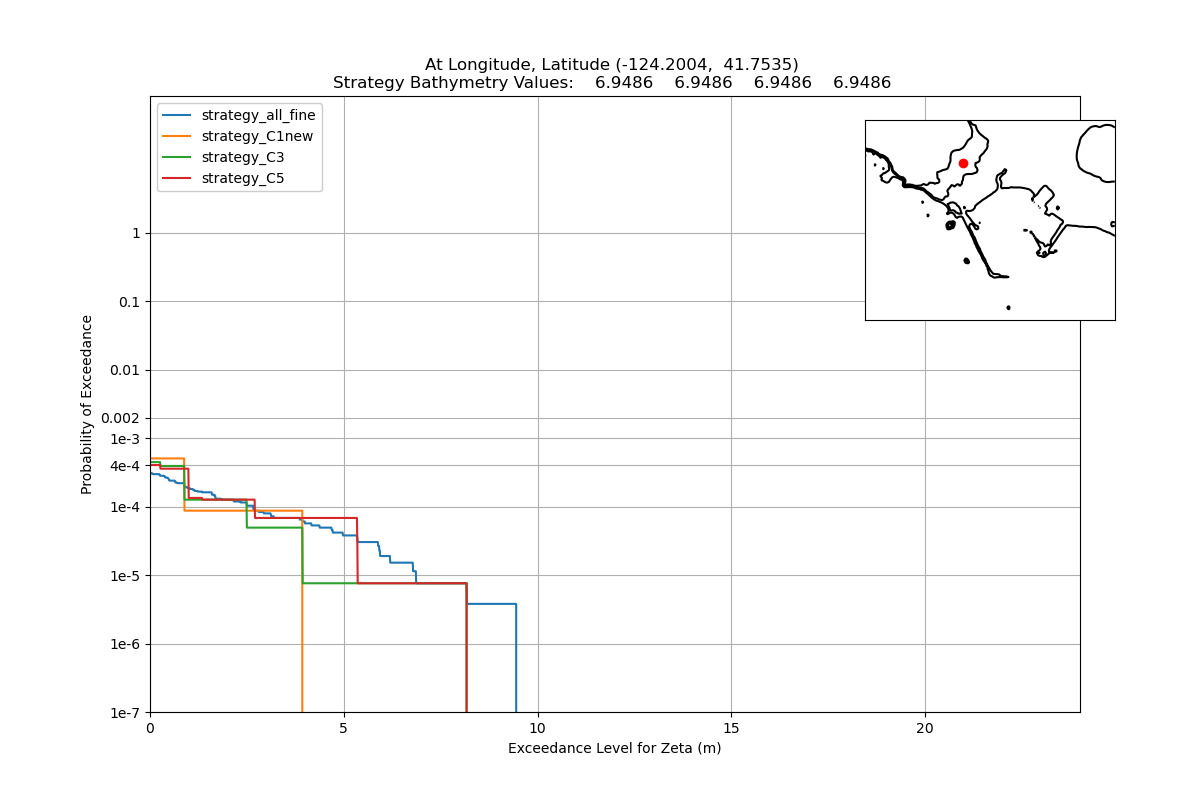

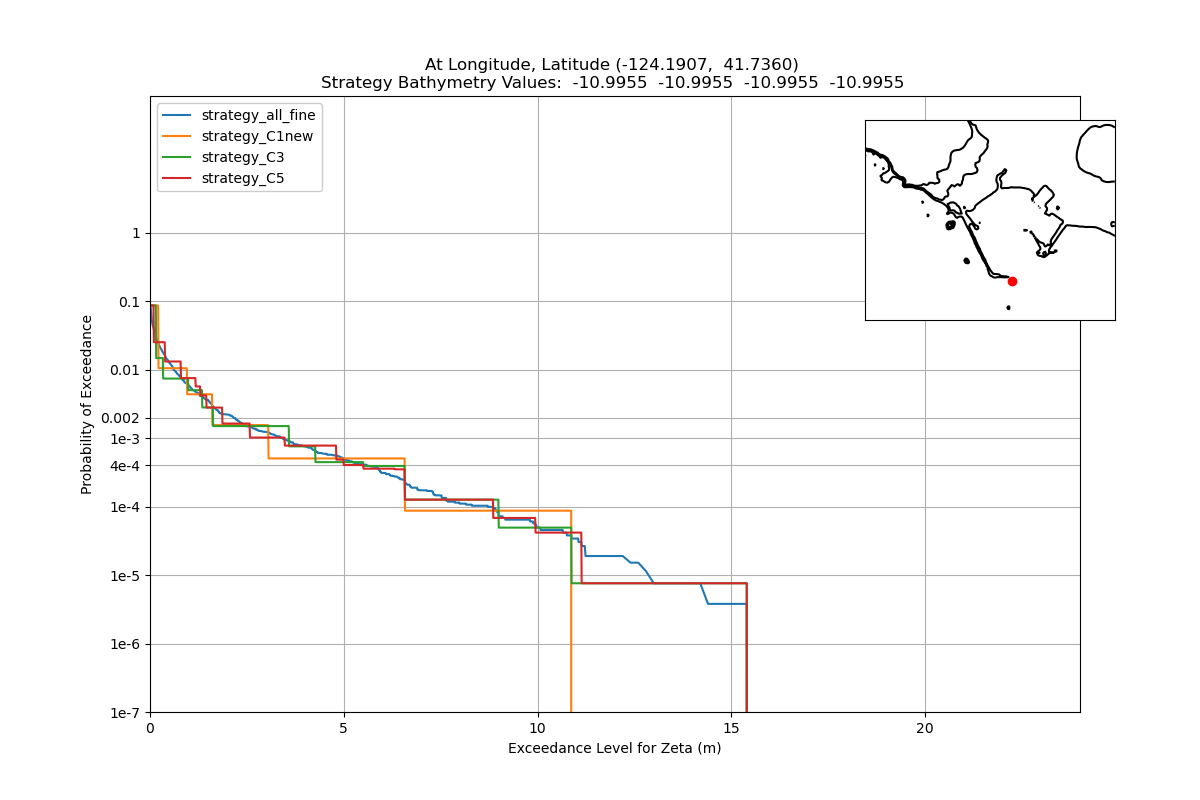

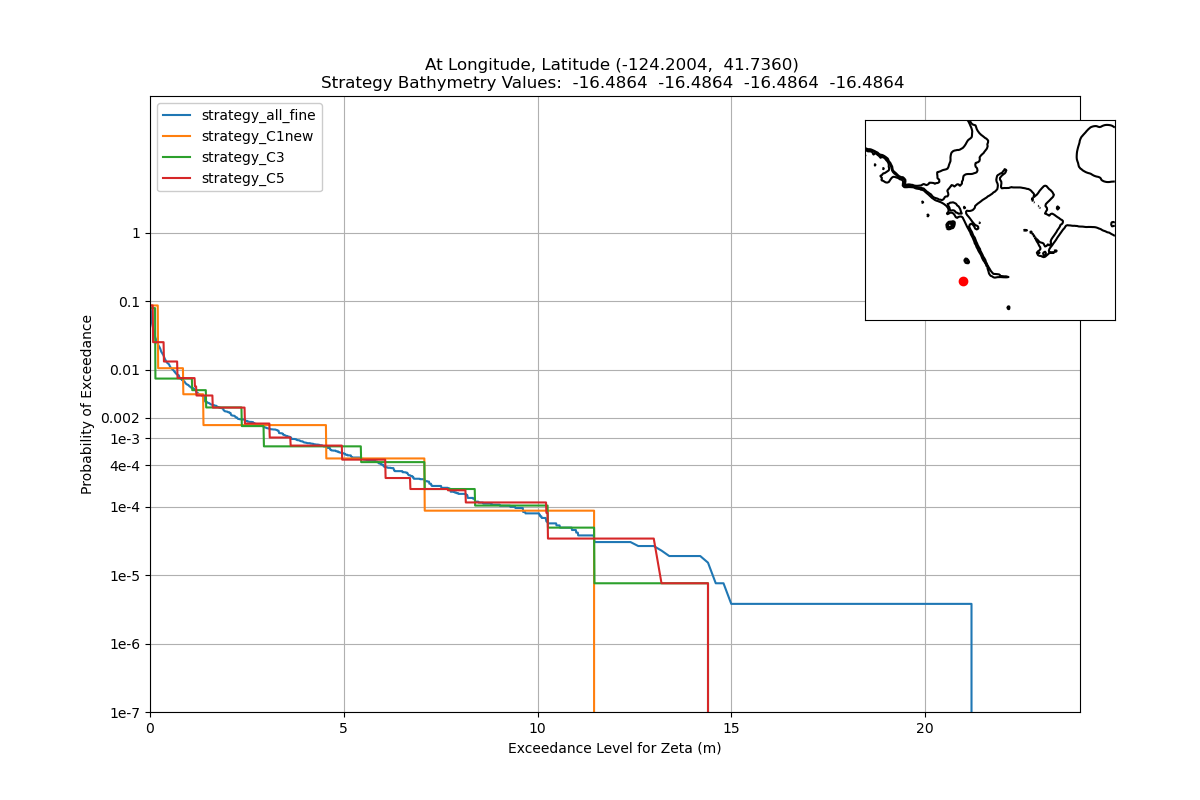

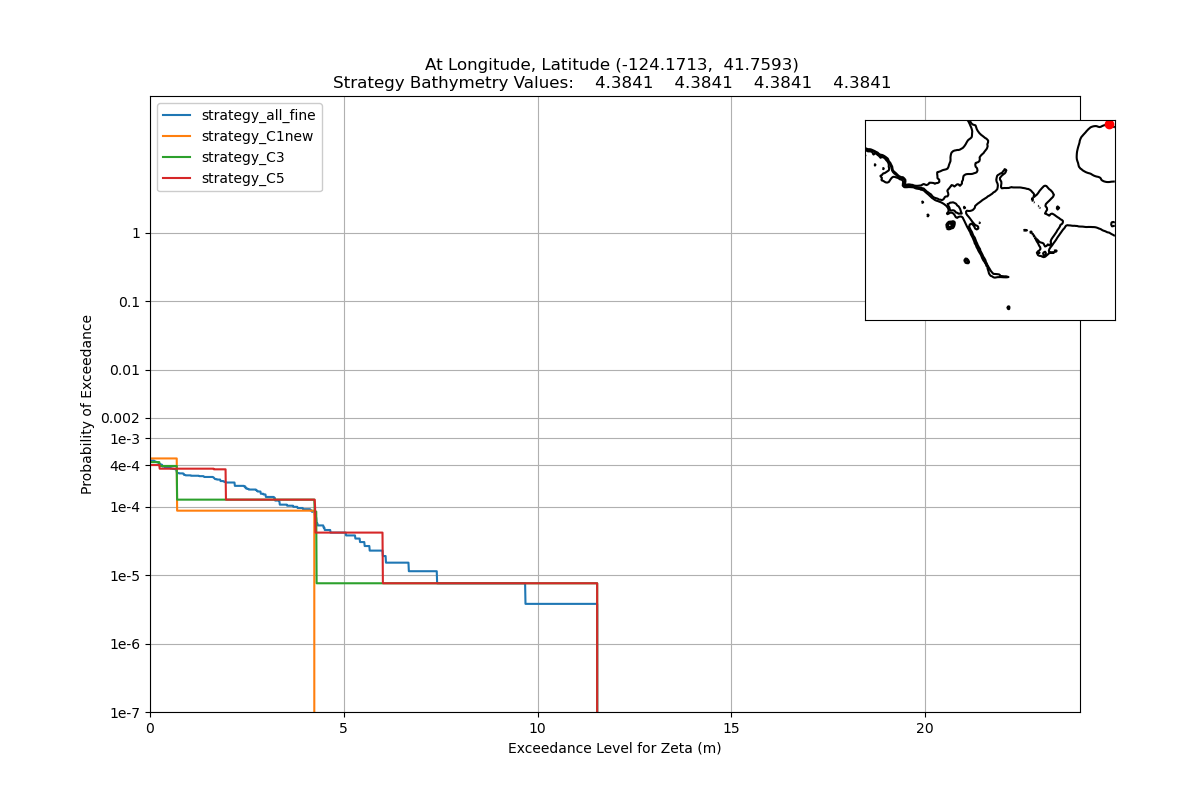

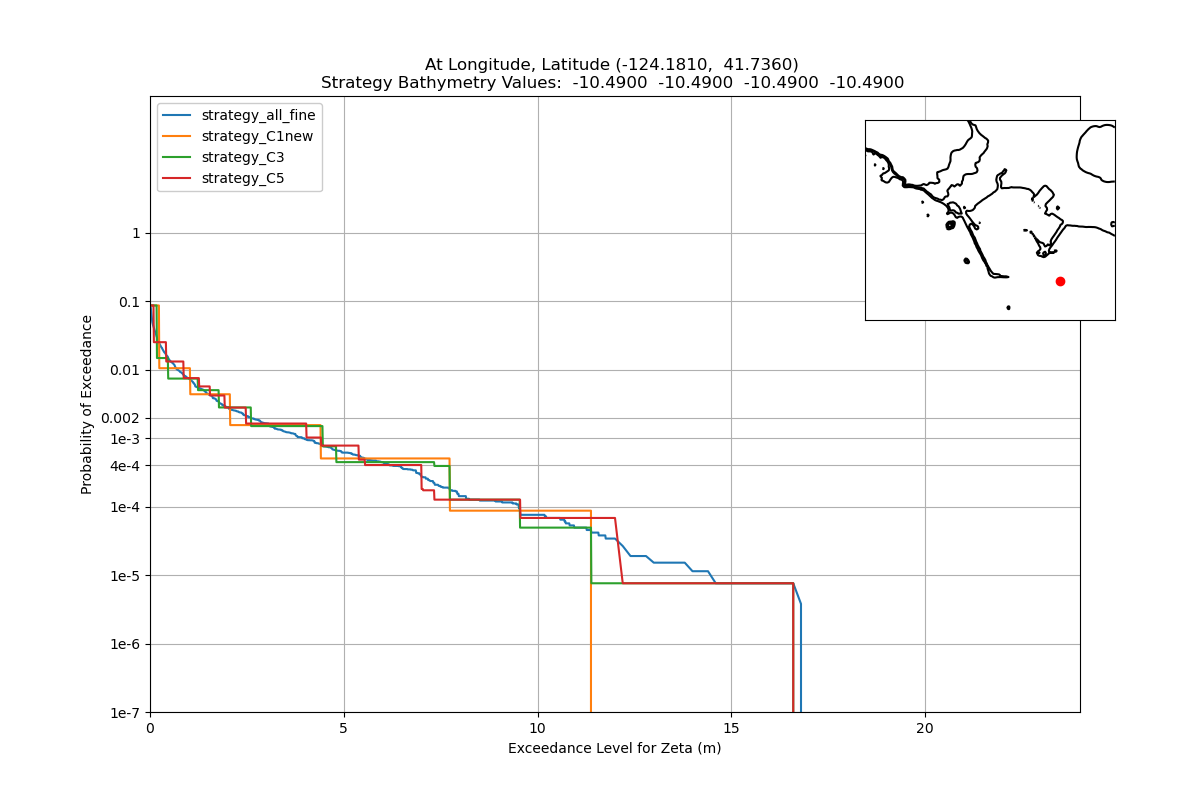

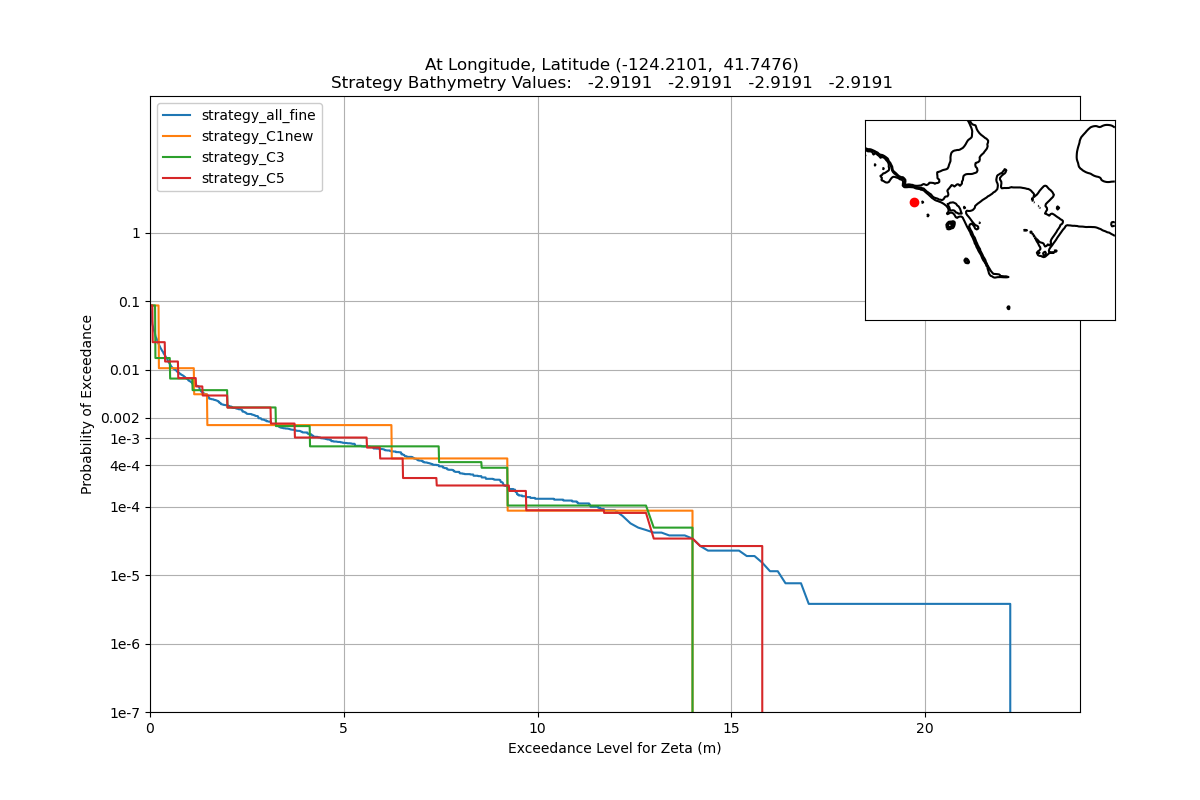

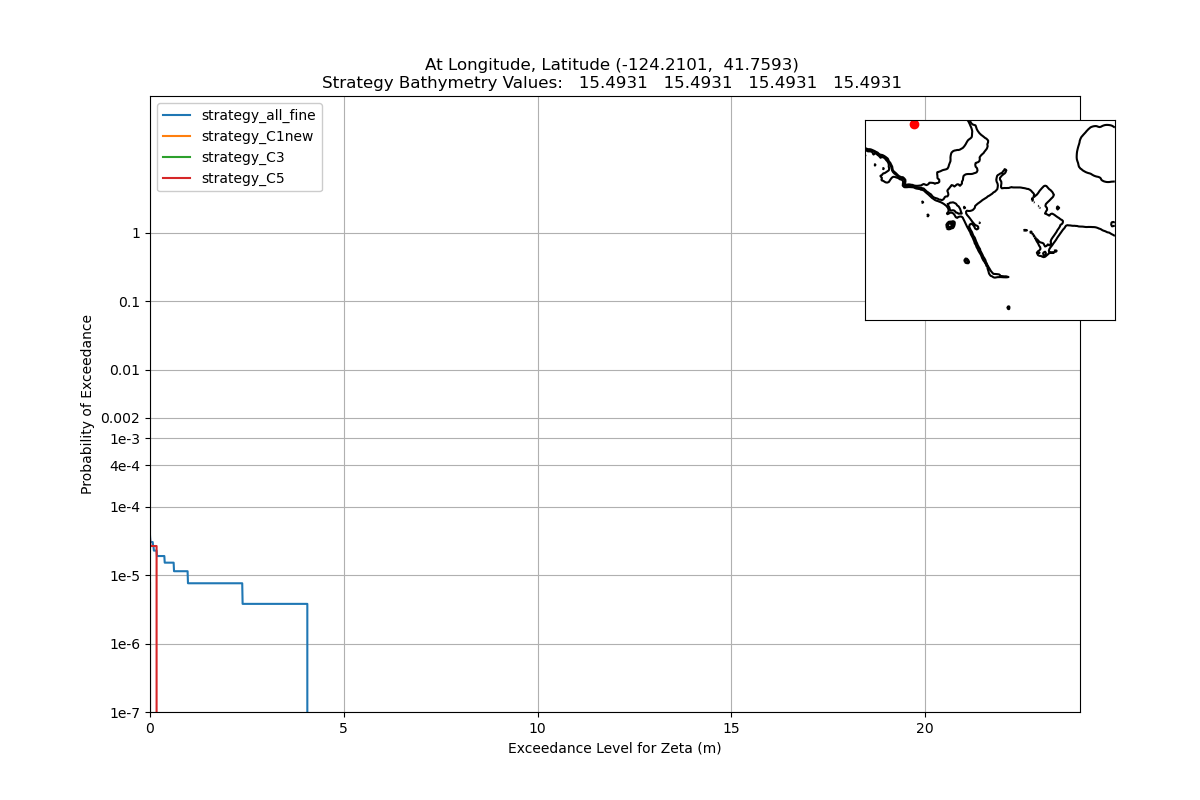

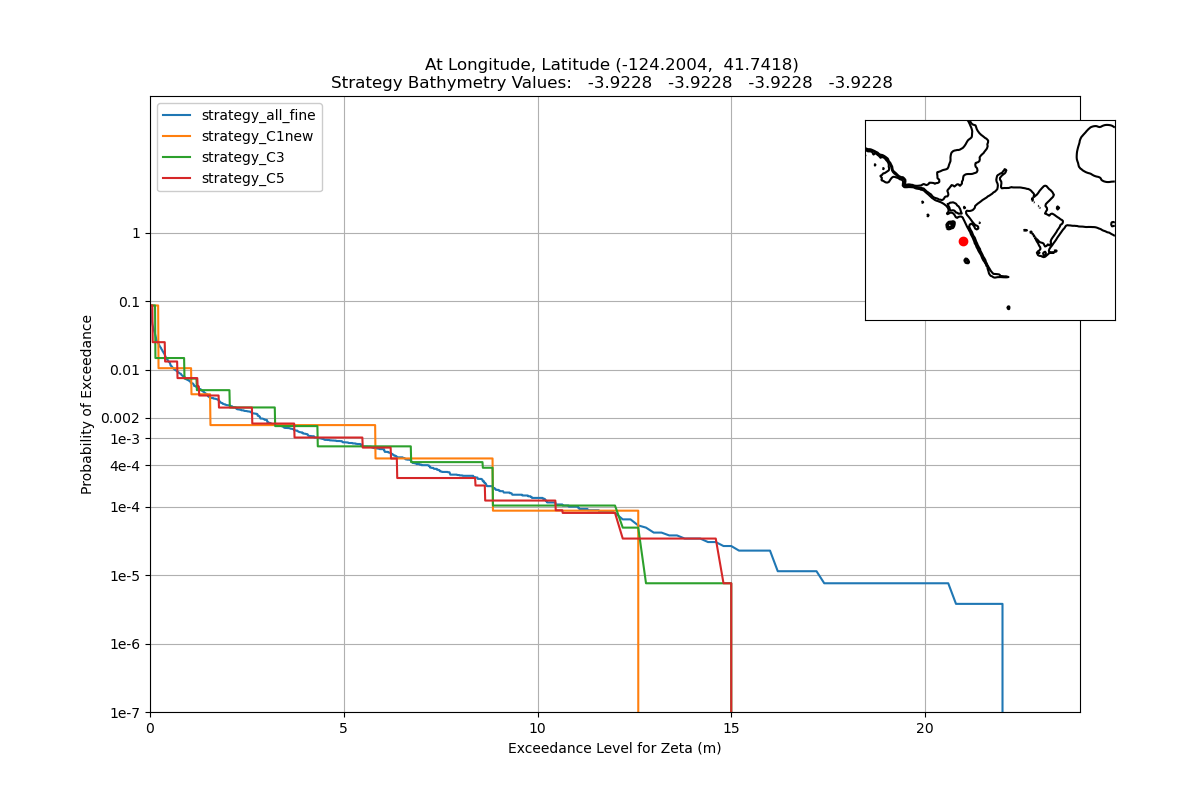

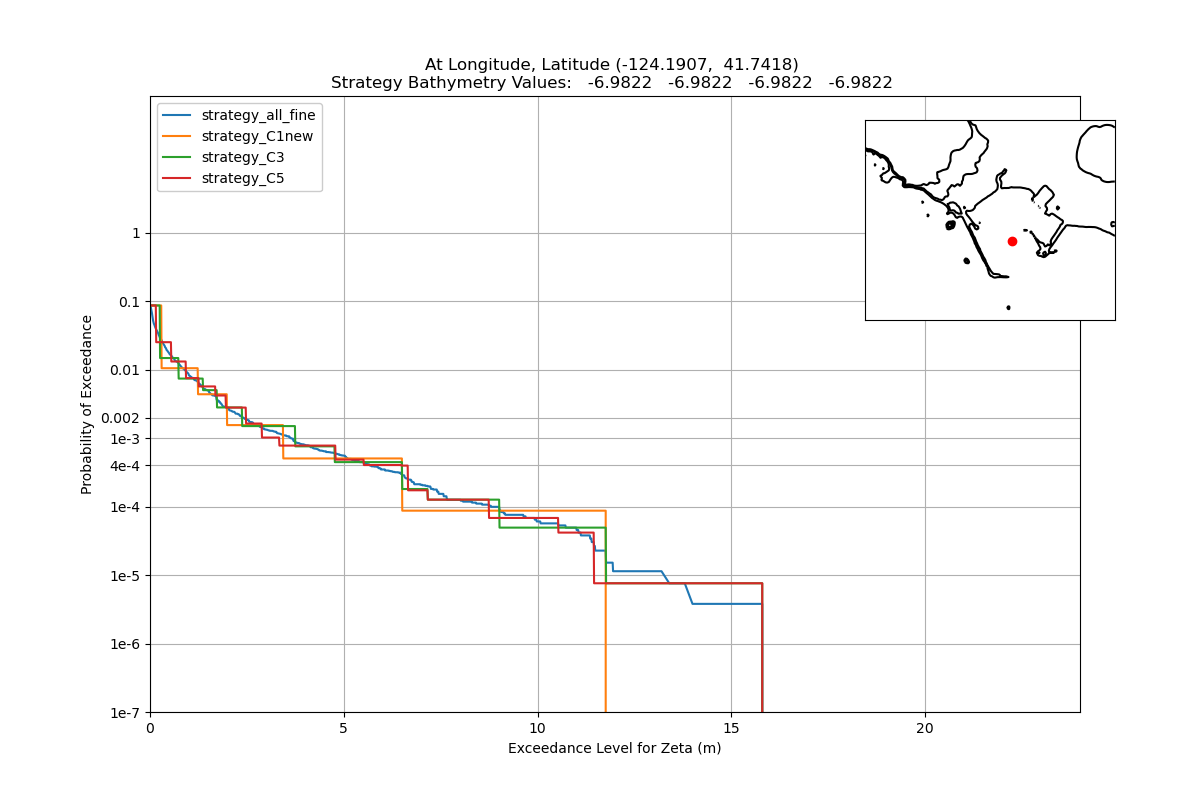

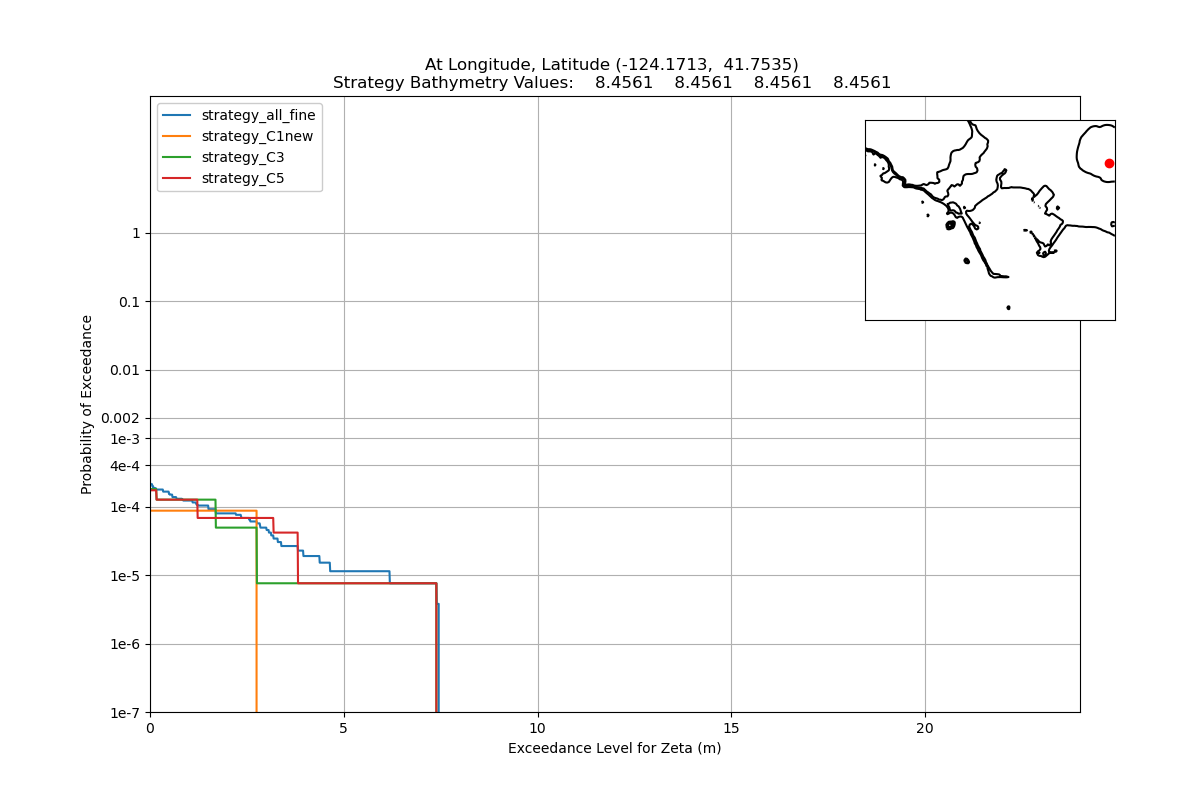

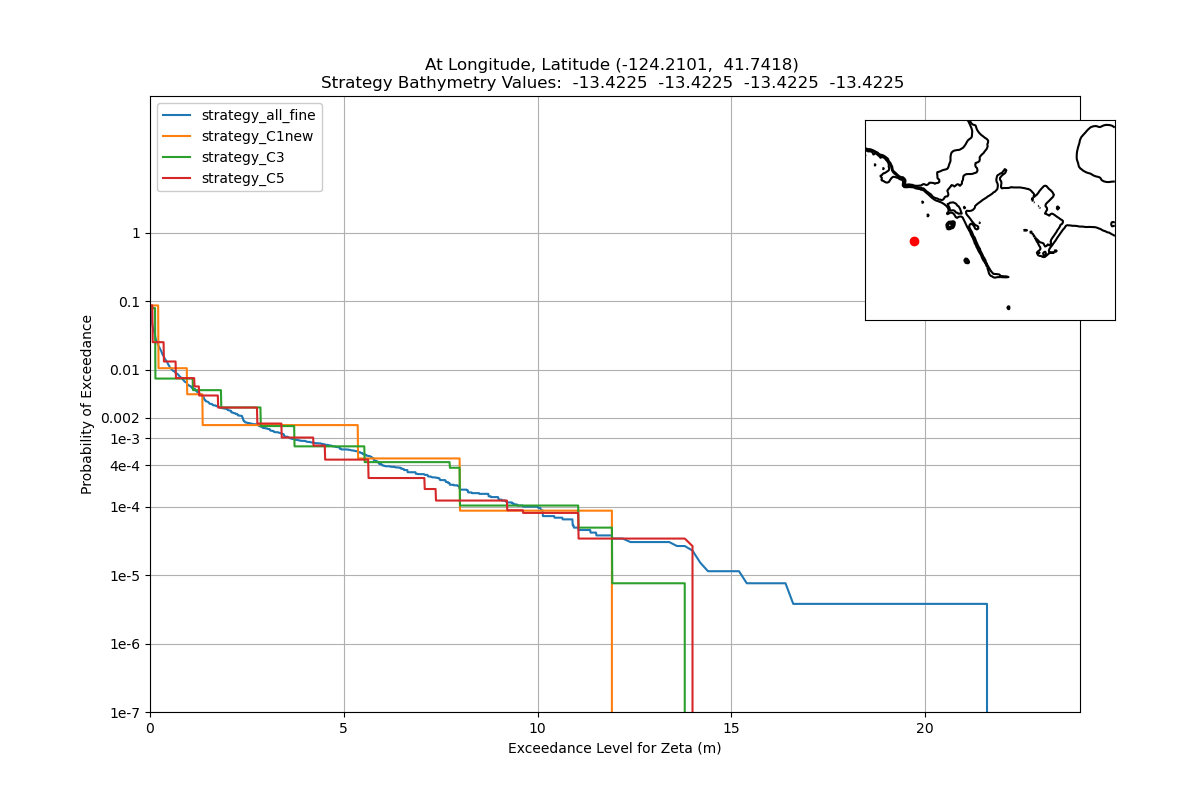

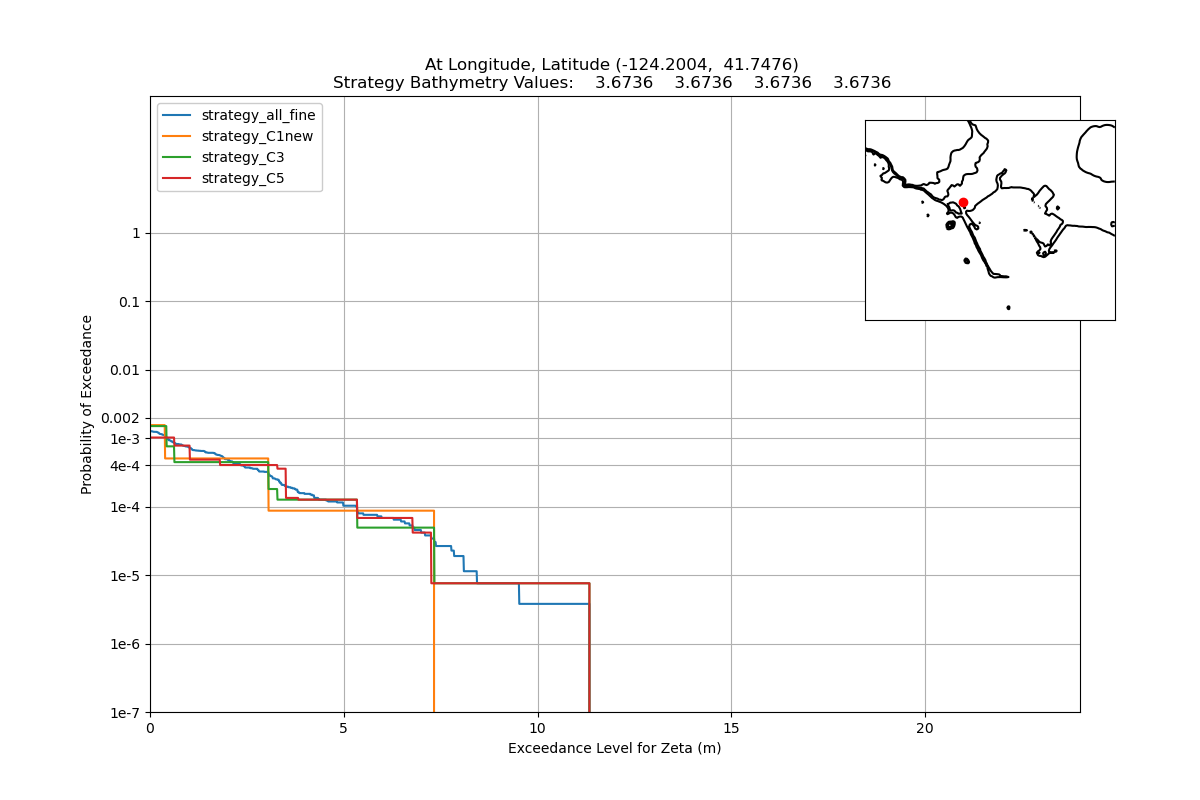

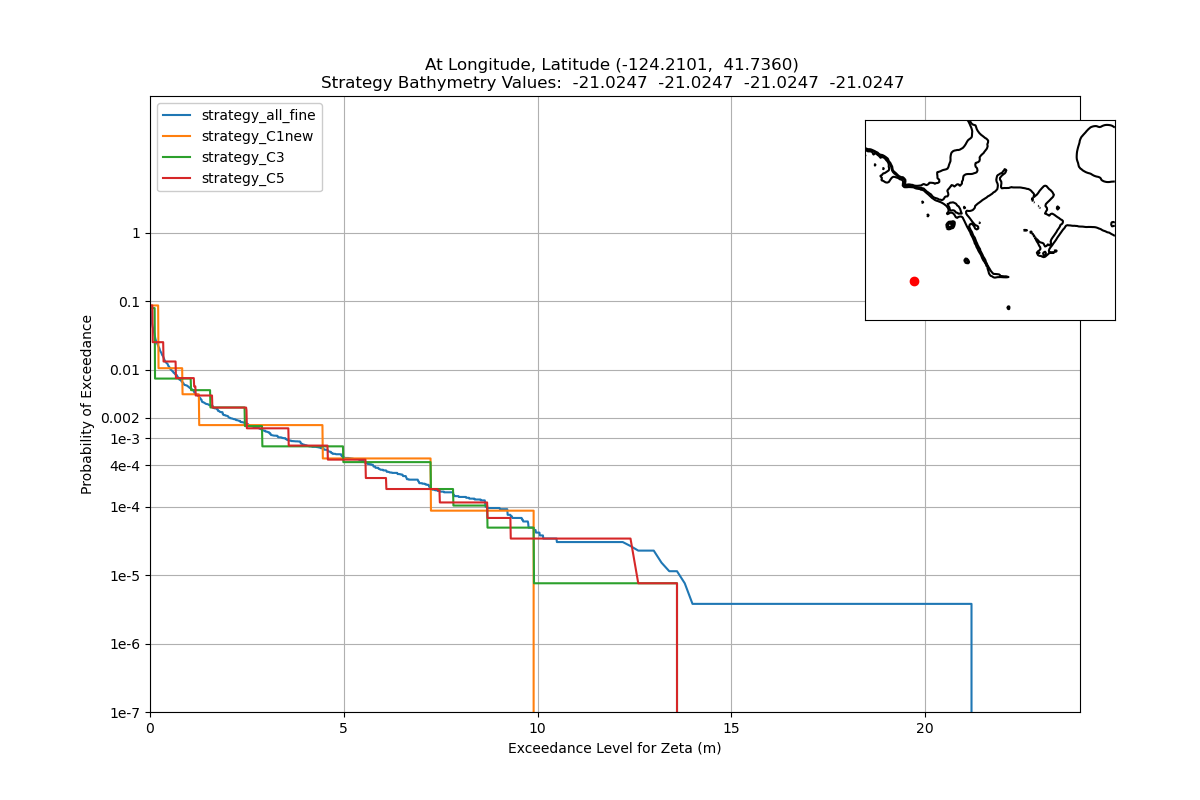

Hazard curves at selected locations
The four curves on each of these plots correspond to what is shown in the
four subplots of the plan view plots, described below.
Plan view plots
Note: All plots below have 4 subplots:
- Upper left: Ground truth using all 2000 fine grid runs,
- Lower left: Using only 12 fine grid runs (centroids of the C3 clusters).
- Upper right: Using only 6 fine grid runs (centroids of the C1new clusters).
- Lower right: Using only 18 fine grid runs (centroids of the C5 clusters).

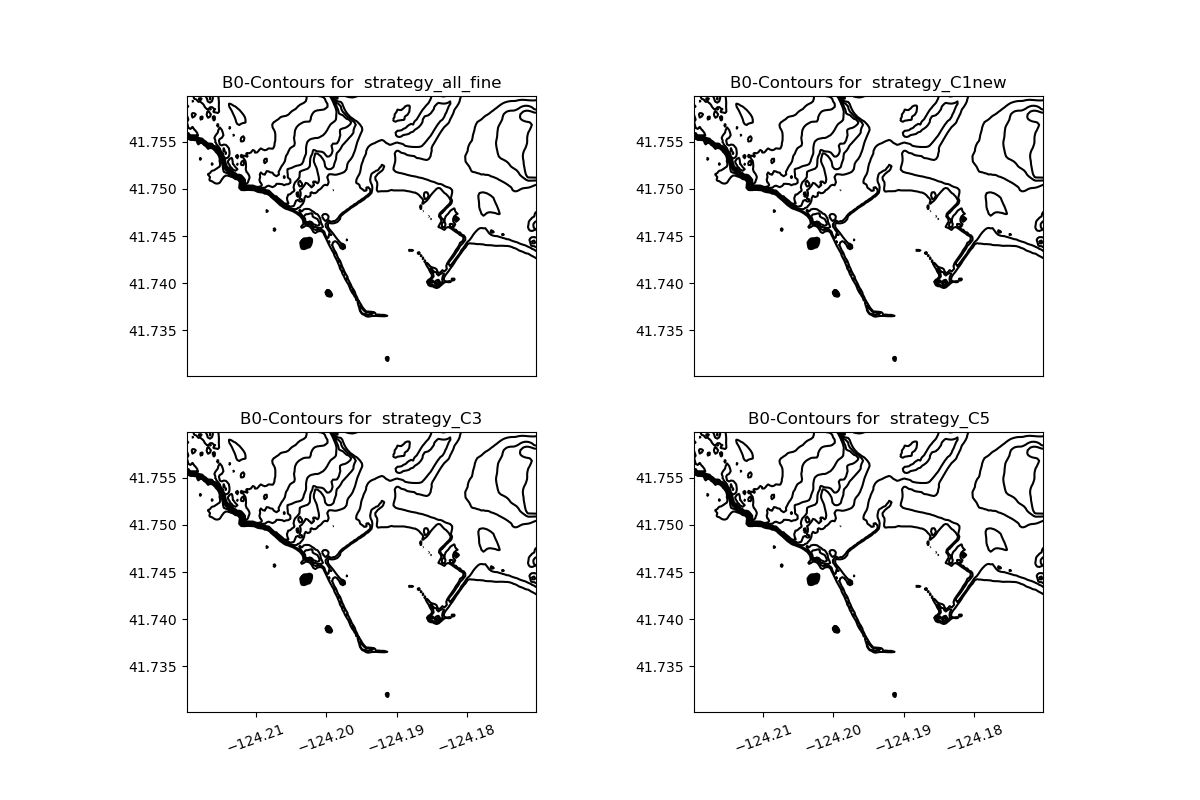

Topo/Bathy contours

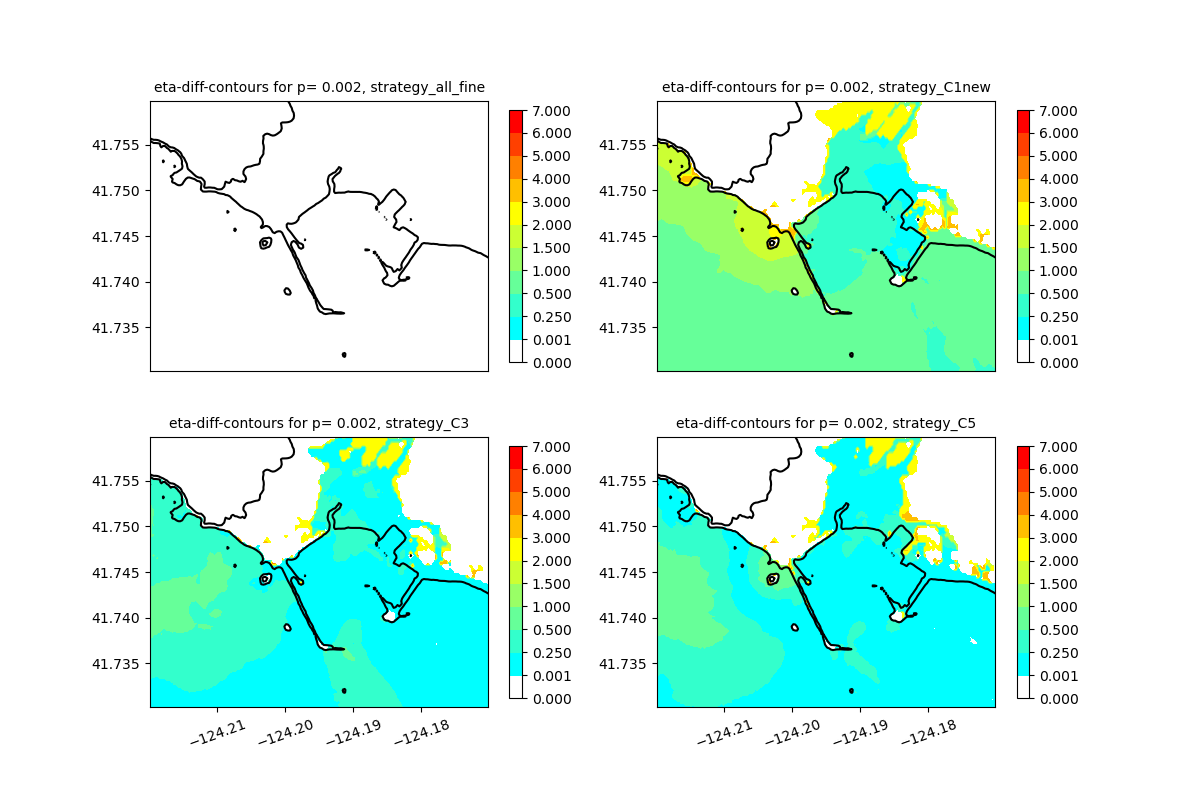

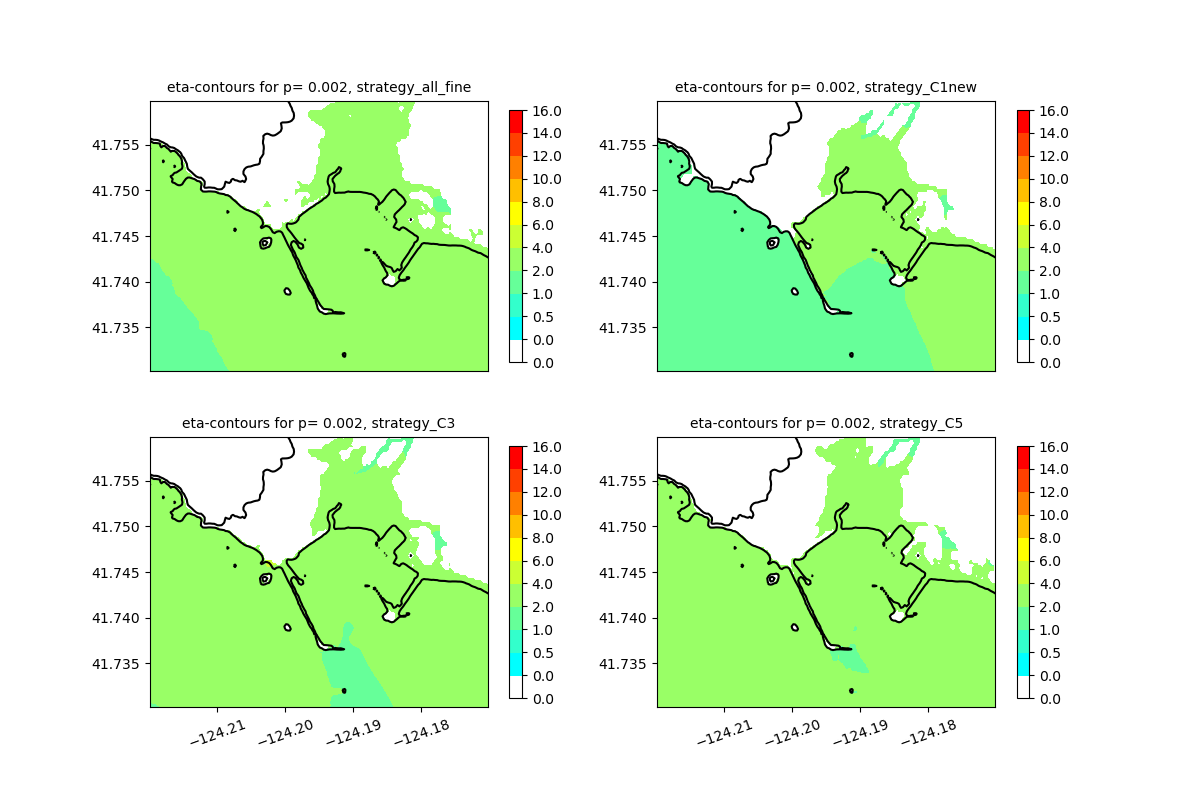

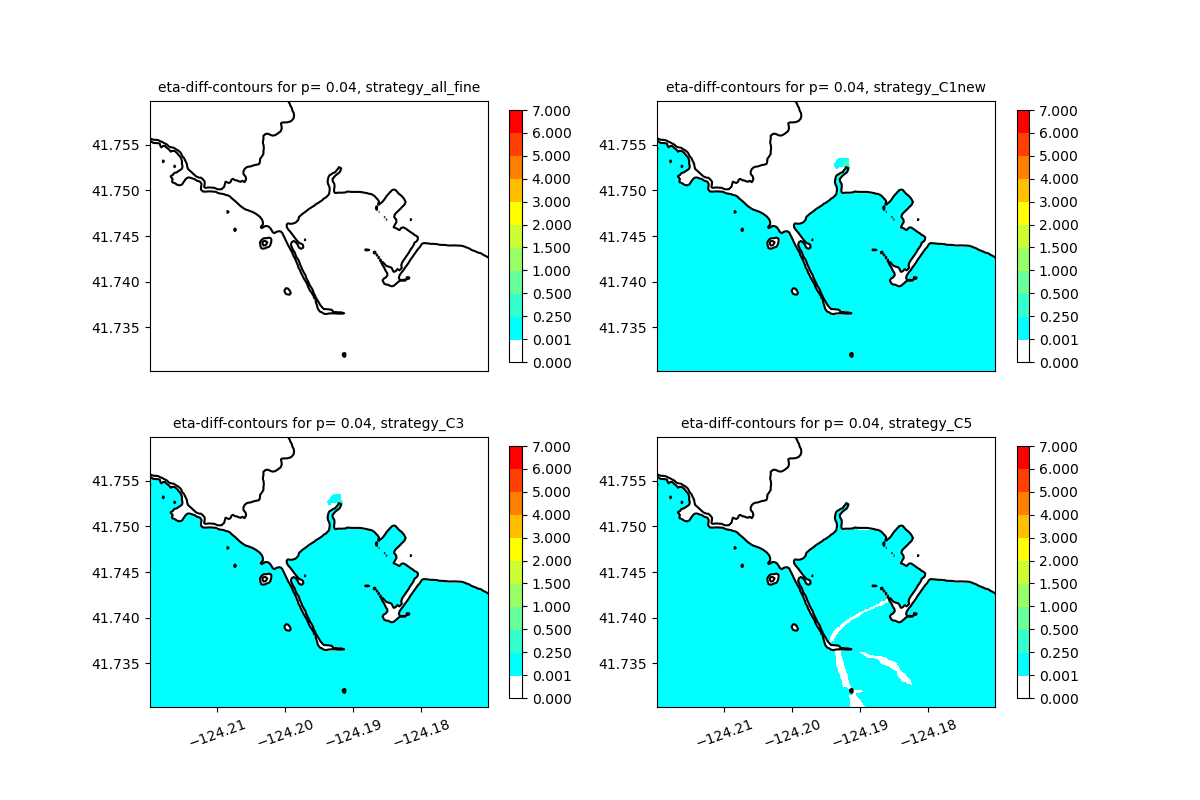

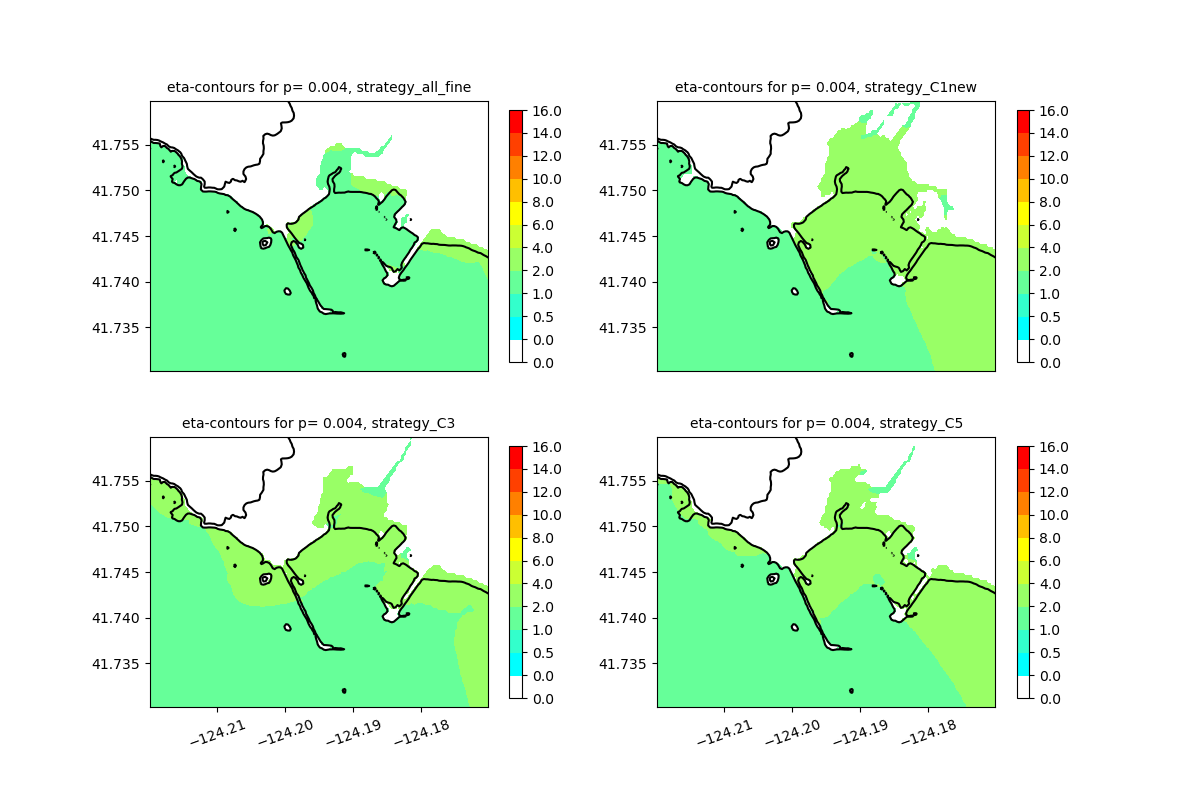

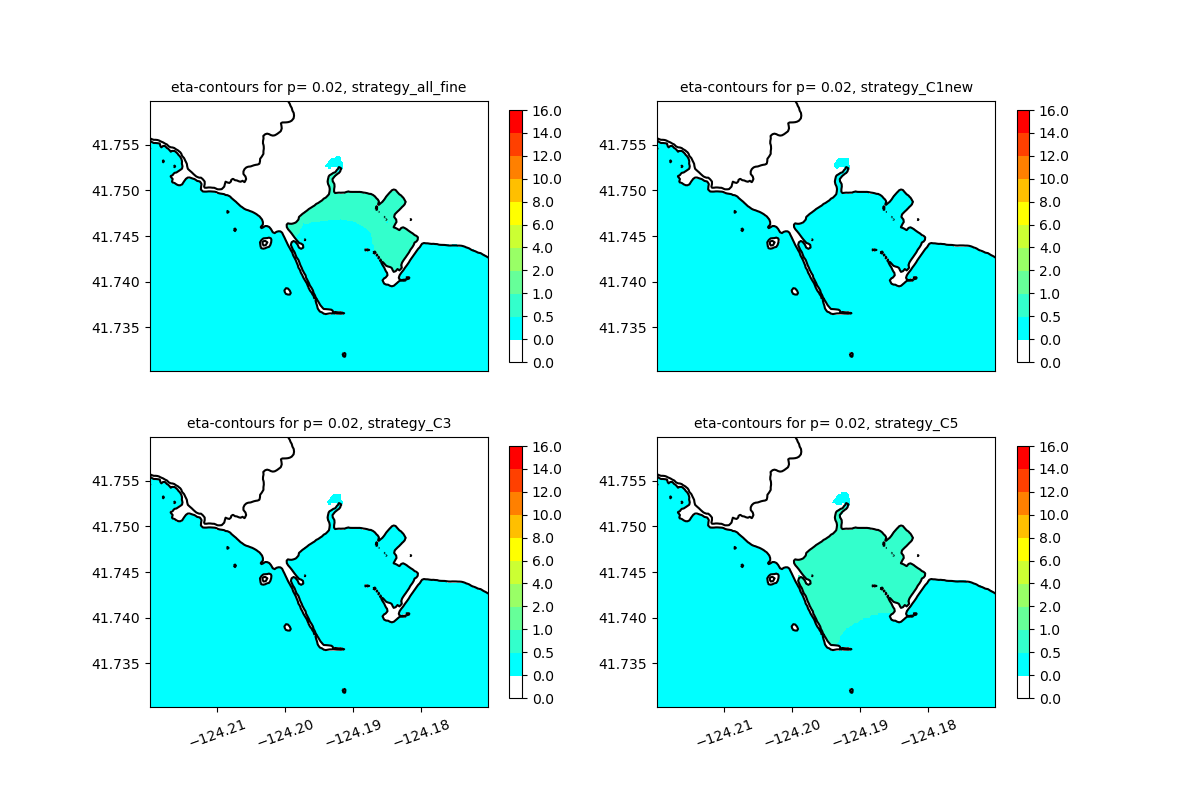

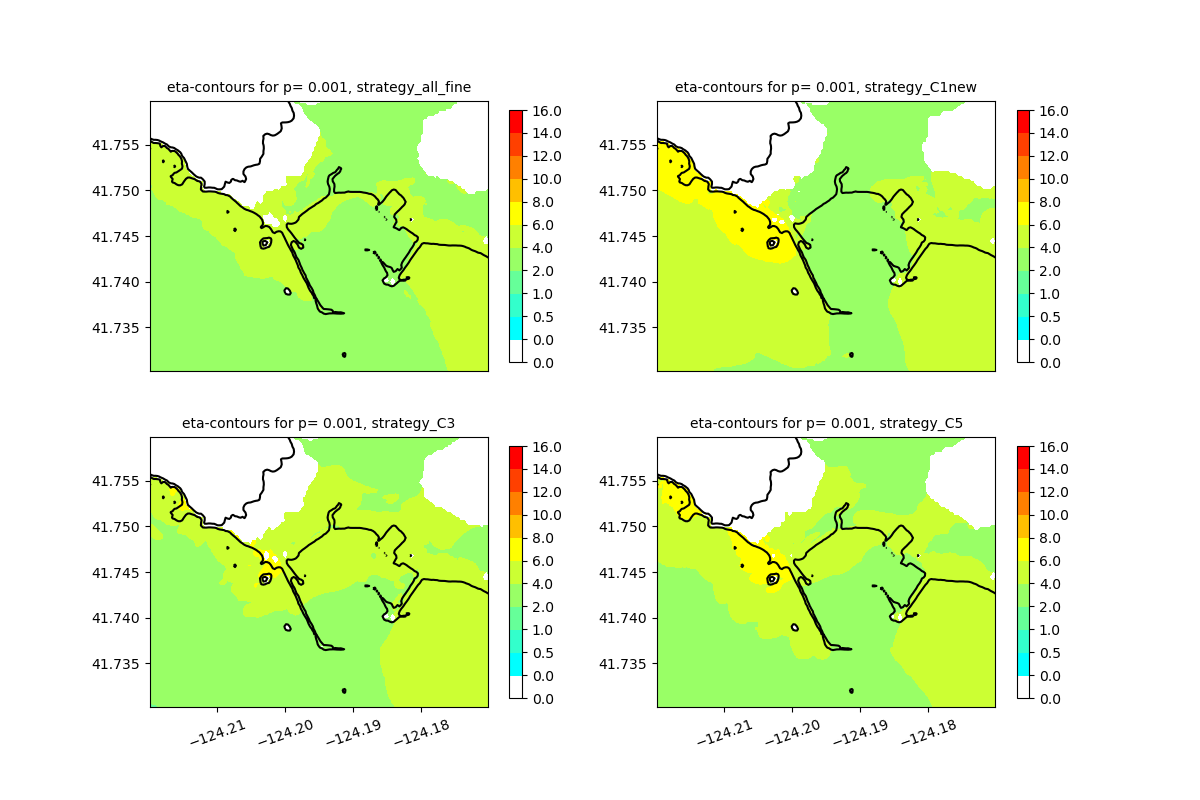

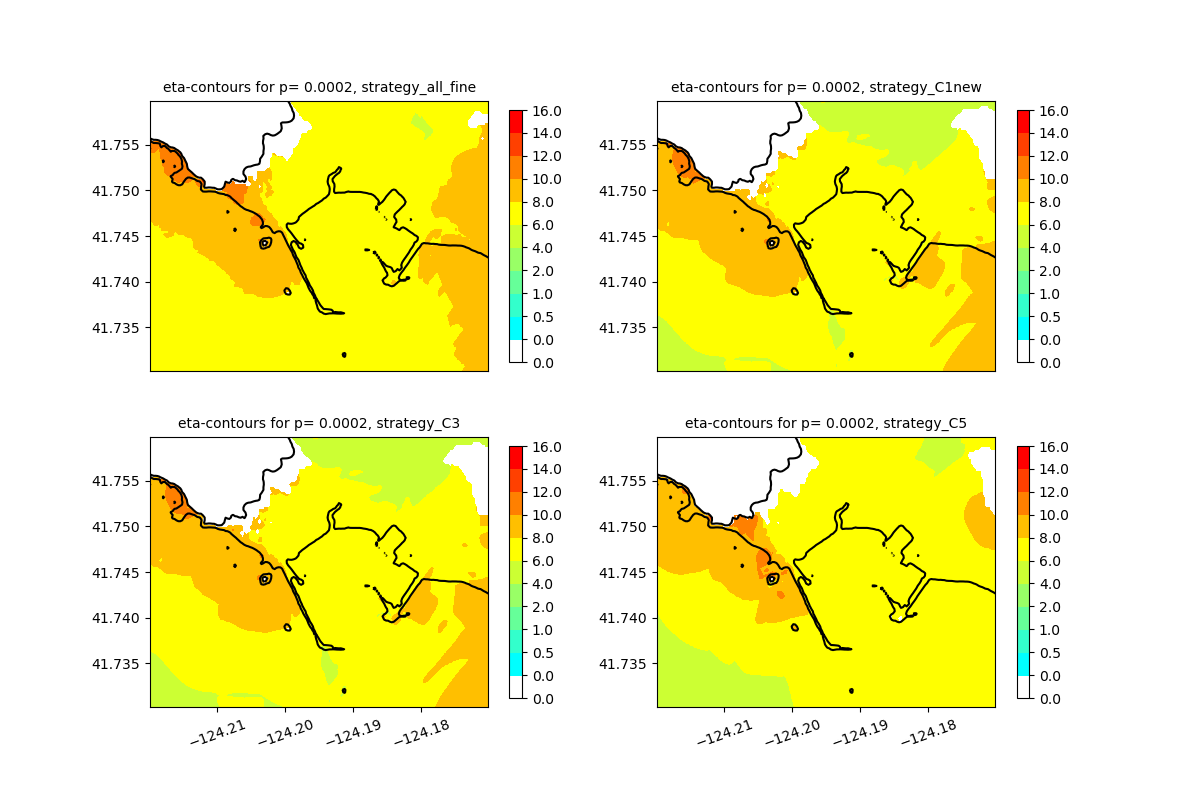

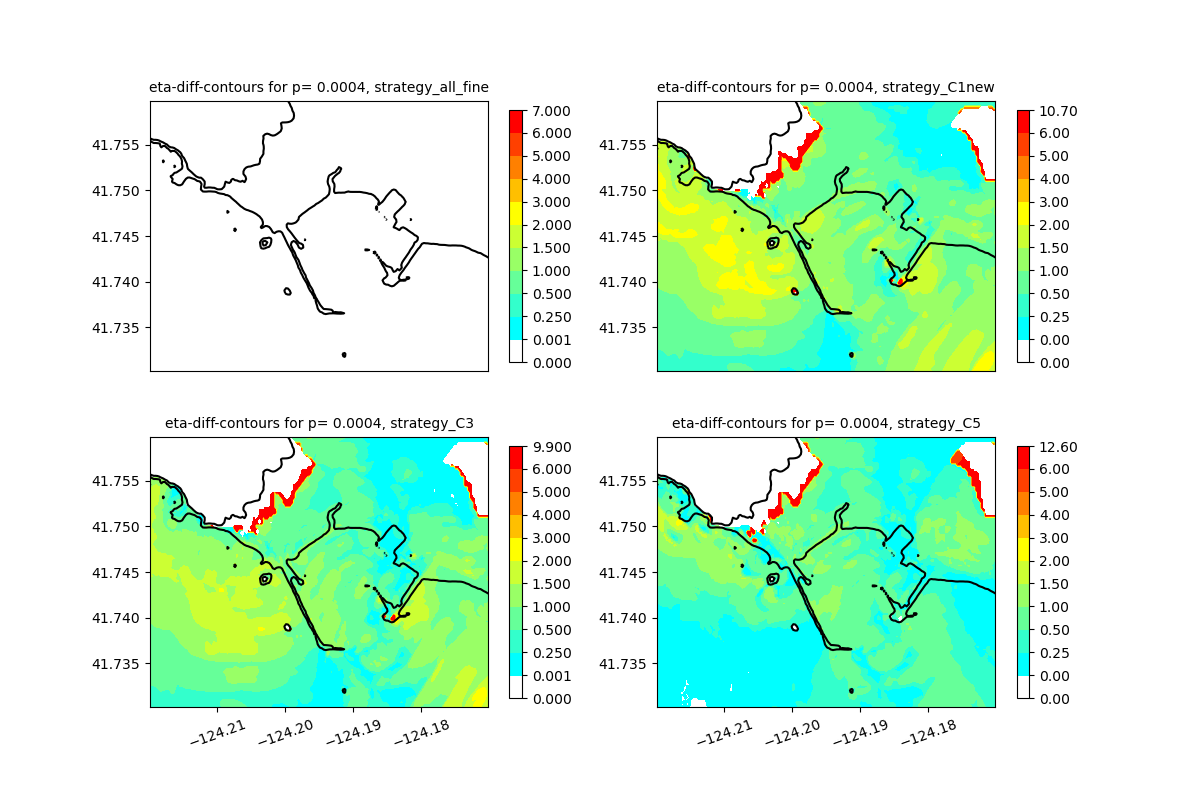

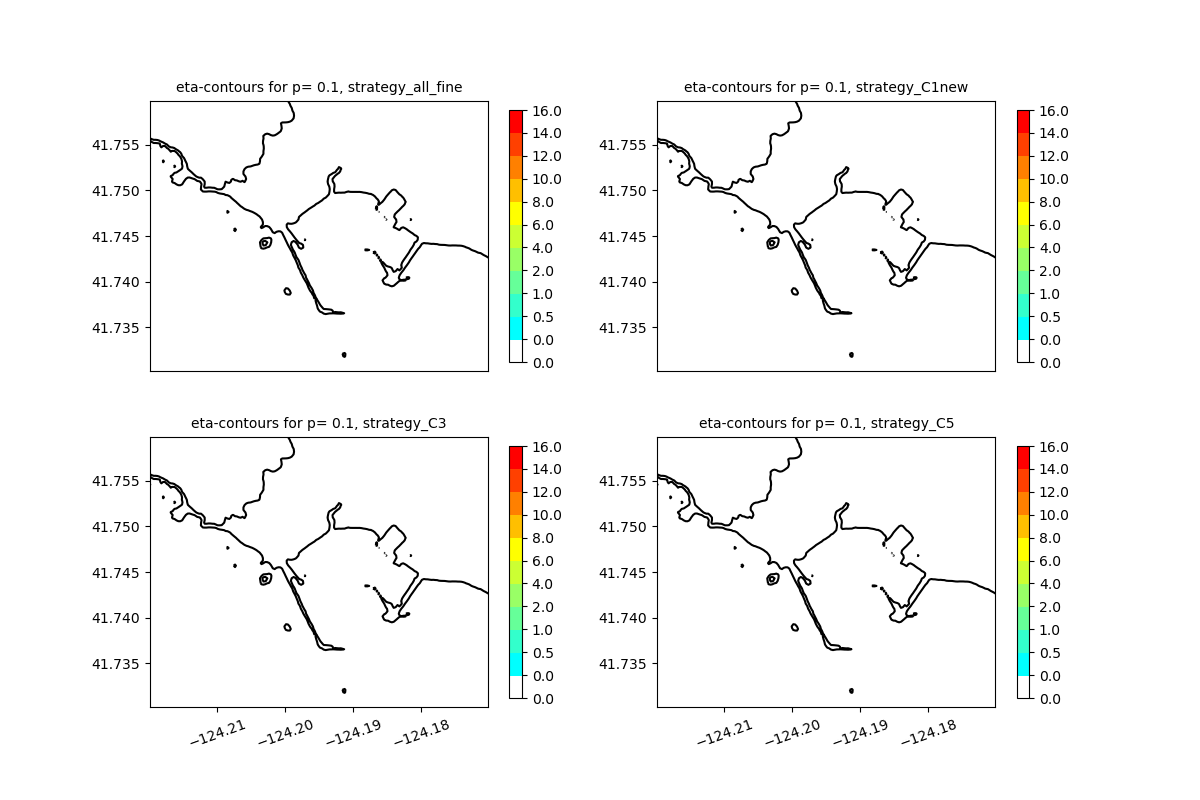

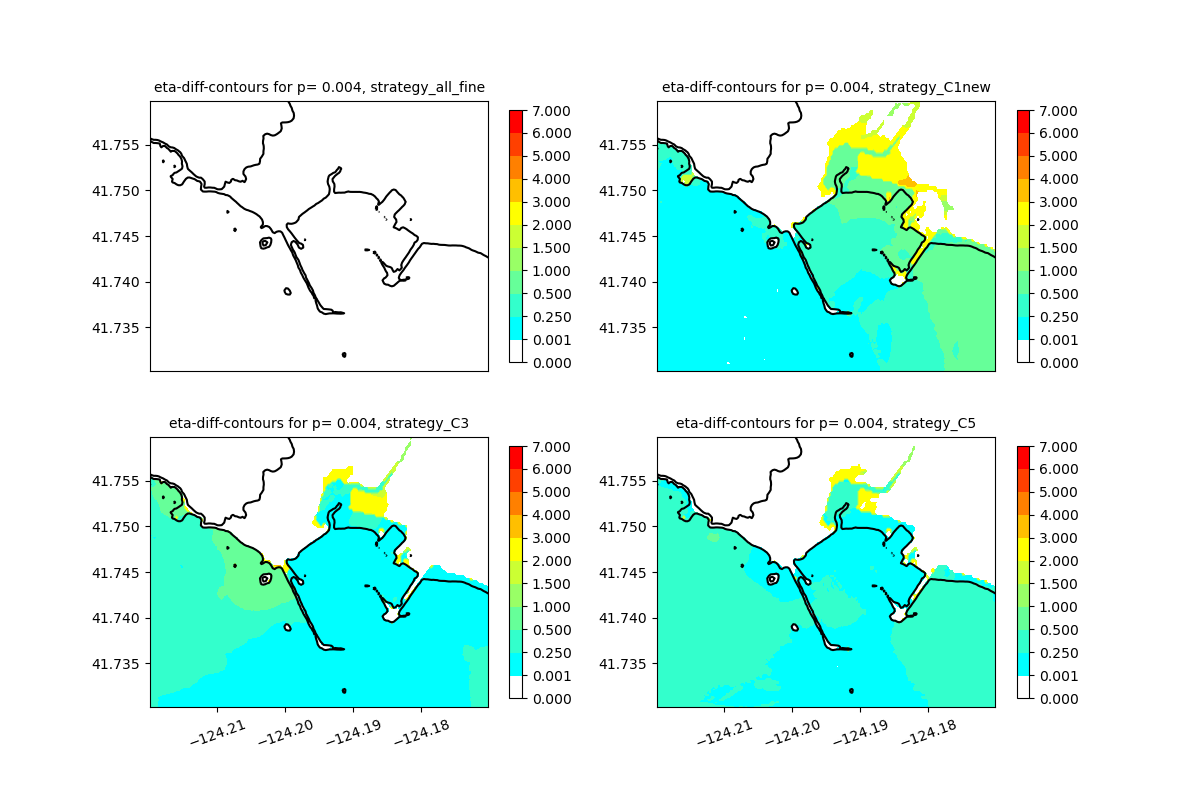

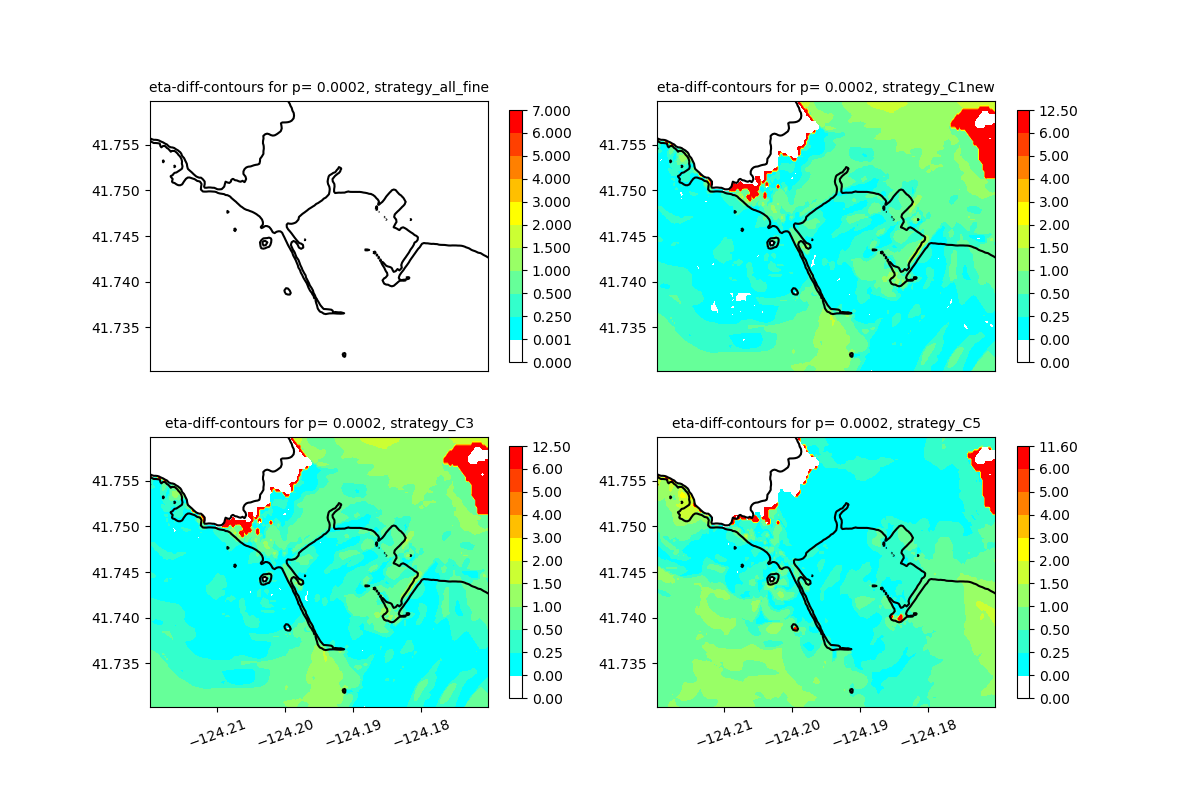

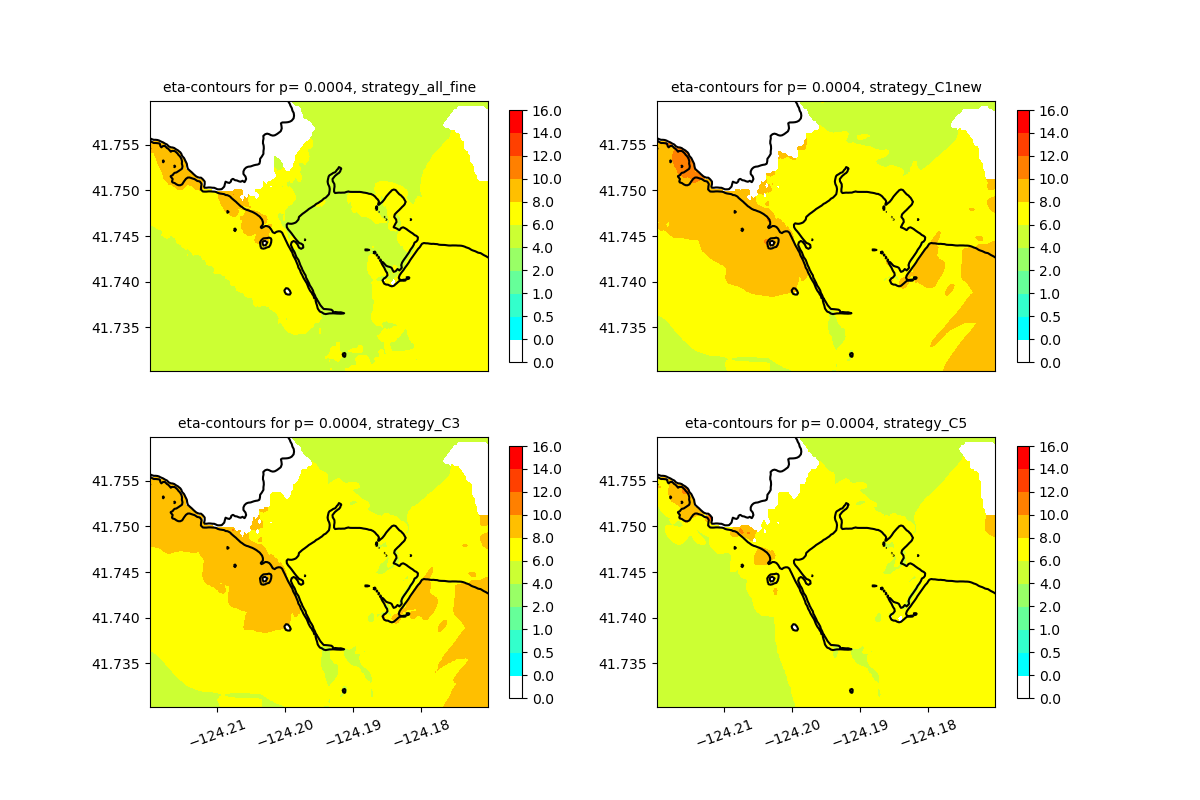

Eta contours for different probabilities (and errors)
Eta = h+B0 everywhere (B0 = original topo)

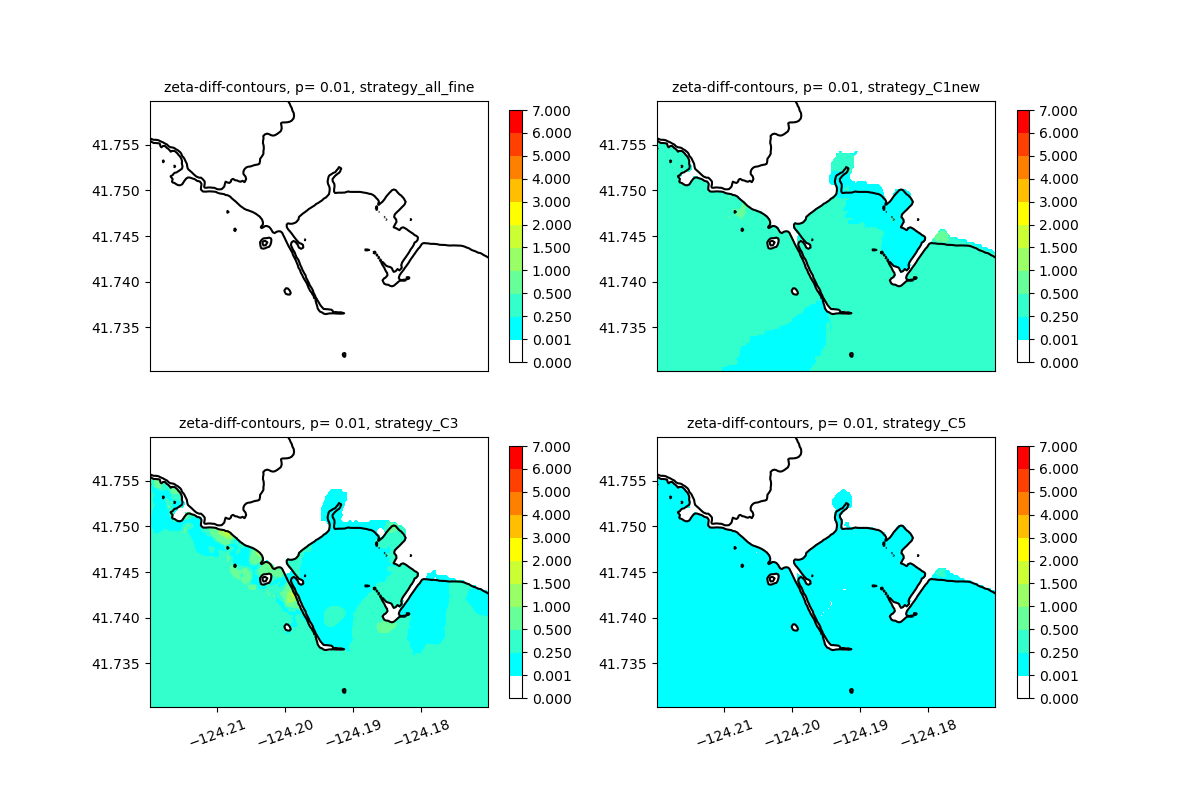

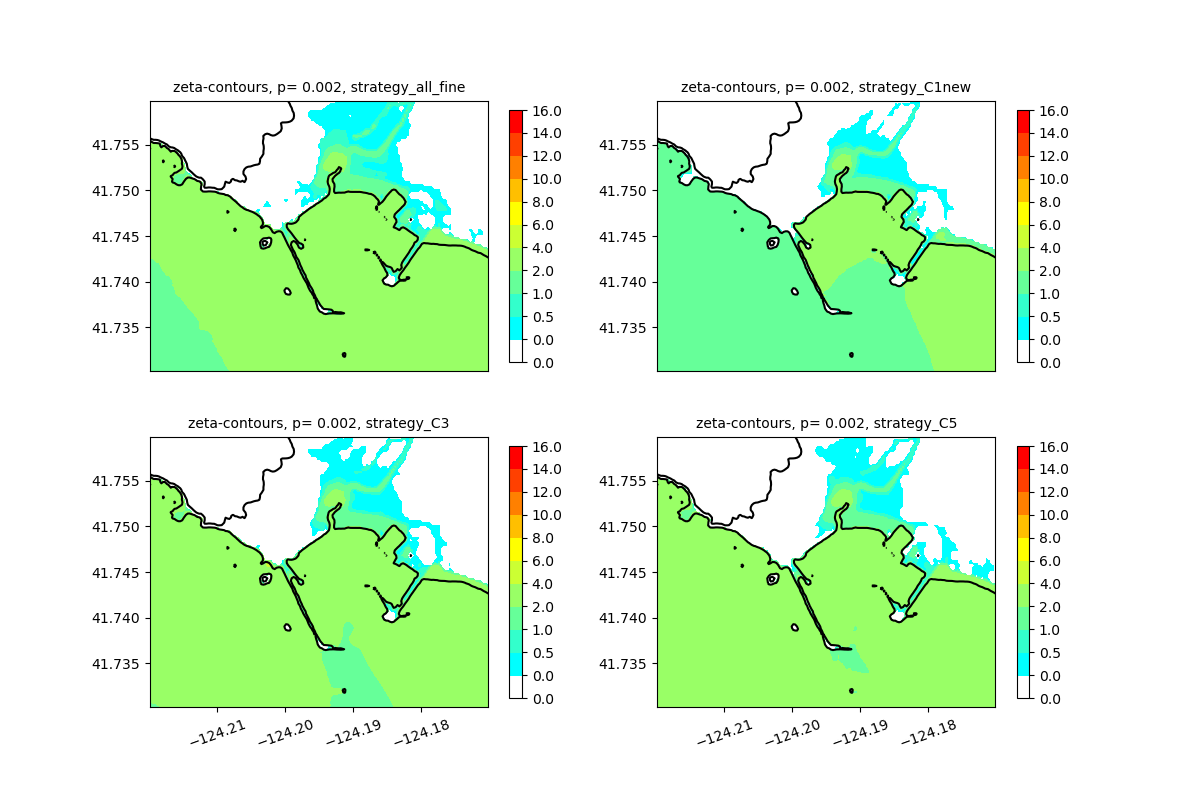

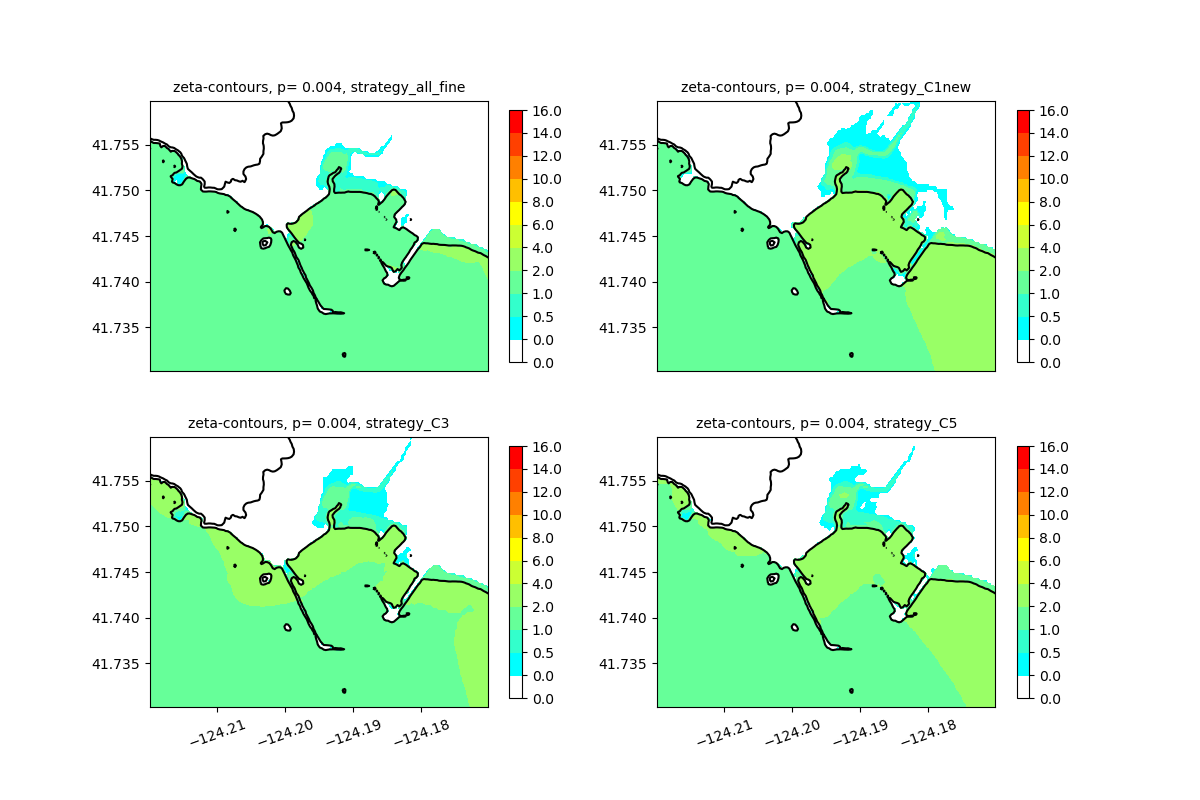

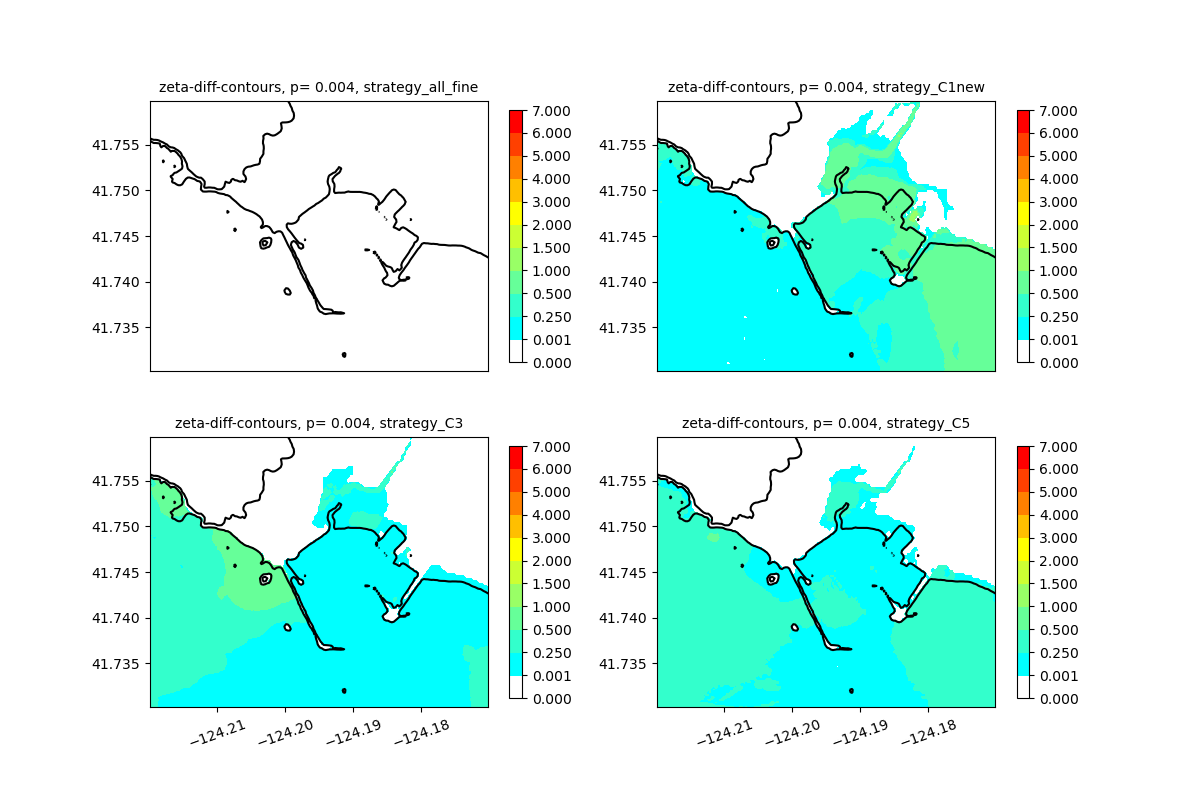

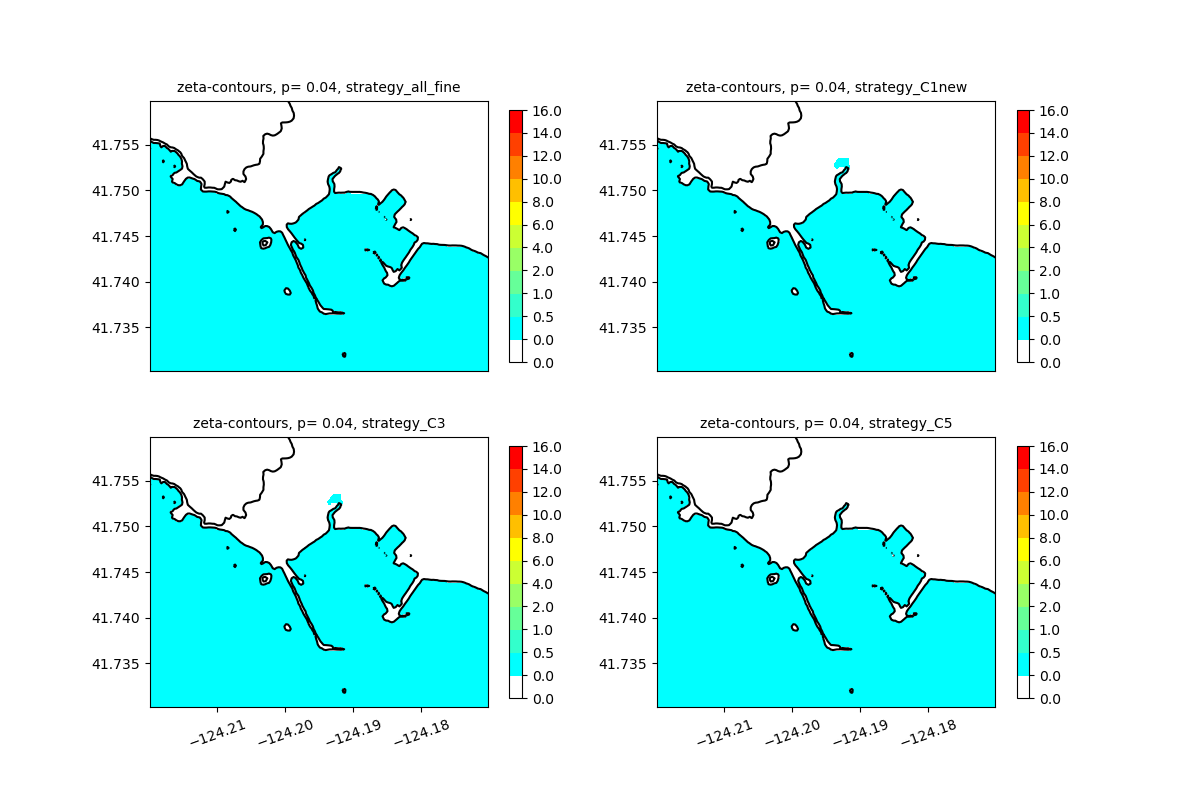

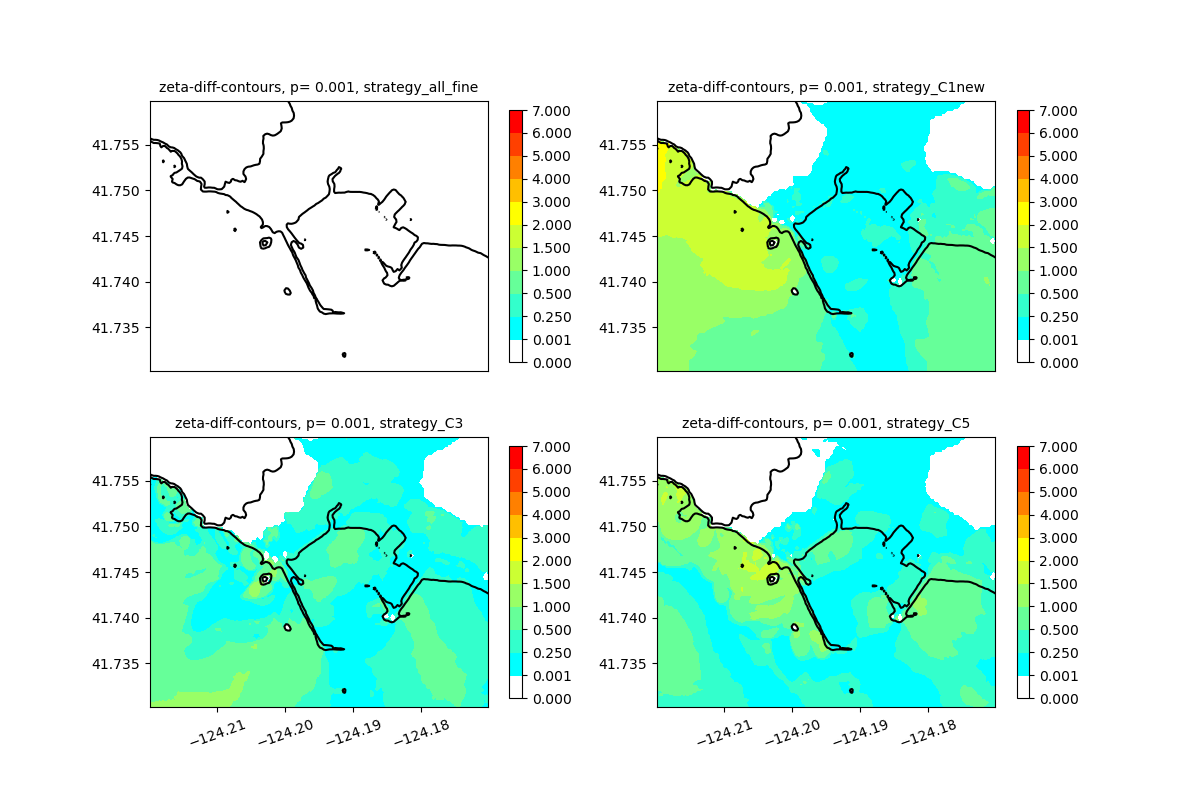

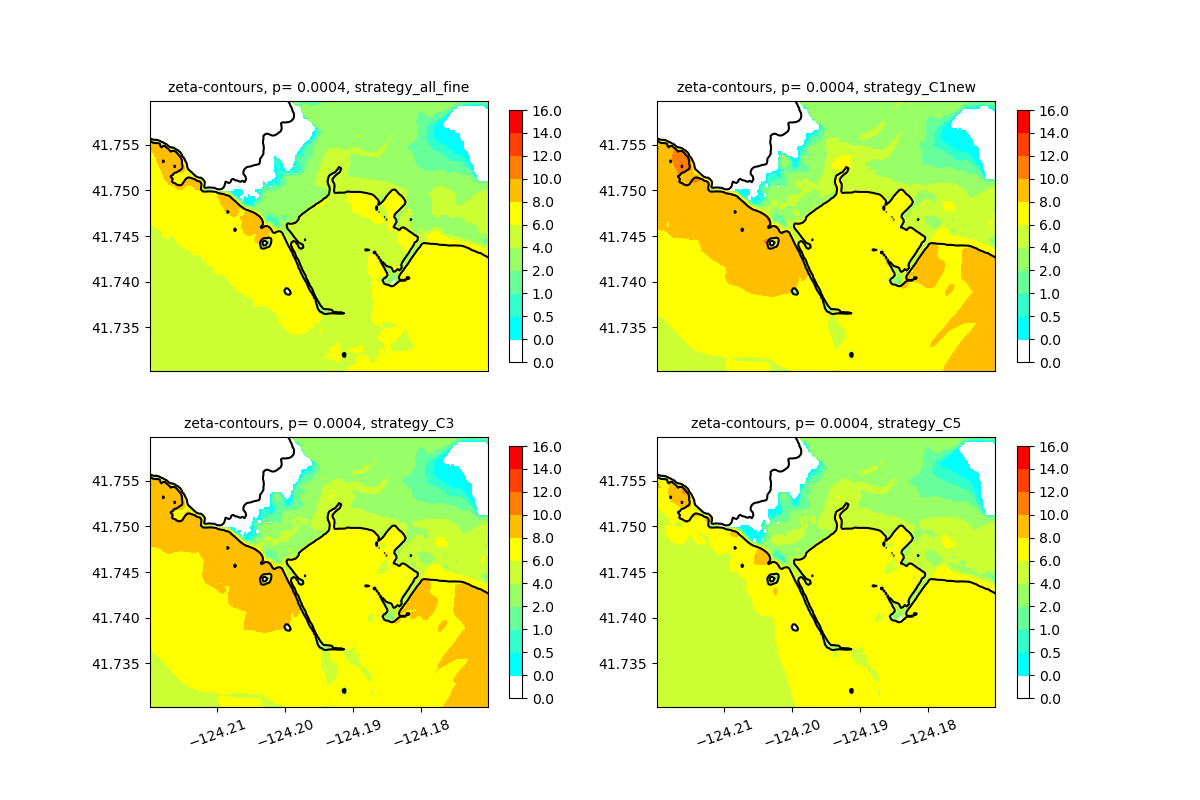

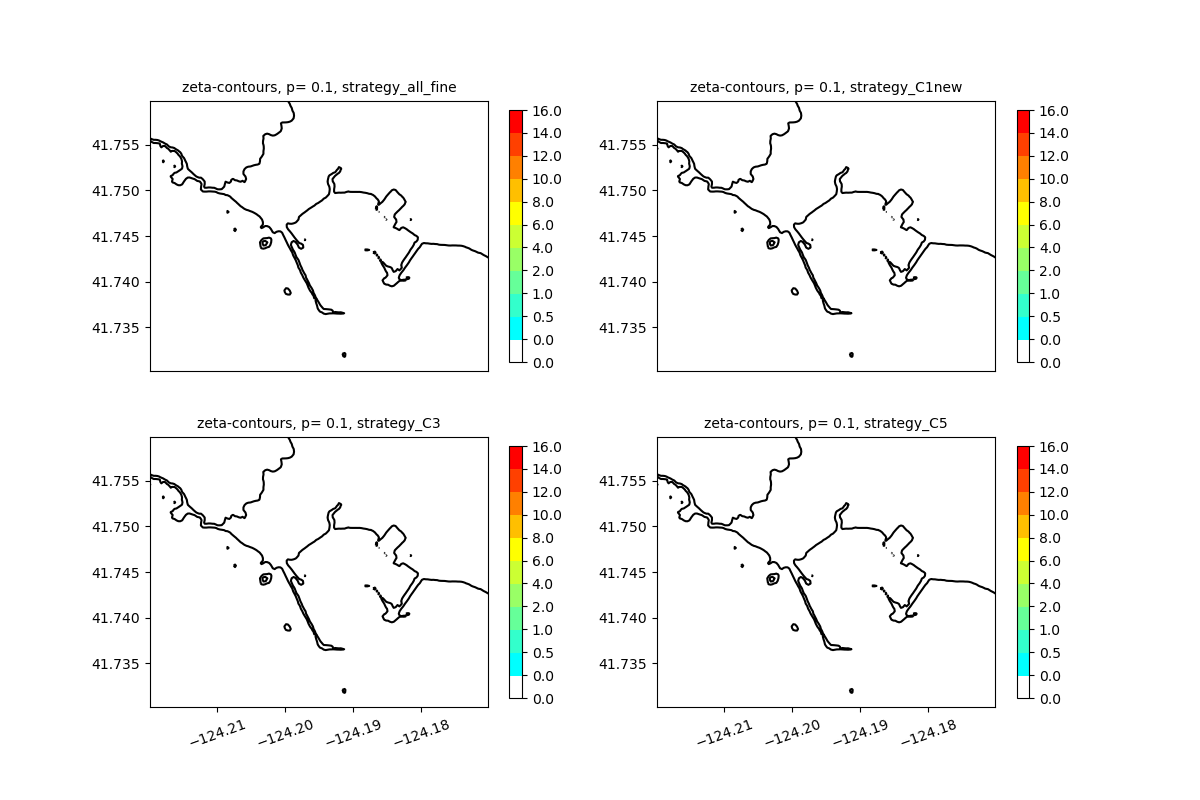

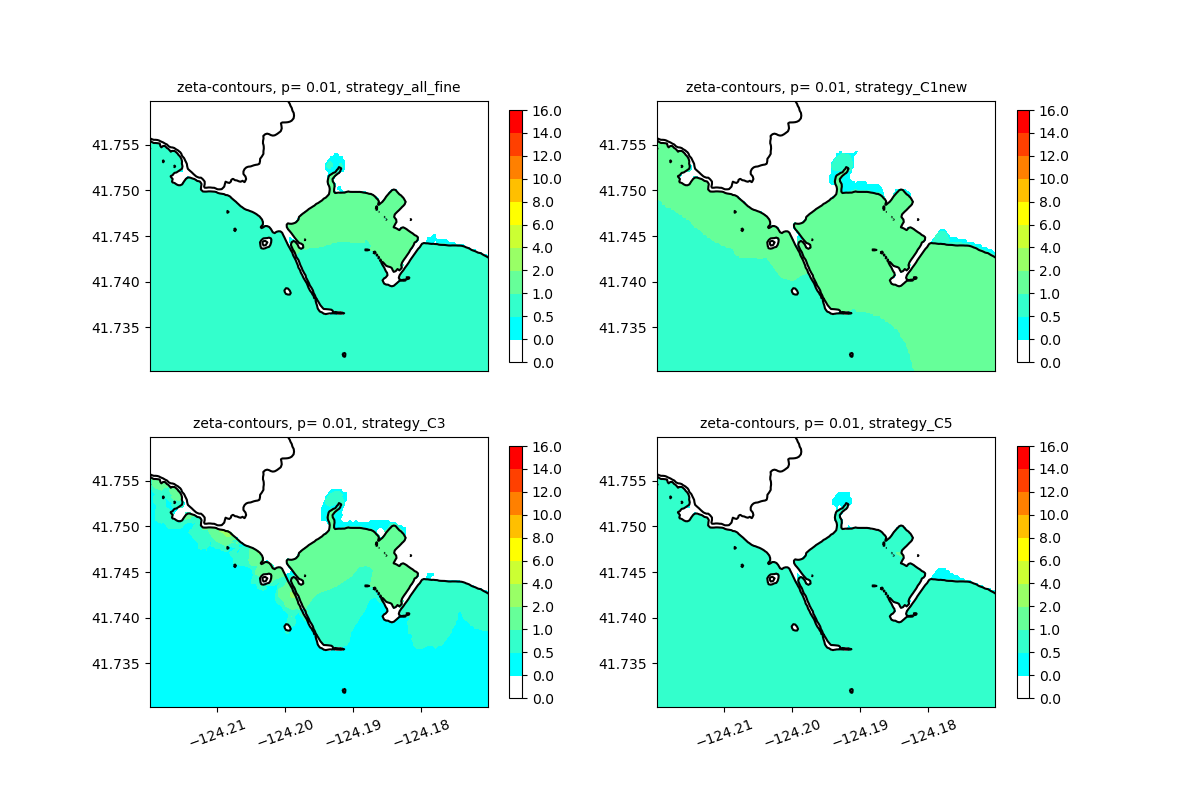

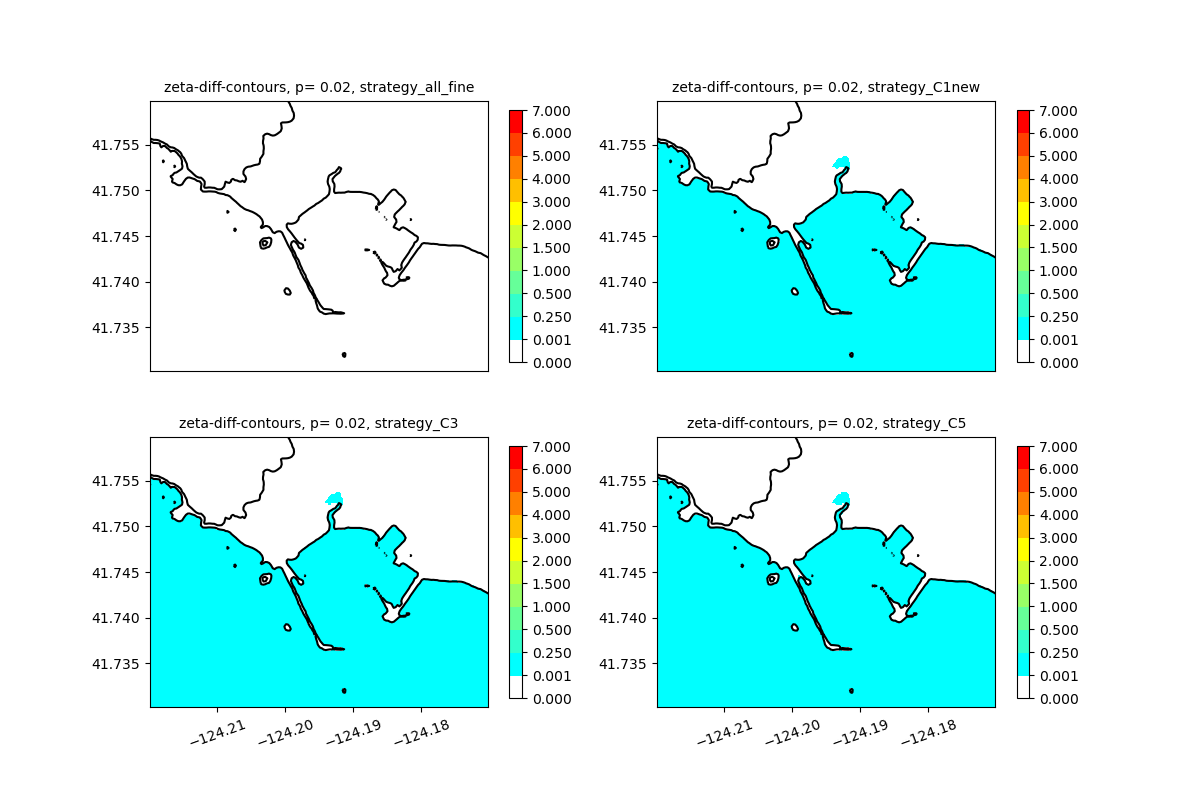

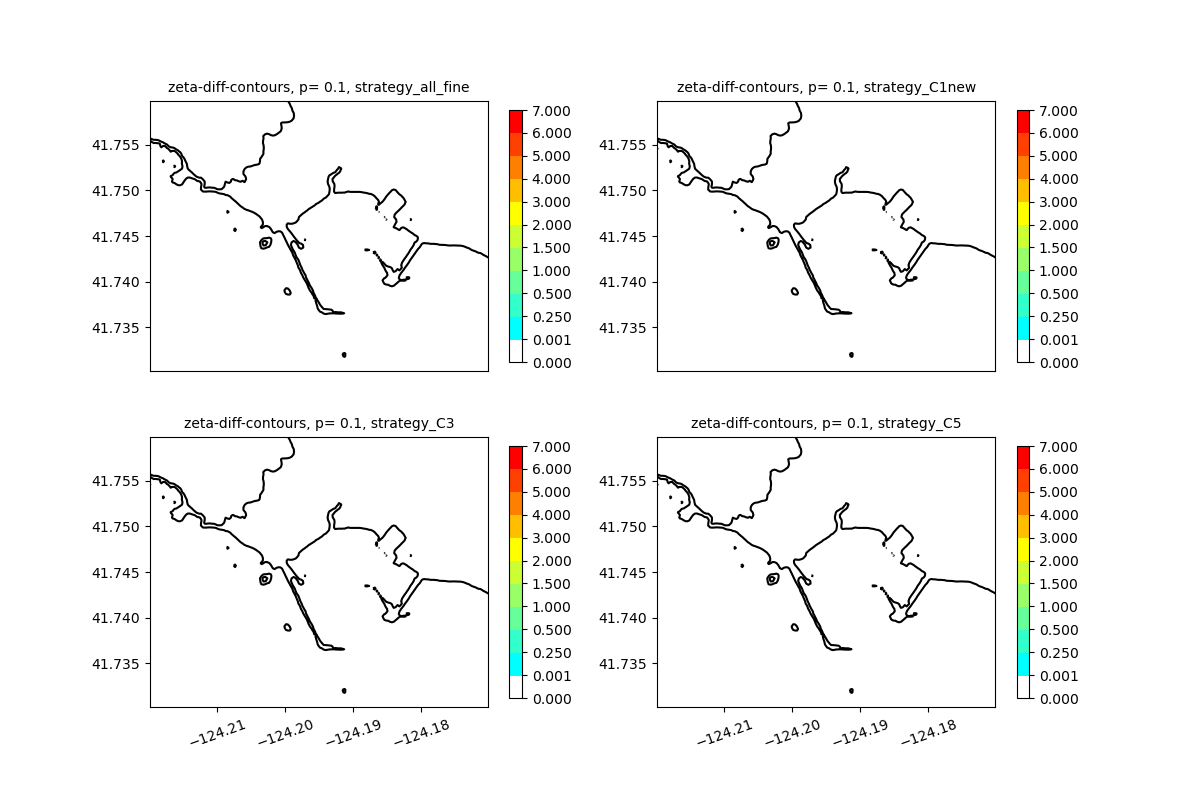

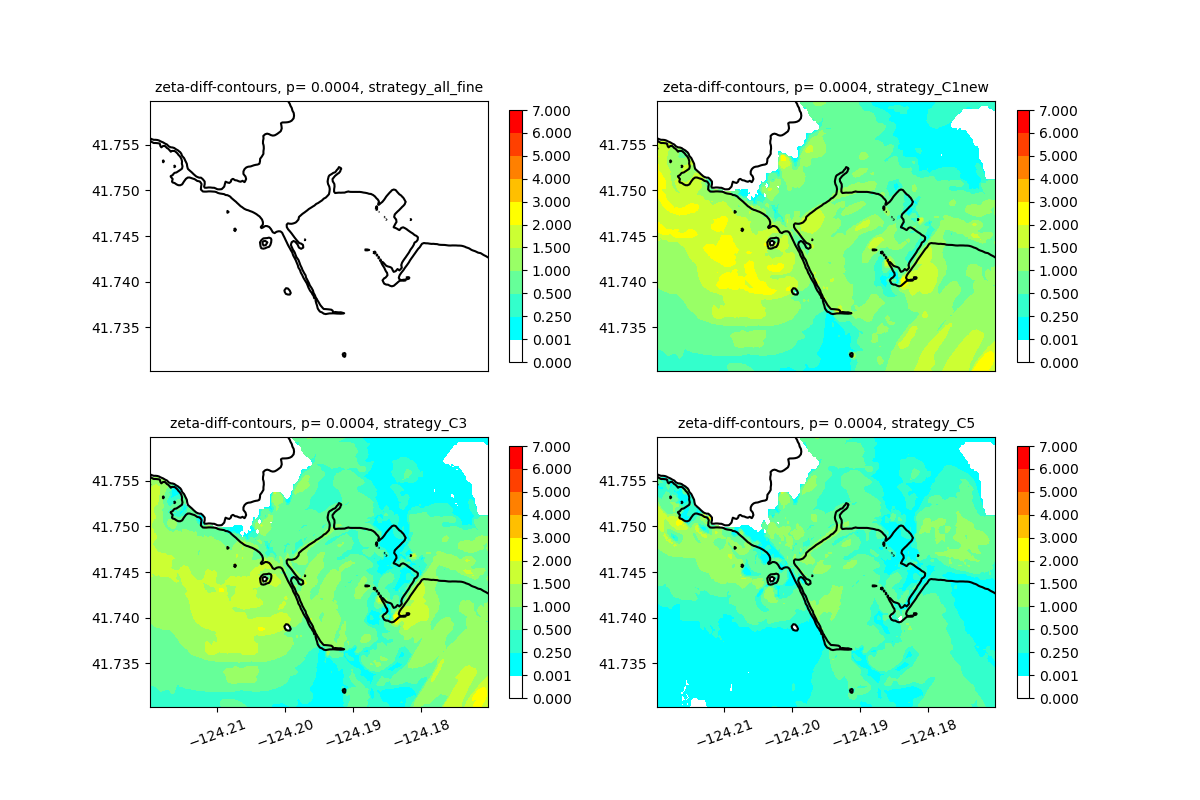

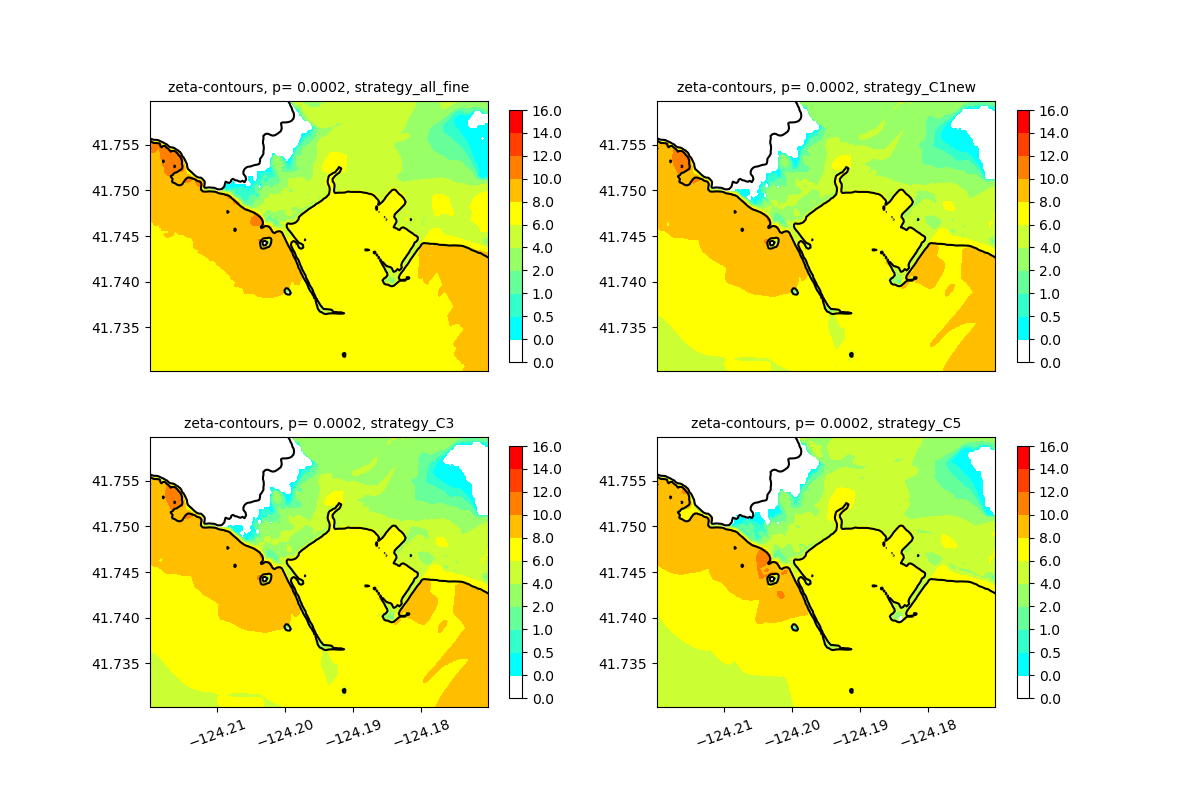

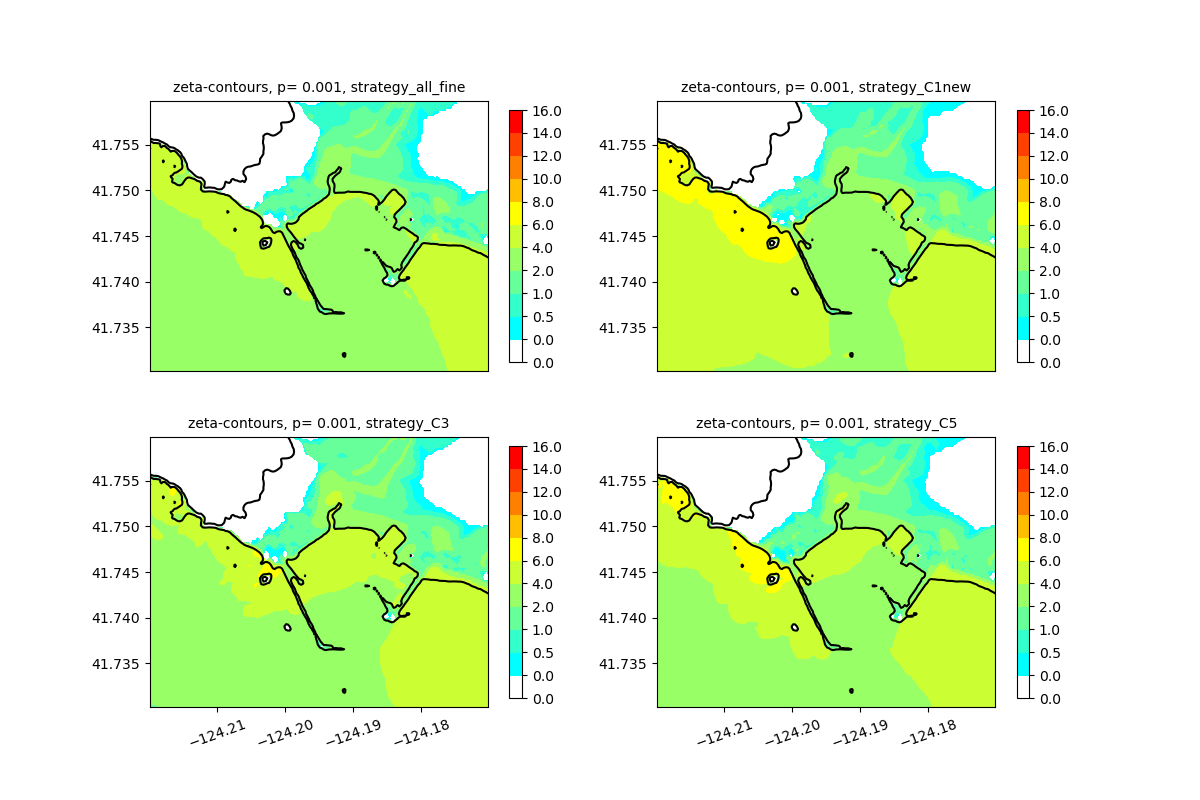

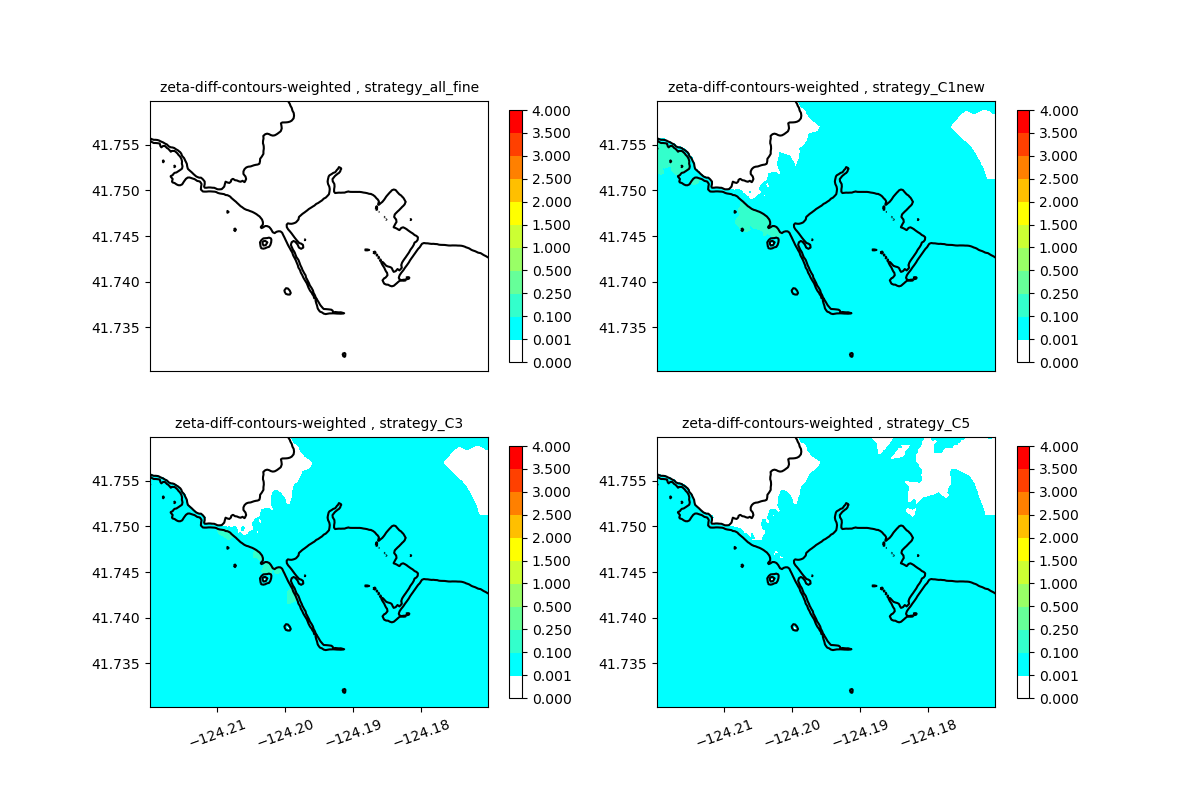

Zeta contours for different probabilities (and errors)
Zeta = h on land (where B0 > 0), Zeta = Eta = h+B0 offshore (where B0 < 0)

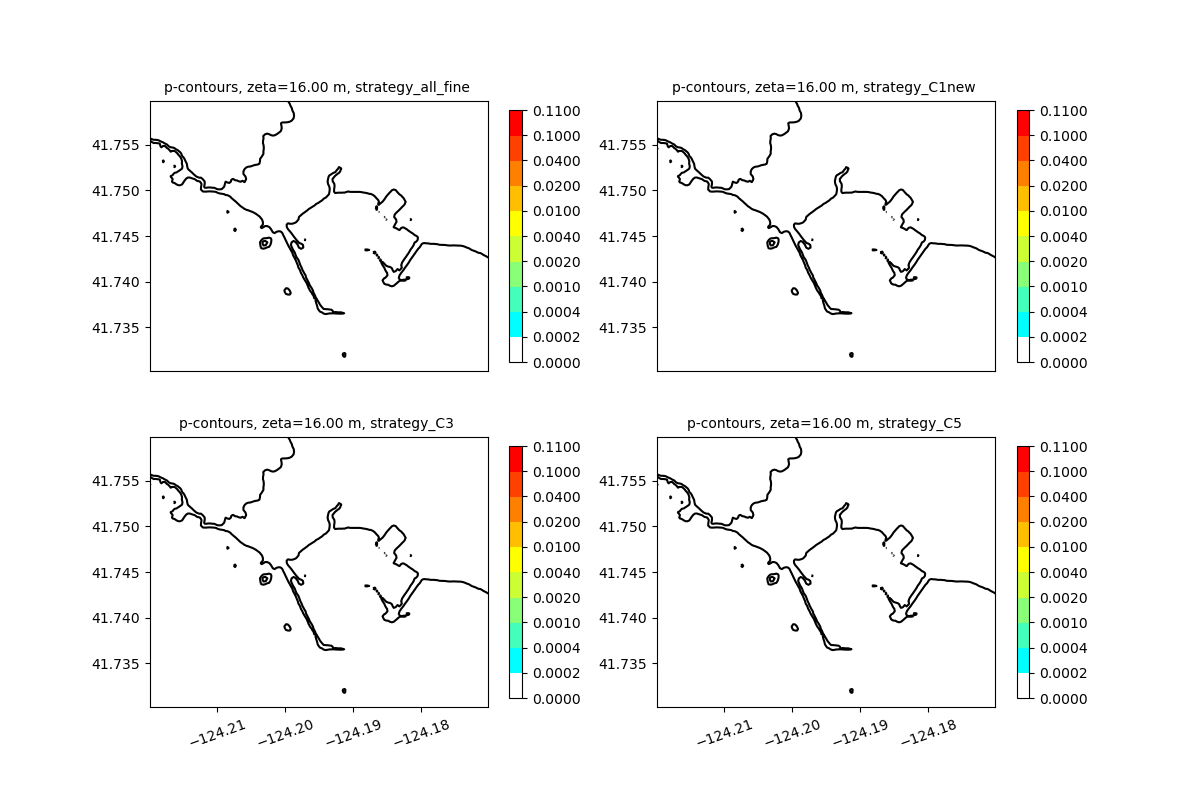

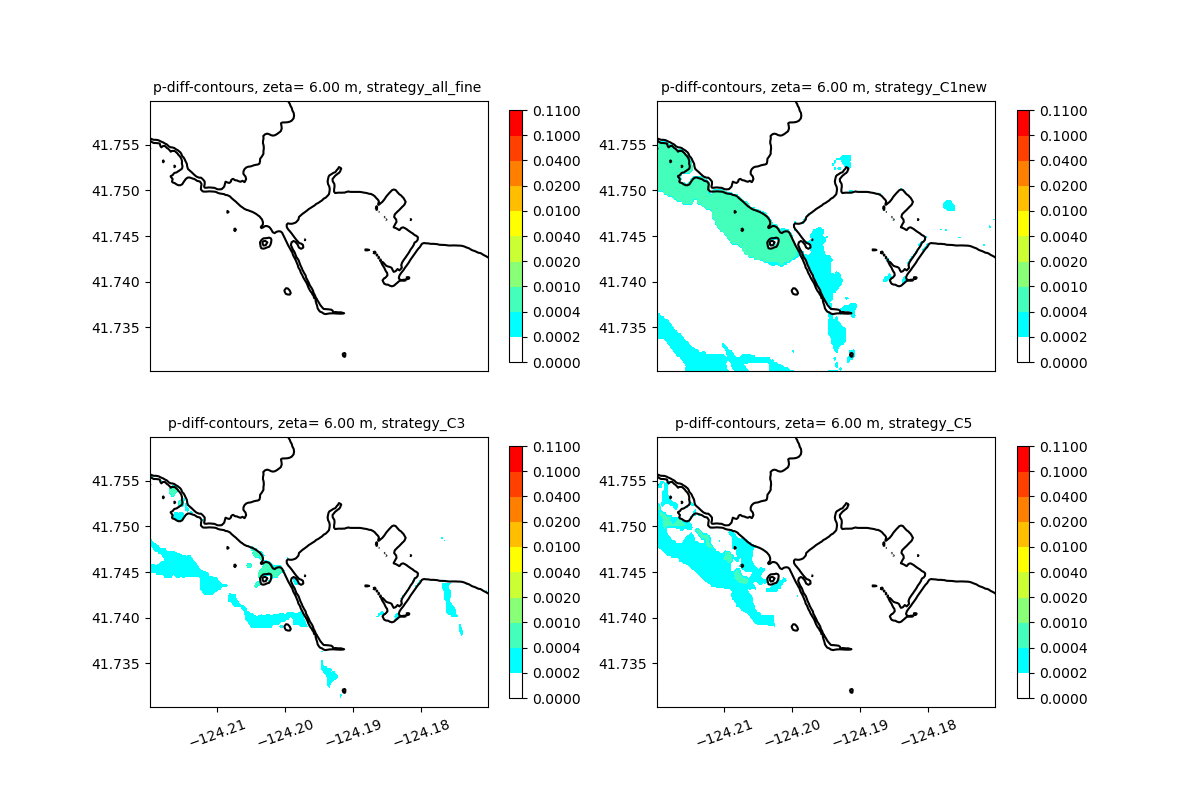

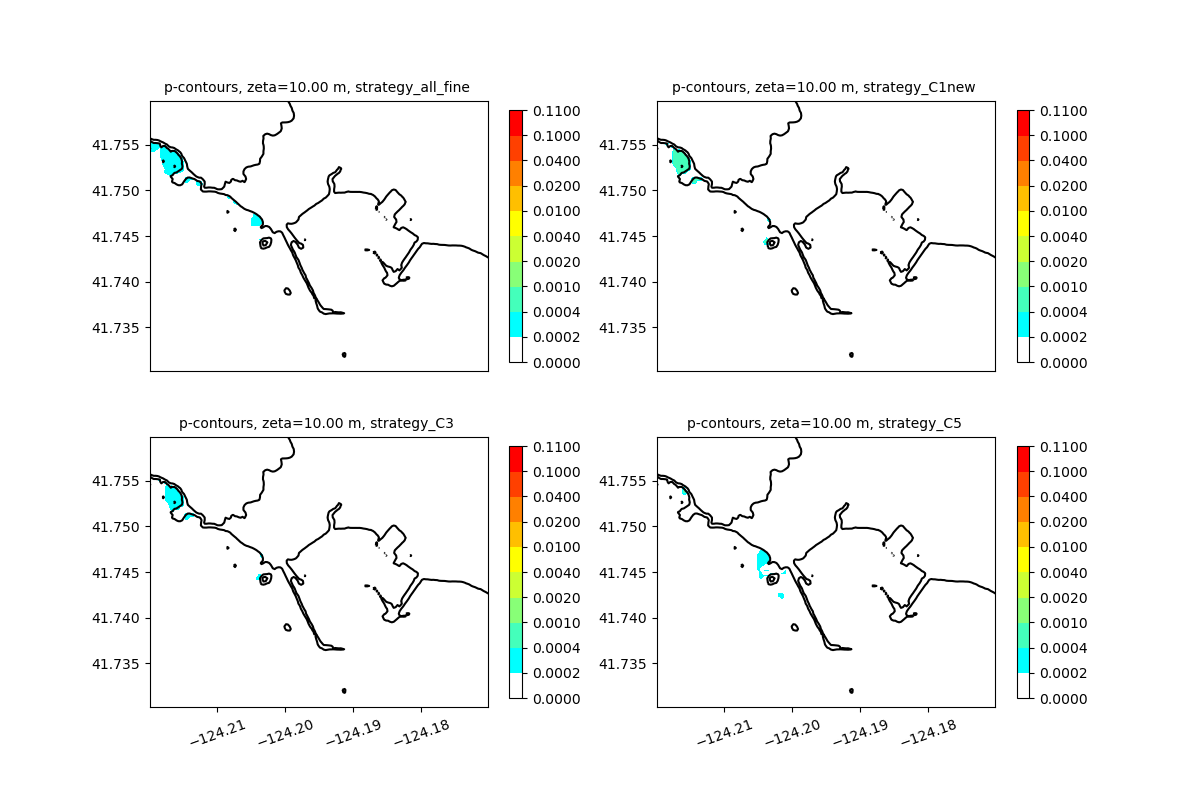

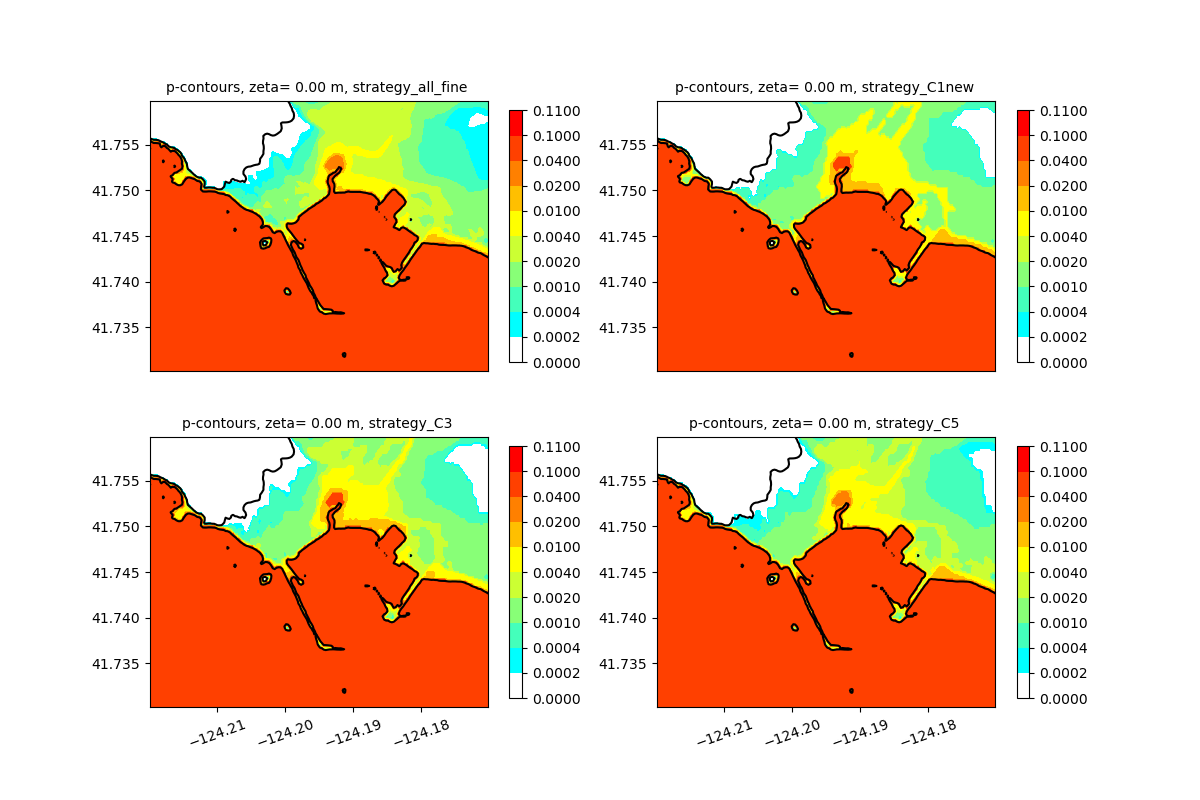

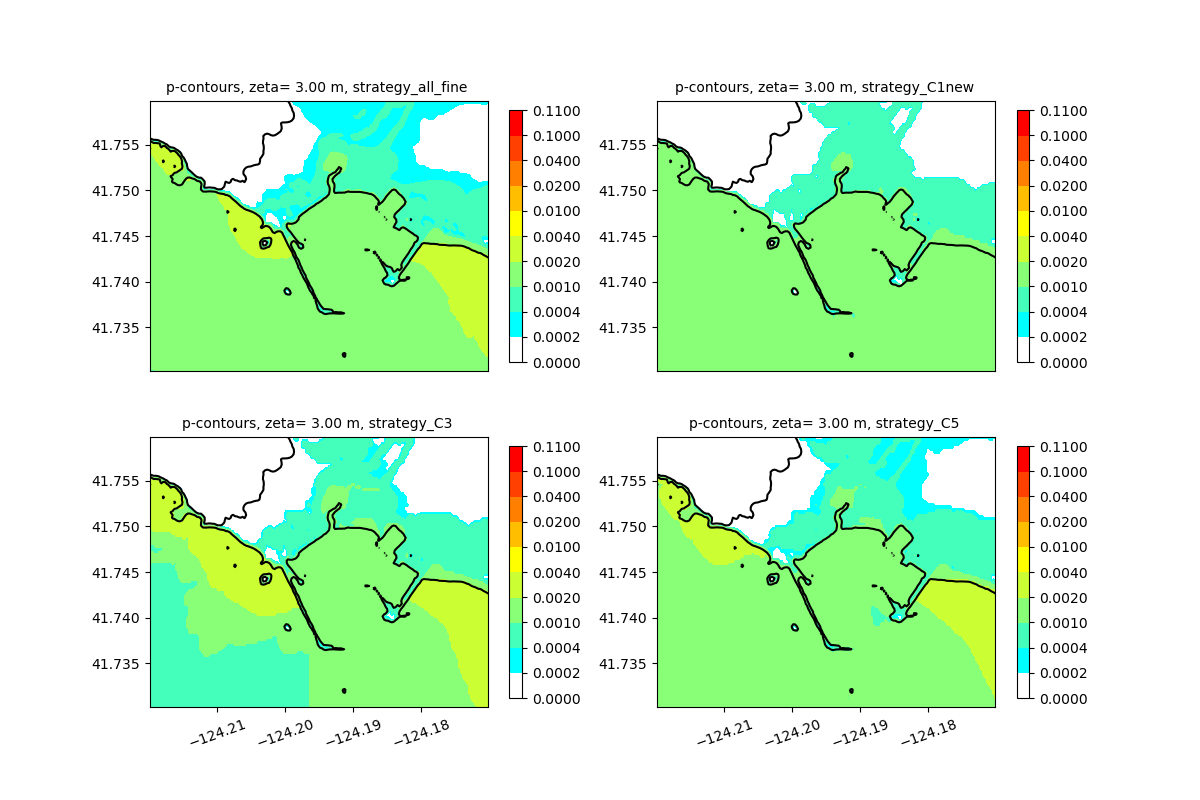

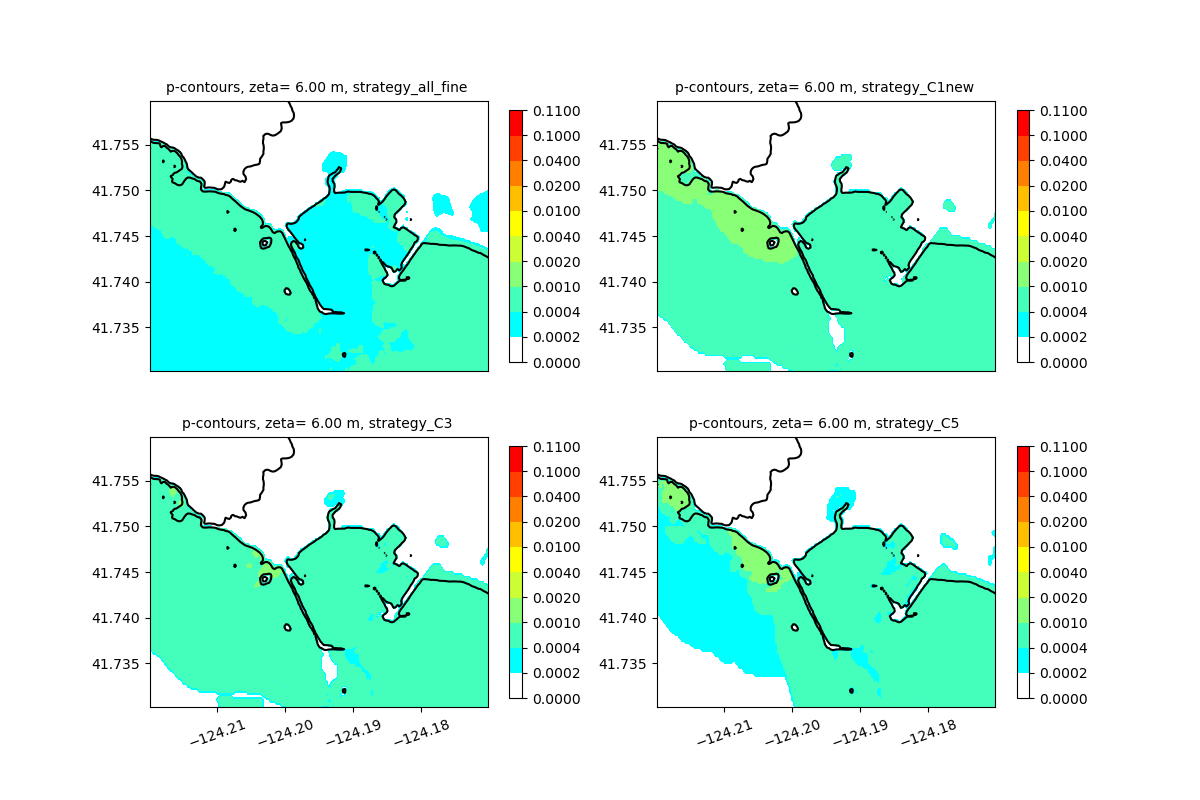

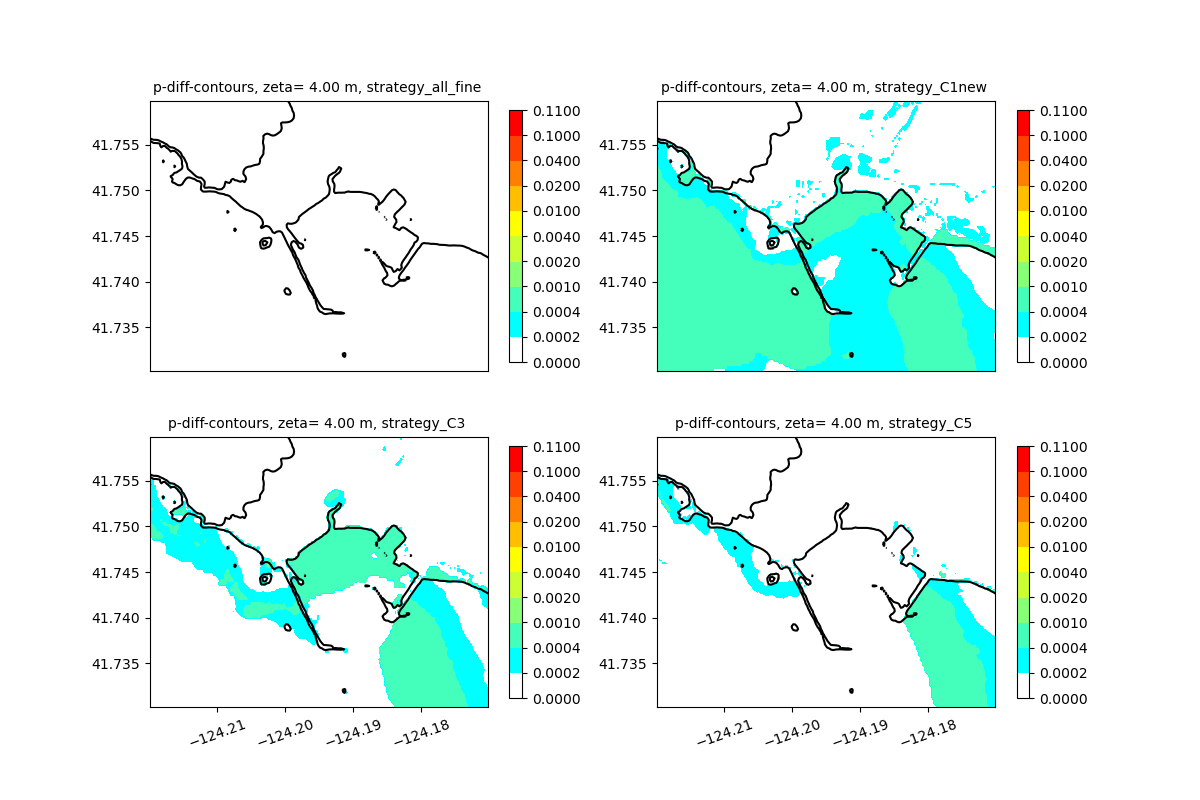

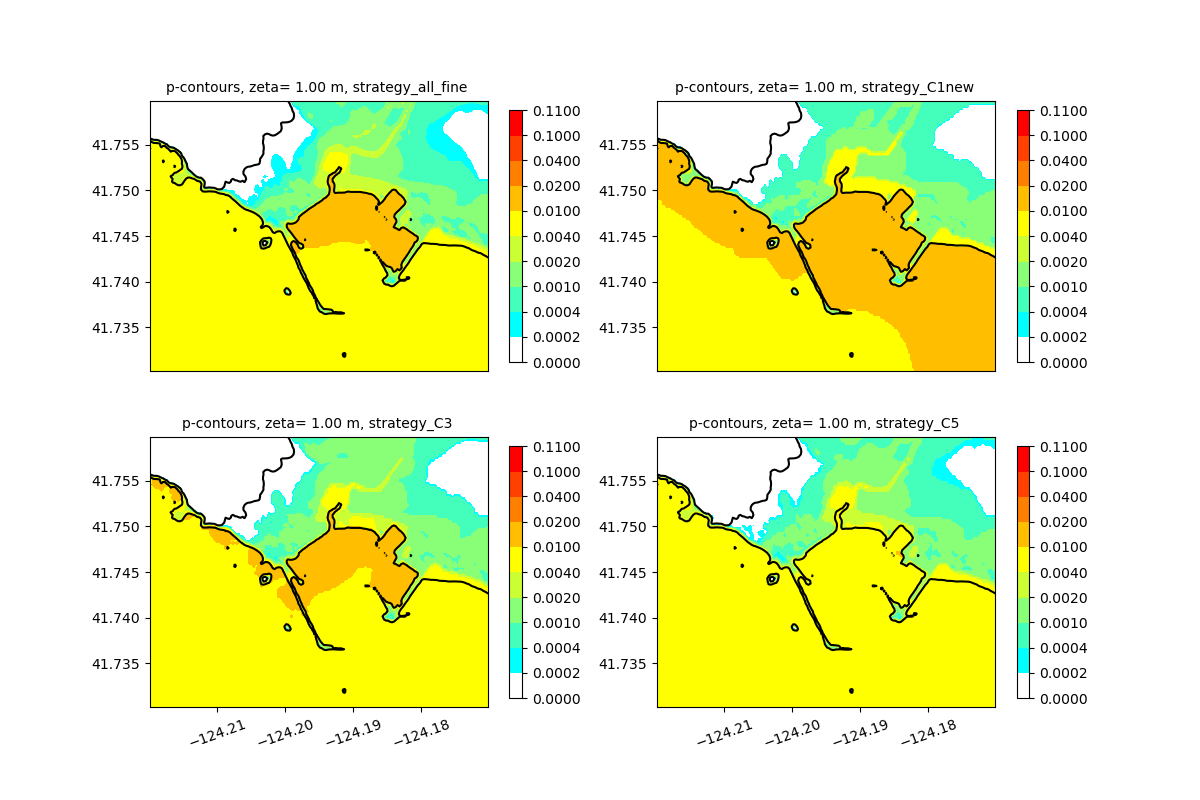

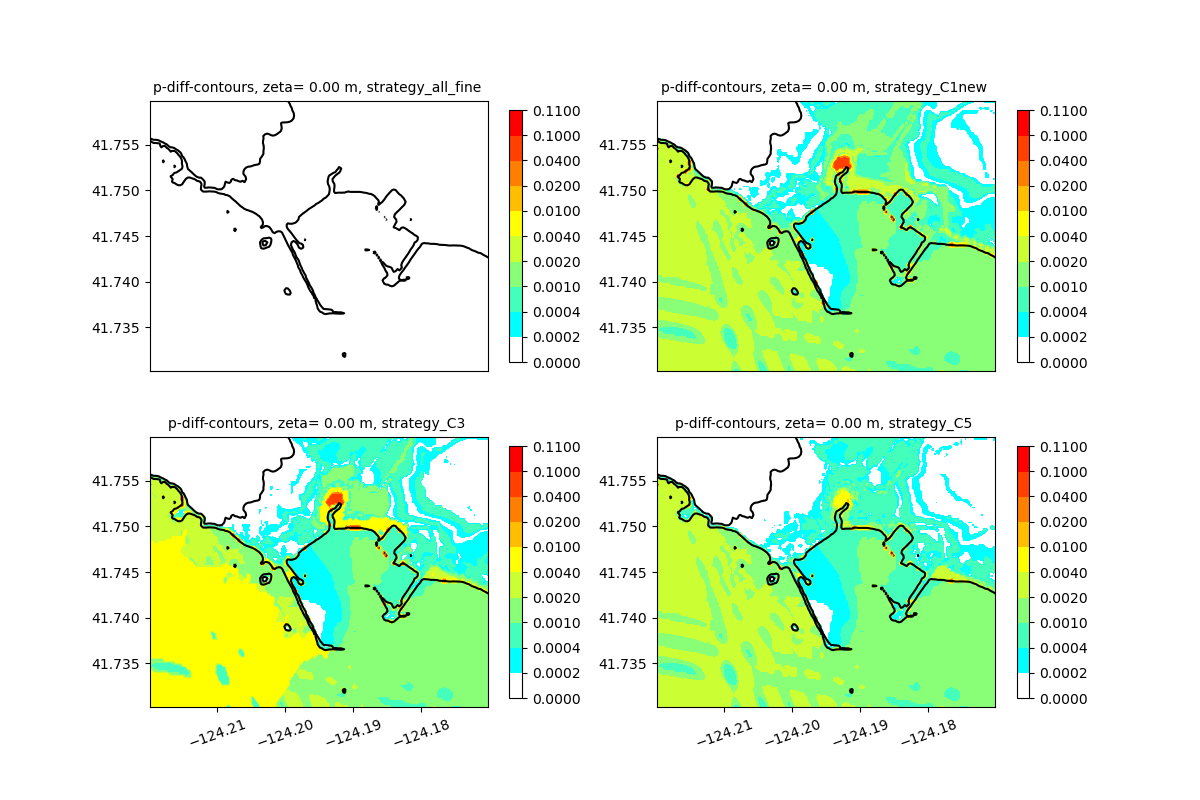

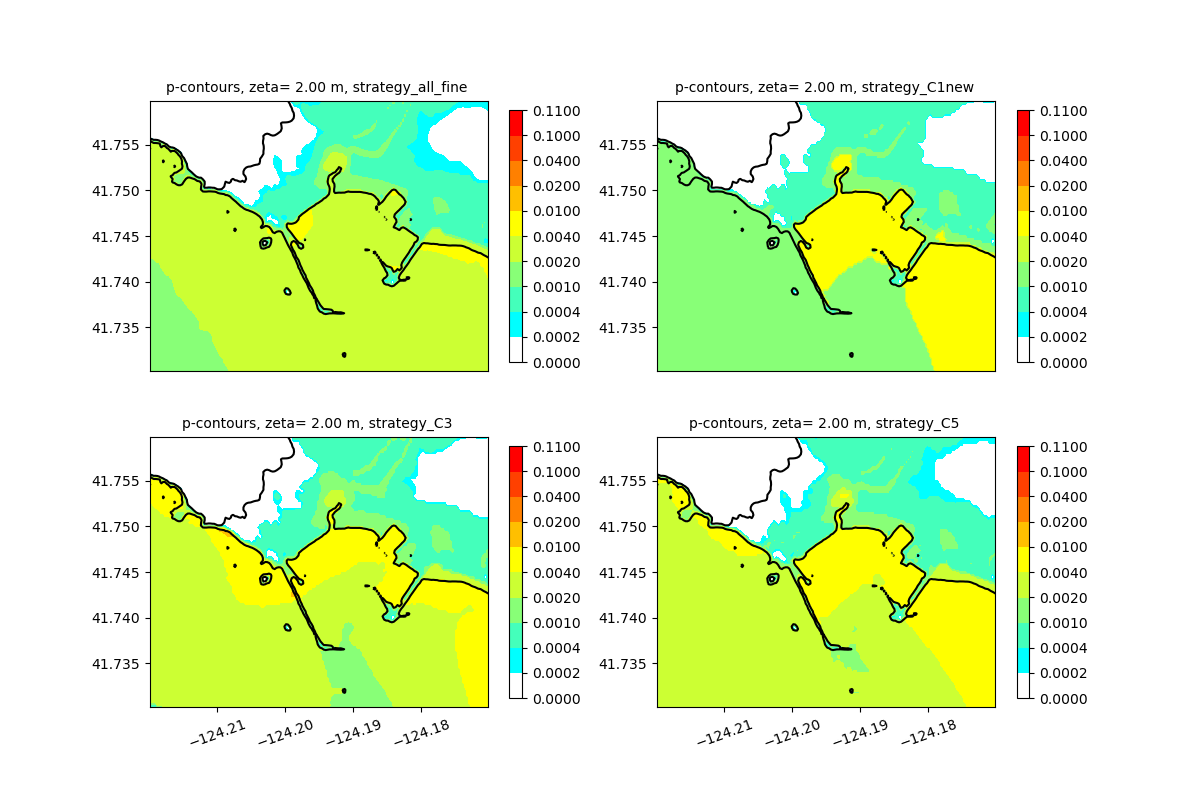

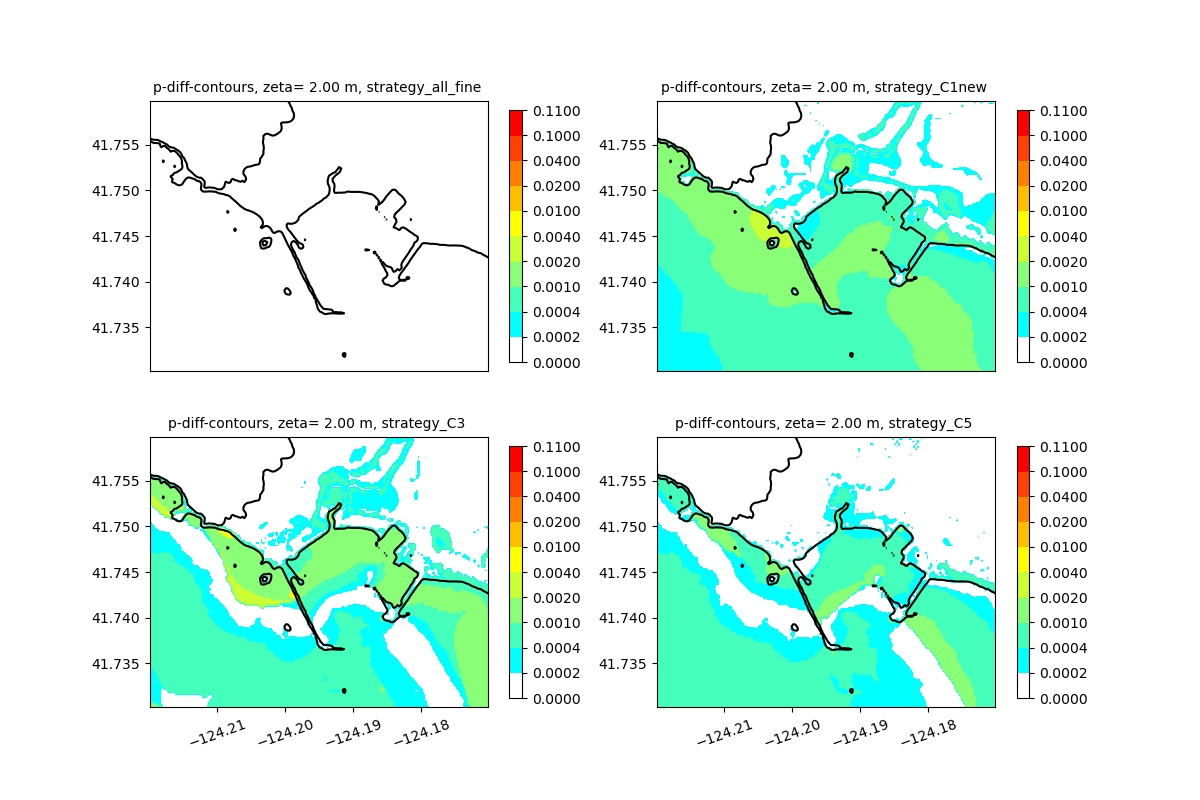

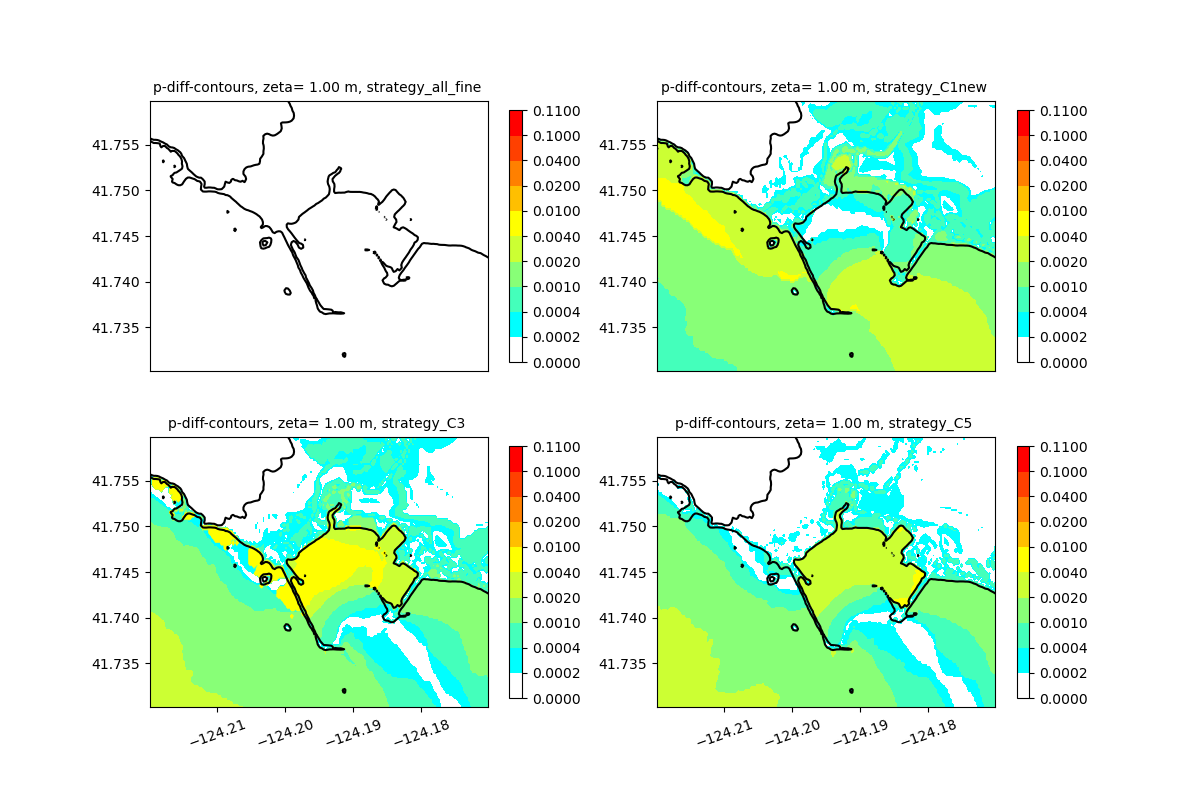

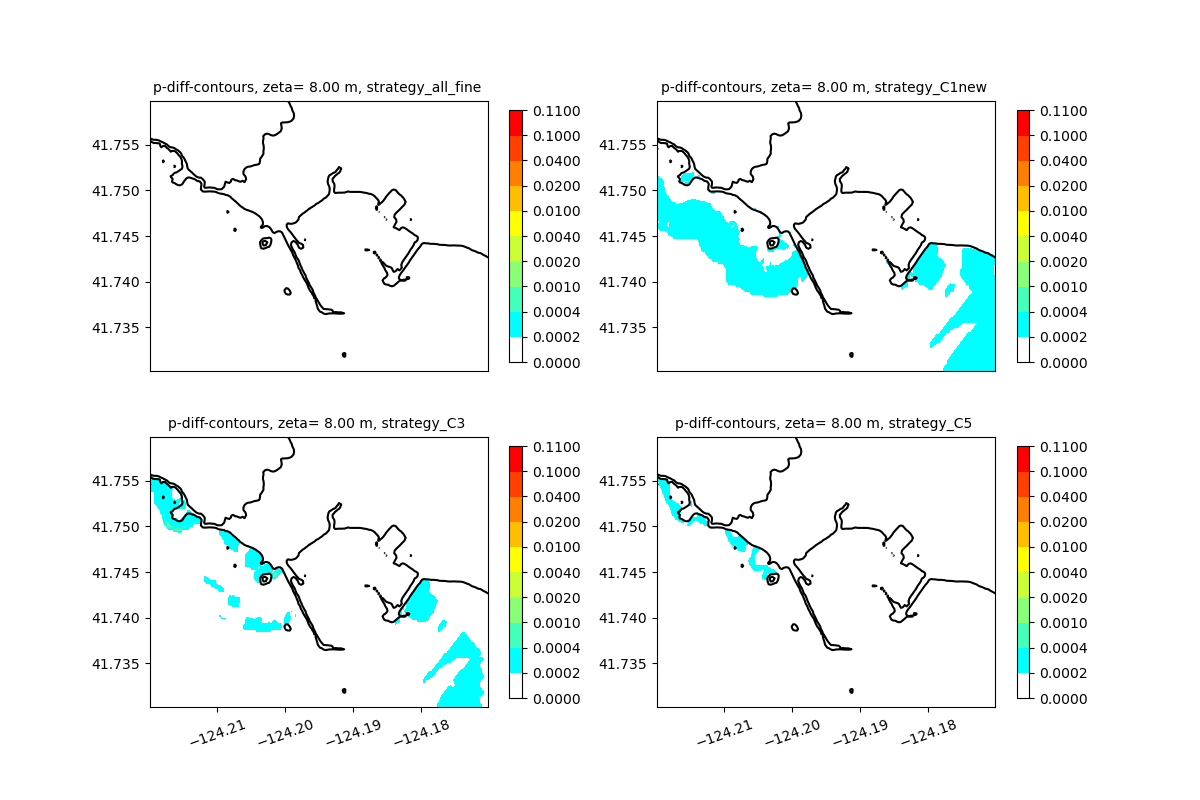

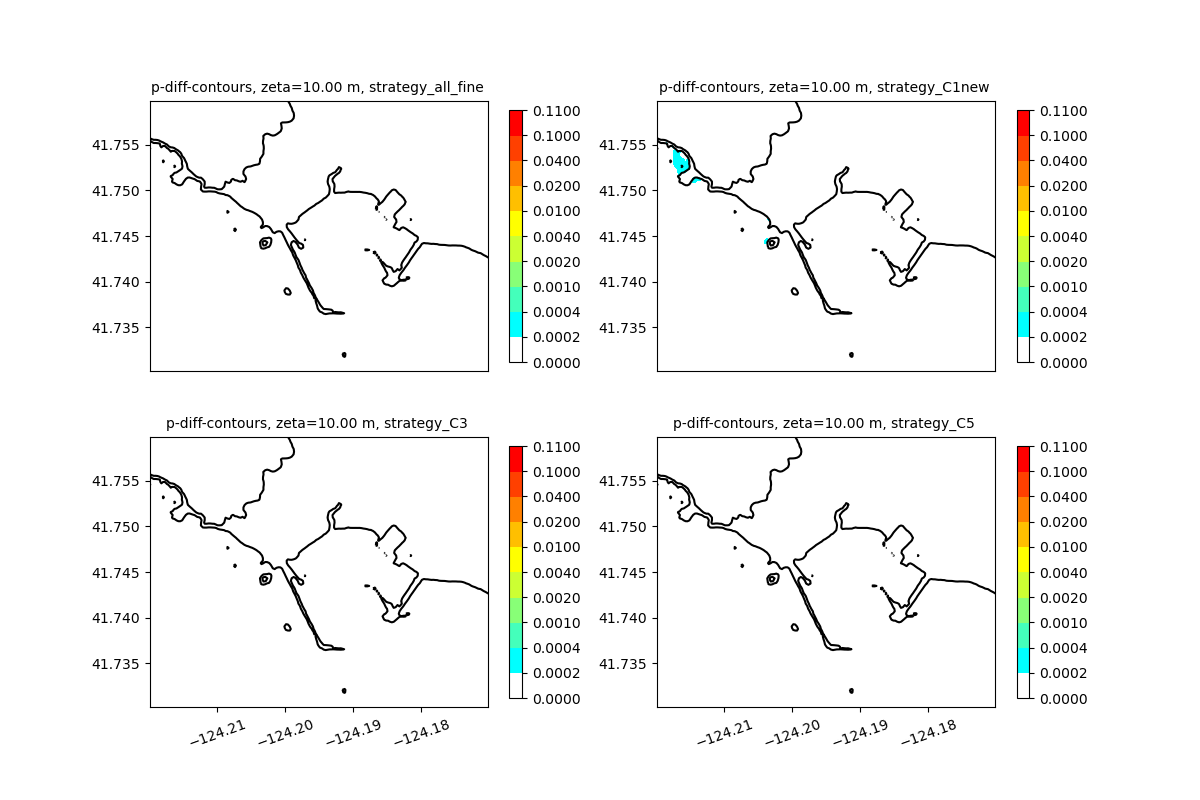

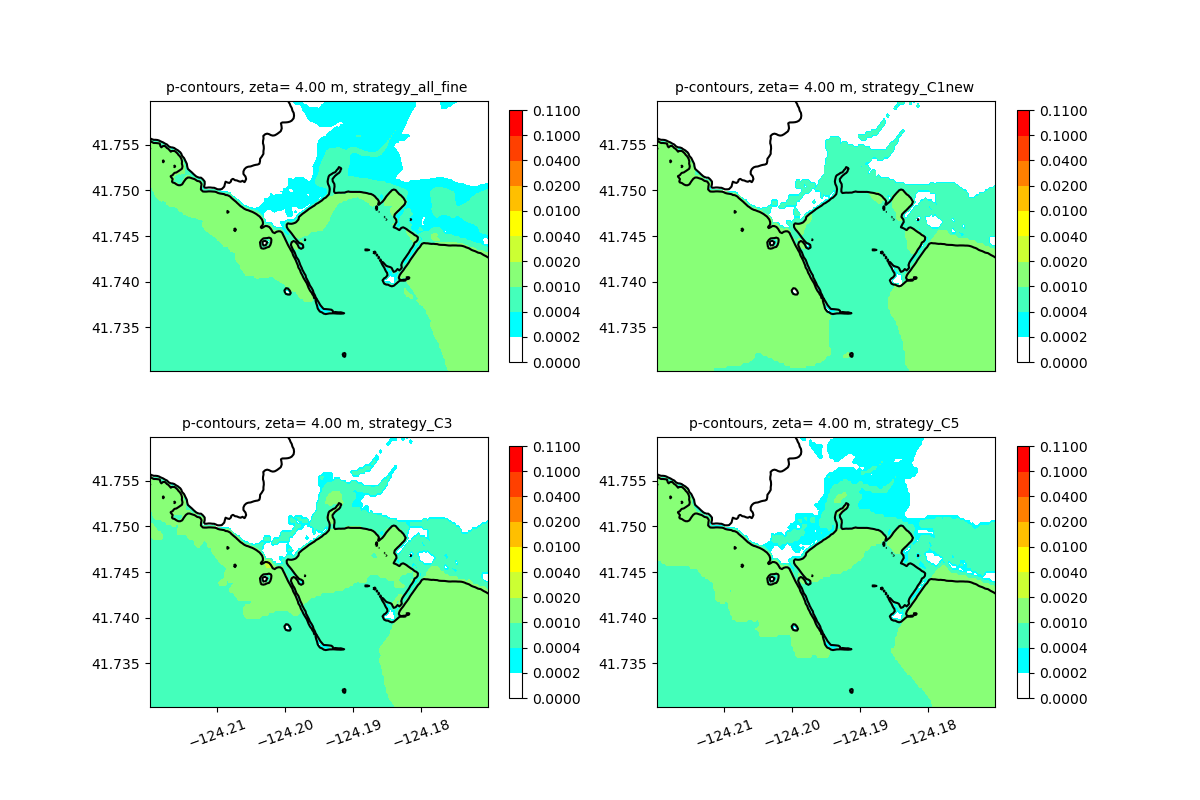

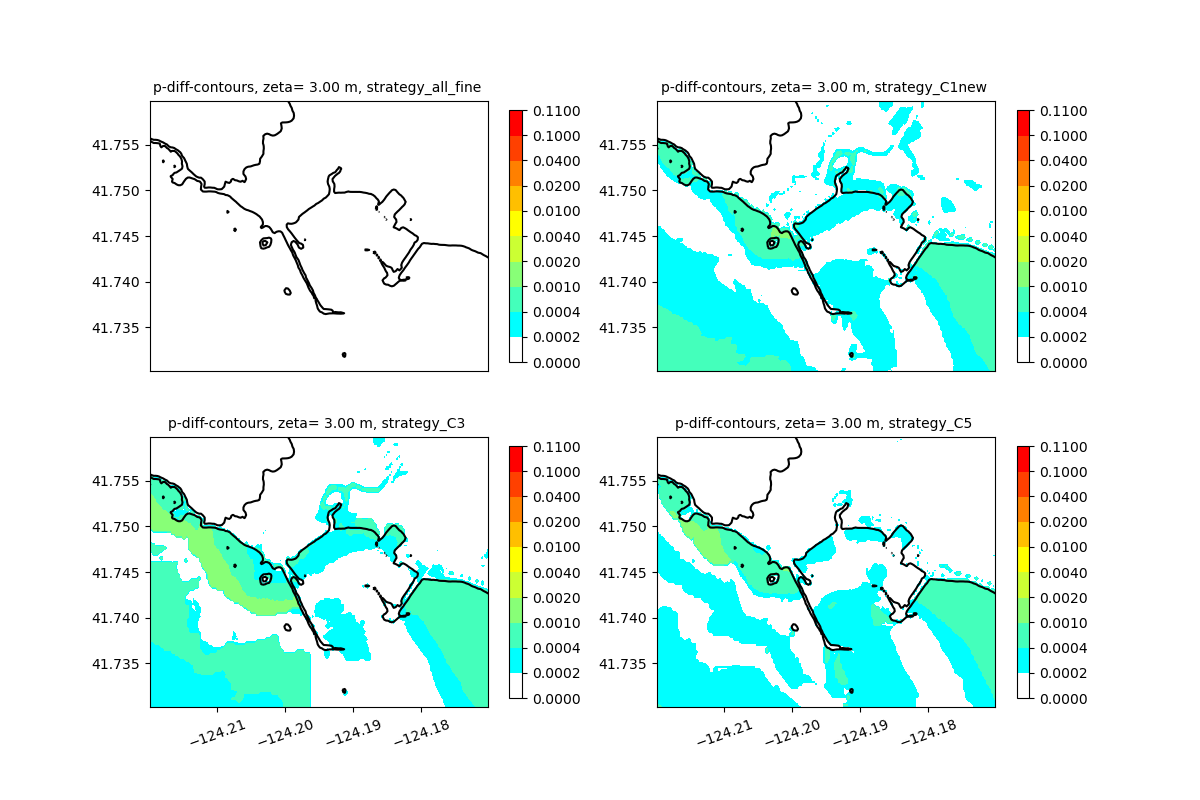

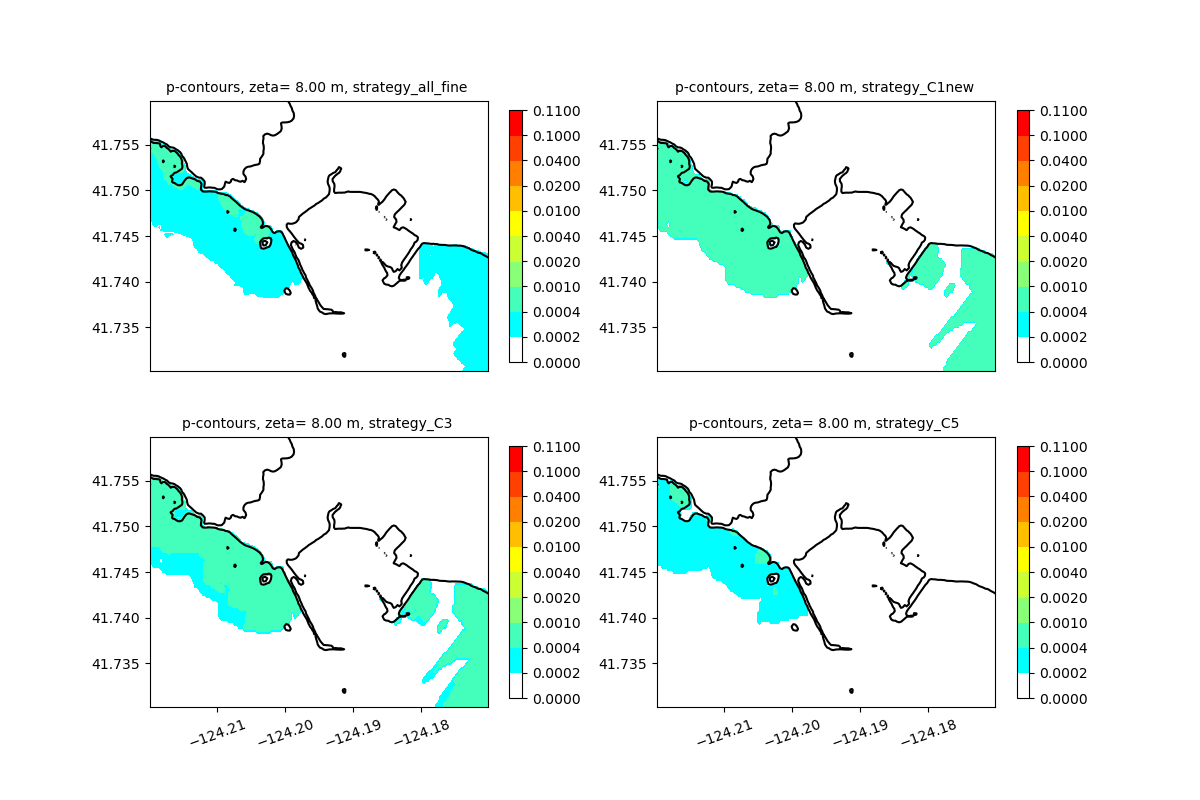

Probability contours for different exceedance values of zeta (and errors)
