Comparison 5, Crescent City
This comparison uses the C5 clustering, consisting of 18 clusters.

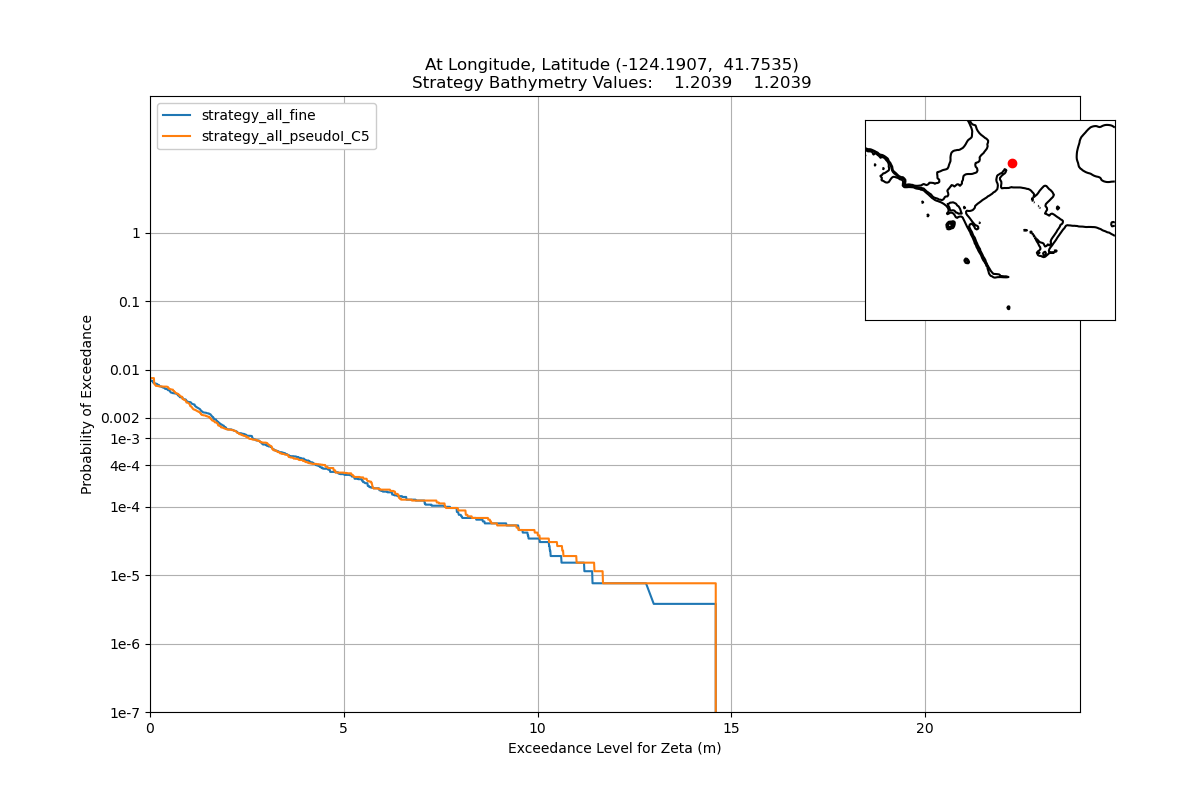

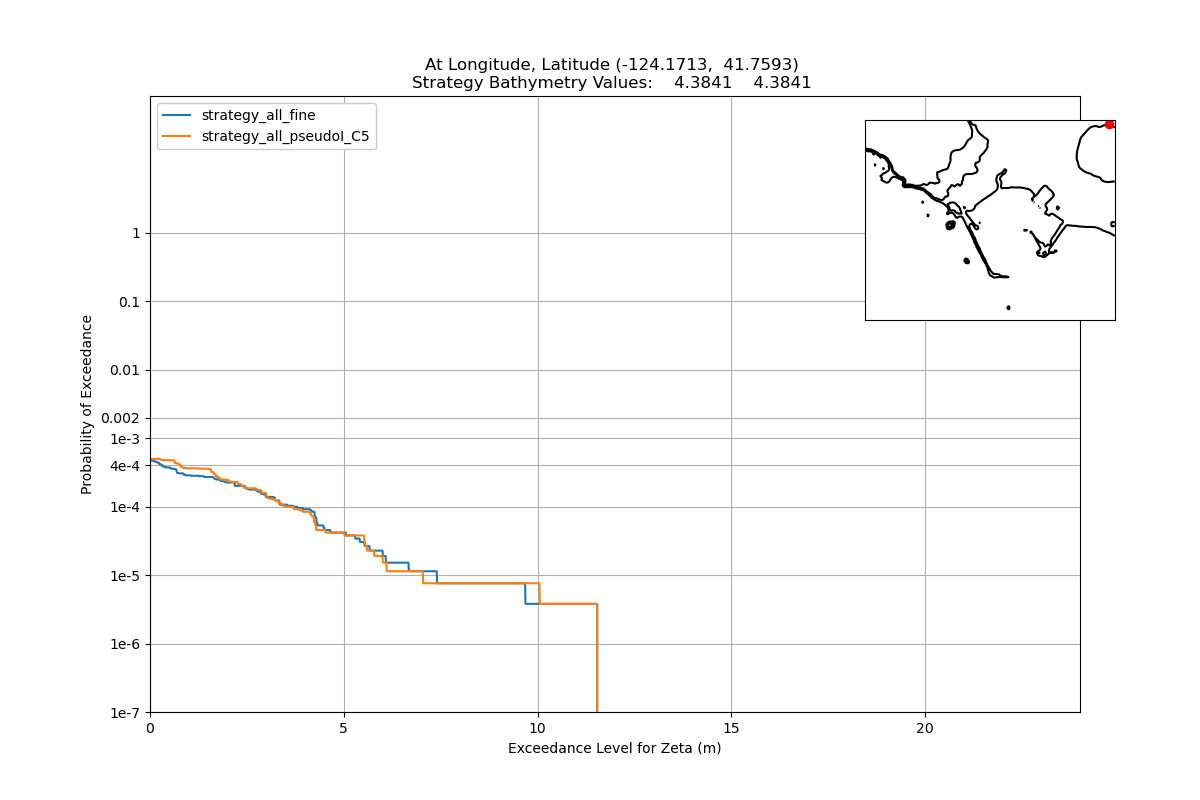

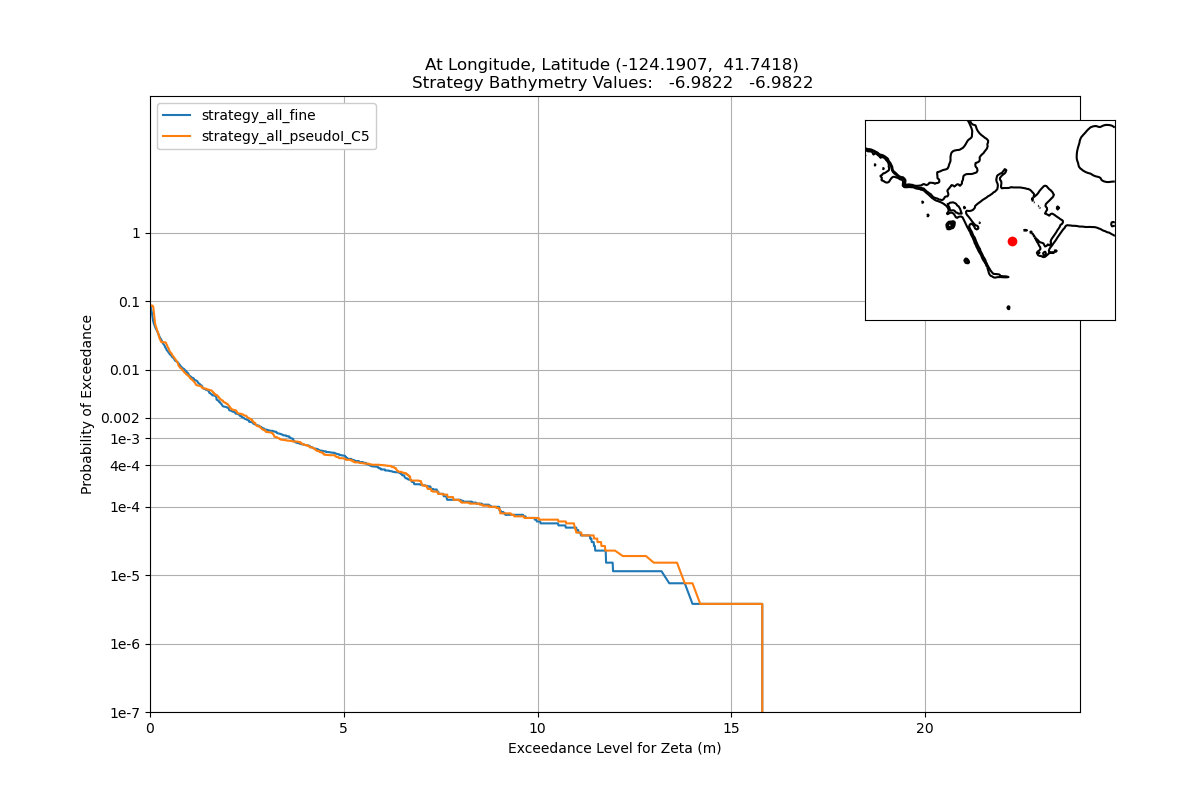

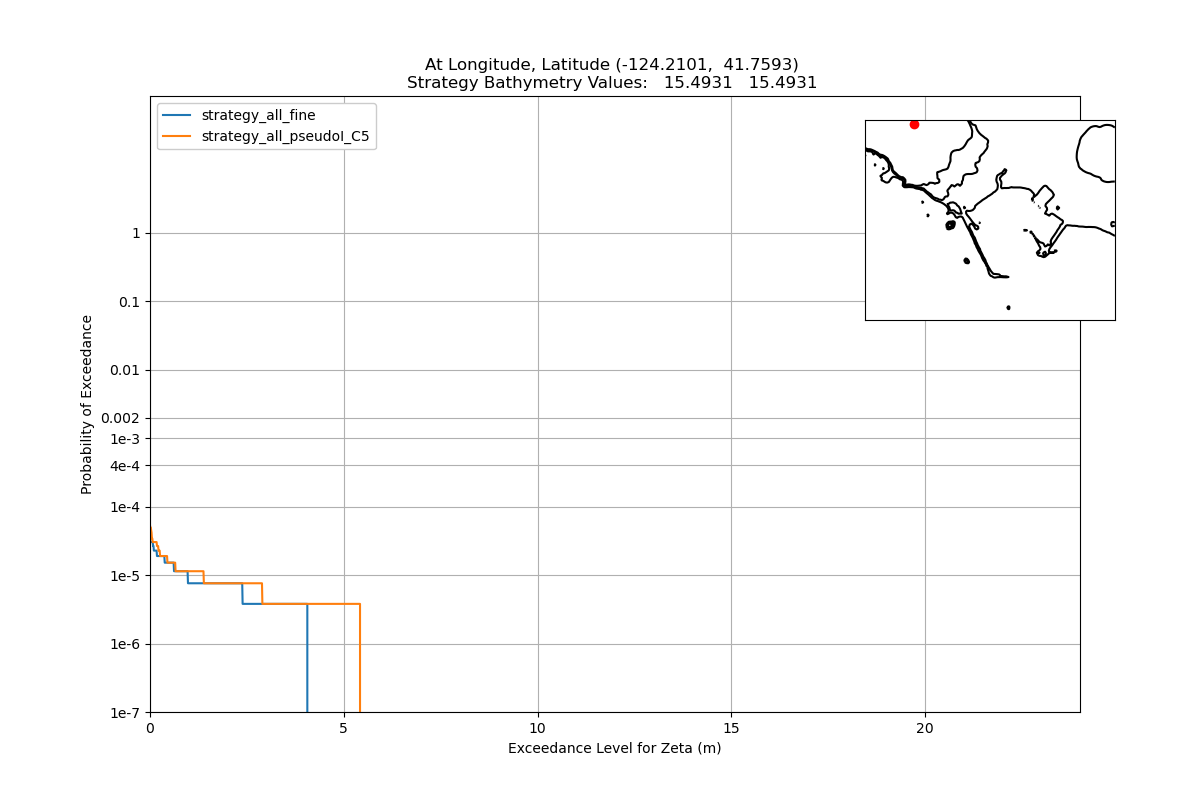

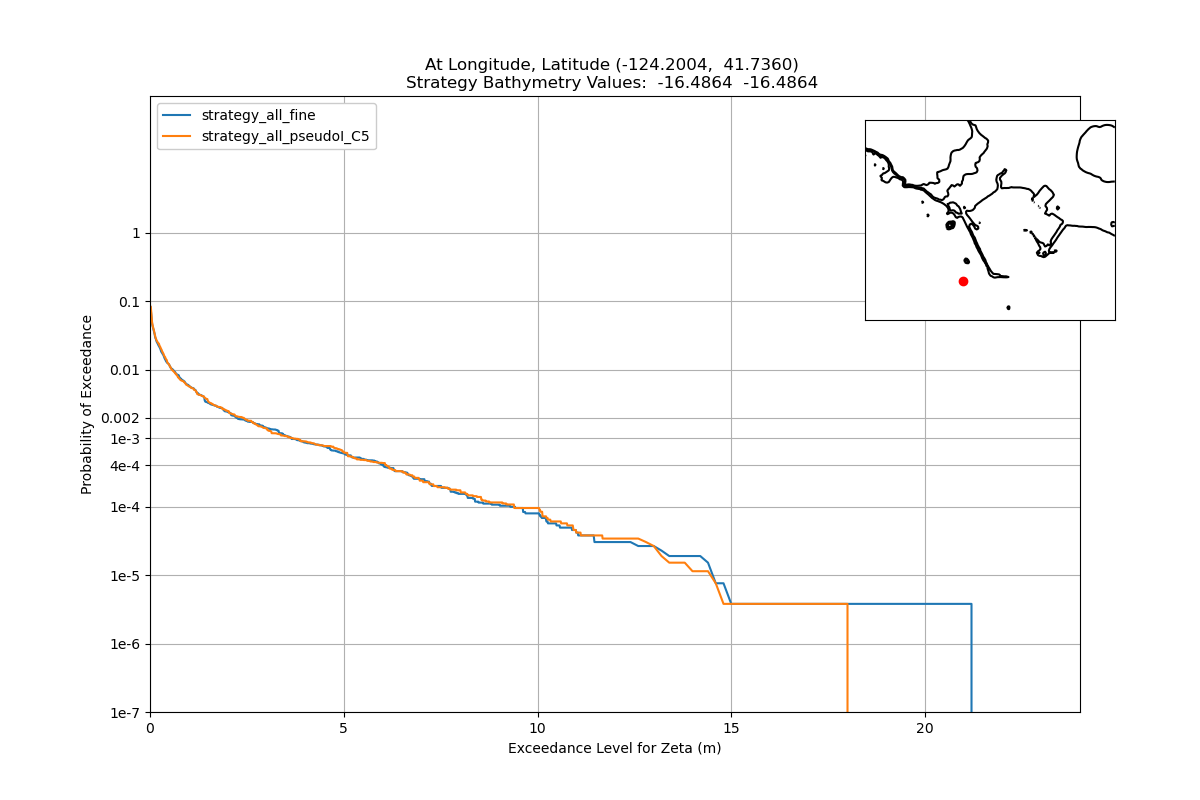

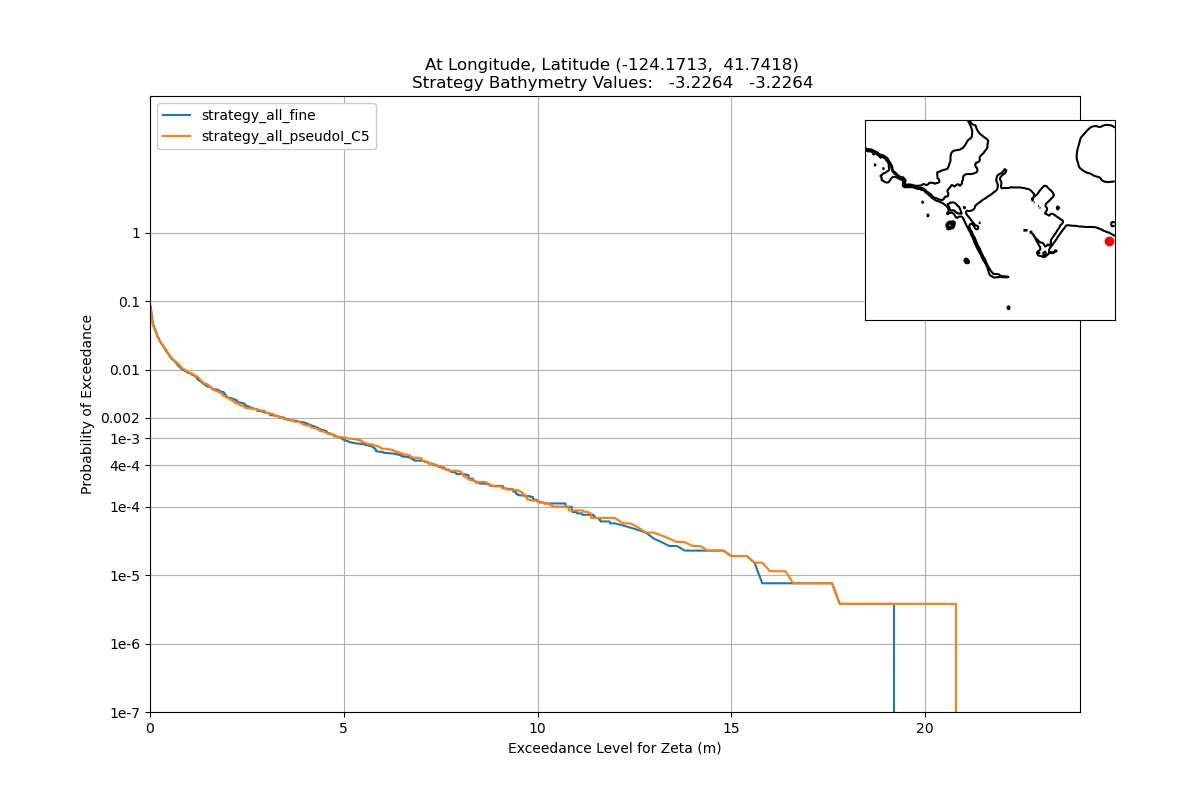

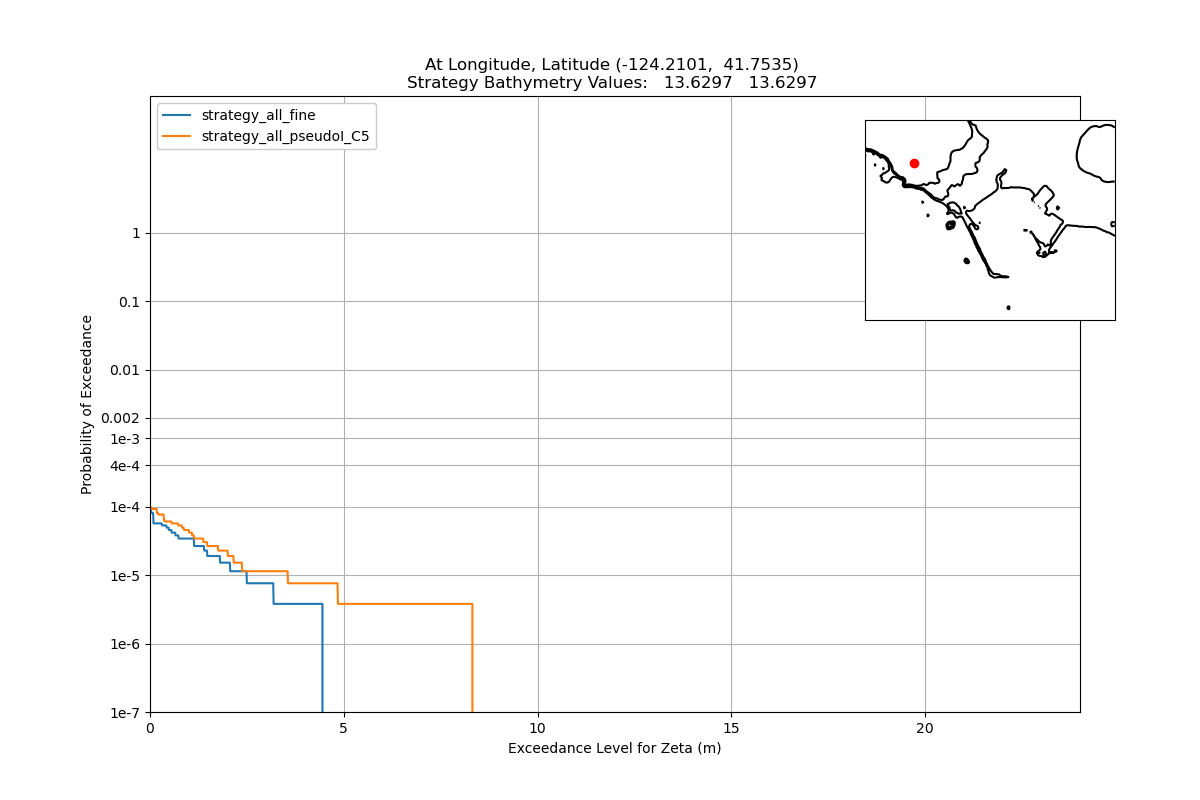

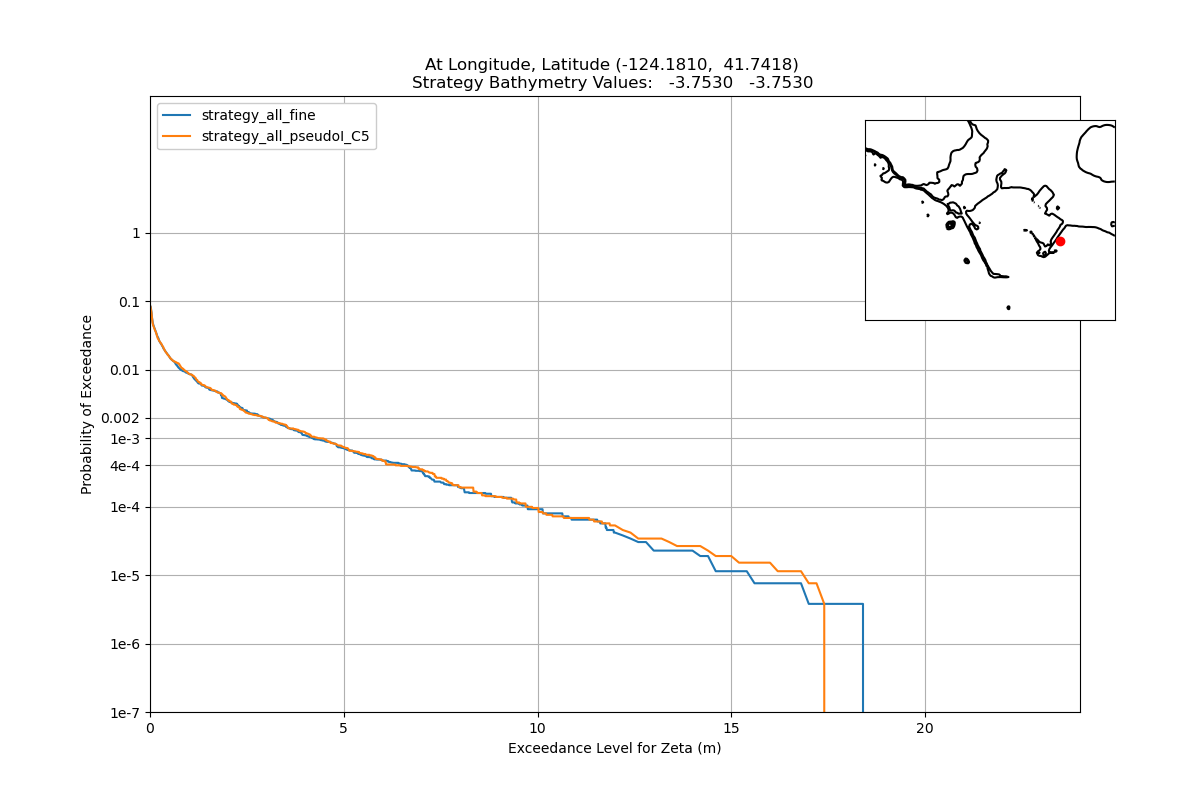

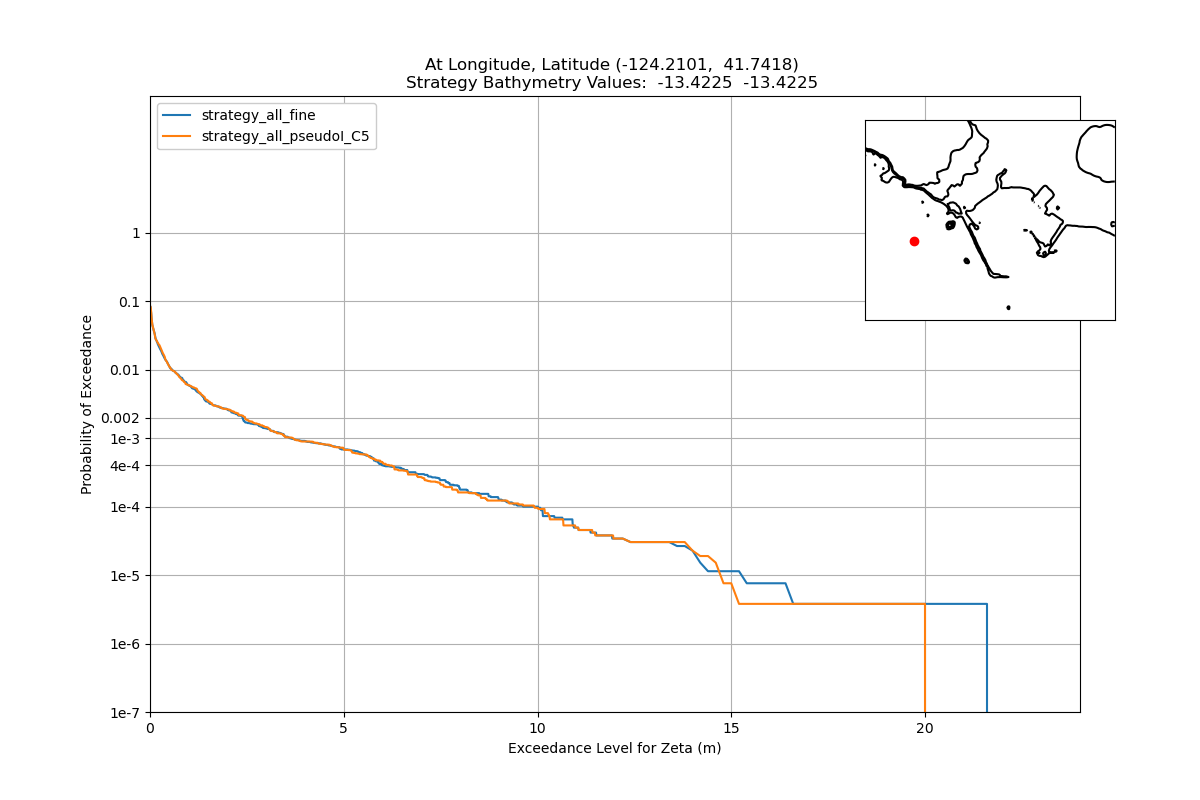

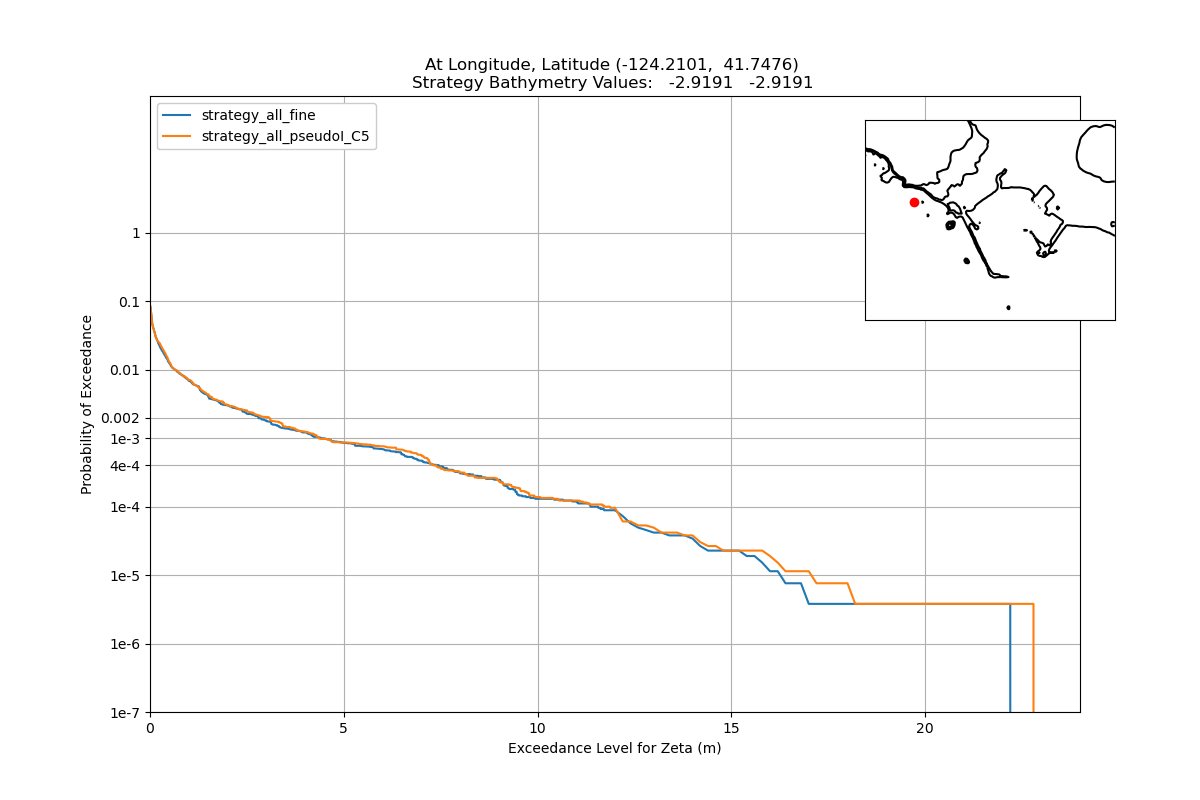

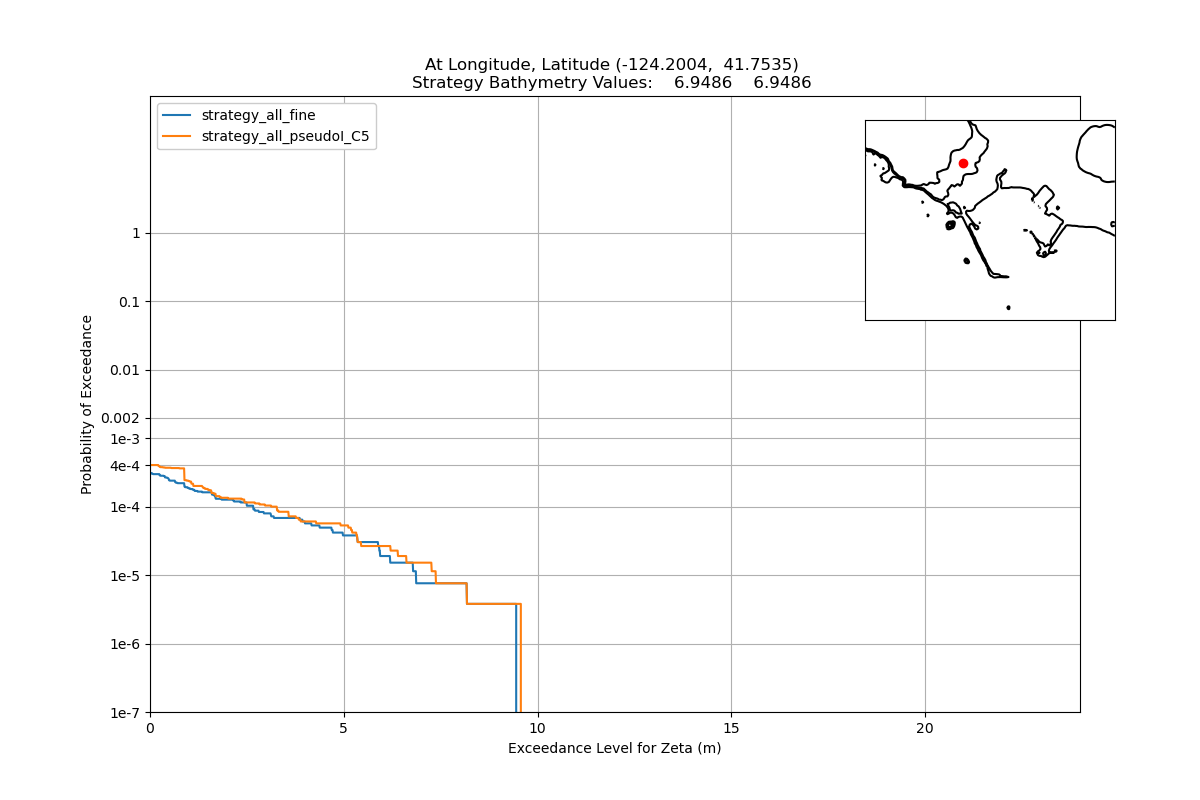

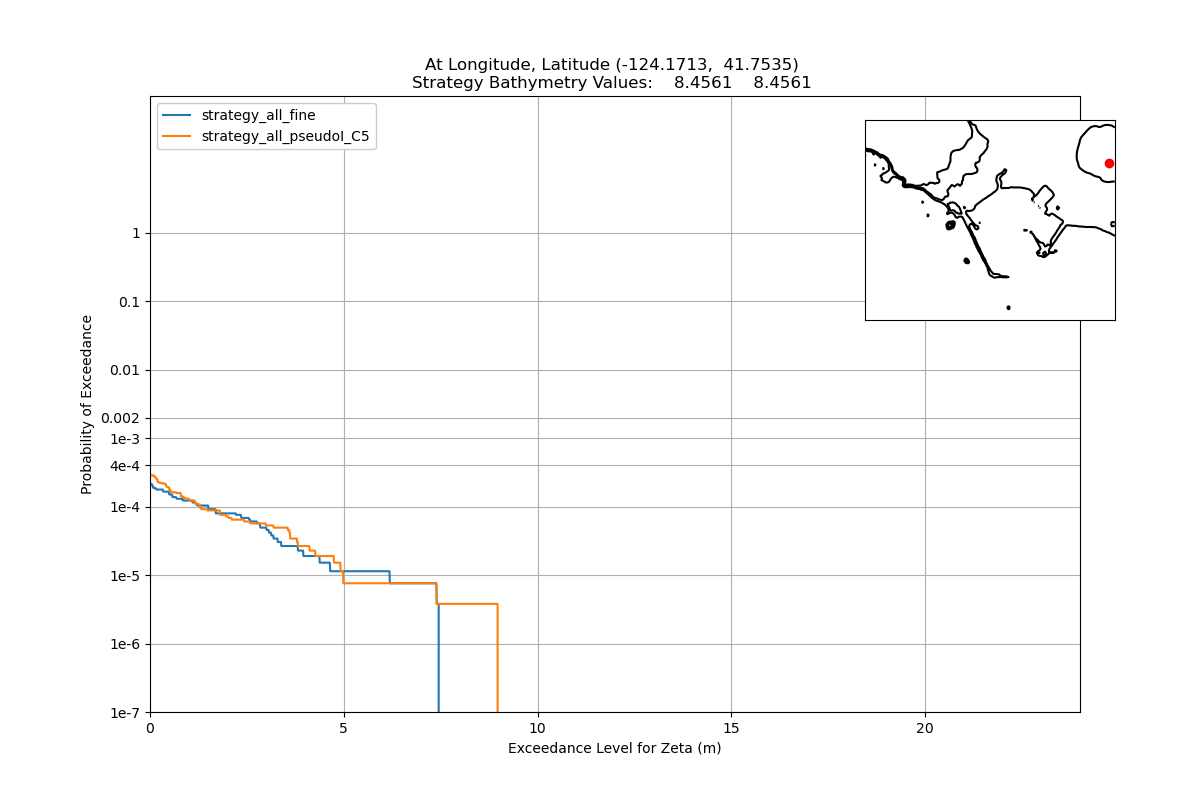

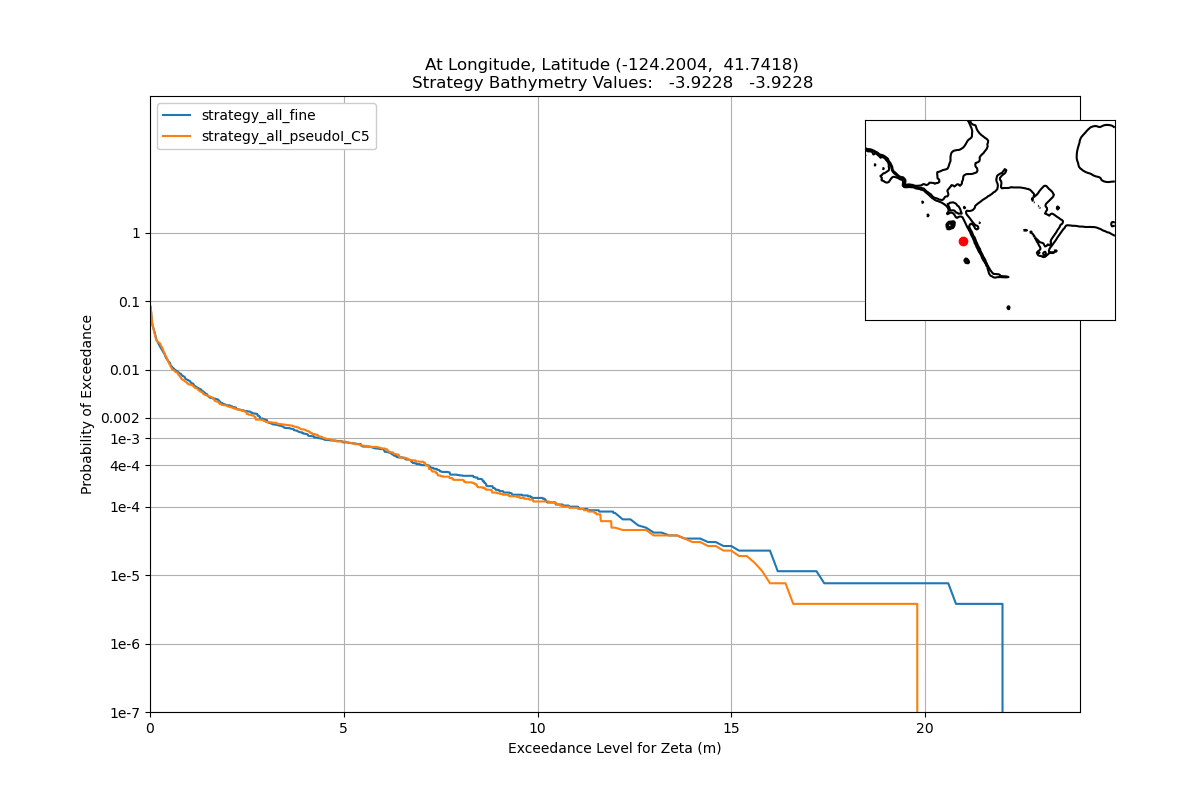

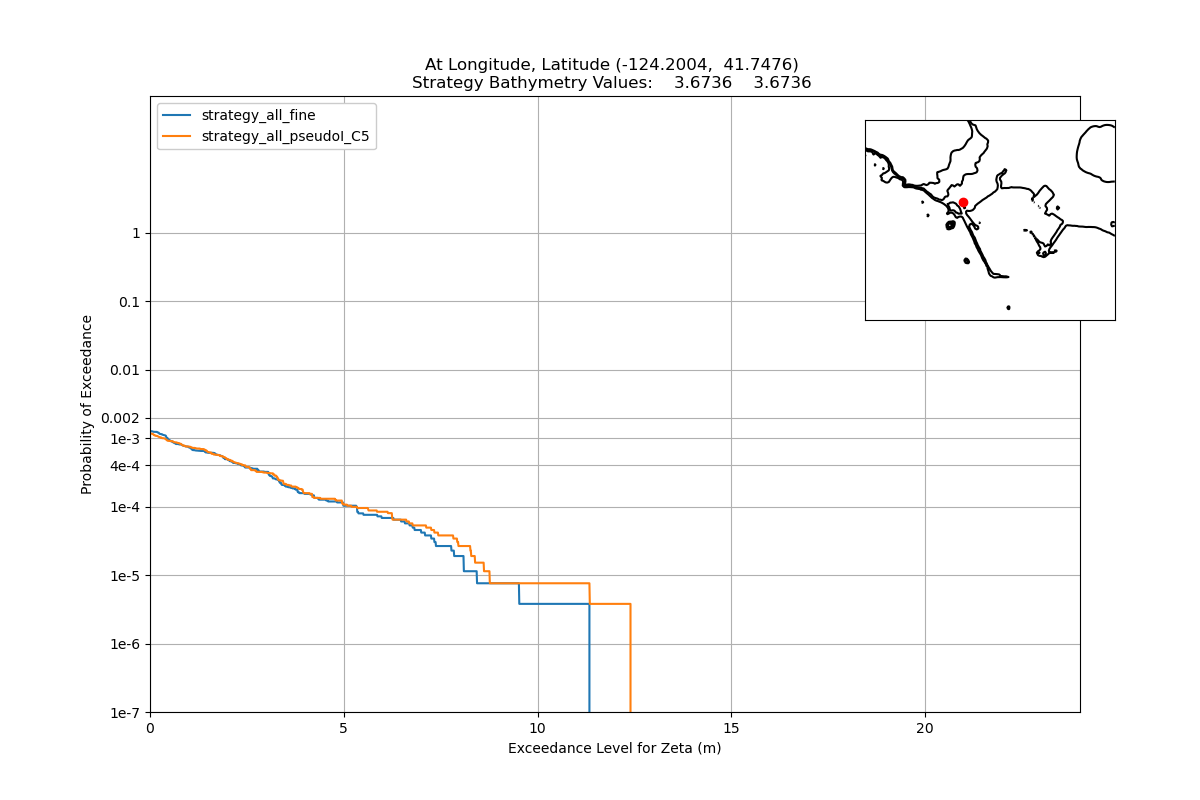

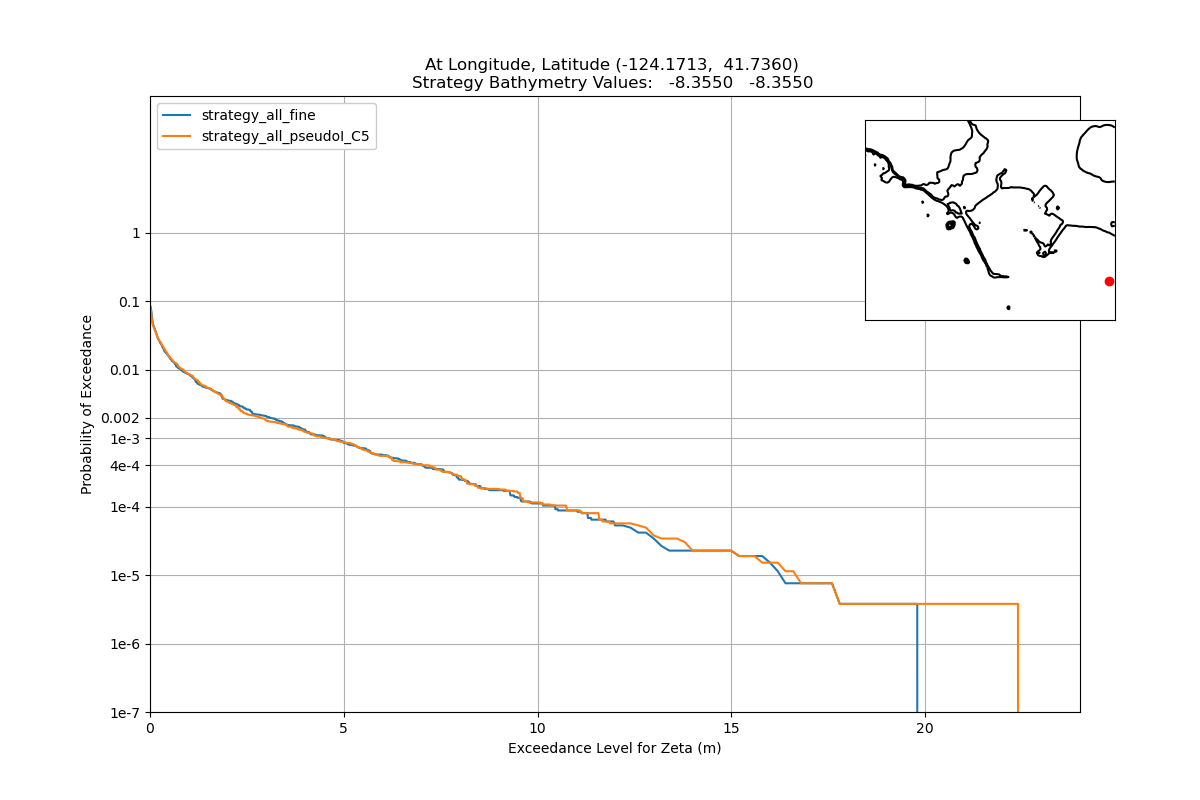

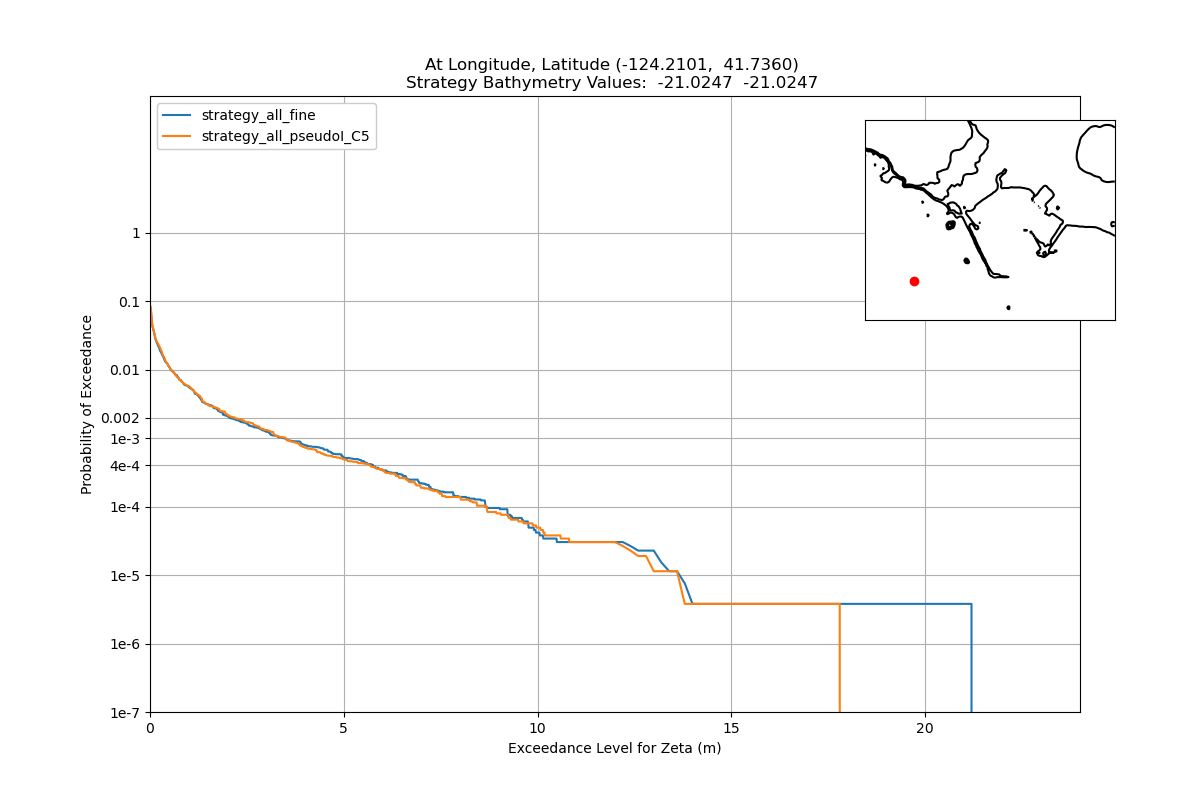

Hazard curves at selected locations
The two curves on each of these plots correspond to what is shown in the
two subplots of the plan view plots, described below.
Plan view plots
Note: All plots below have 2 subplots:
- Left: Ground truth using all 2000 fine grid runs,
- Right: Using all coarse grid runs after applying "pseudo-fine"
corrections on top of the coarse-mod (improved) corrections.
Topo/Bathy contours

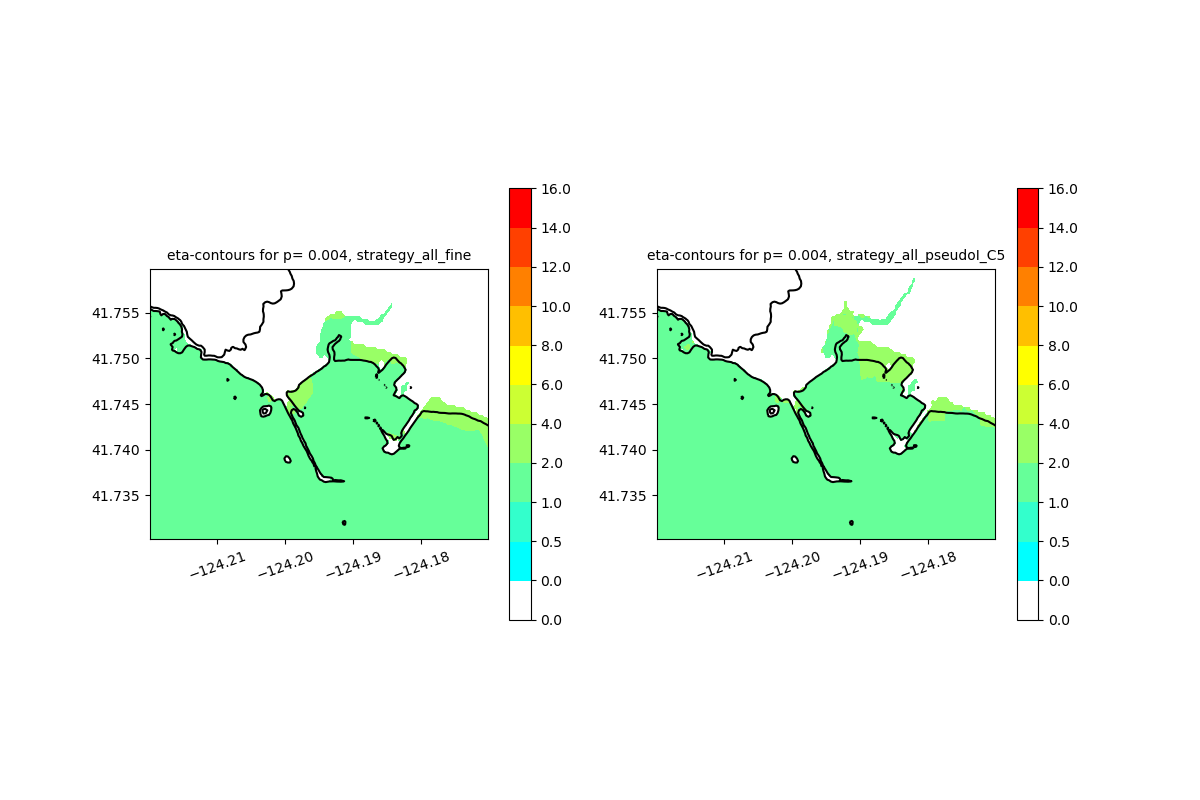

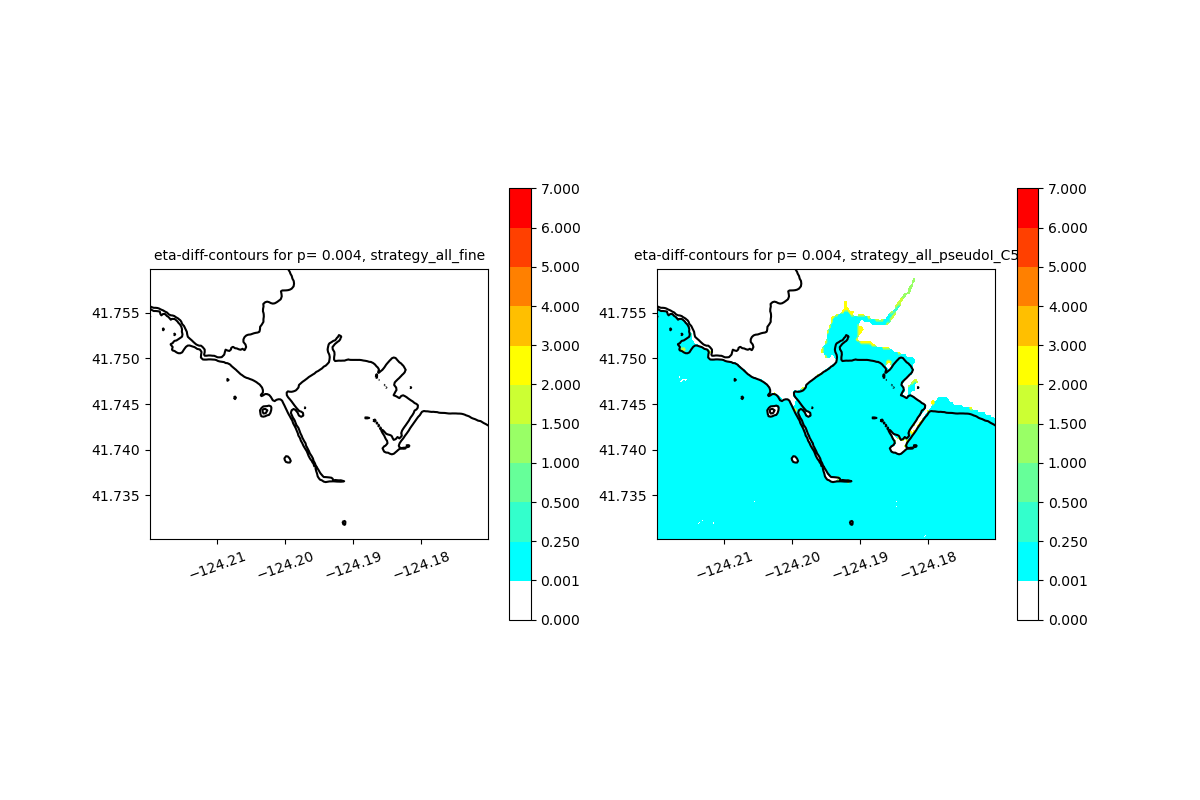

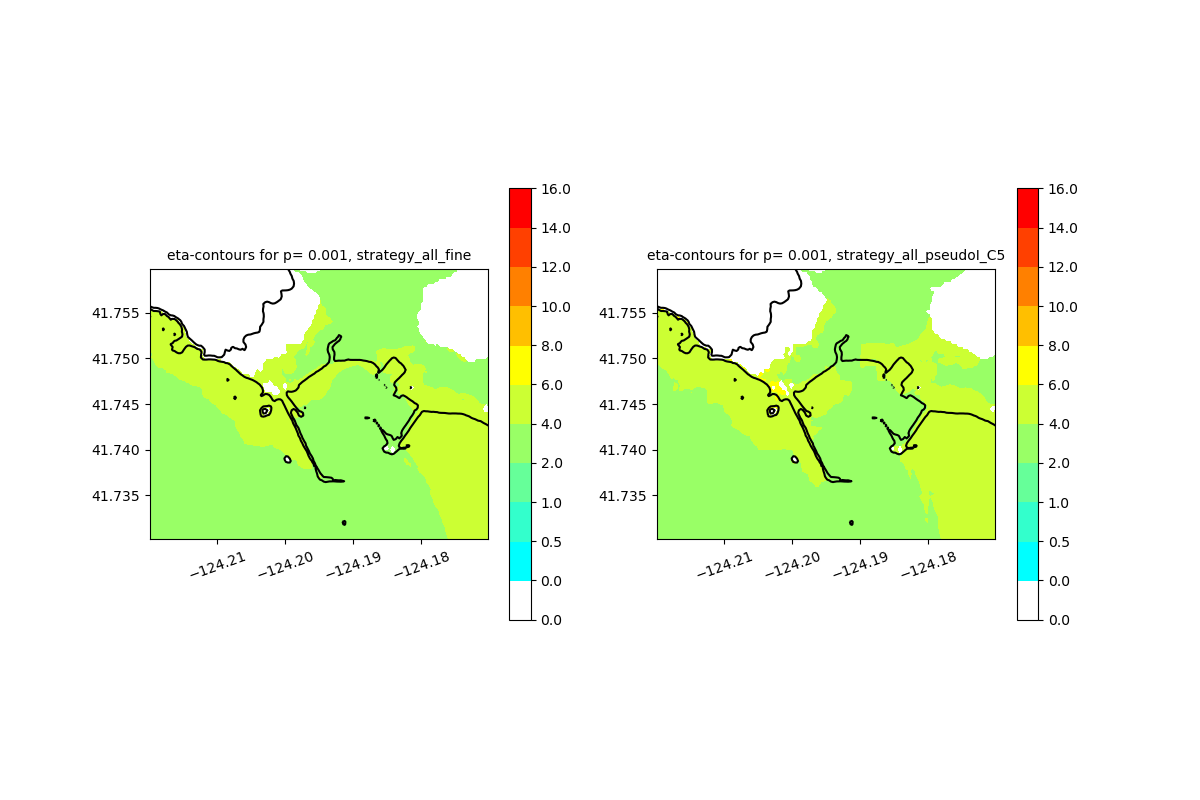

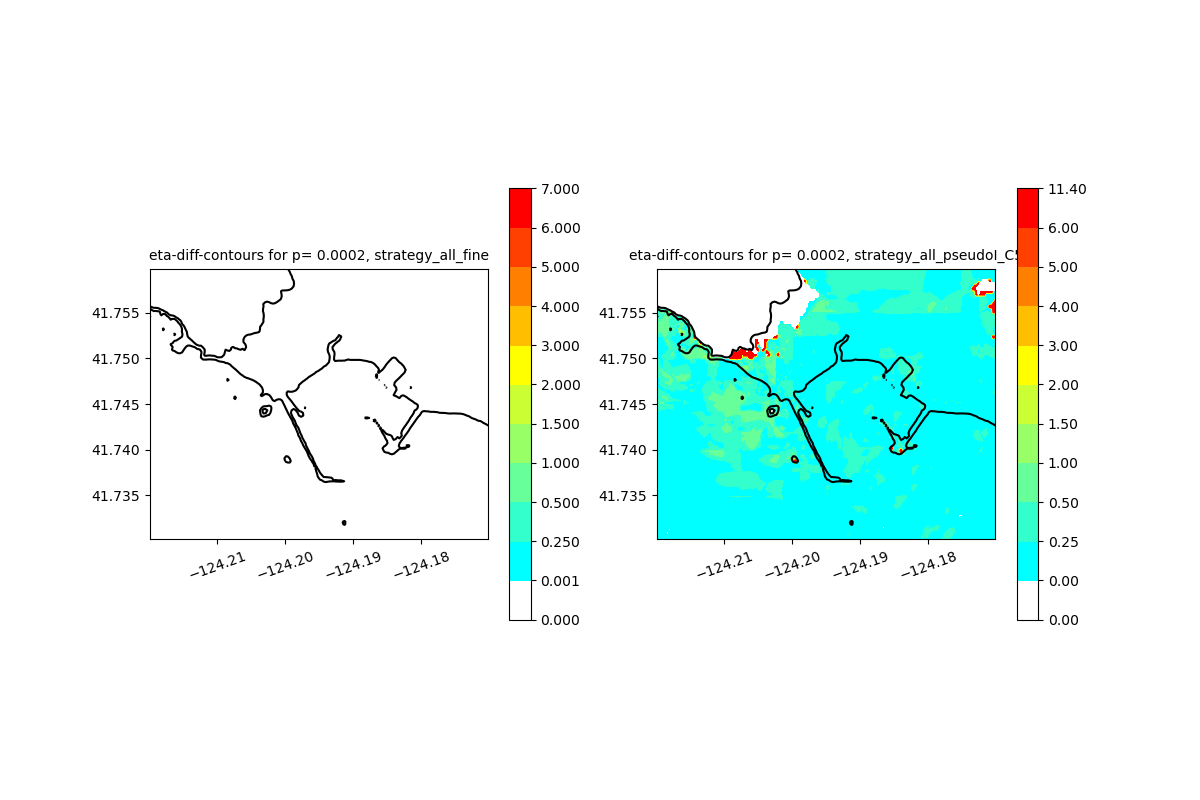

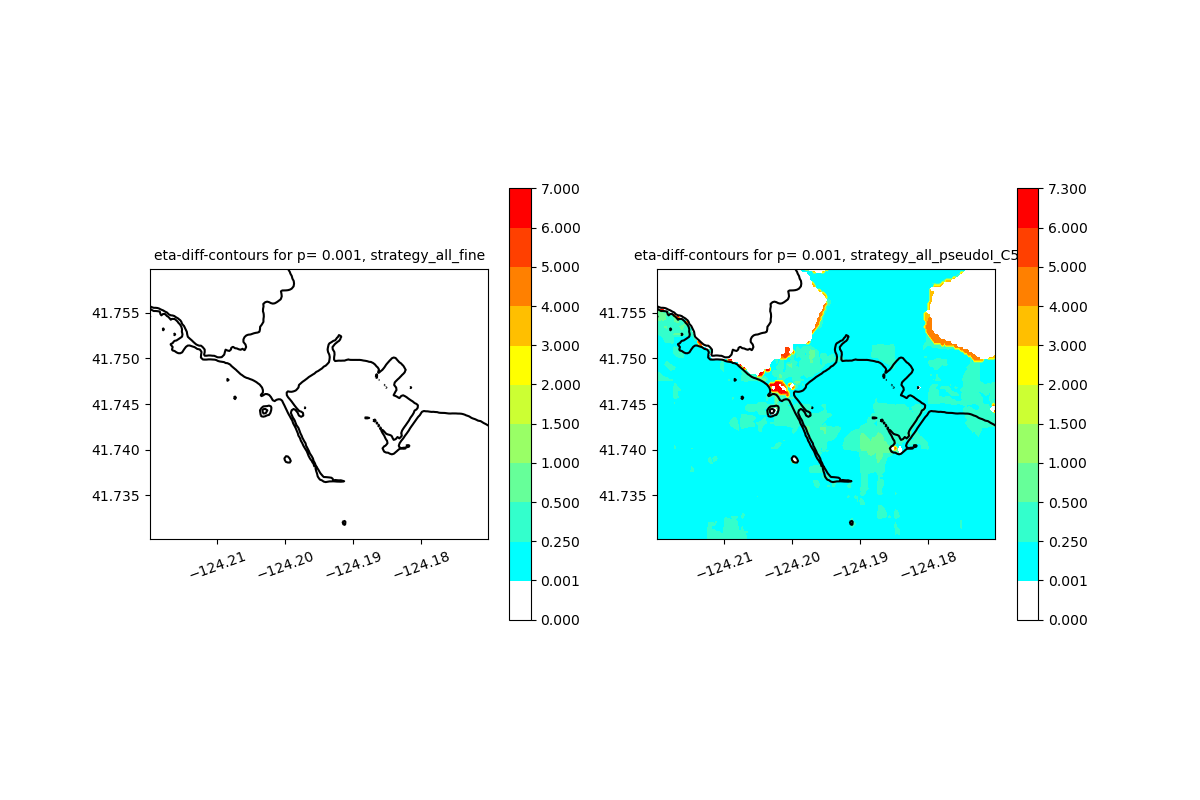

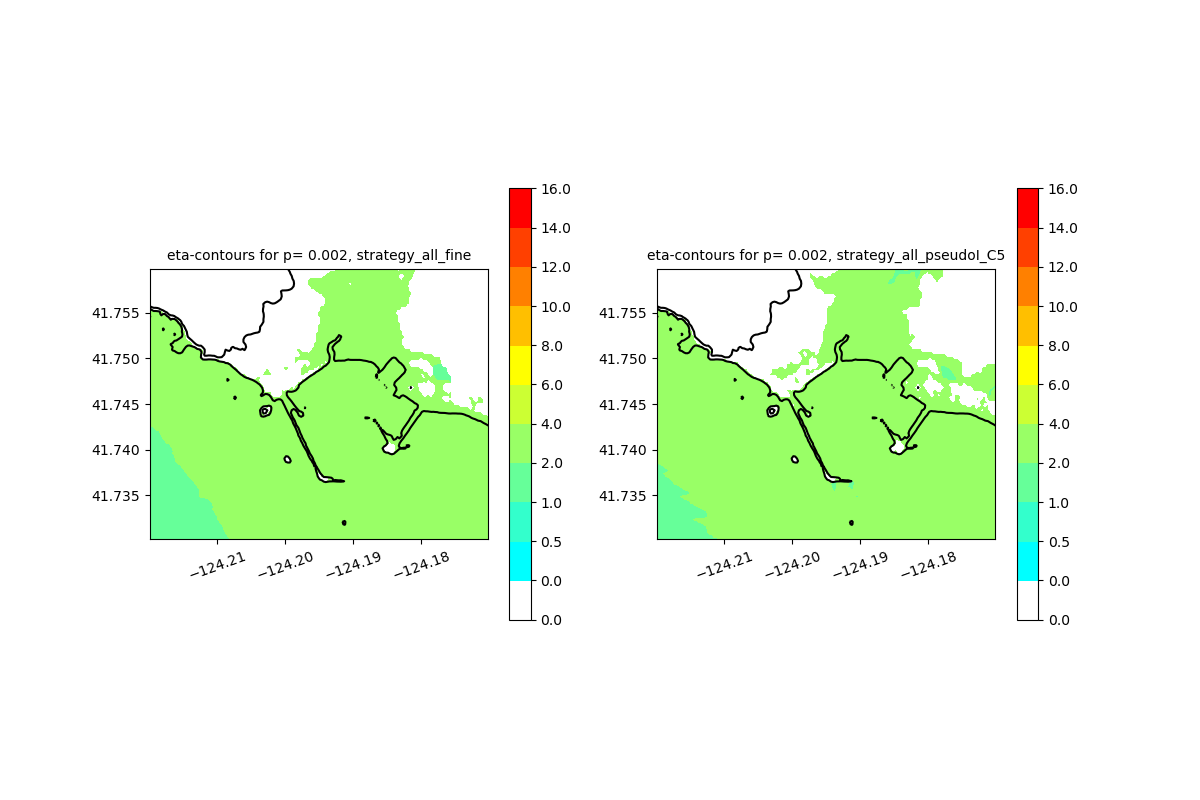

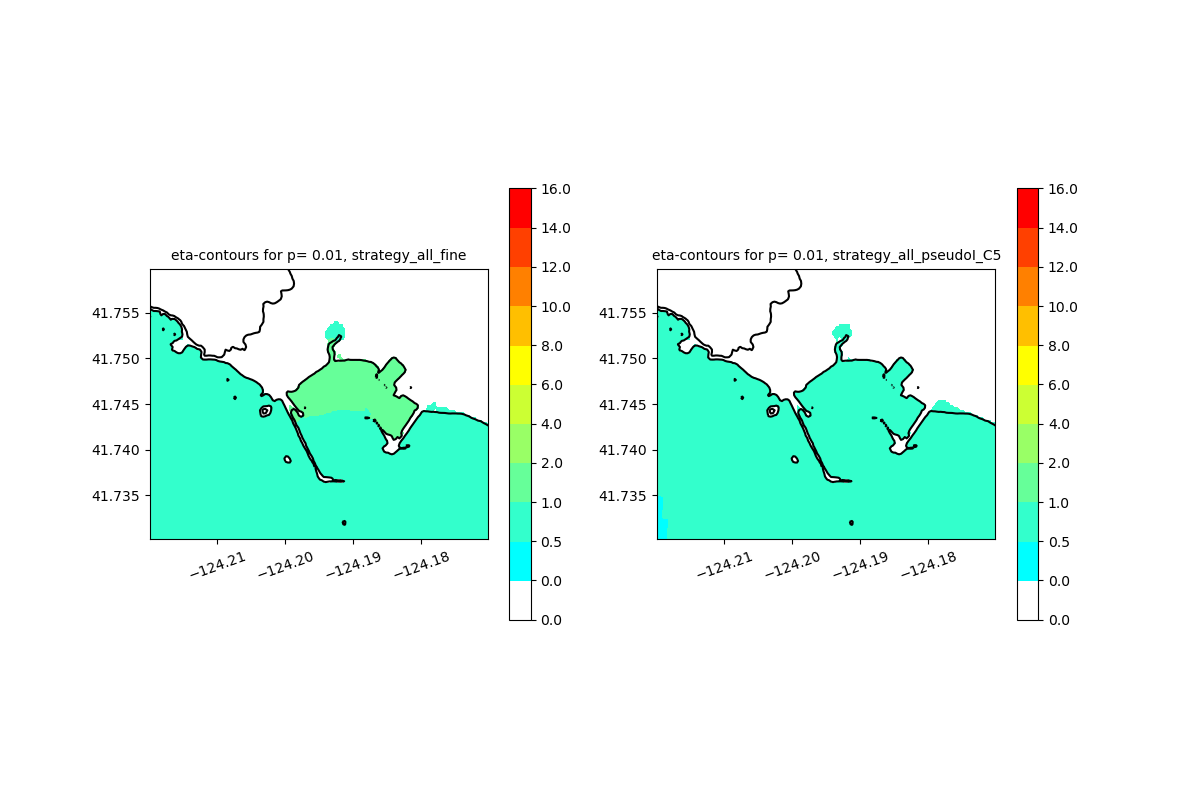

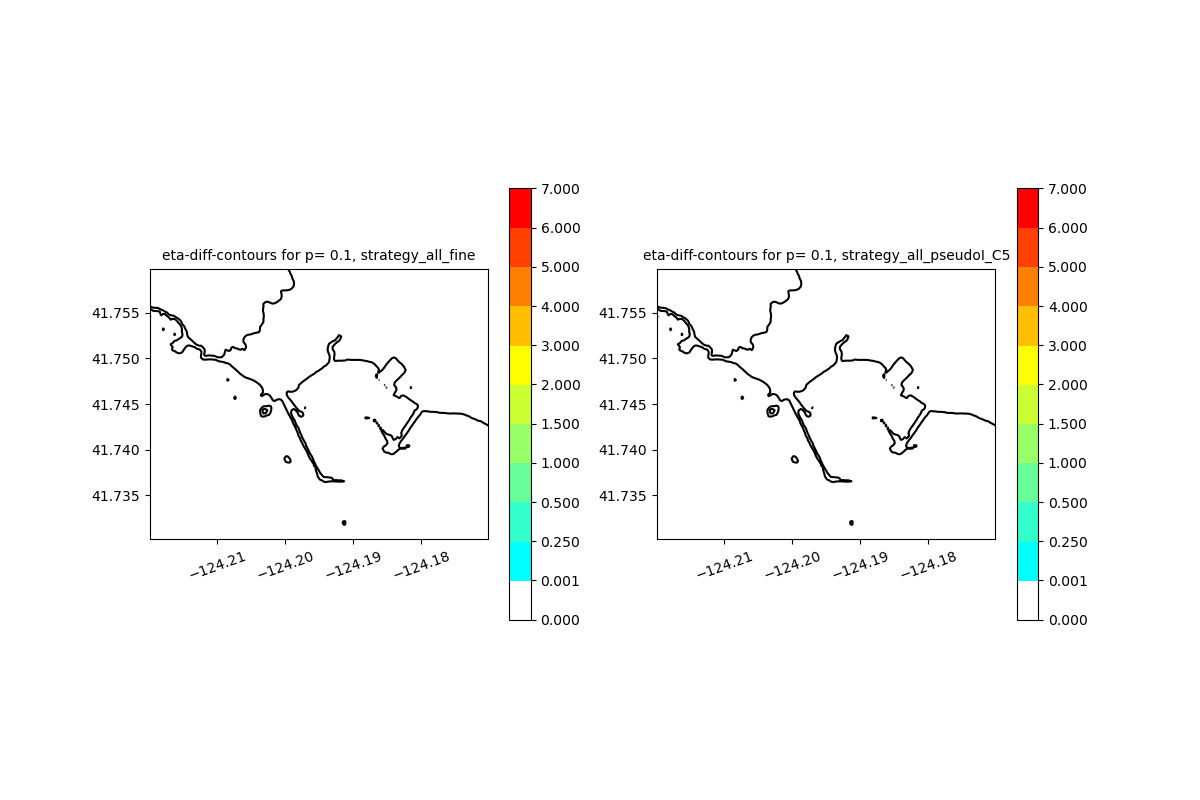

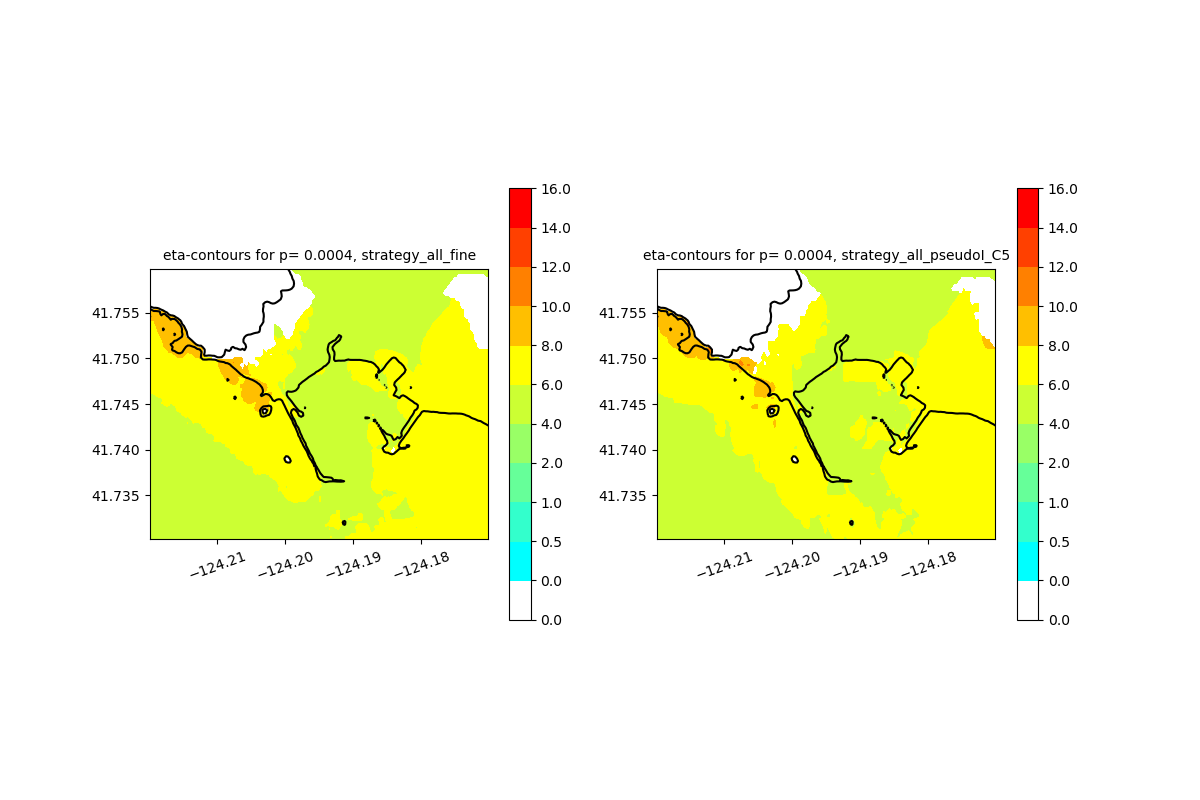

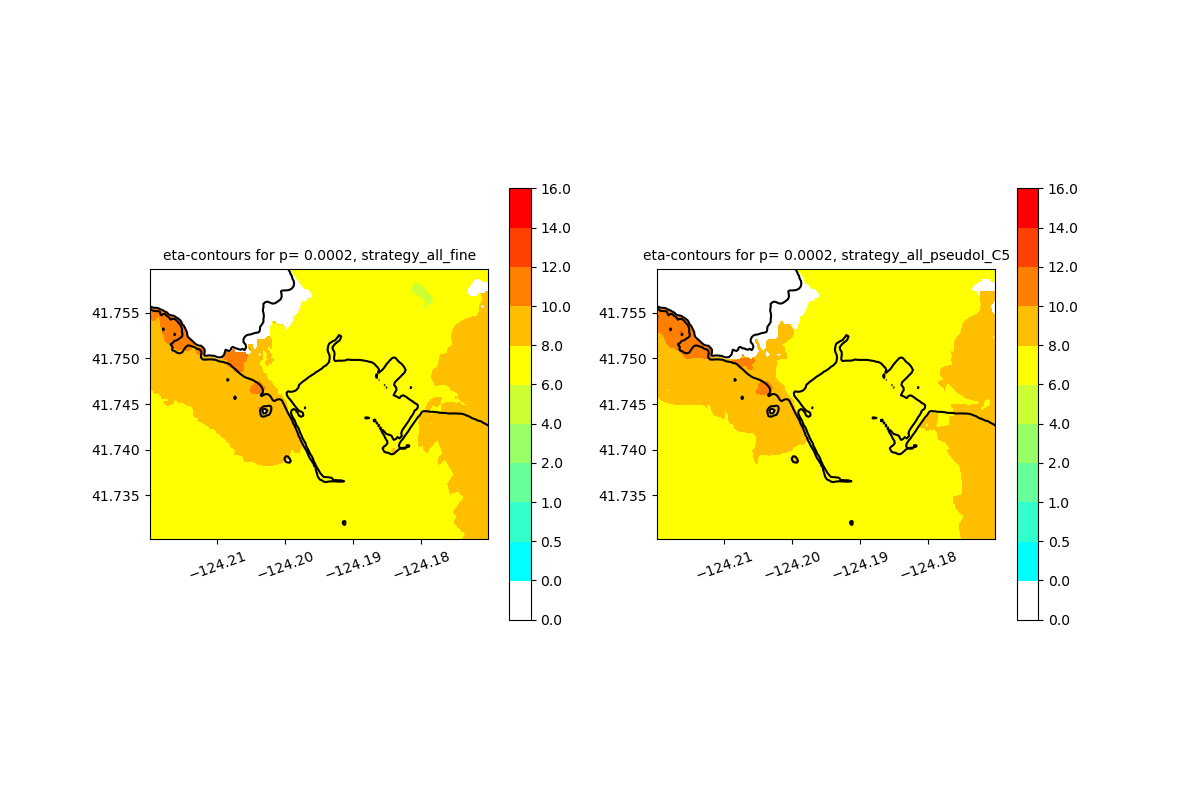

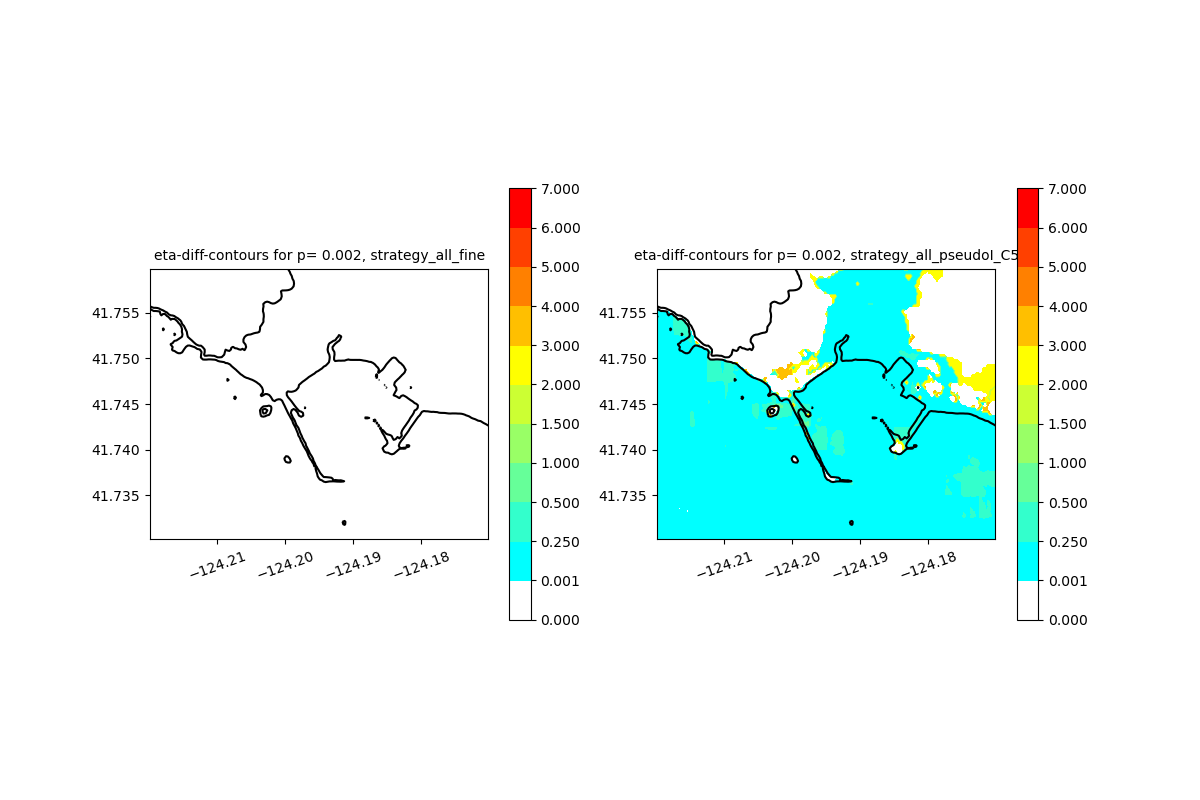

Eta contours for different probabilities (and errors)
Eta = h+B0 everywhere (B0 = original topo)

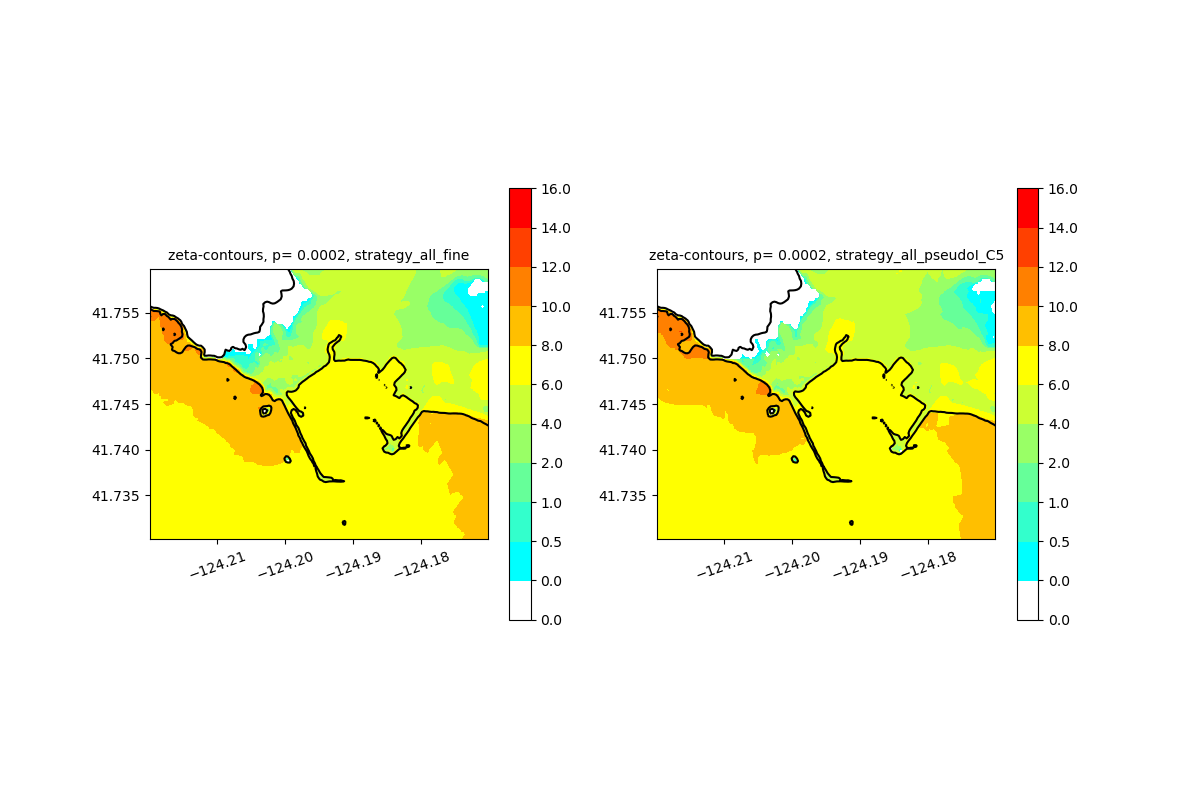

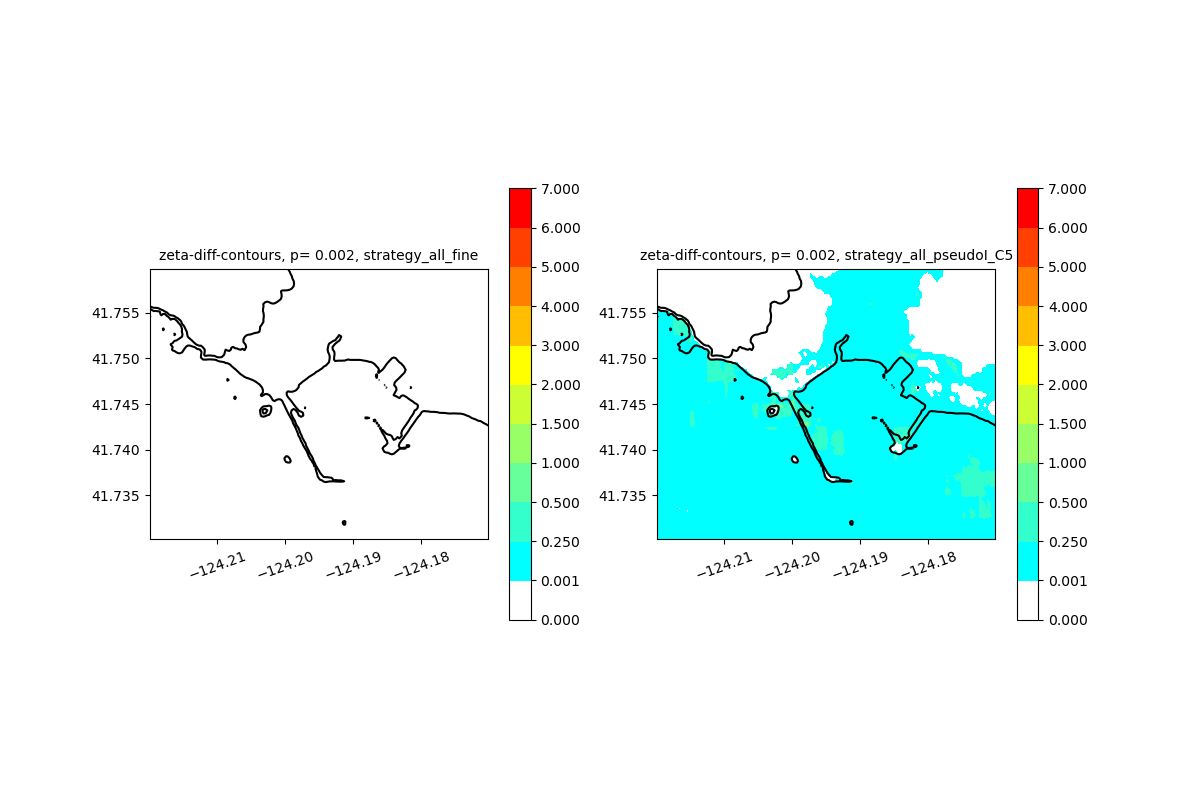

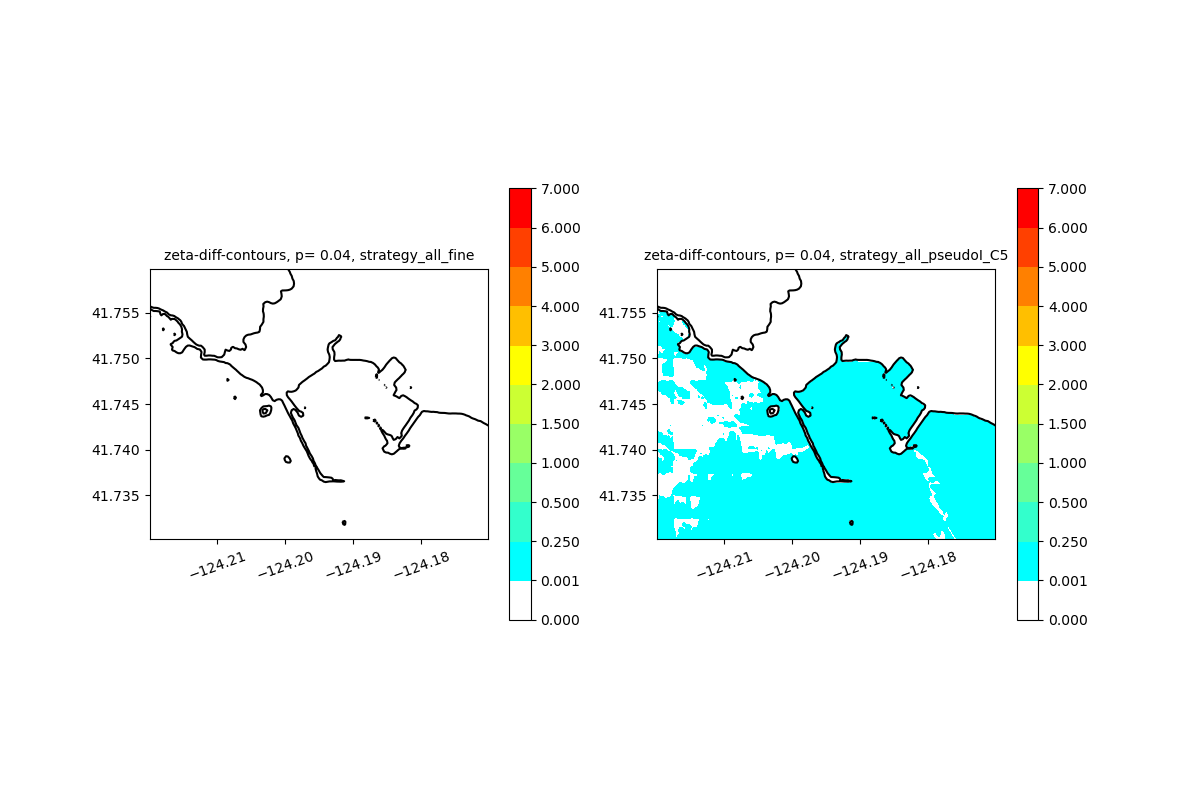

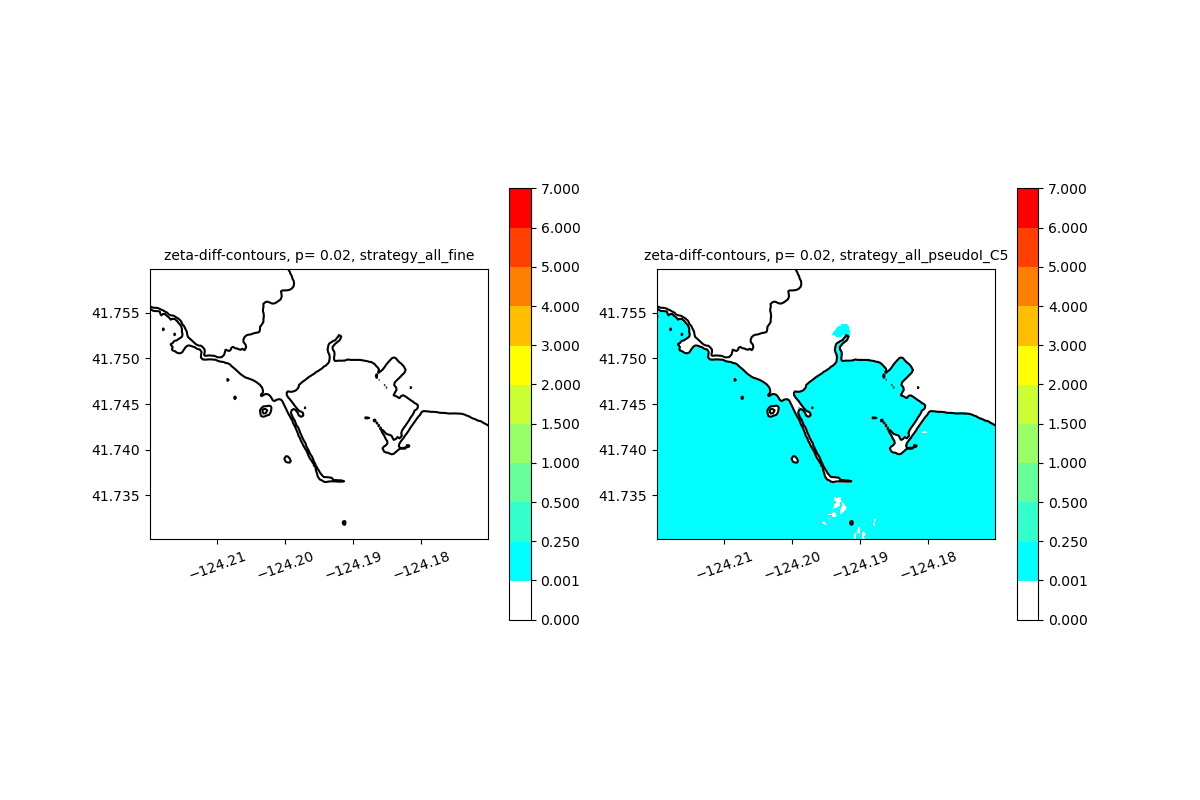

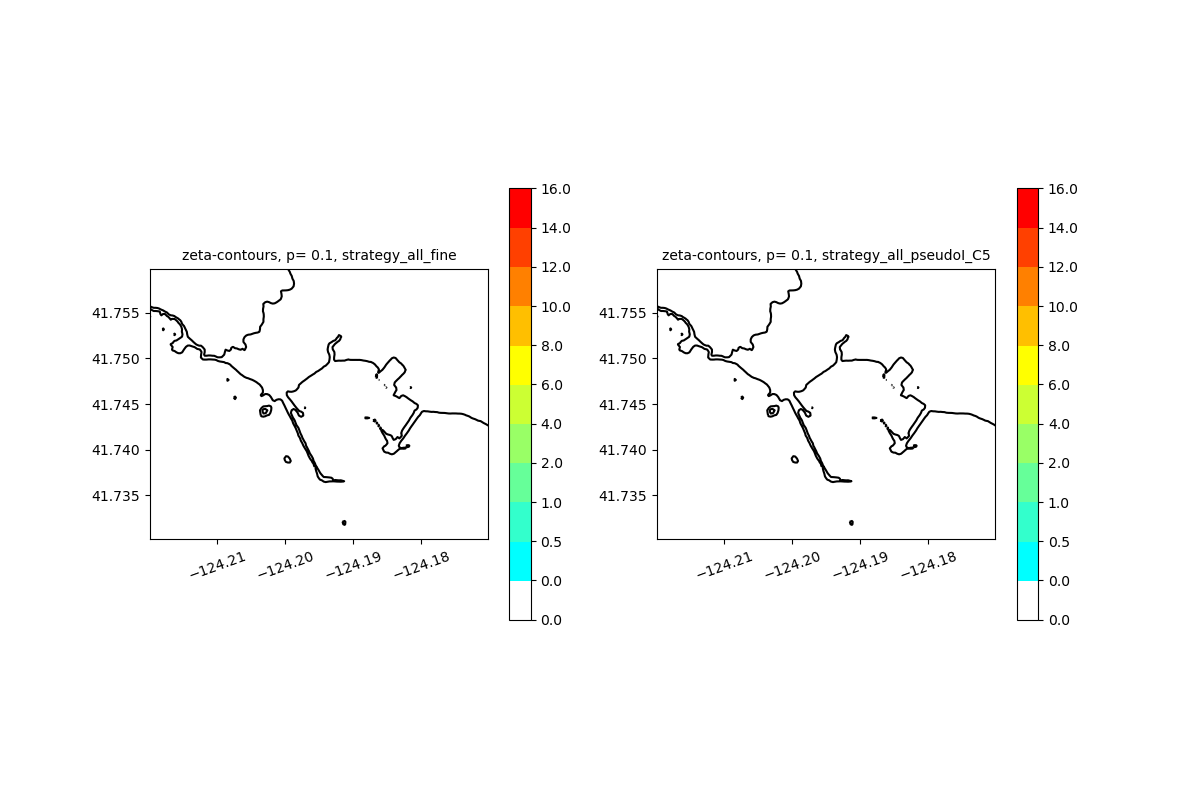

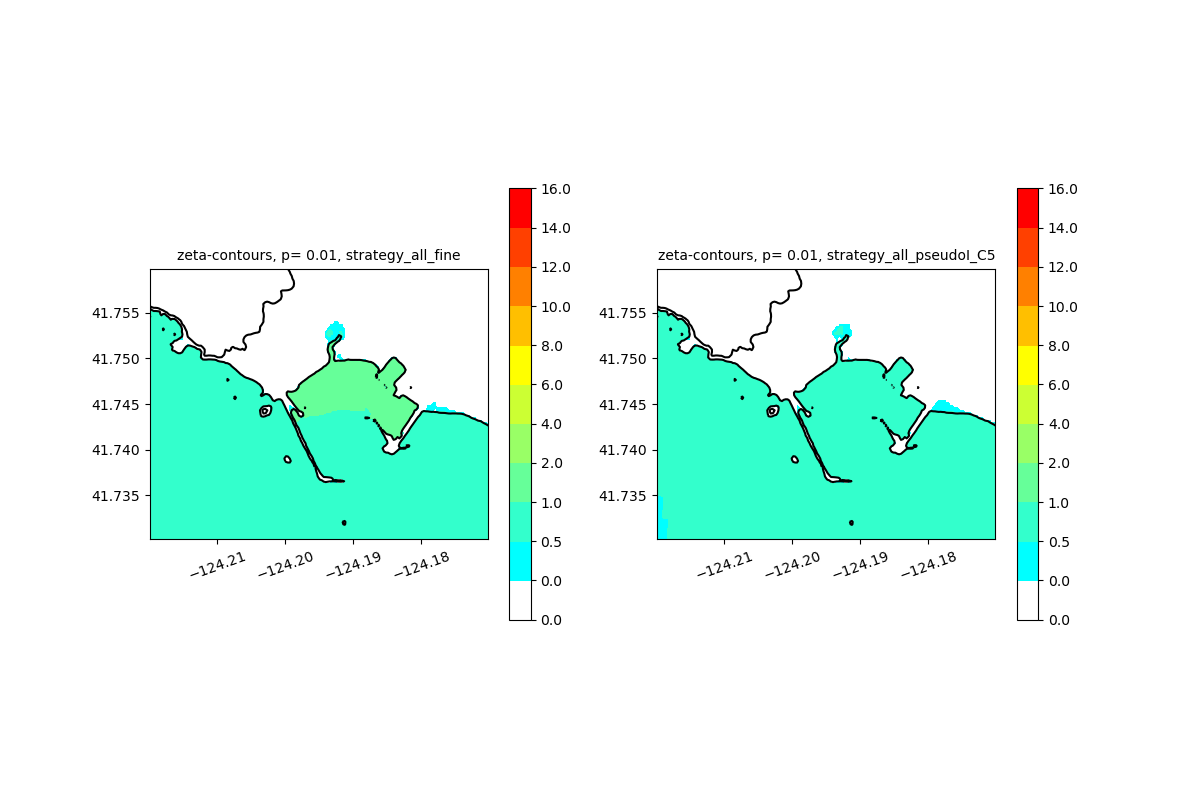

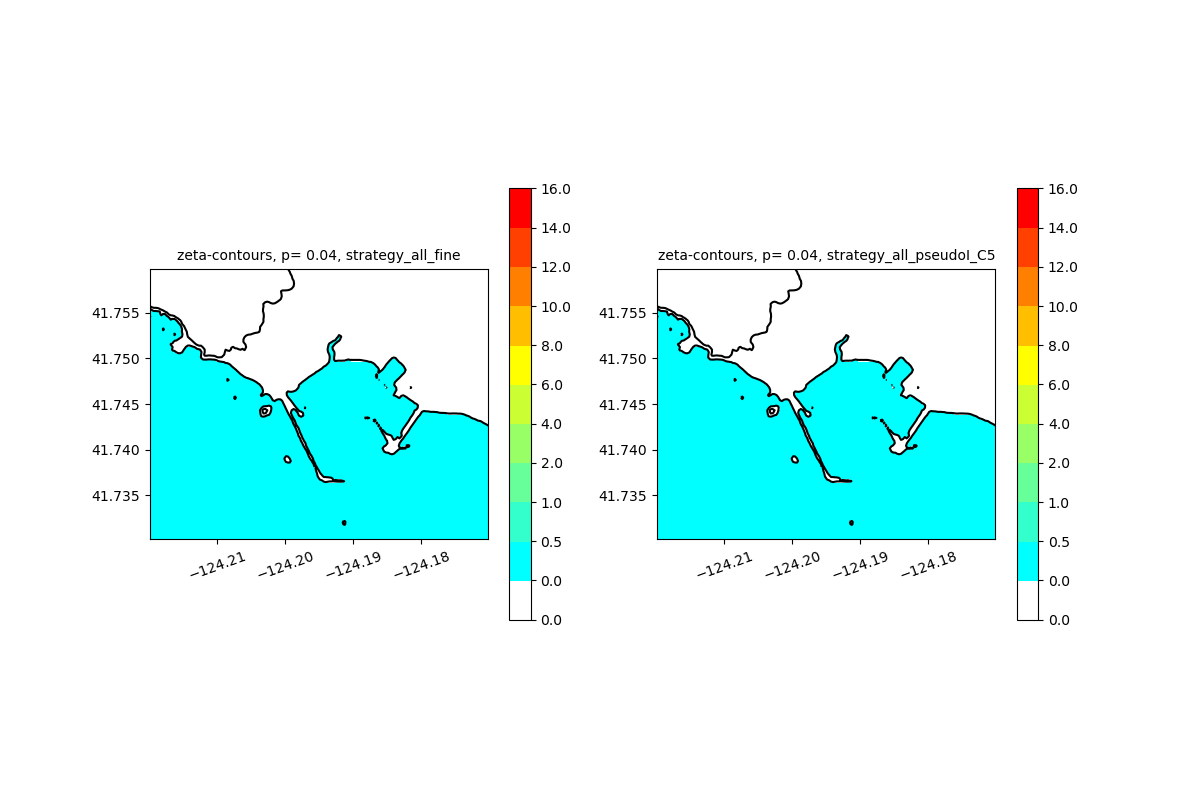

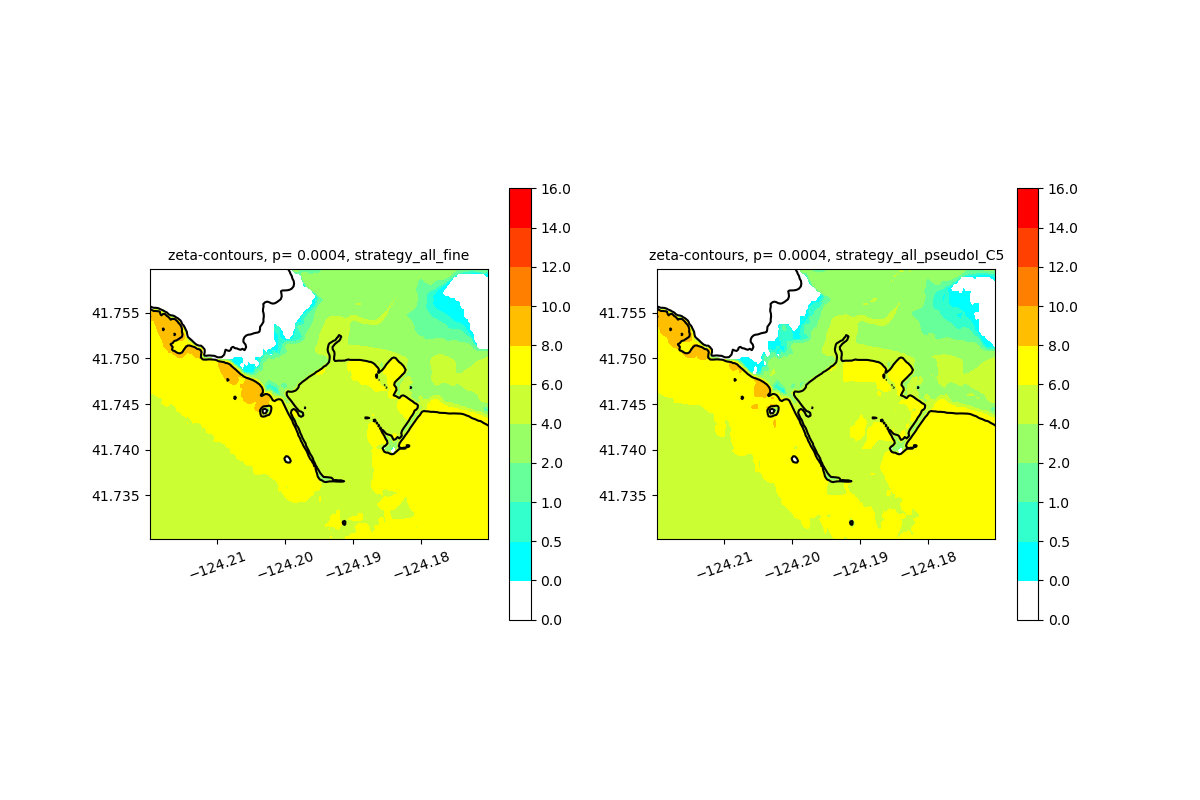

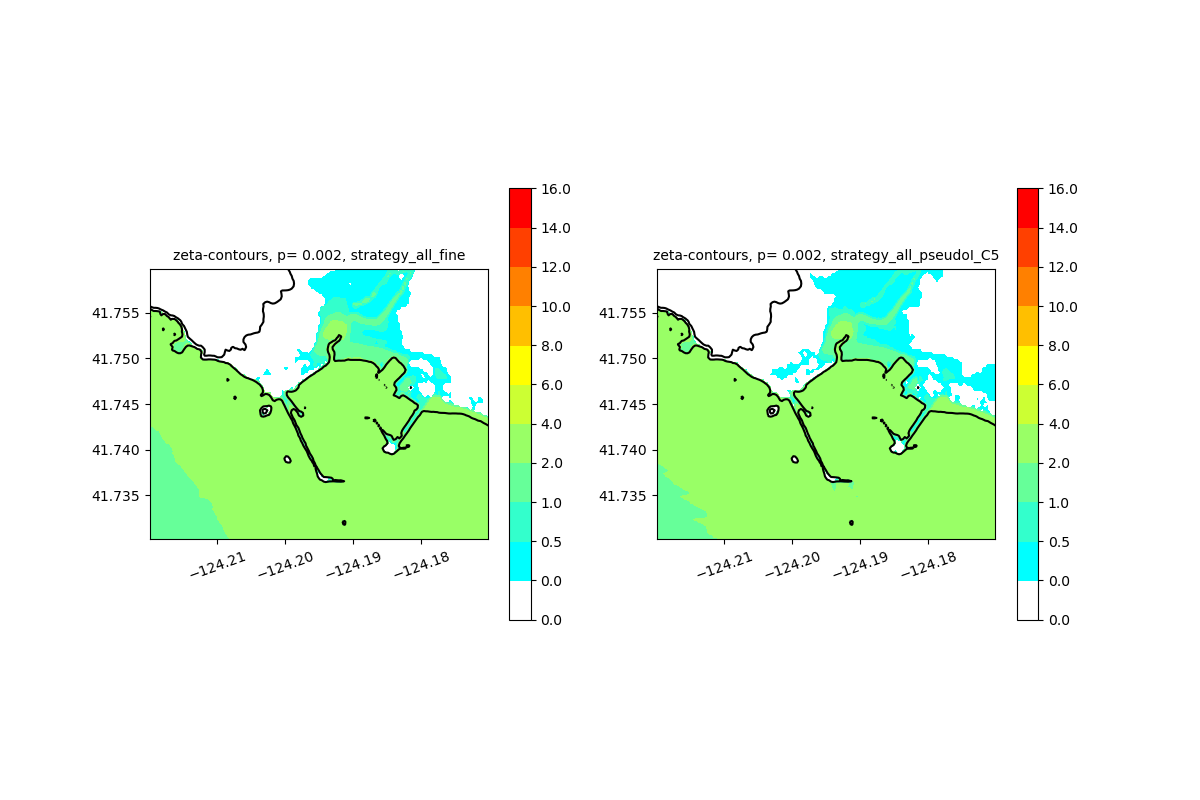

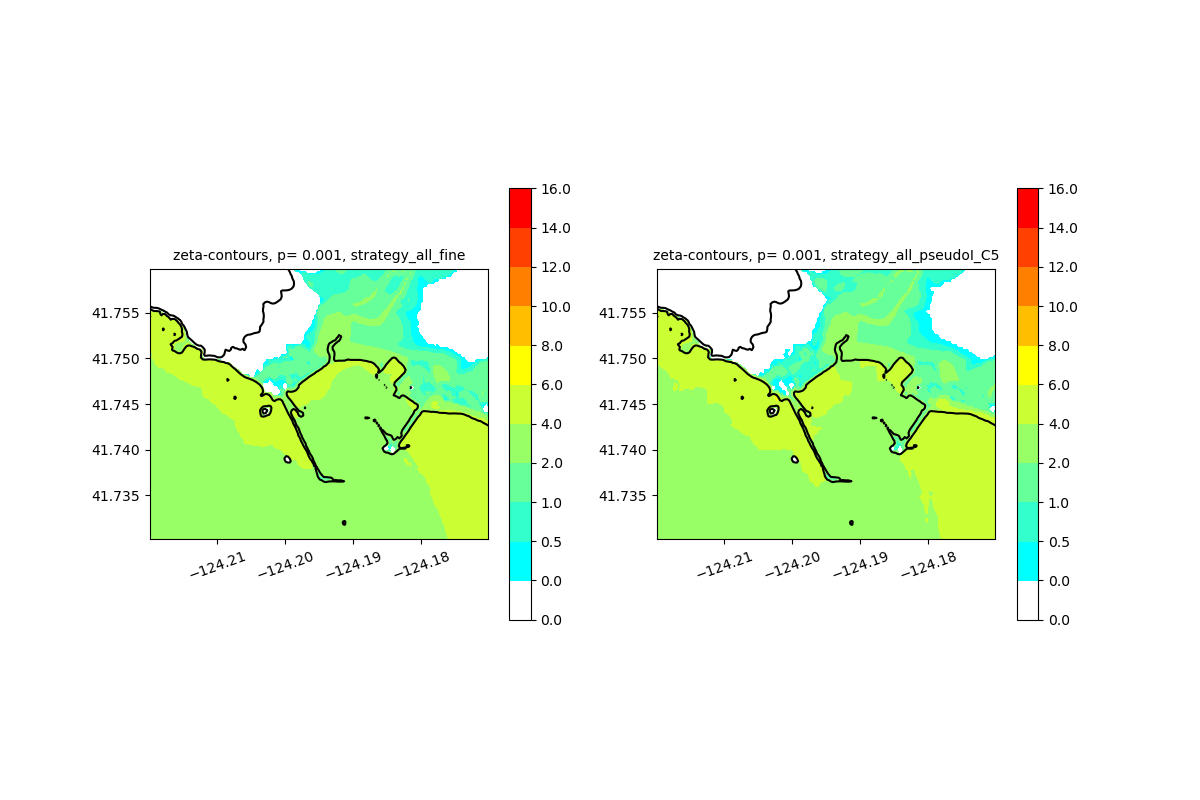

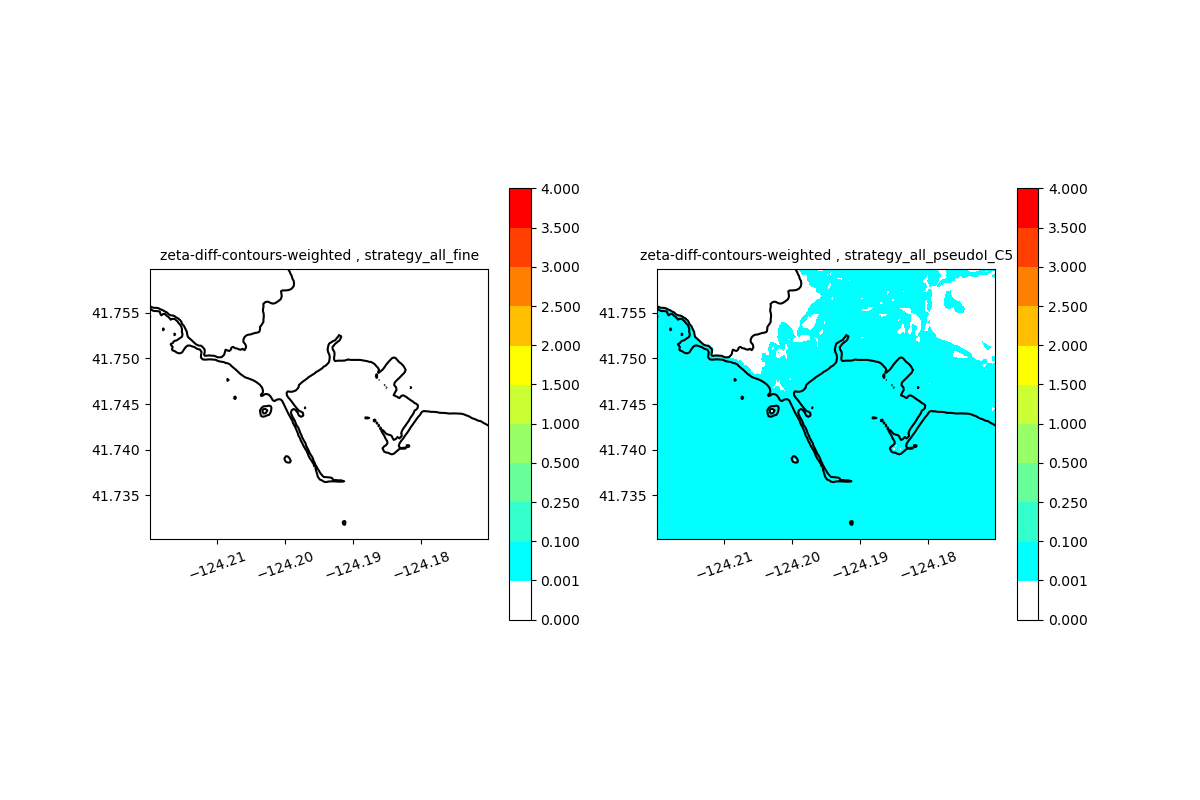

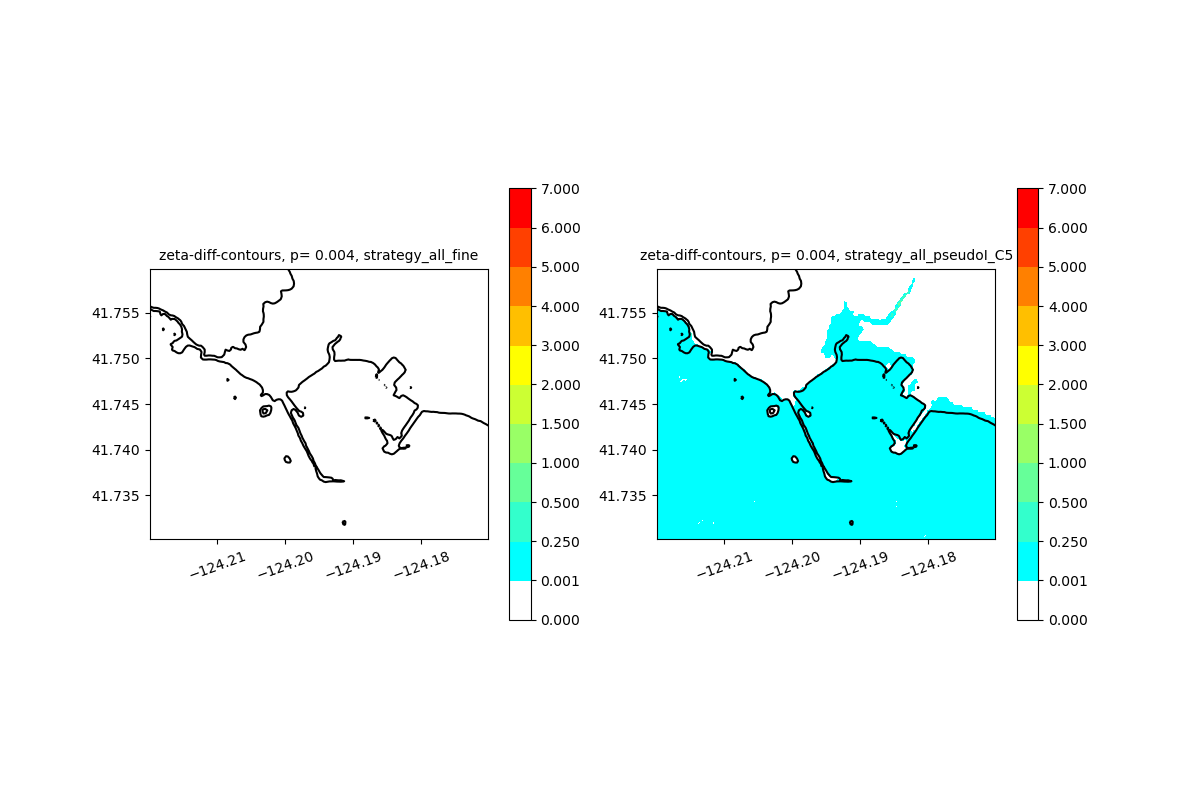

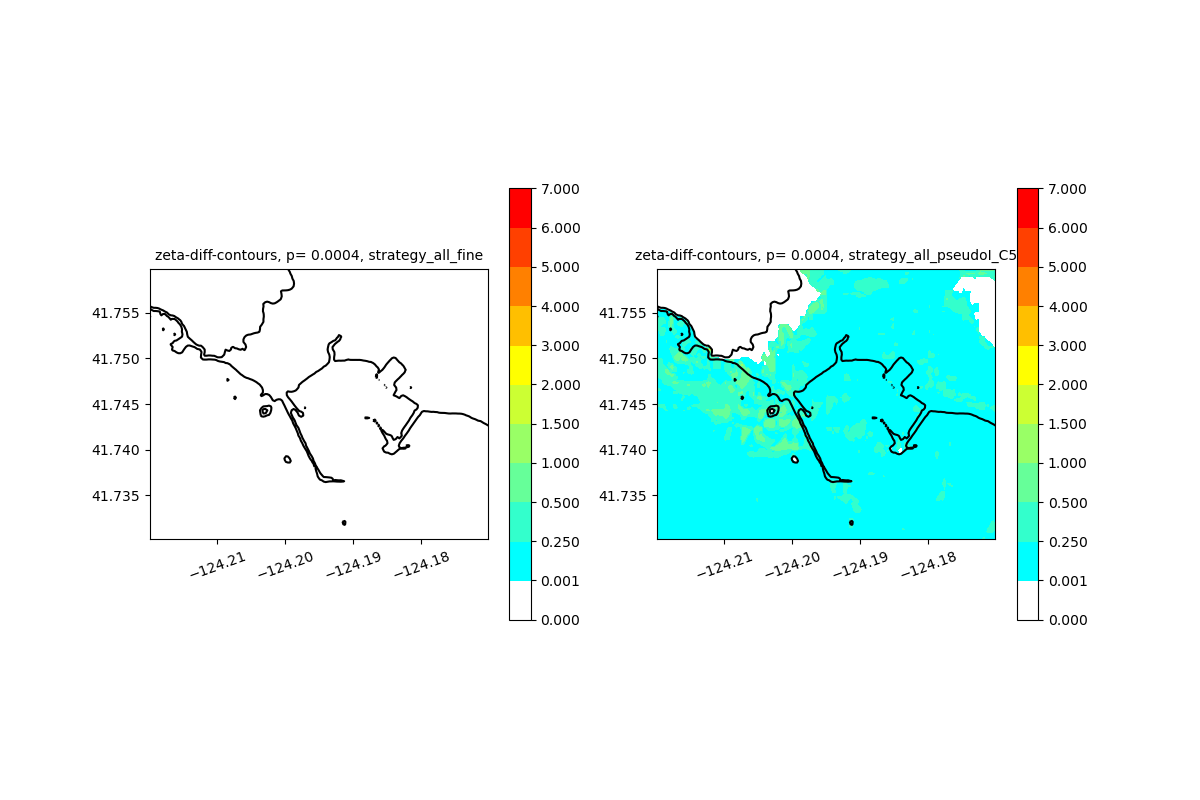

Zeta contours for different probabilities (and errors)
Zeta = h on land (where B0 > 0), Zeta = Eta = h+B0 offshore (where B0 < 0)

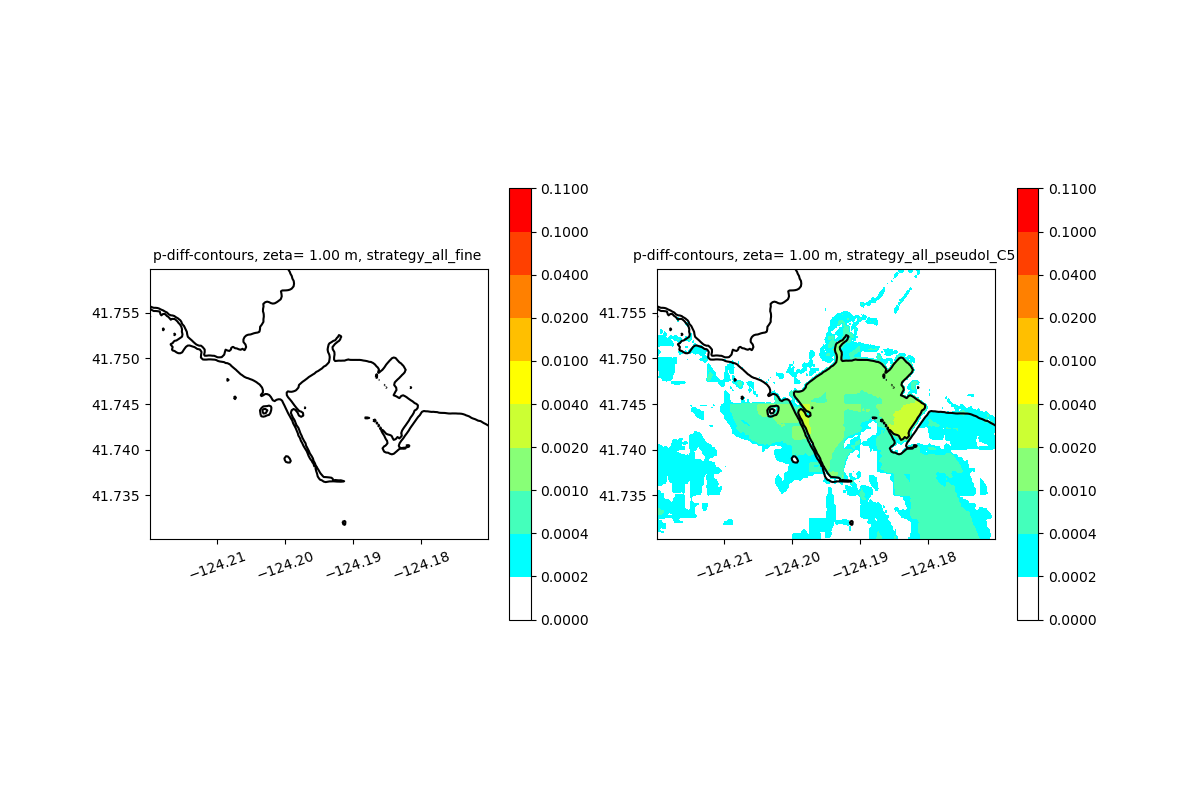

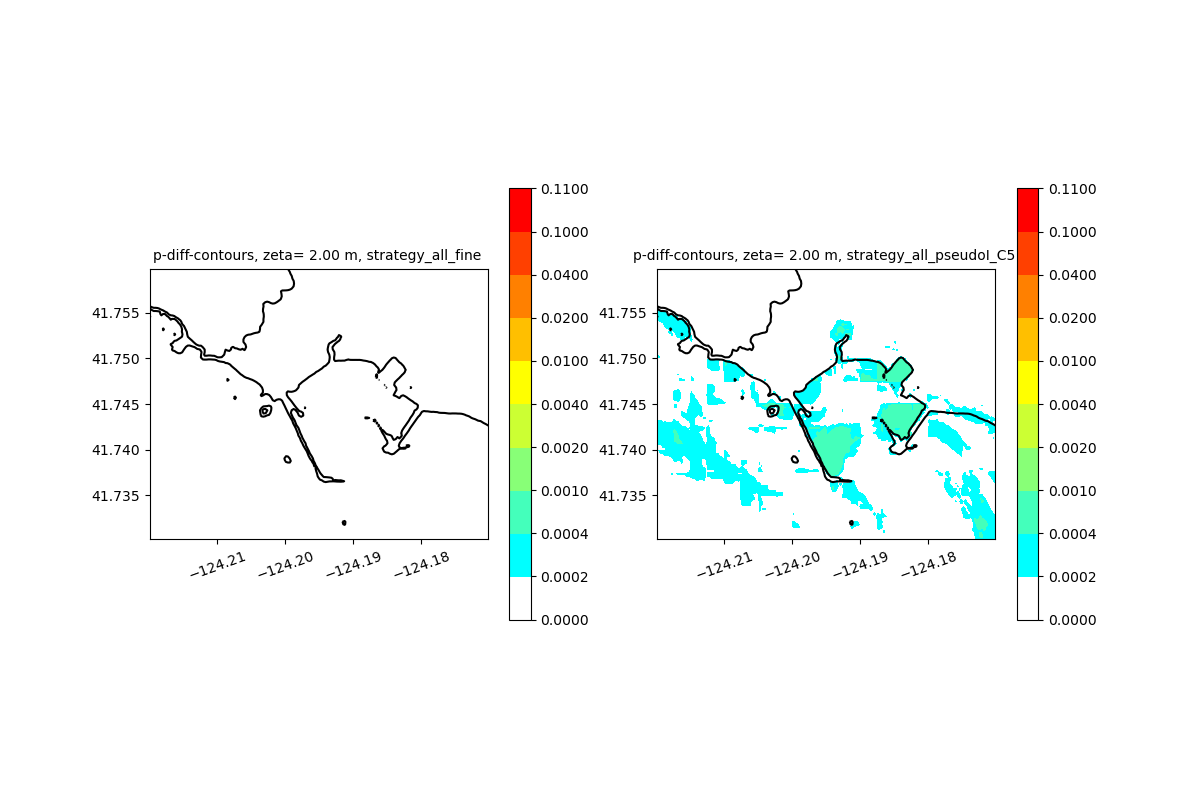

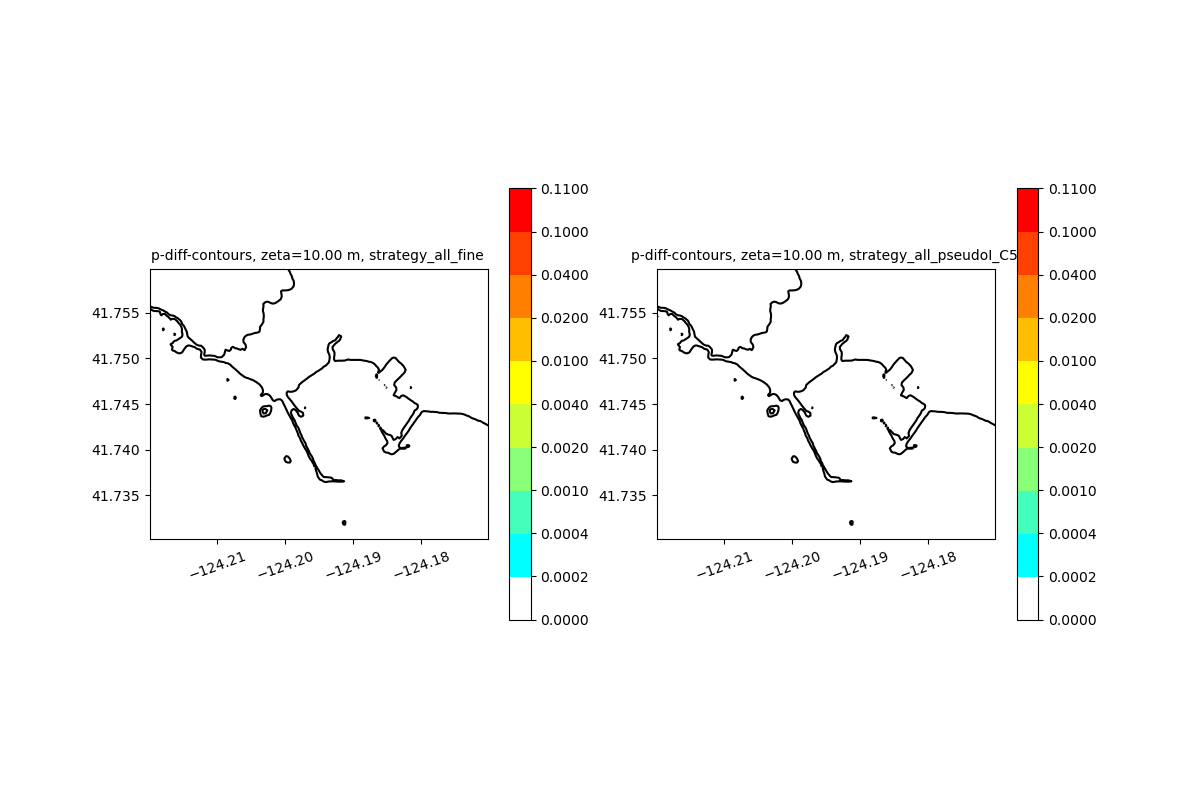

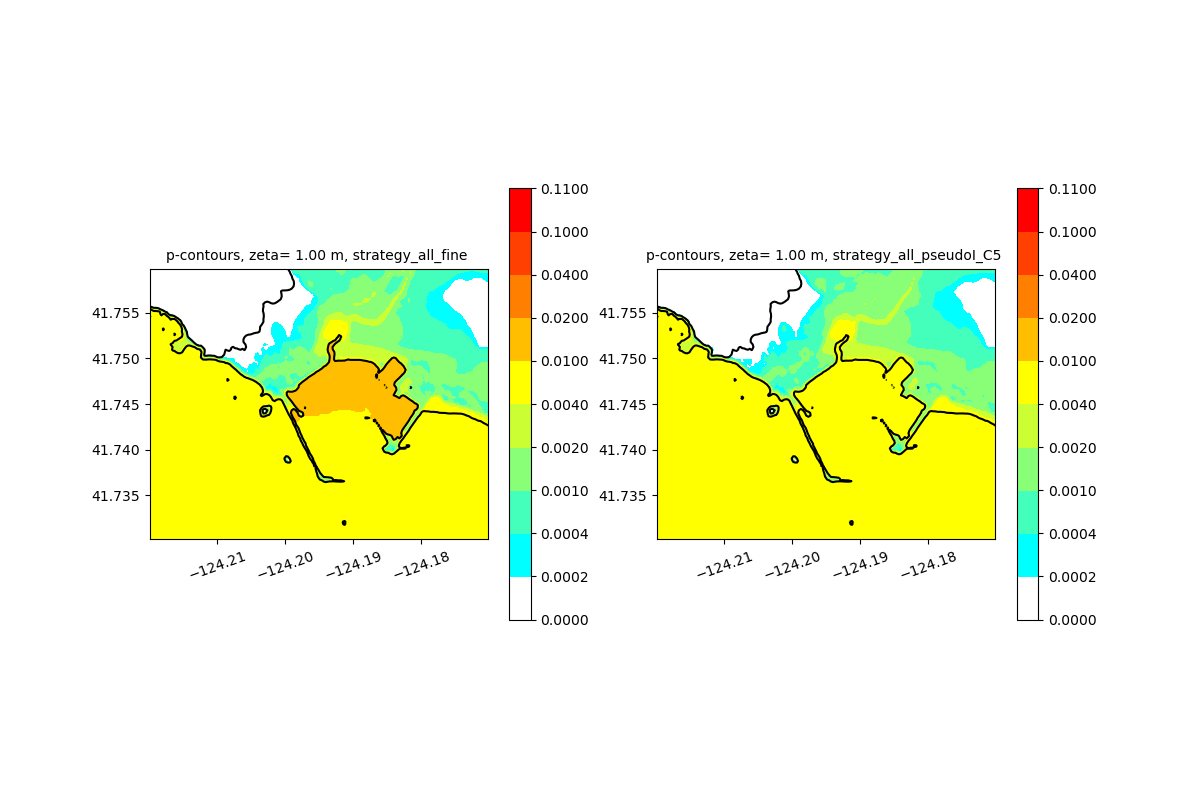

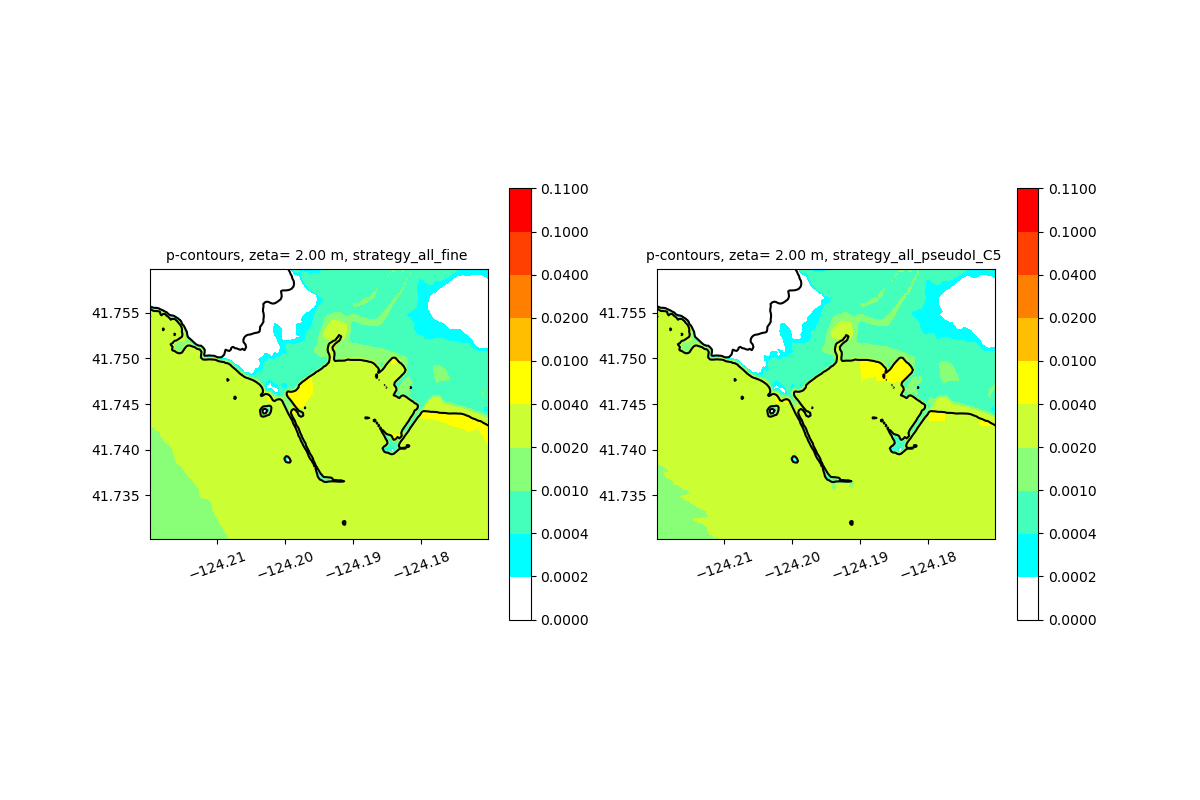

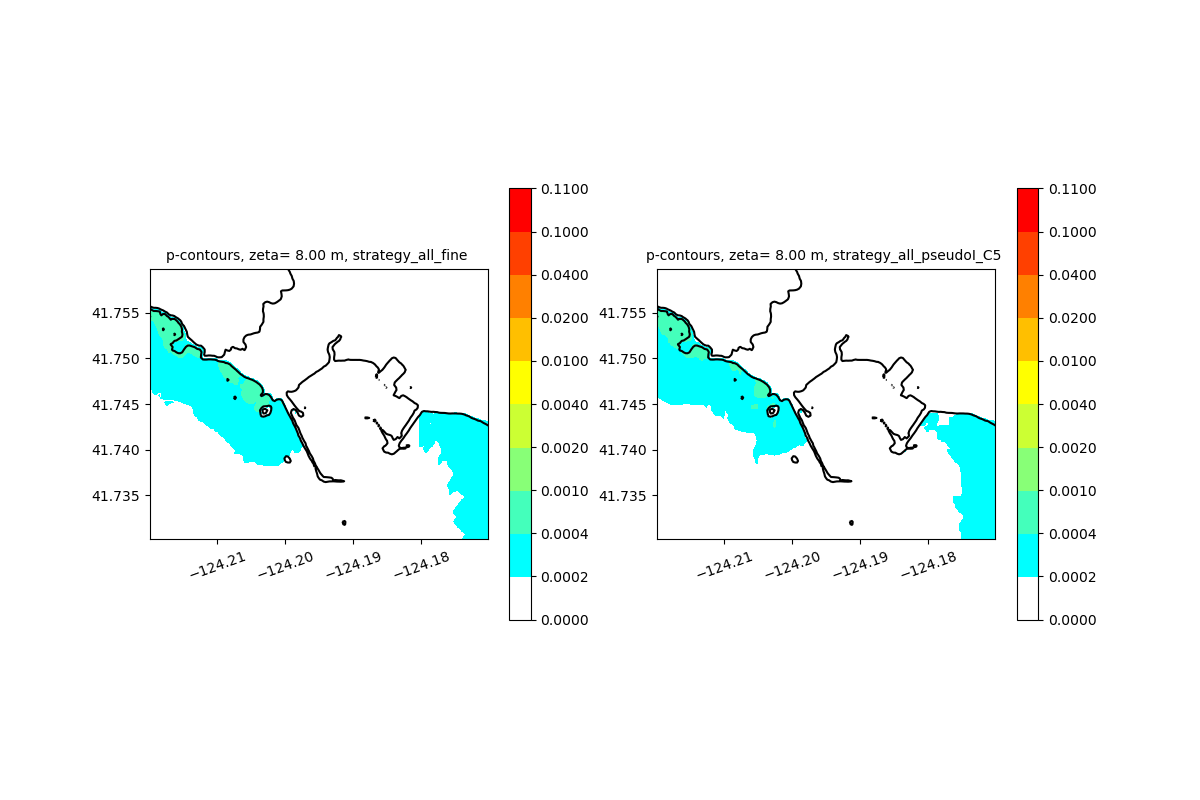

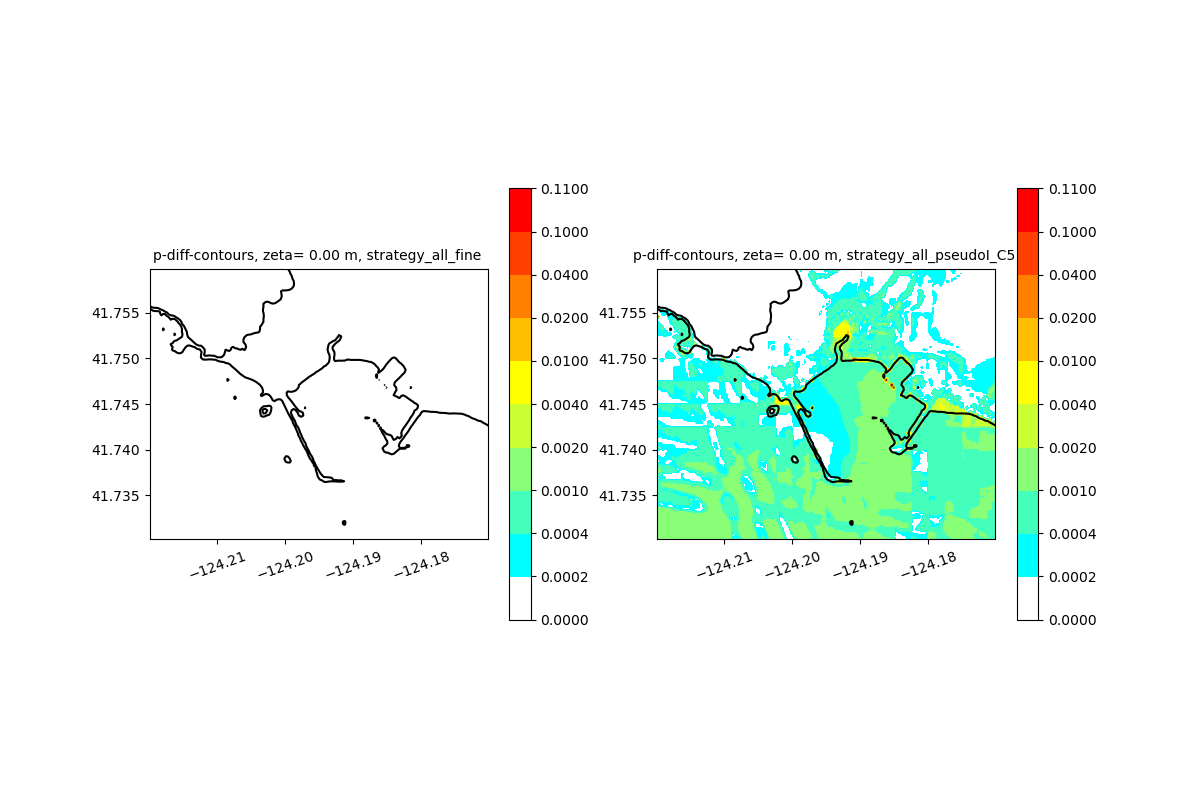

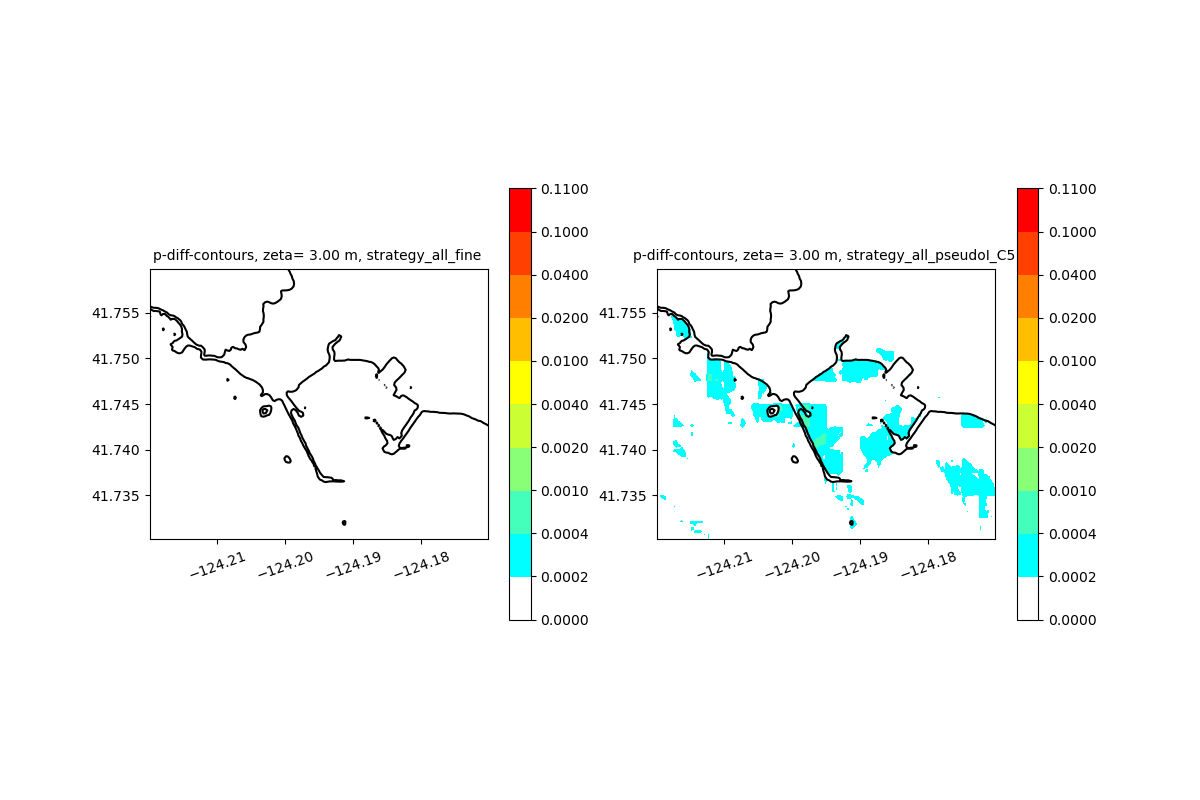

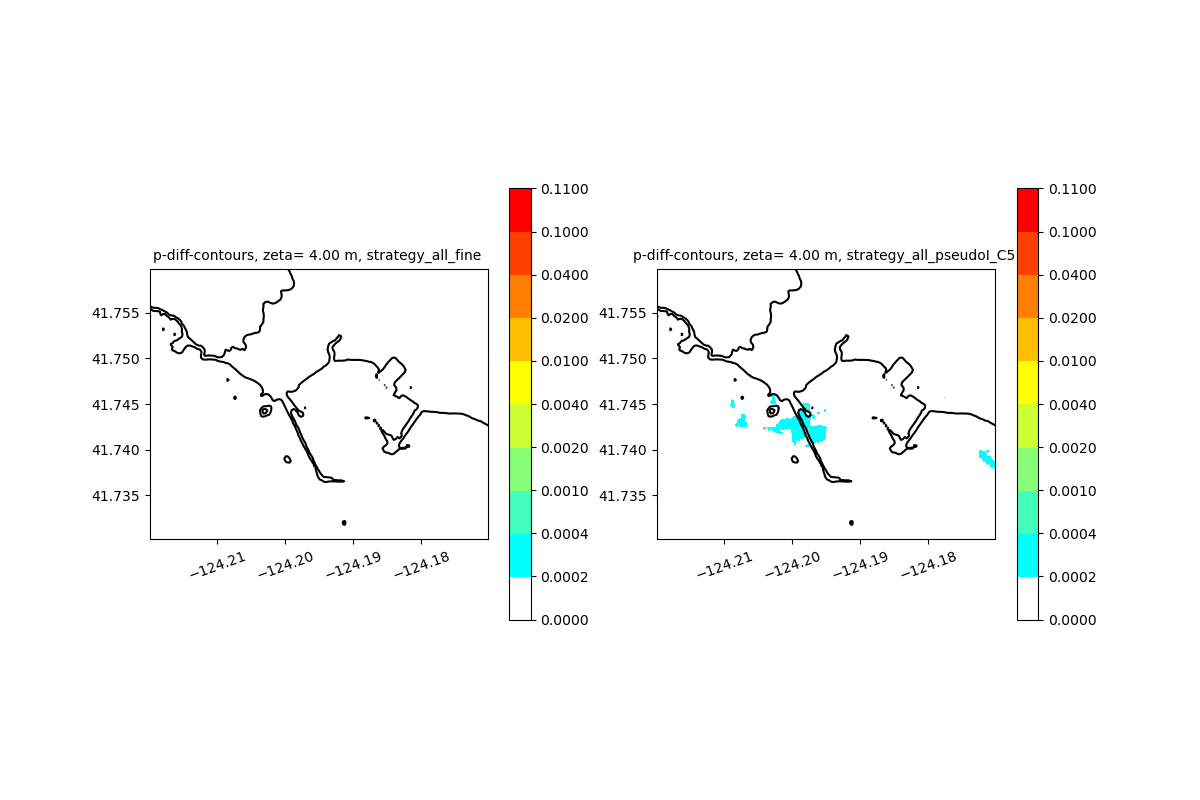

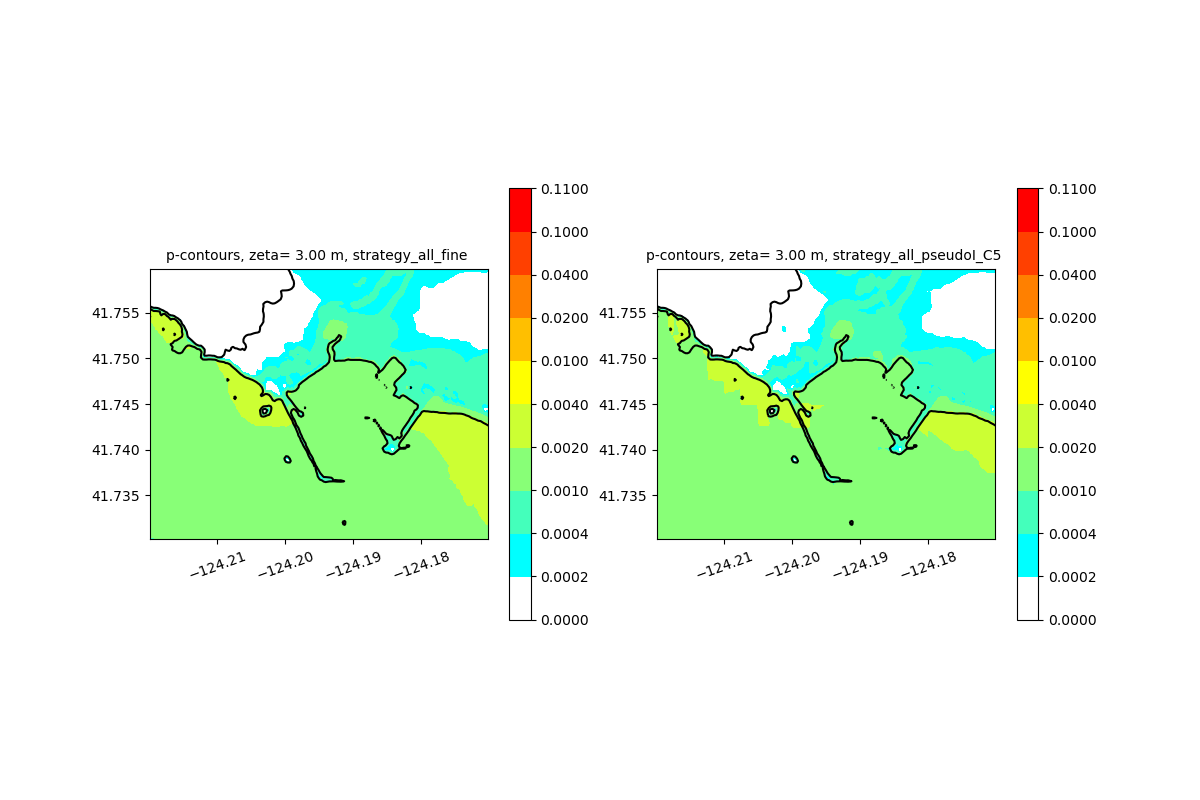

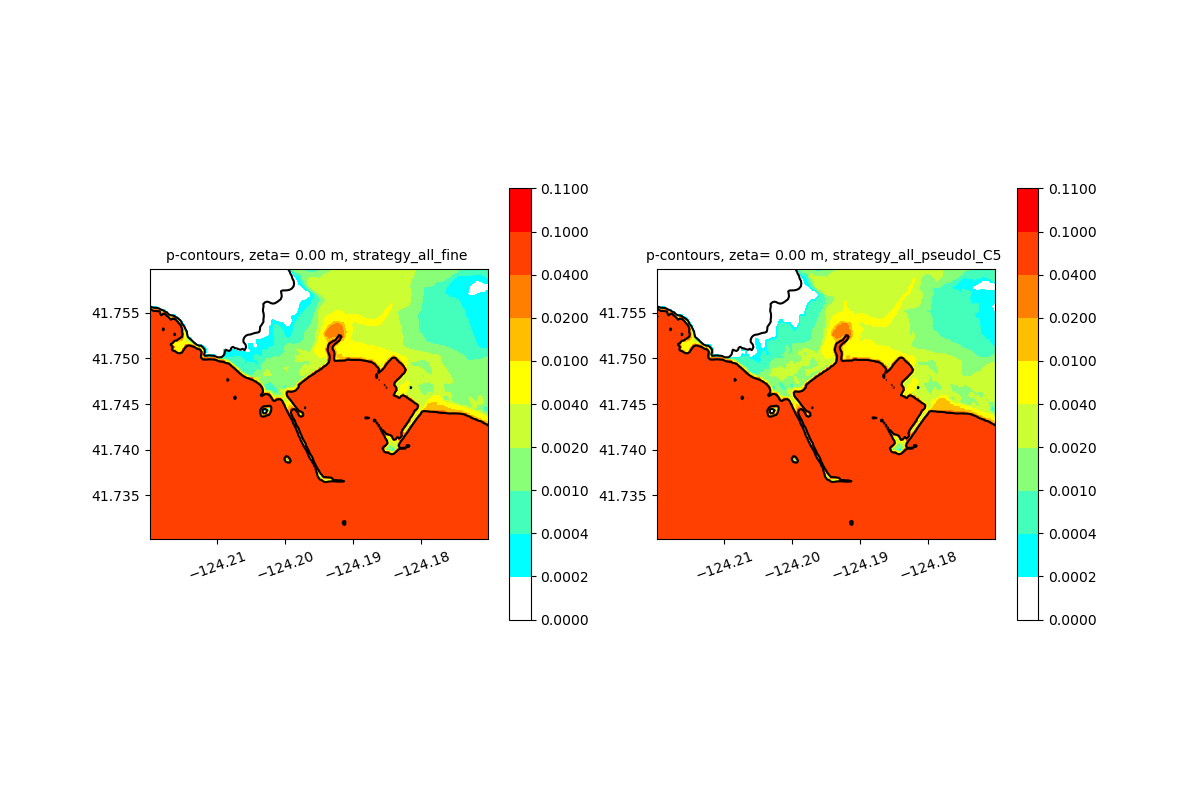

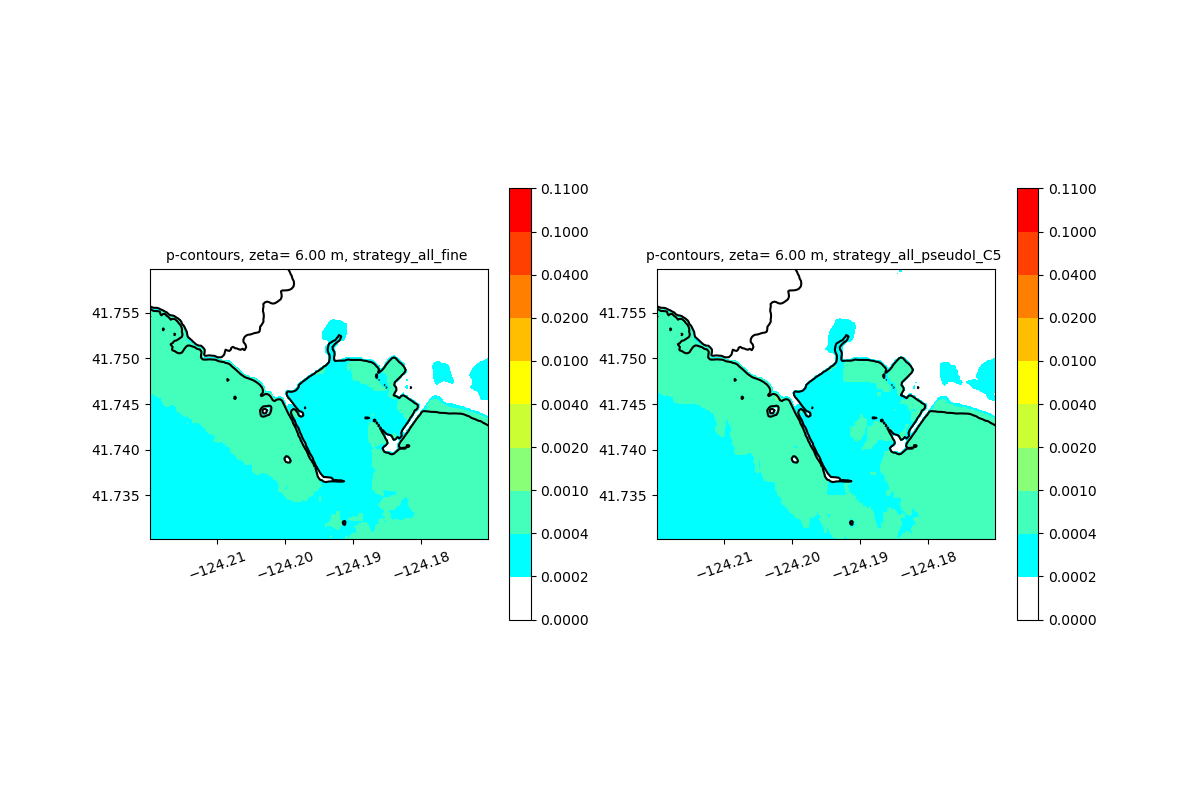

Probability contours for different exceedance values of zeta (and errors)
