Go to the source code of this file.
Functions/Subroutines | |
| subroutine | bc2amr (val, aux, nrow, ncol, meqn, naux, |
| Take a grid patch with mesh widths hx,hy, of dimensions nrow by ncol, and set the values of any piece of of the patch which extends outside the physical domain using the boundary conditions. More... | |
Function/Subroutine Documentation
| subroutine bc2amr | ( | real*8, dimension(meqn,nrow,ncol) | val, |
| real*8, dimension(naux,nrow,ncol) | aux, | ||
| integer | nrow, | ||
| integer | ncol, | ||
| integer | meqn, | ||
| integer | naux | ||
| ) |
Take a grid patch with mesh widths hx,hy, of dimensions nrow by ncol, and set the values of any piece of of the patch which extends outside the physical domain using the boundary conditions.
Standard boundary condition choices for amr2ez in clawpack
At each boundary k = 1 (left), 2 (right), 3 (bottom), 4 (top):
mthbc(k) =
- 0 for user-supplied BC's (must be inserted!)
- 1 for zero-order extrapolation
- 2 for periodic boundary conditions
- 3 for solid walls, assuming this can be implemented by reflecting the data about the boundary and then negating the 2'nd (for k=1,2) or 3'rd (for k=3,4) component of q.
- 5 for sphere bcs (left half maps to right half of same side, and vice versa), as if domain folded in half
The corners of the grid patch are at (xlo_patch,ylo_patch) – lower left corner (xhi_patch,yhi_patch) – upper right corner
The physical domain itself is a rectangle bounded by (xlower,ylower) – lower left corner (xupper,yupper) – upper right corner Any cells that lie outside the physical domain are ghost cells whose values should be set in this routine. This is tested for by comparing xlo_patch with xlower to see if values need to be set at the left and similarly at the other boundaries. Patches are guaranteed to have at least 1 row of cells filled with interior values so it is possible to extrapolate. Fix trimbd() if you want more than 1 row pre-set.
Make sure the order the boundaries are specified is correct so that diagonal corner cells are also properly taken care of.
Periodic boundaries are set before calling this routine, so if the domain is periodic in one direction only you can safely extrapolate in the other direction.
Don't overwrite ghost cells in periodic directions!
- Parameters
-
valbig data array for solution
(cover the whole grid msrc) aux data array for auxiliary variables nrow number of cells in i direction on this grid ncol number of cells in j direction on this grid meqn number of equations for the system naux number of auxiliary variables hx spacing (mesh size) in i direction hy spacing (mesh size) in j direction level AMR level of this grid time setting ghost cell values at time time xlo_patch left bound of the input grid xhi_patch right bound of the input grid ylo_patch lower bound of the input grid yhi_patch upper bound of the input grid
Definition at line 87 of file bc2amr.f.

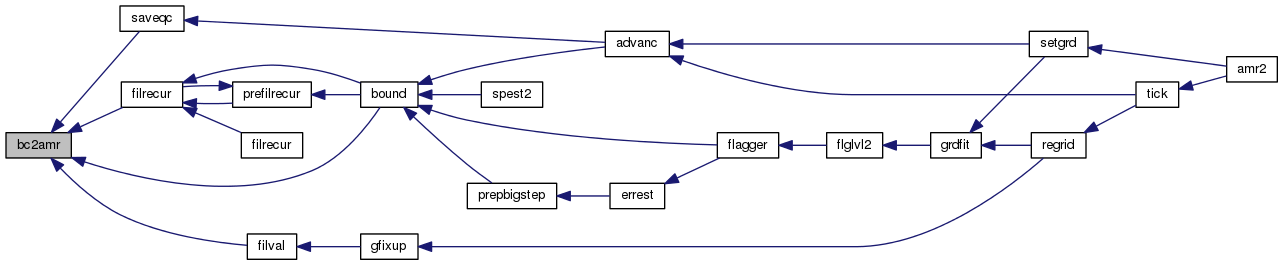

Referenced by bound(), filrecur(), filval(), and saveqc().
