Tsunami Maritime Hazard Assessement for Westport, WA

Work in progress, 2021-2022

This modeling project by Carrie Garrison-Laney and Randall LeVeque and Loyce Adams will be submitted to EMD, WGS DNR and Westport, WA for use in designing a maritime hazard plan for Westport Harbor, WA. This project was funded in part by Washington State Emergency Management Division (EMD).

Note: Graphics and animations on this page are for research and development purposes only, official maps will eventually be published by Washington State as part of their Maritime Guidance.

Project reports

Directories with results

CSZ-L1-extended-pmel at MHW:    Plot index for time frames and gauges    Gauges Report    Plot index for fgmax plots with dt_check=1

CSZ-L1-extended-pmel at MLW:    Plot index for time frames and gauges    Gauges Report    Plot index for fgmax plots with dt_check=1

AKMaxWA at MHW:    Plot index for time frames and gauges    Gauges Report    Plot index for fgmax plots with dt_check=1

AKMaxWA at MLW:    Plot index for time frames and gauges    Gauges Report    Plot index for fgmax plots with dt_check=1

AKMaxWA at SL150 (150cm above MHW, e.g. King Tide):    Plot index for time frames and gauges    Gauges Report

Jump down to...



Gauge locations at 1/9" resolution:

Imagery here and below from Google Earth.

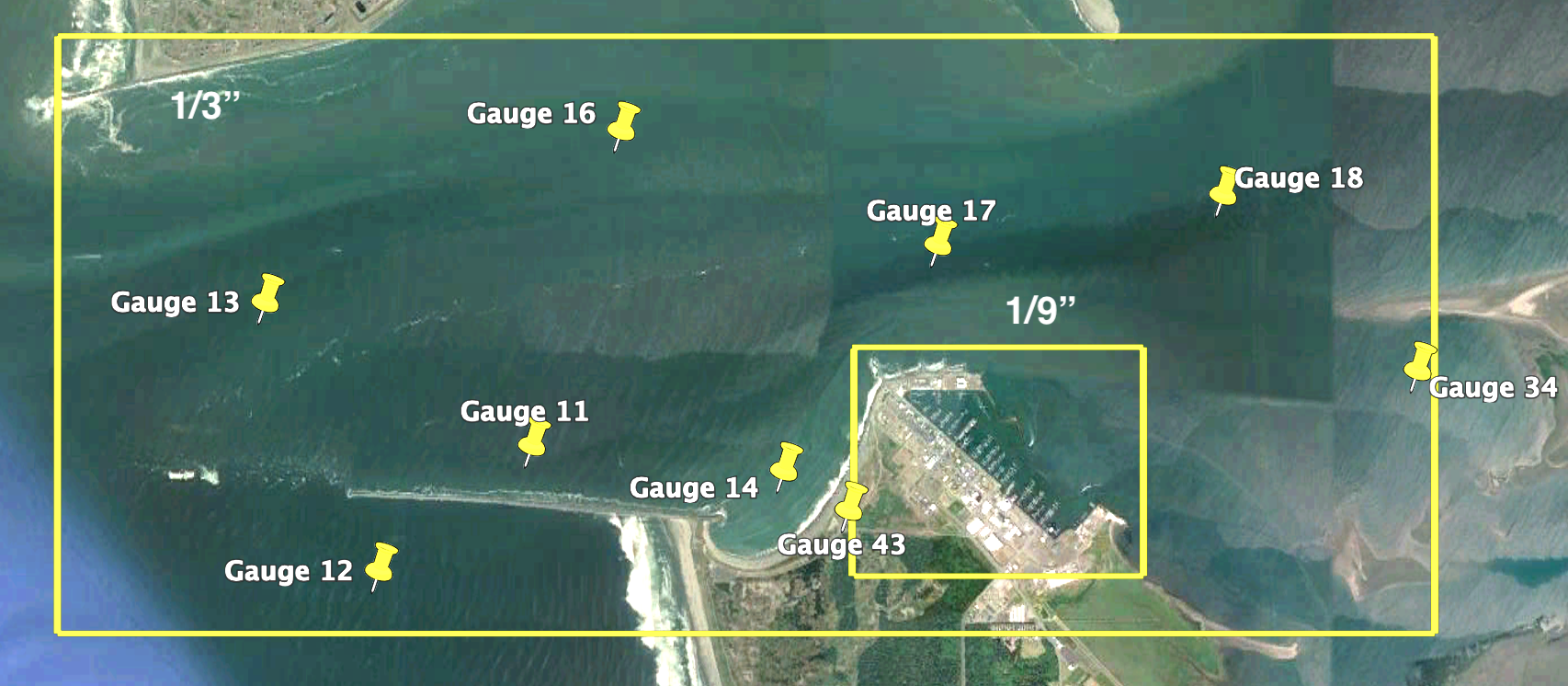

Gauge locations at 1/3" resolution:

Imagery here and below from Google Earth.

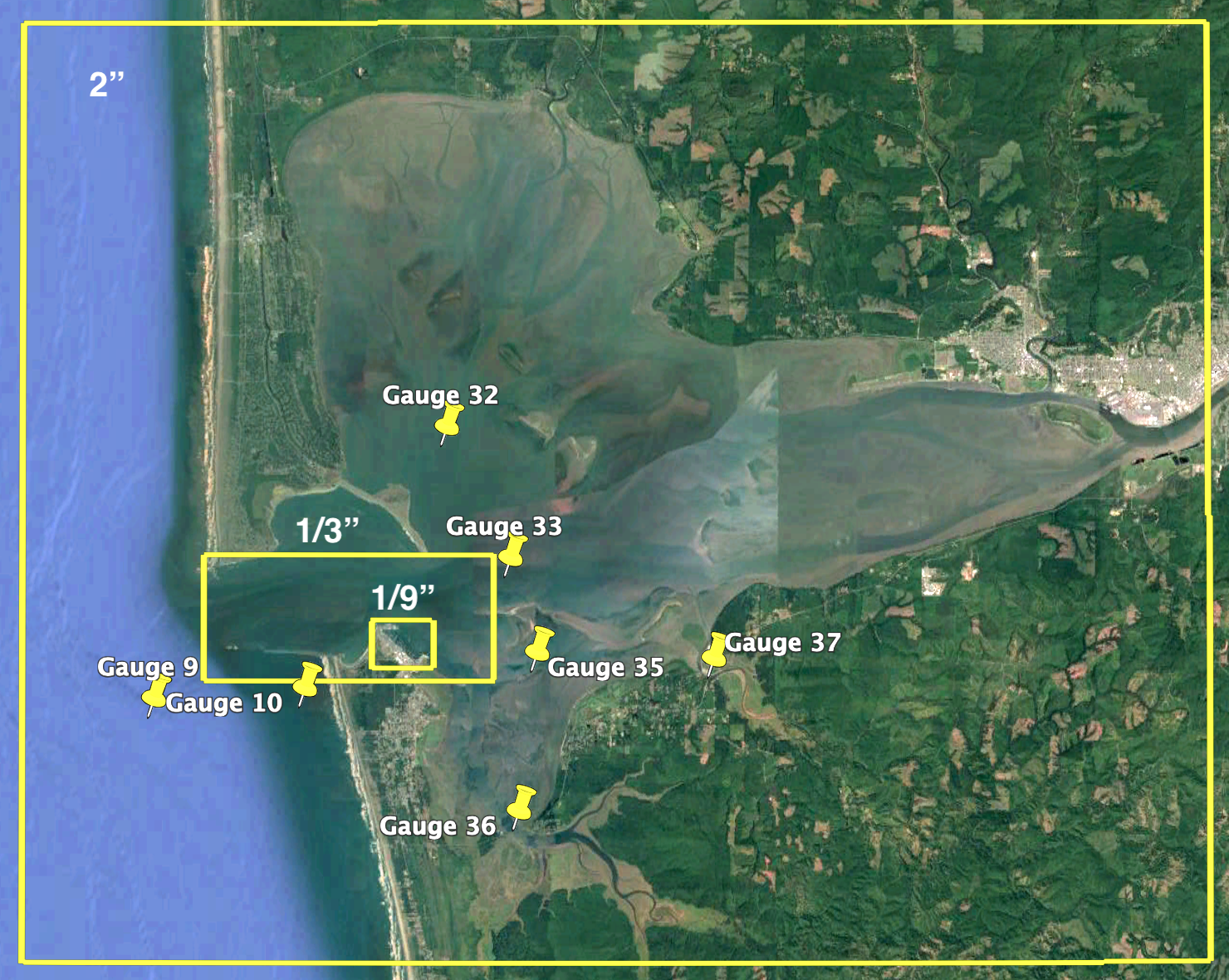

Gauge locations at 2" resolution:

Imagery here and below from Google Earth.

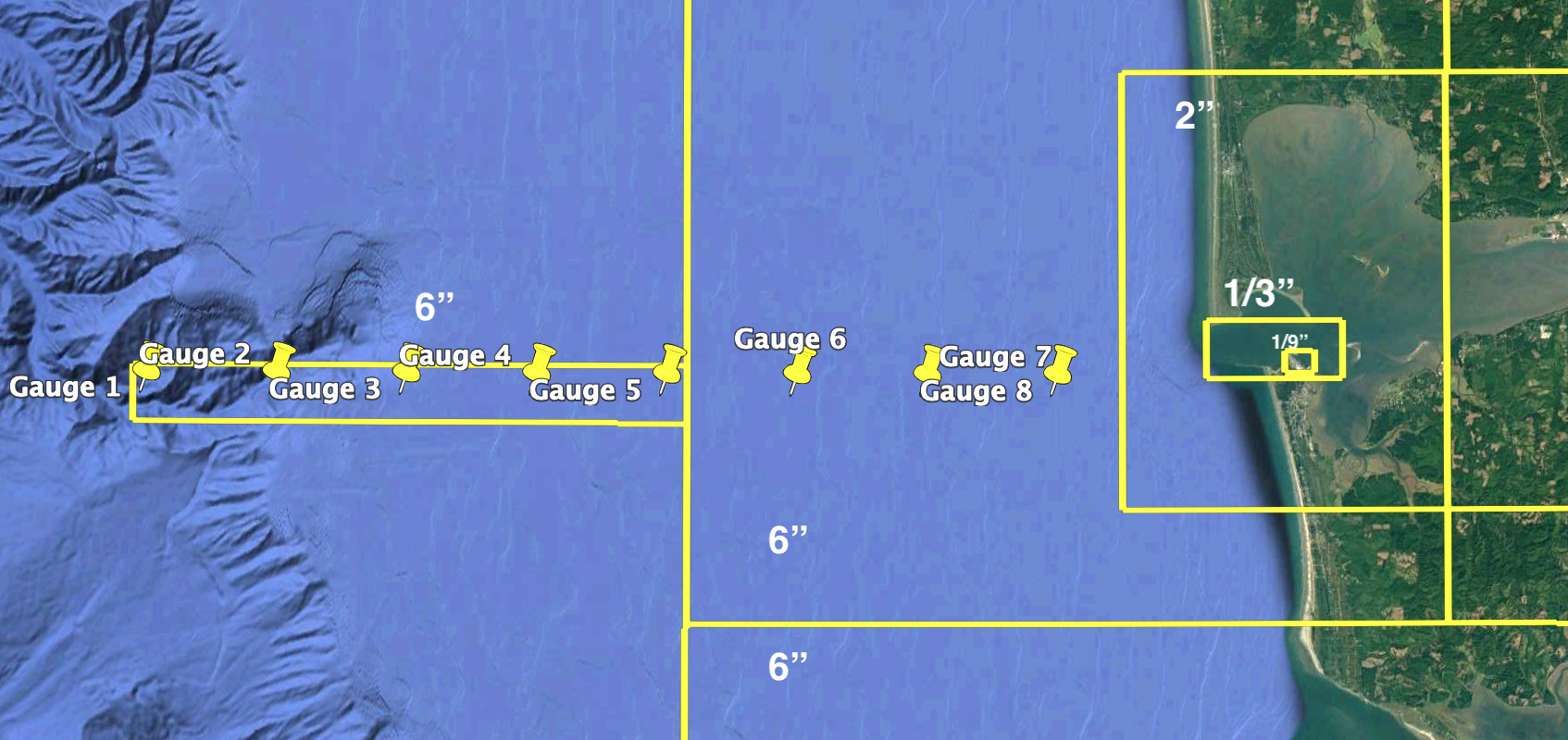

Gauge locations at 6" resolution:

Imagery here and below from Google Earth.





CSZ-L1 results

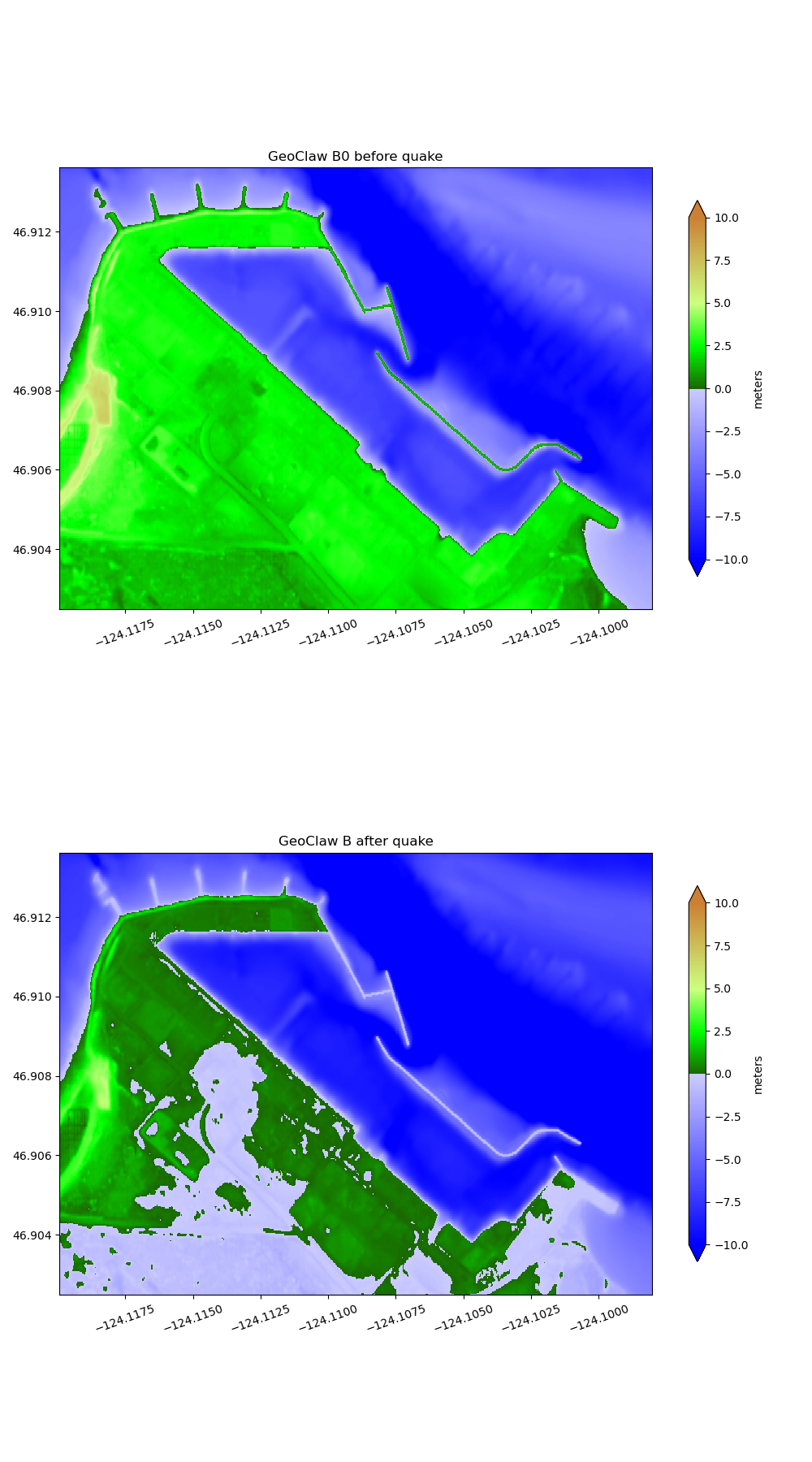

    Fgmax 2: Geoclaw Topo

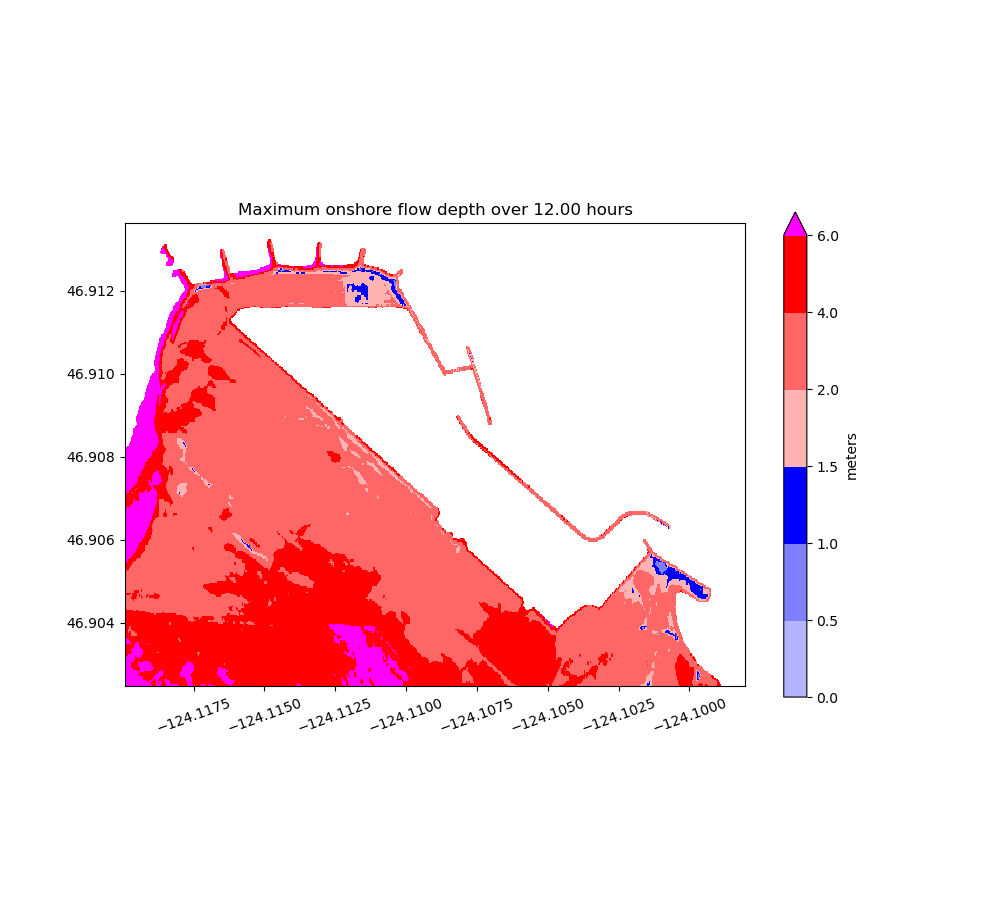

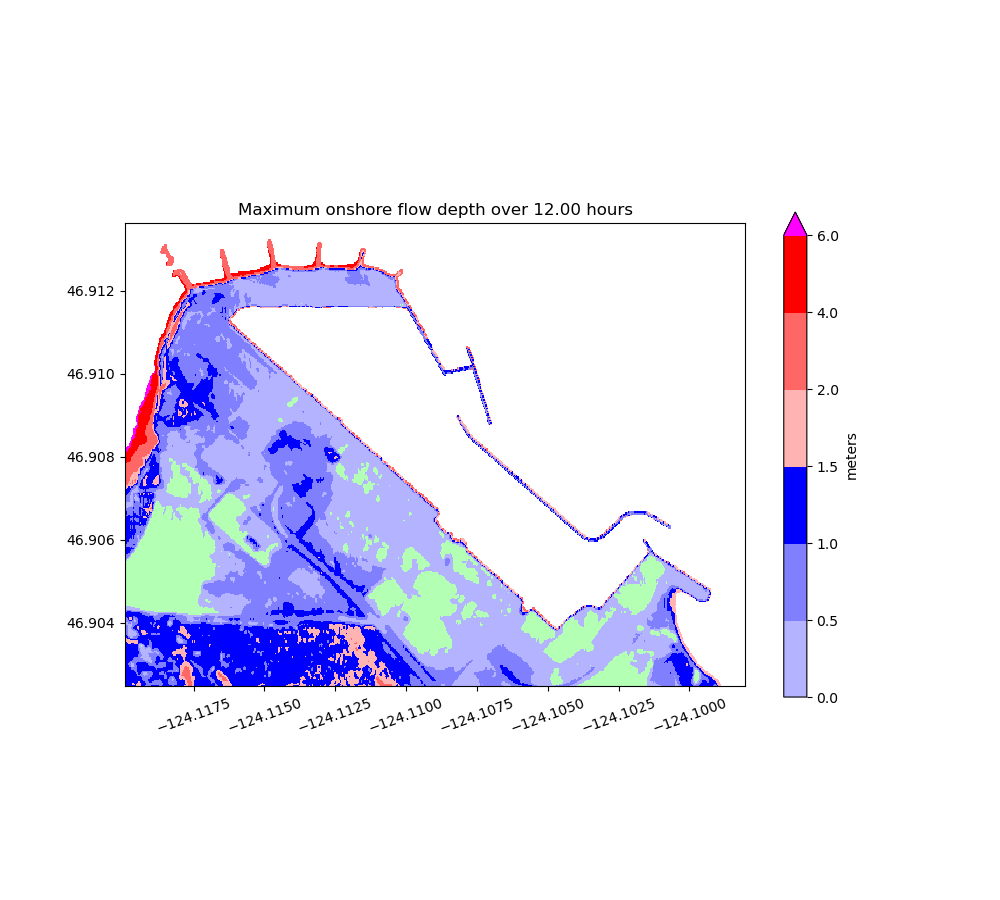

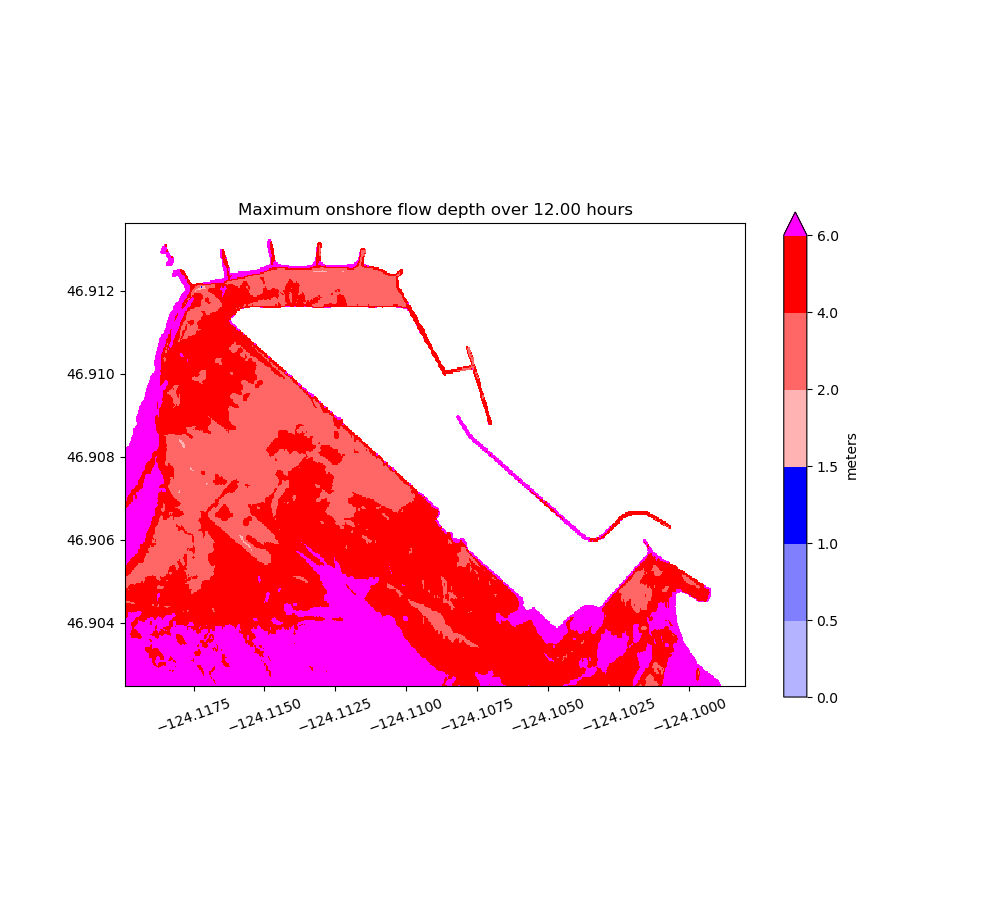

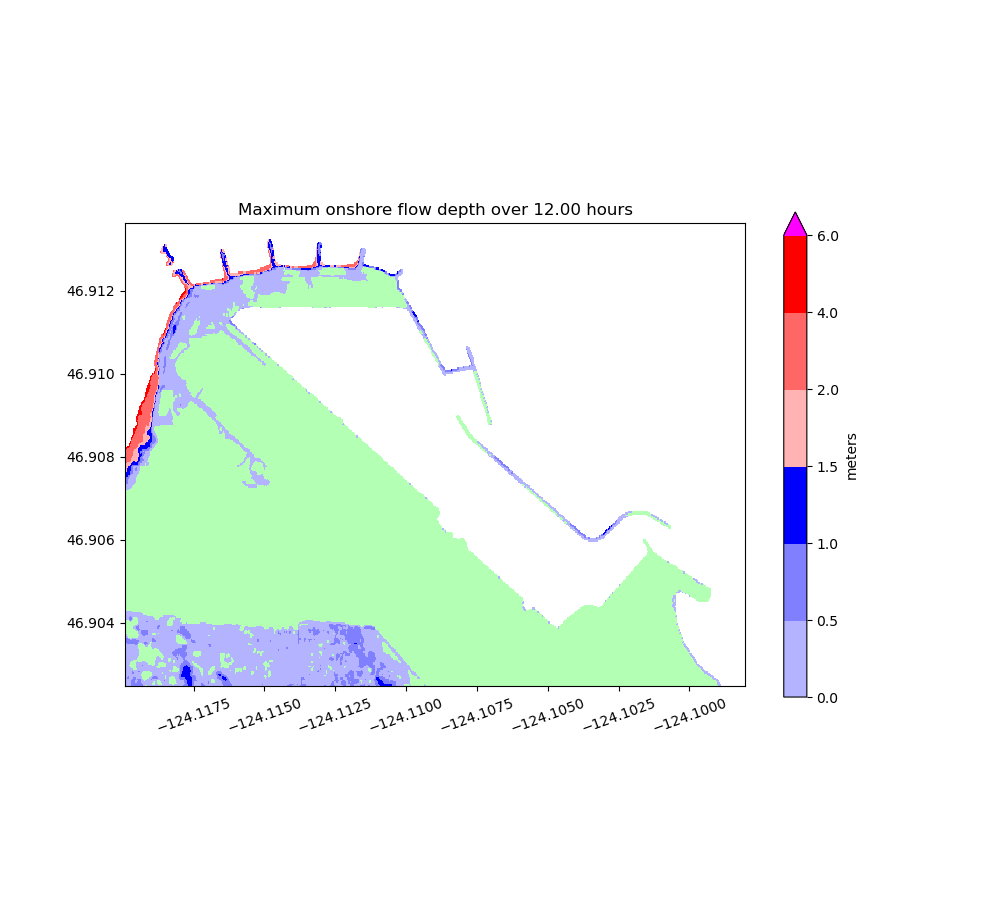

    Fgmax 2: h onshore (MHW, MLW)

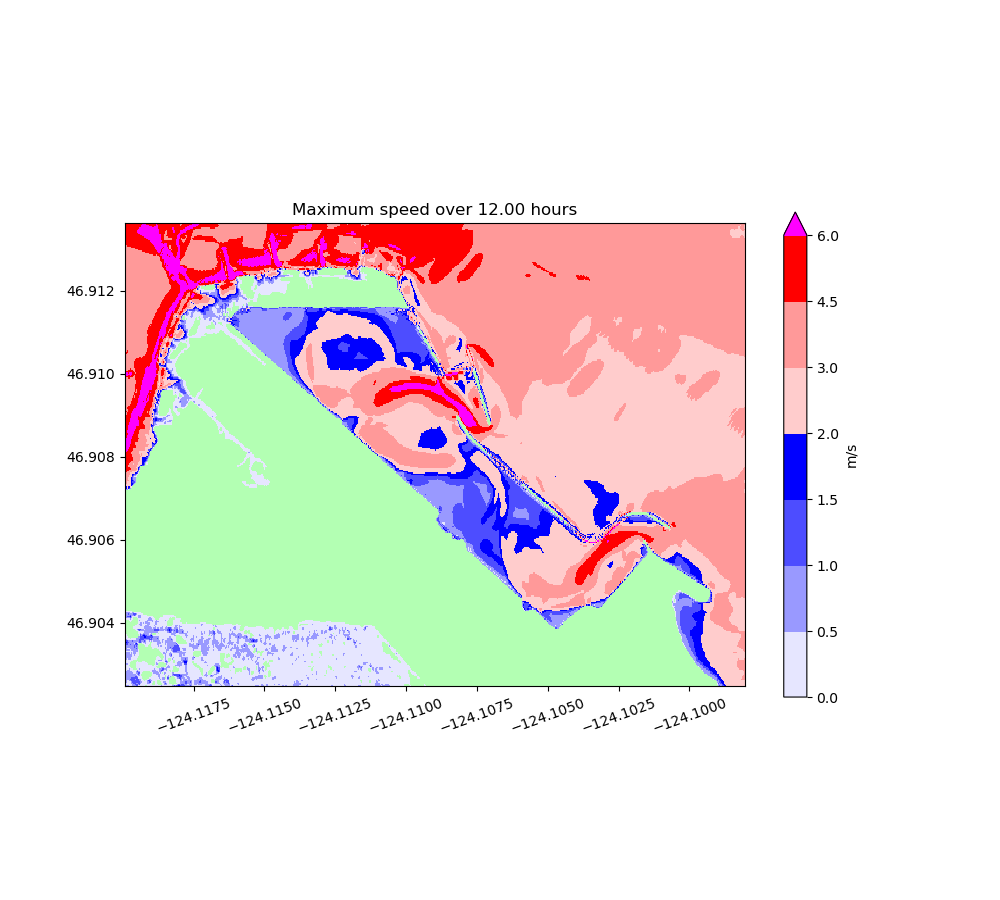

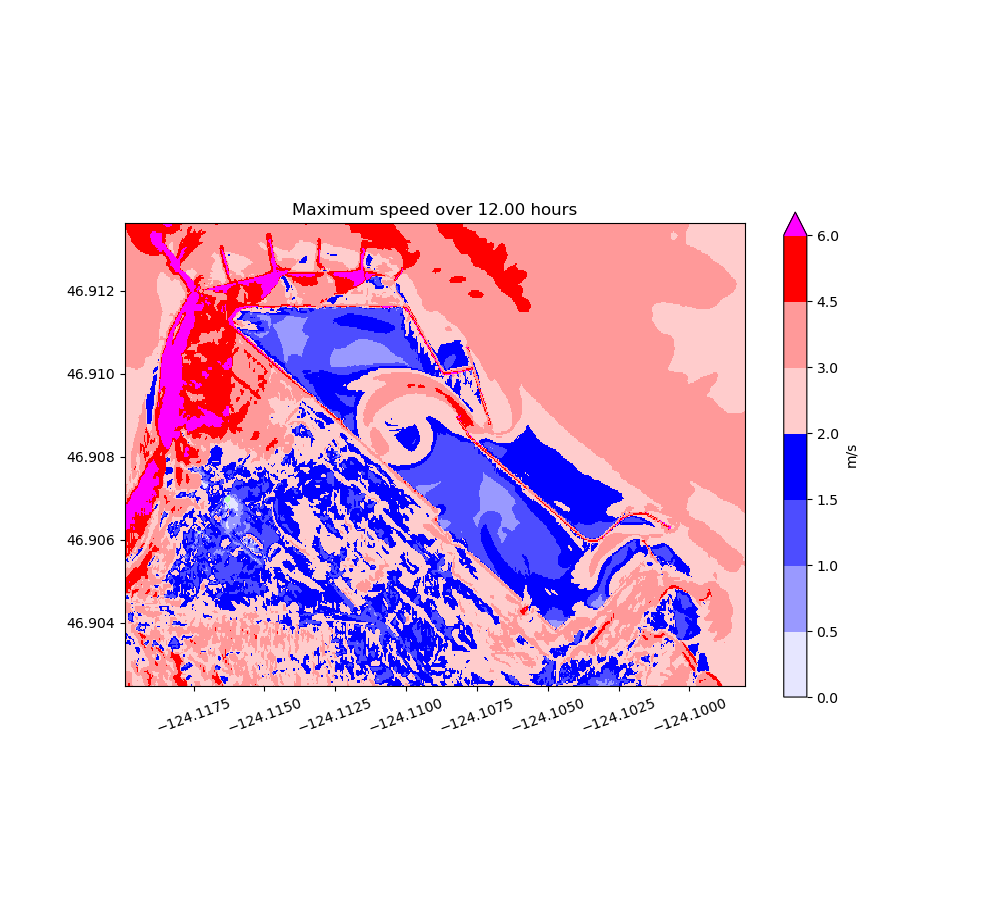

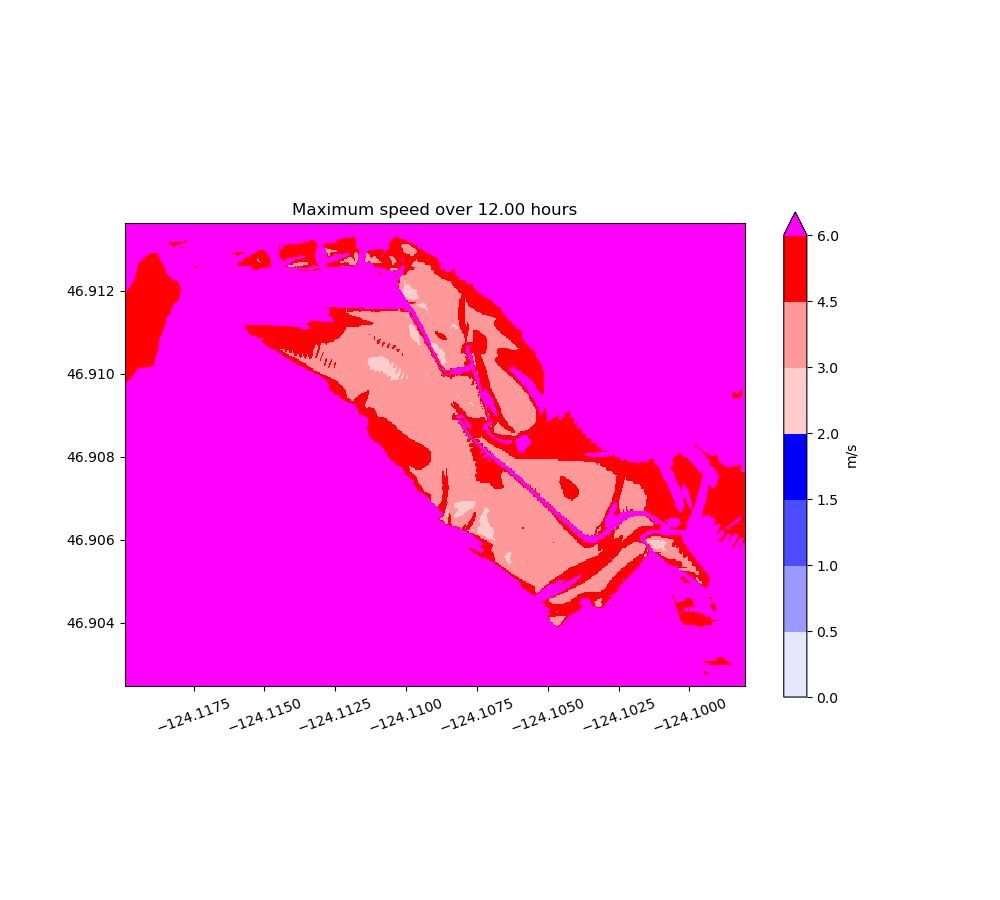

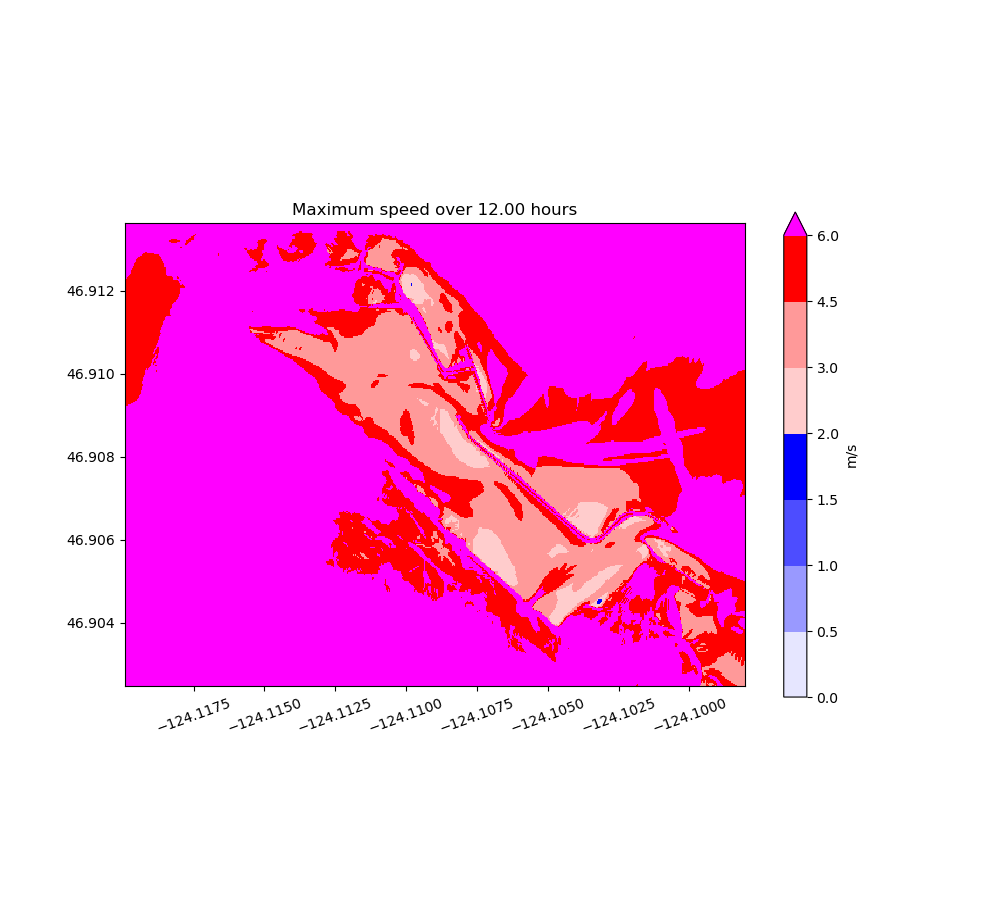

    Fgmax 2: speed (MHW, MLW)

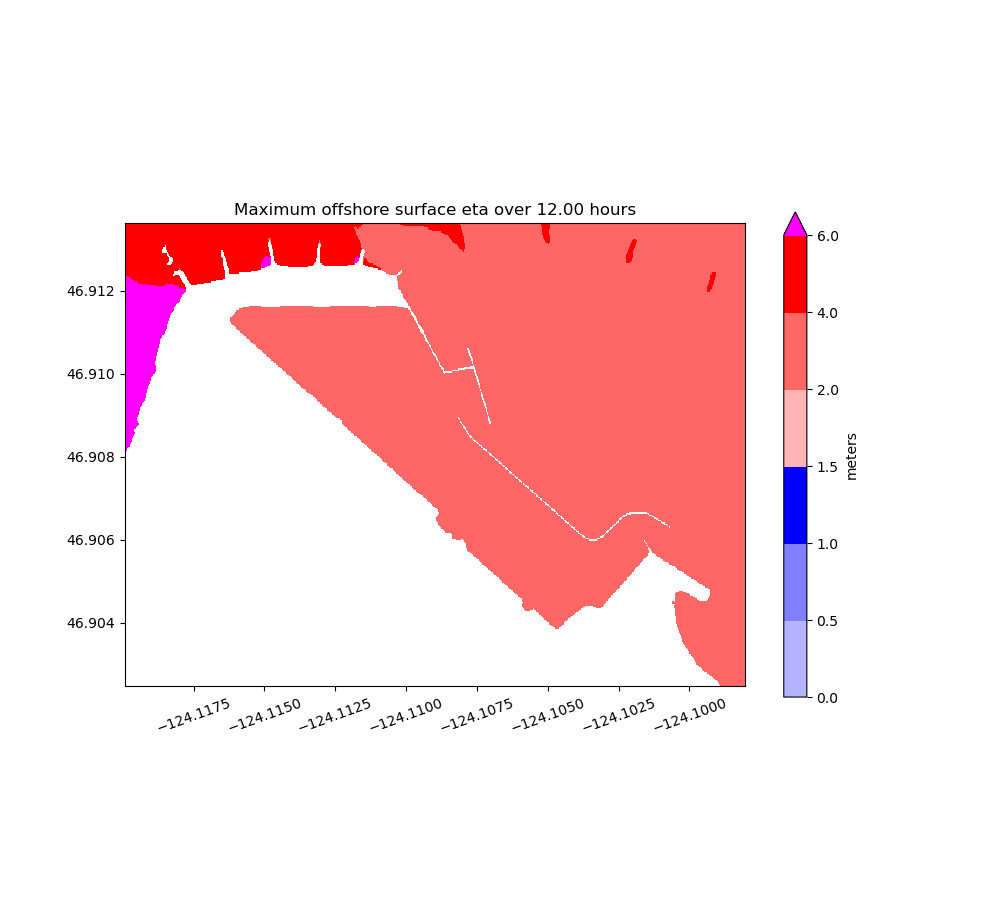

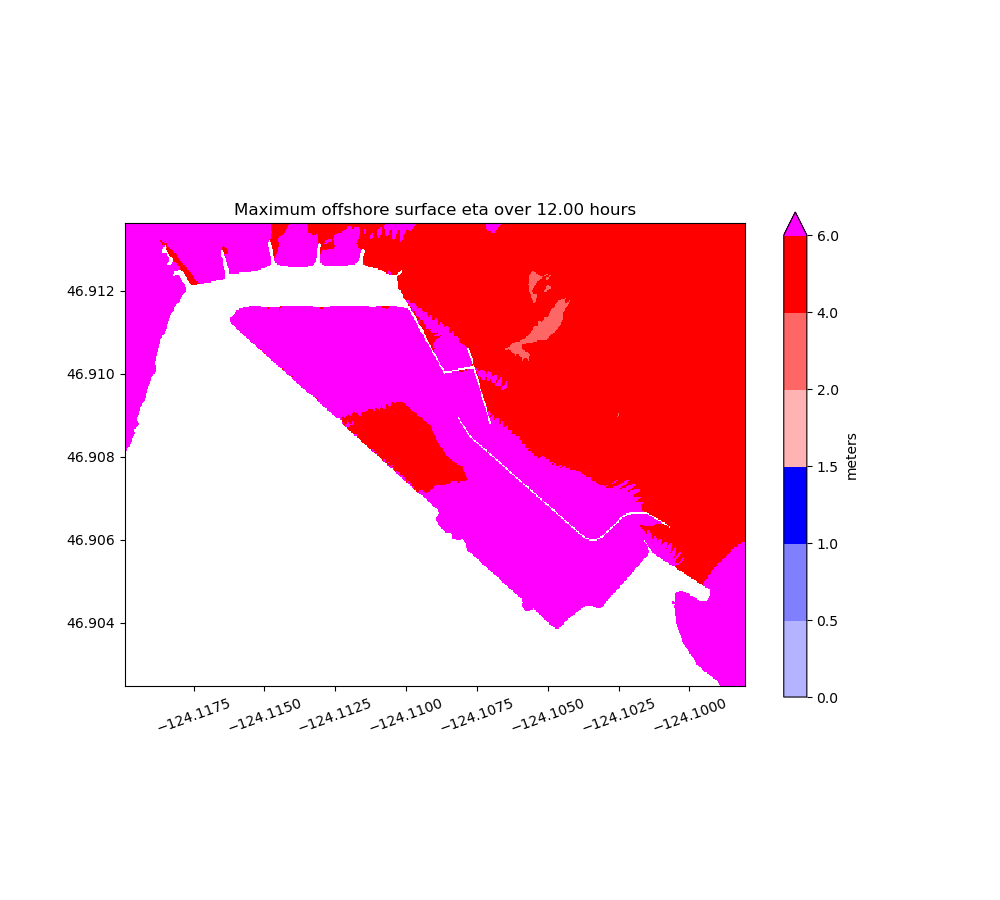

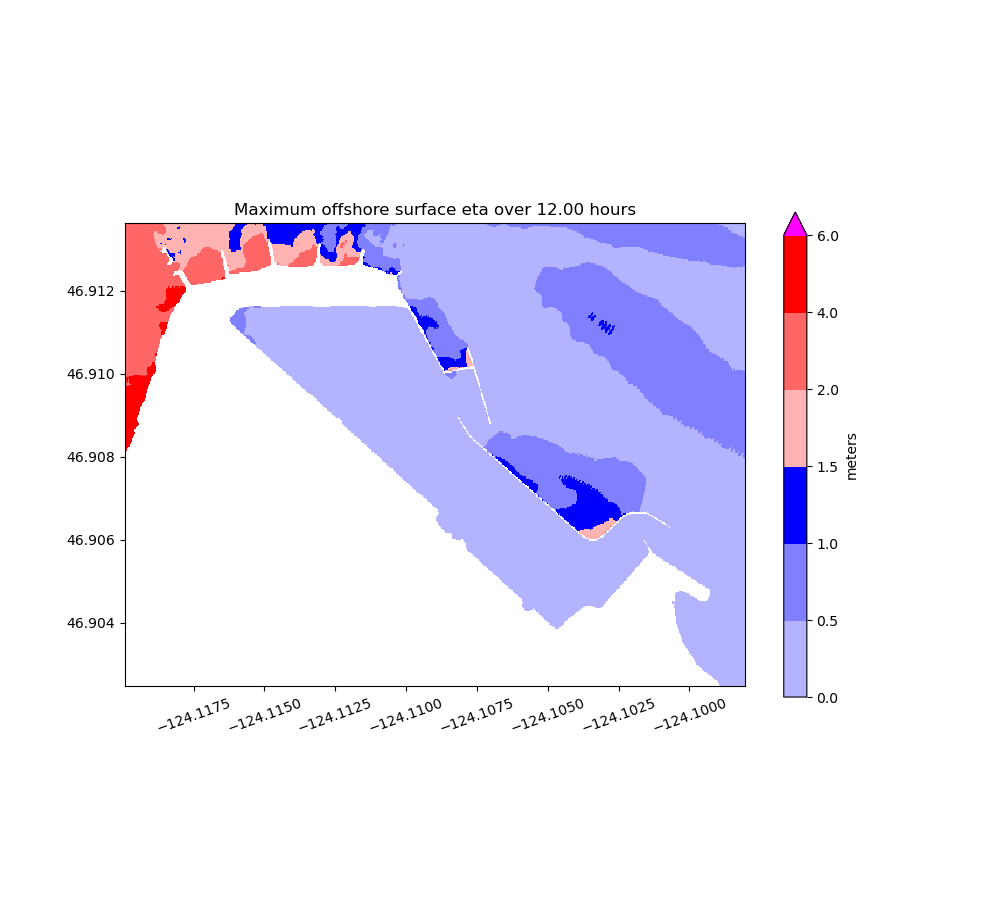

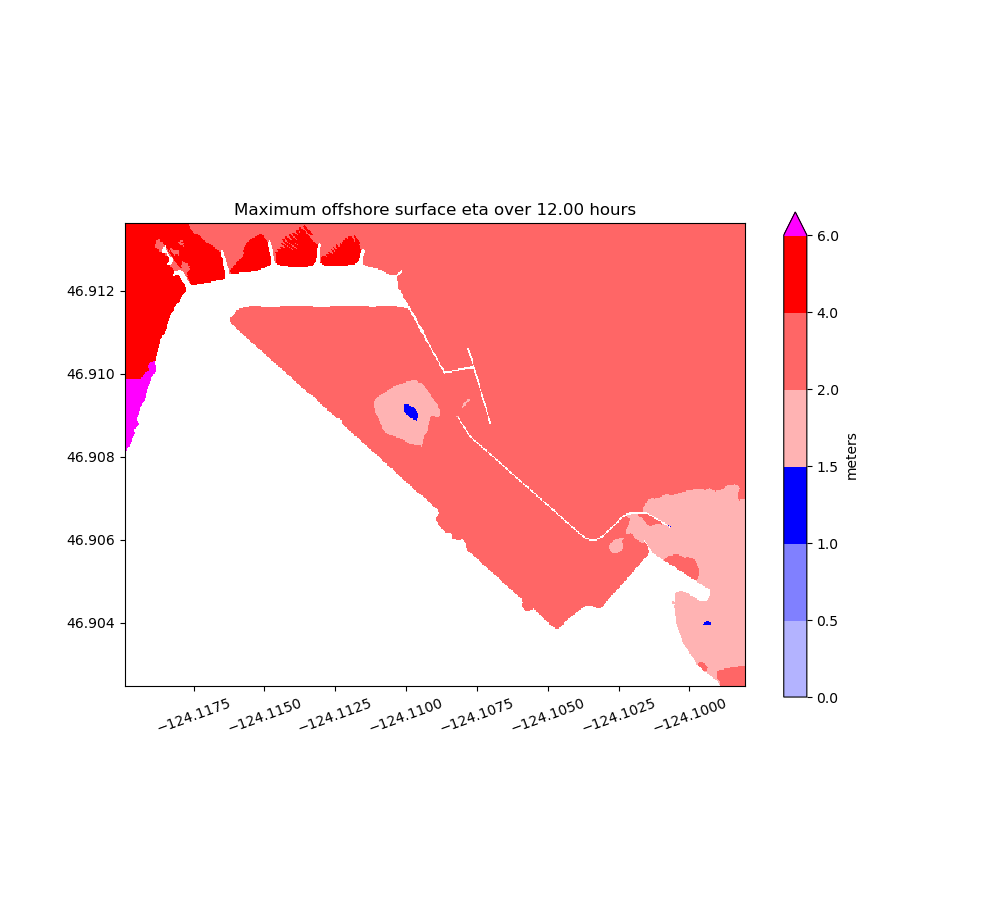

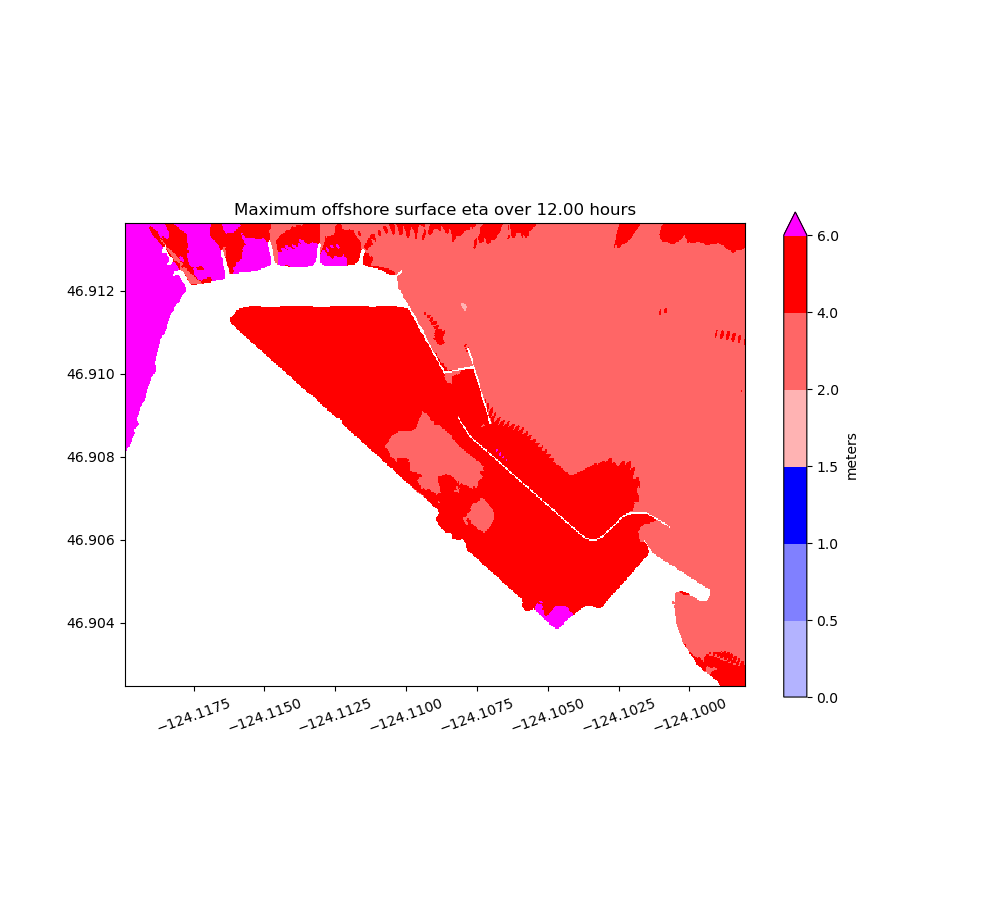

    Fgmax 2: eta offshore

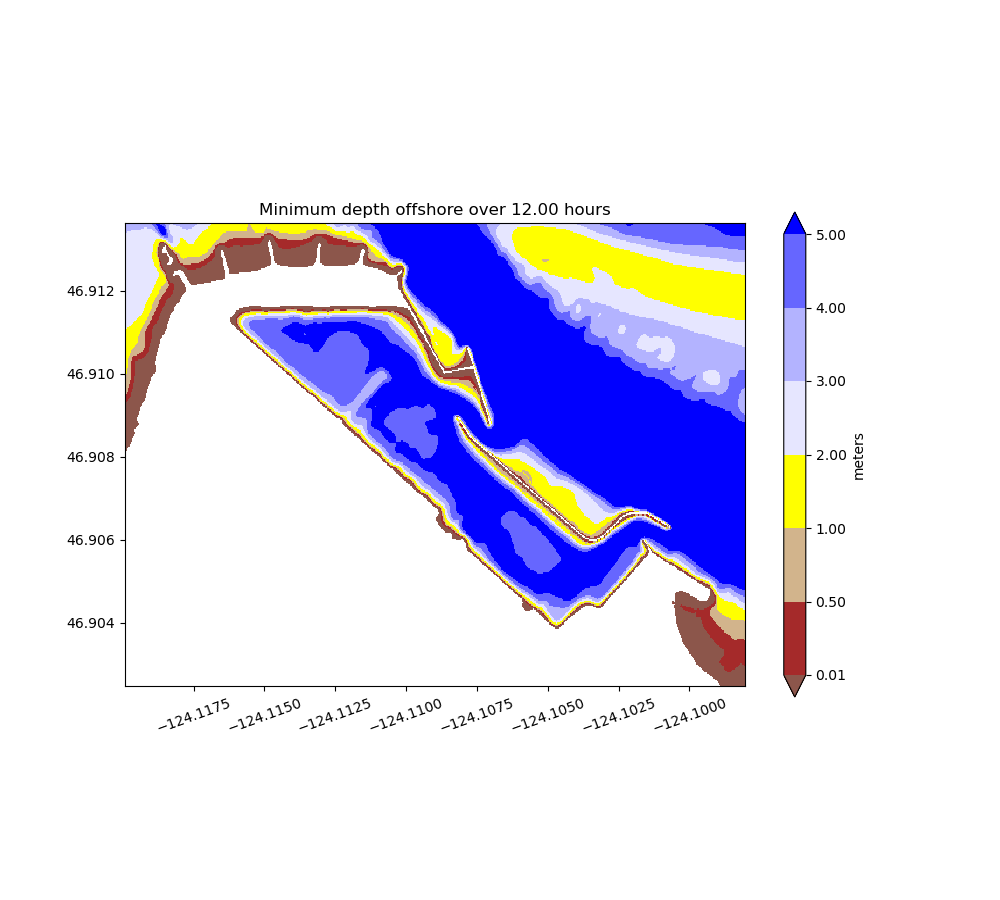

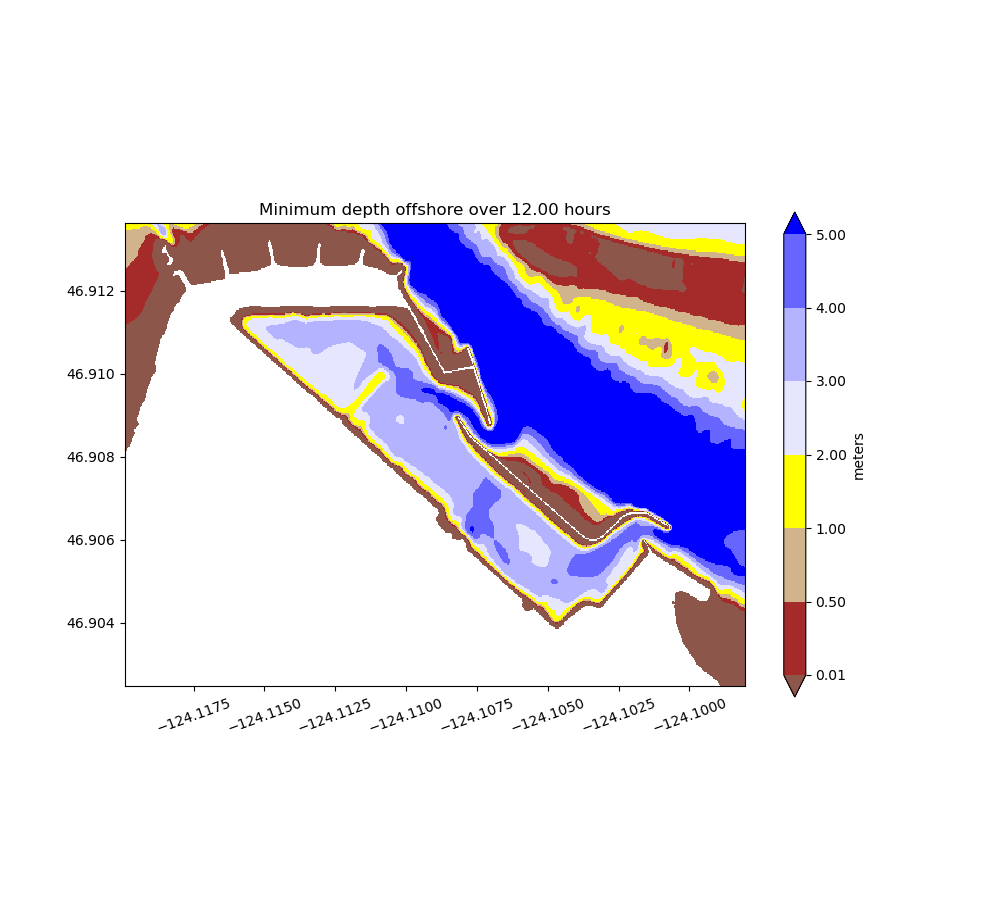

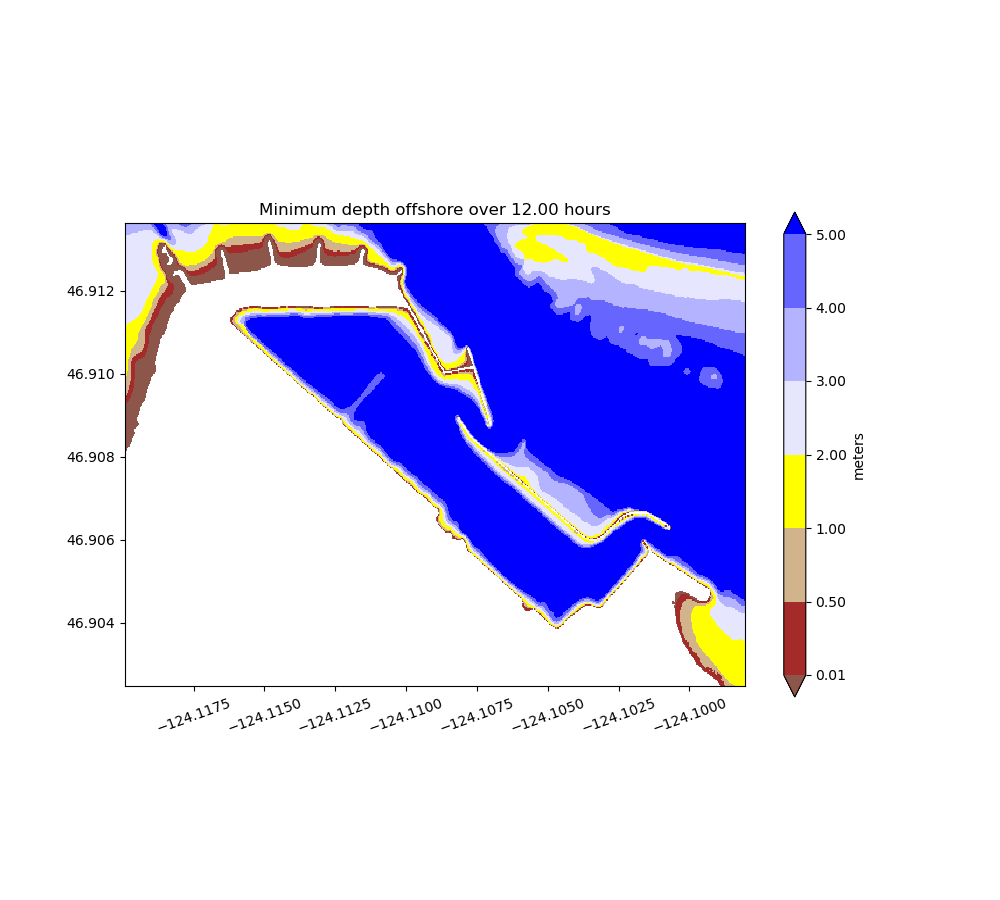

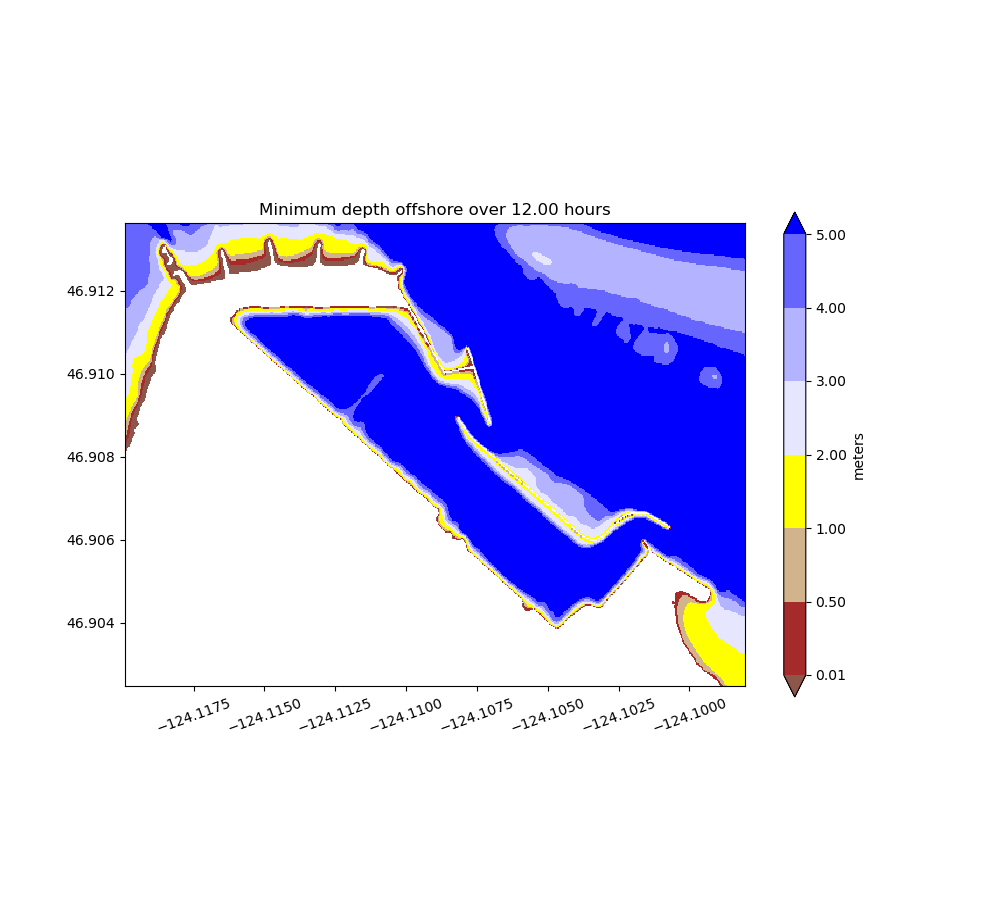

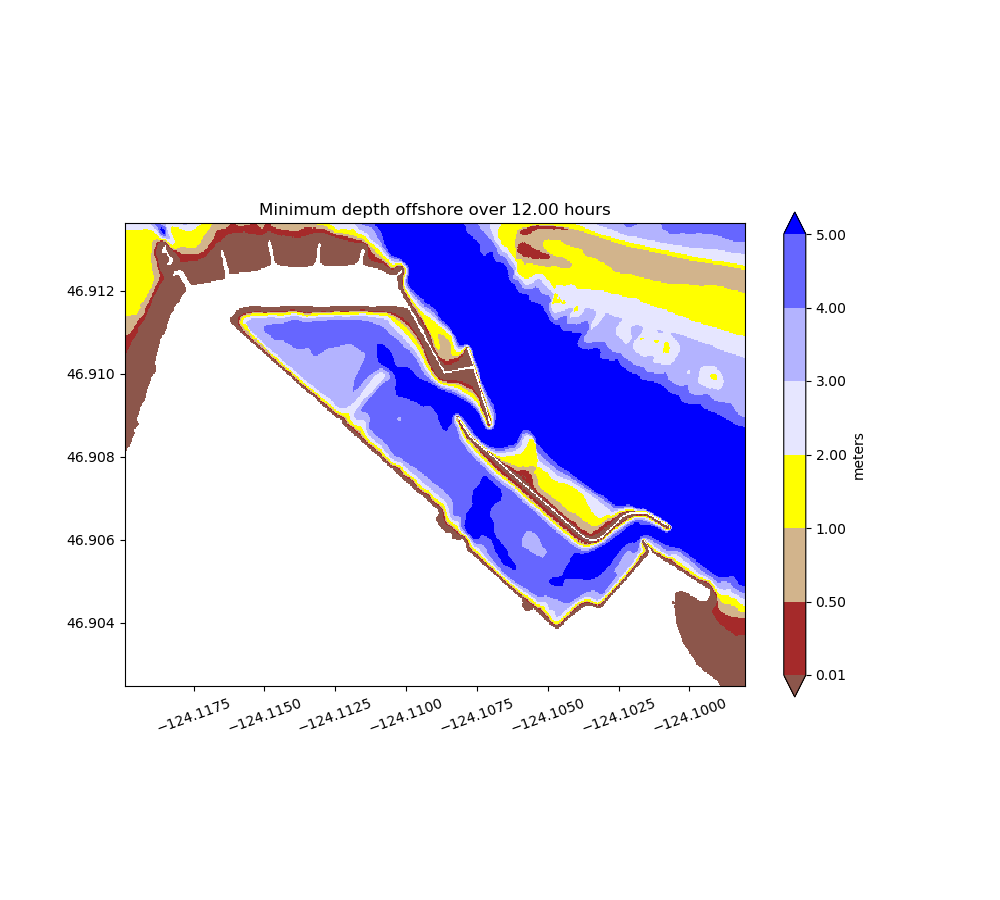

    Fgmax 2: hmin offshore

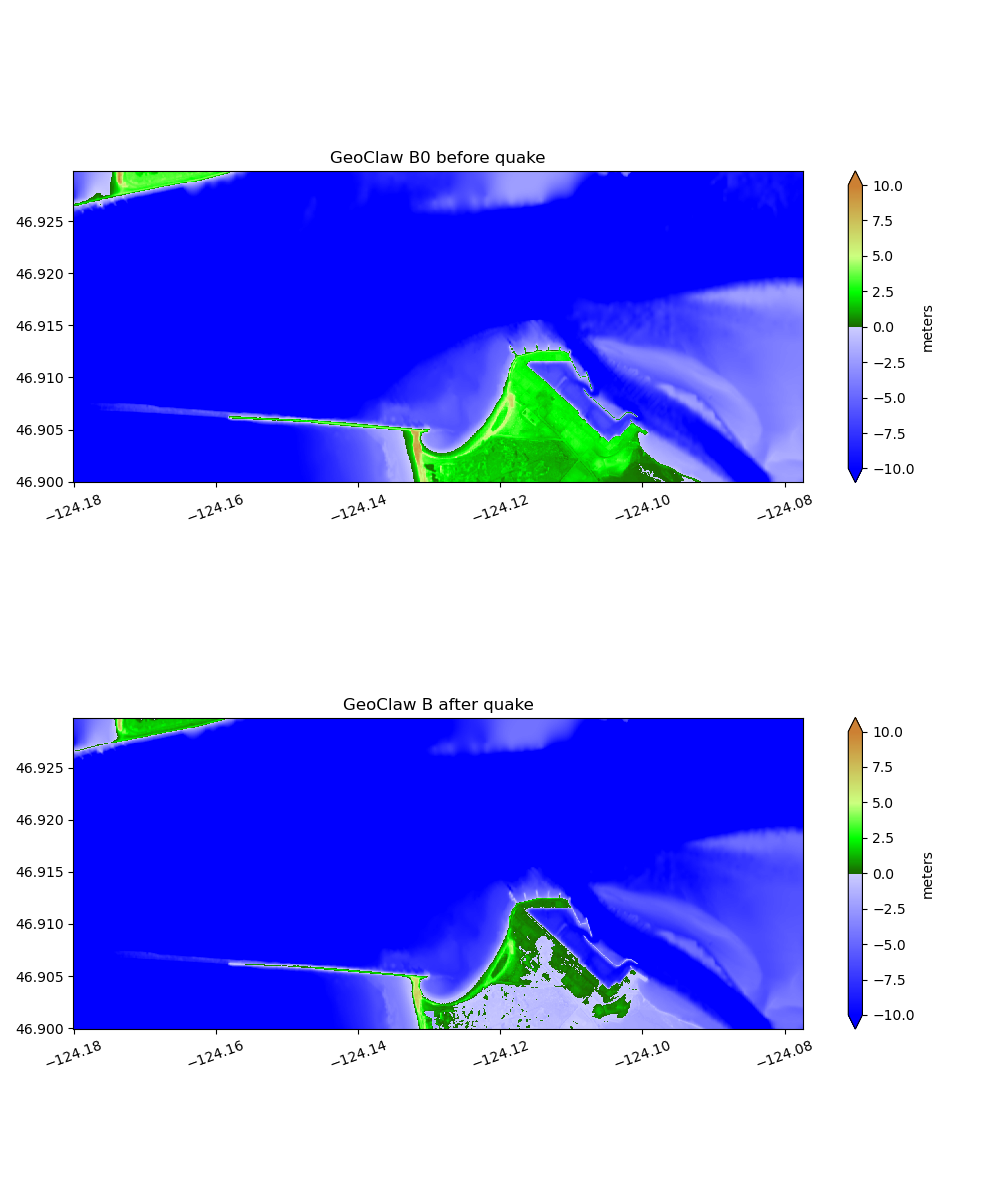

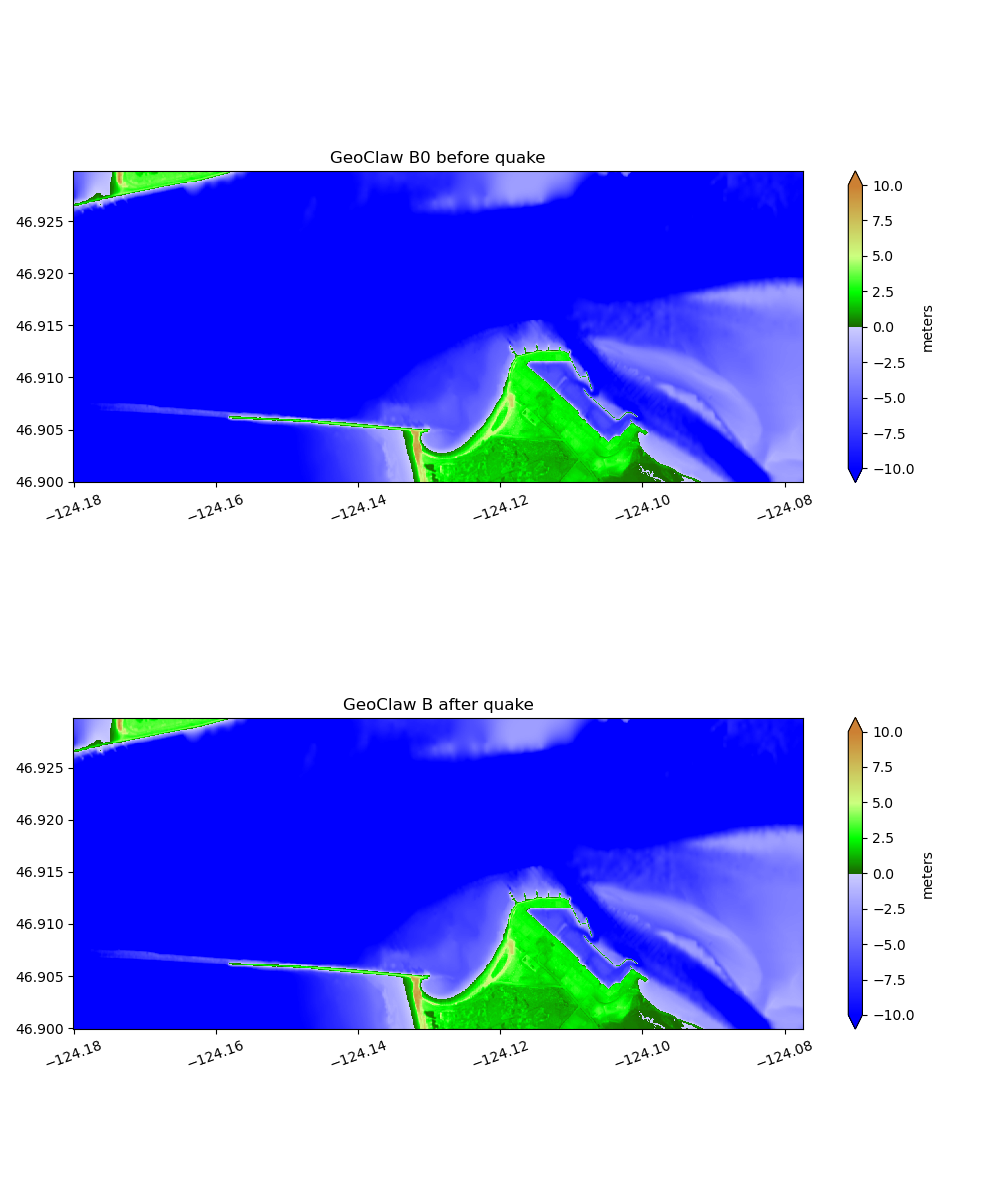

    Fgmax 1: Geoclaw Topo

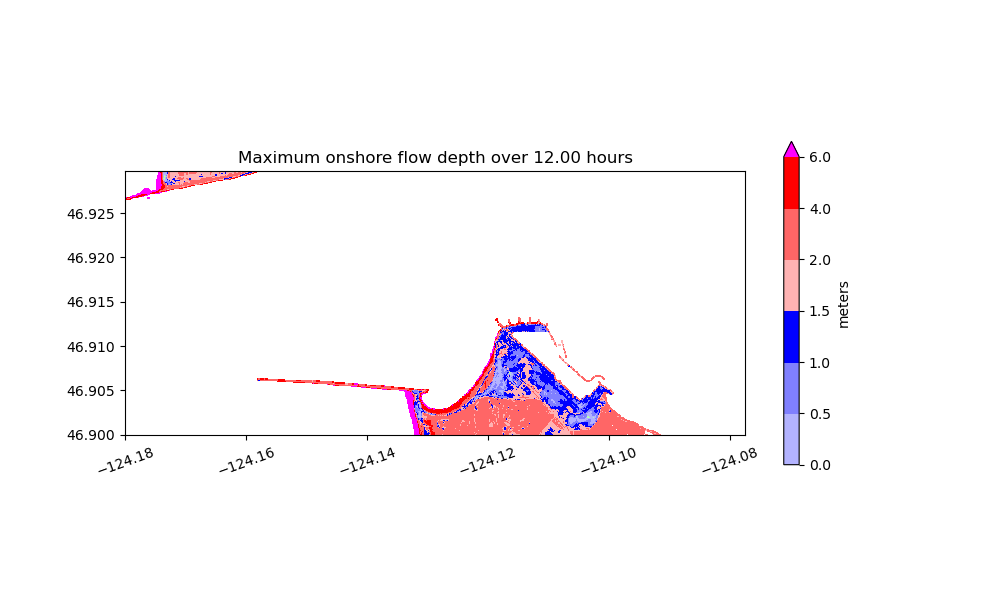

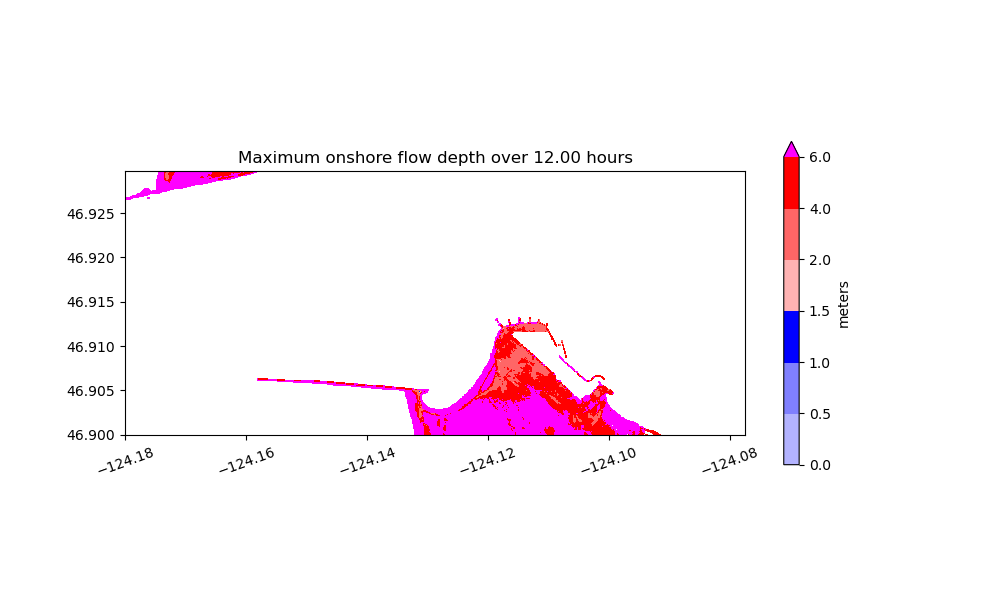

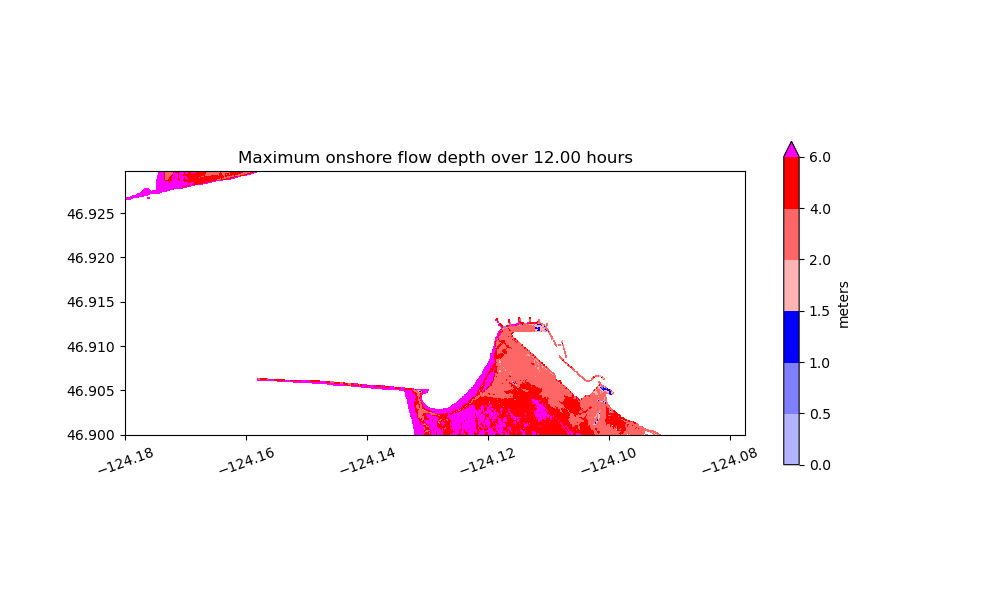

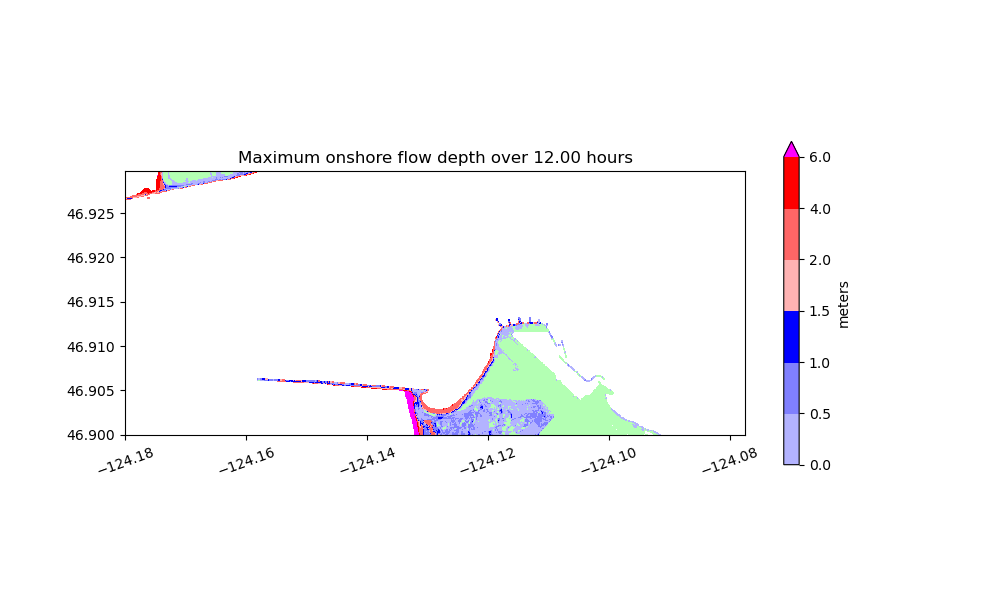

    Fgmax 1: h onshore (MHW,MLW)

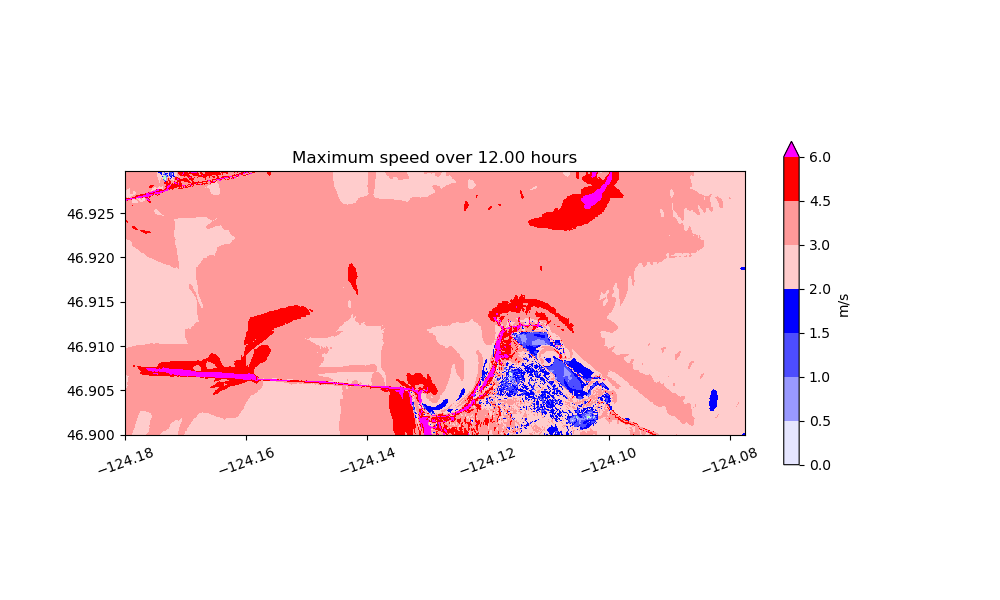

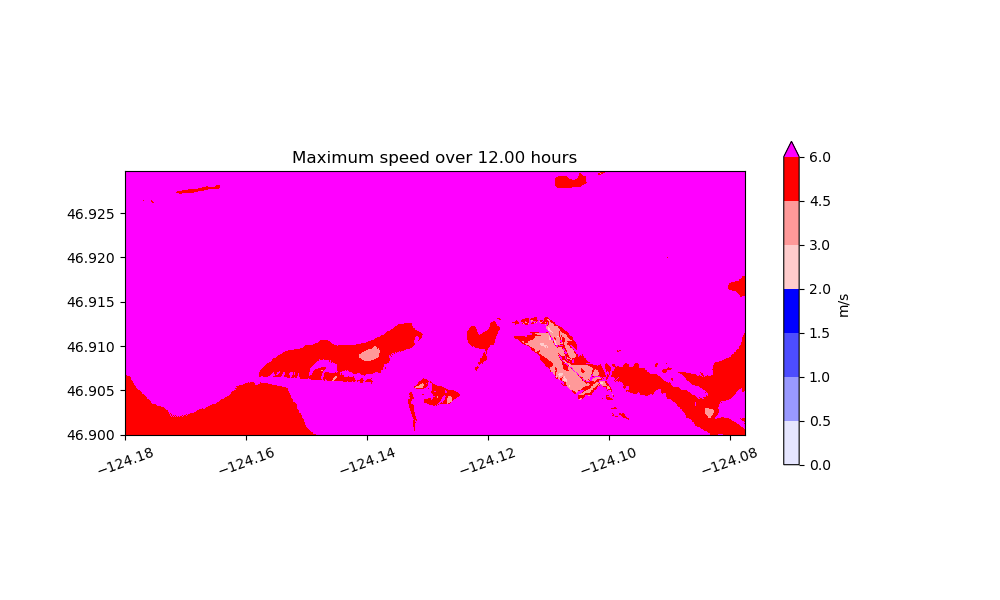

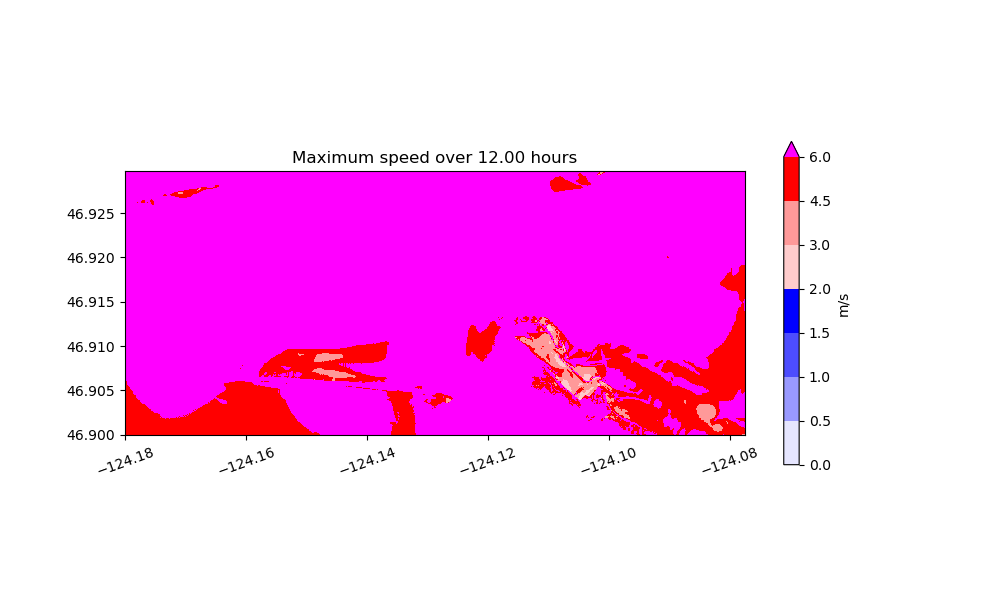

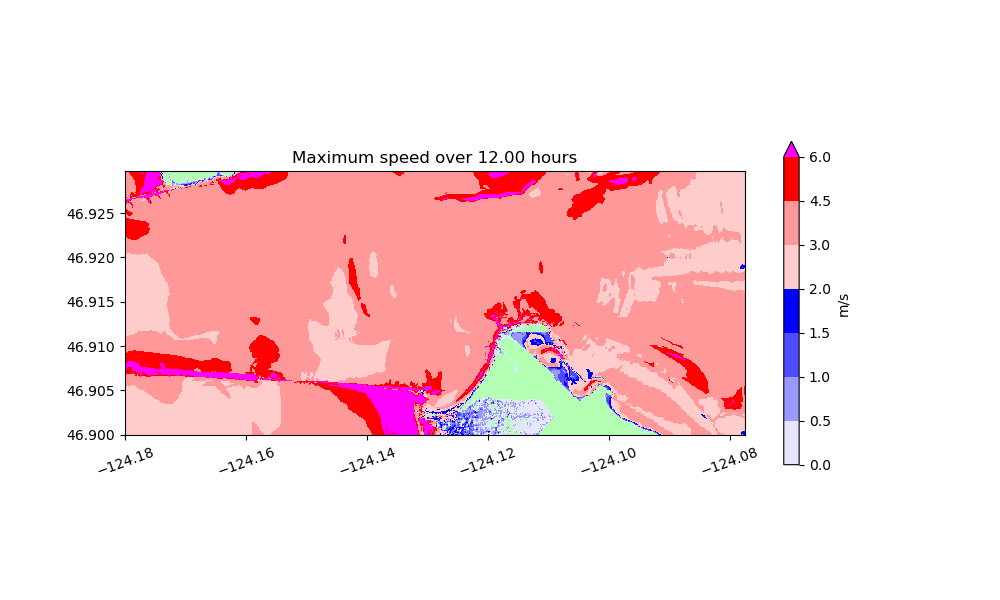

    Fgmax 1: speed (MHW,MLW)

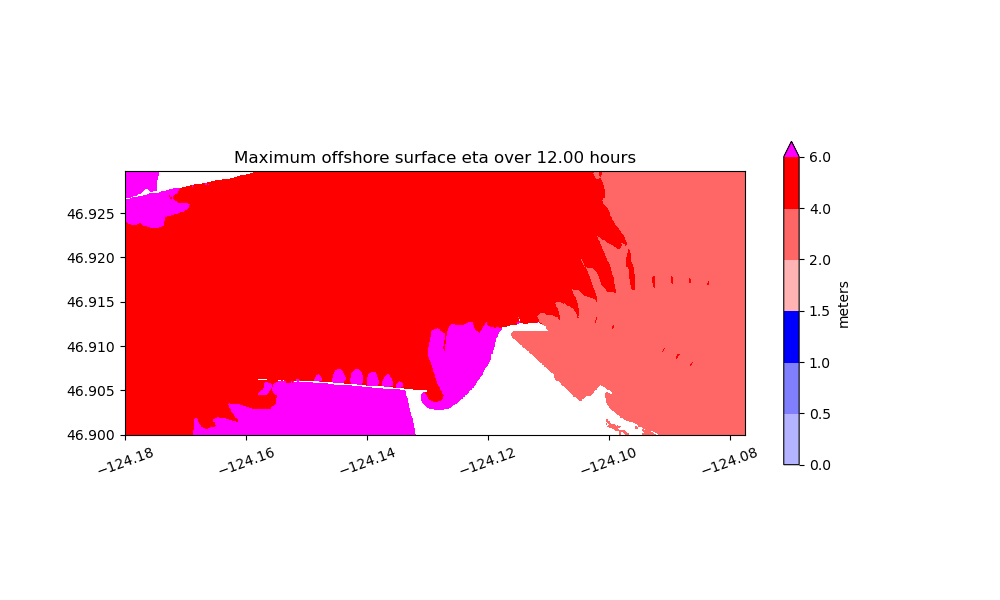

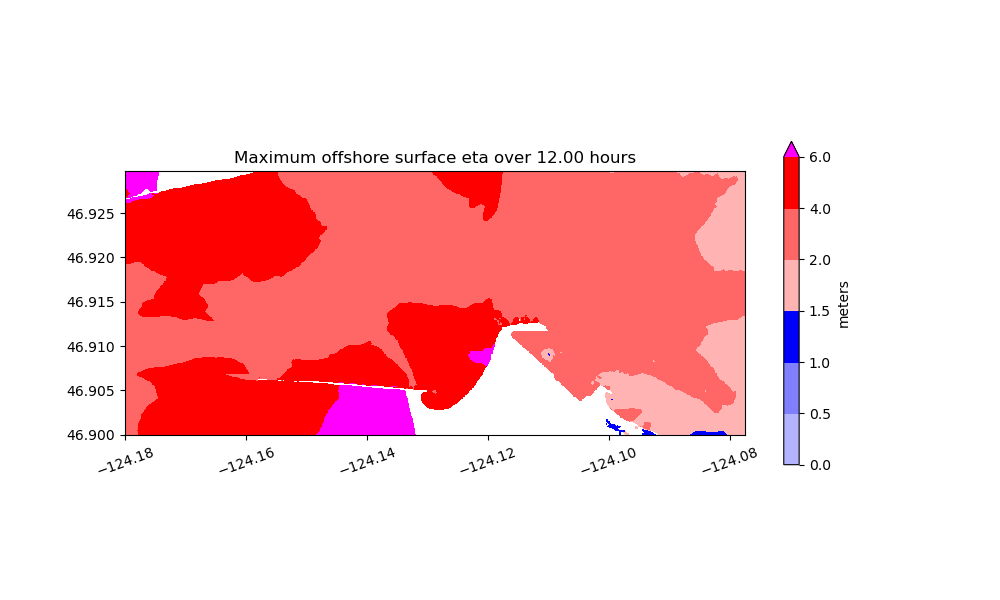

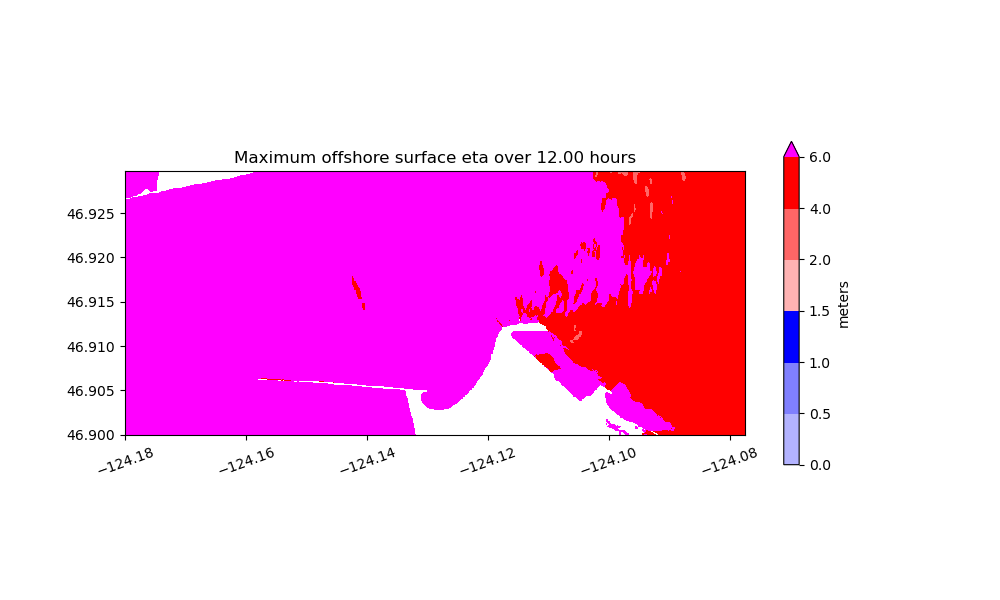

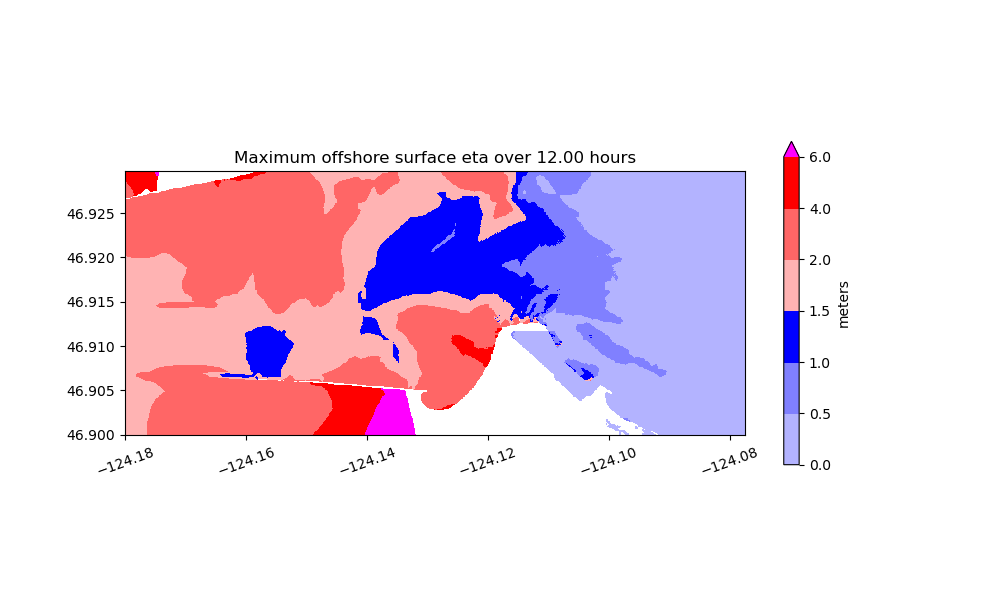

    Fgmax 1: eta offshore (MHW,MLW)

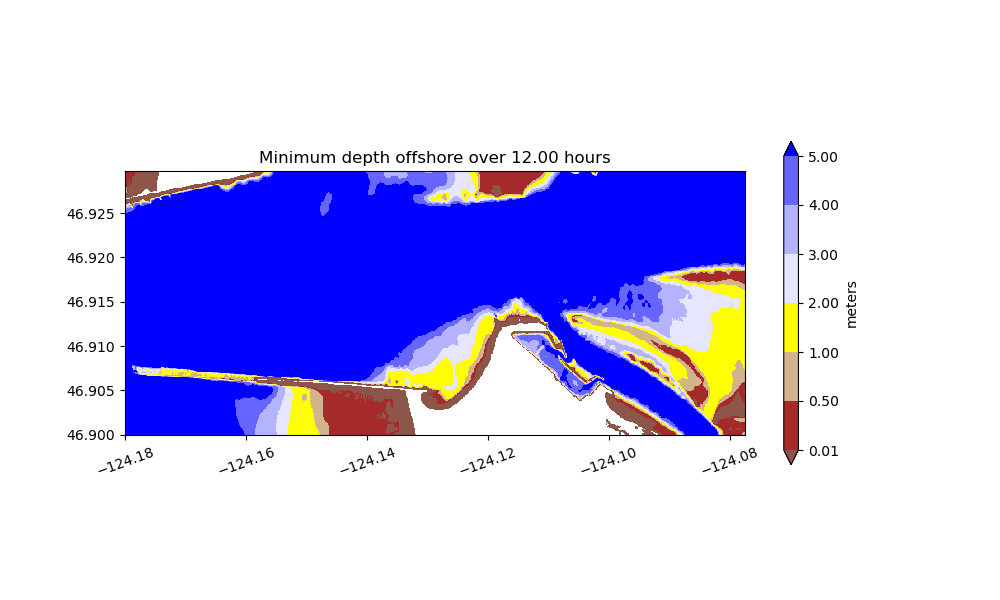

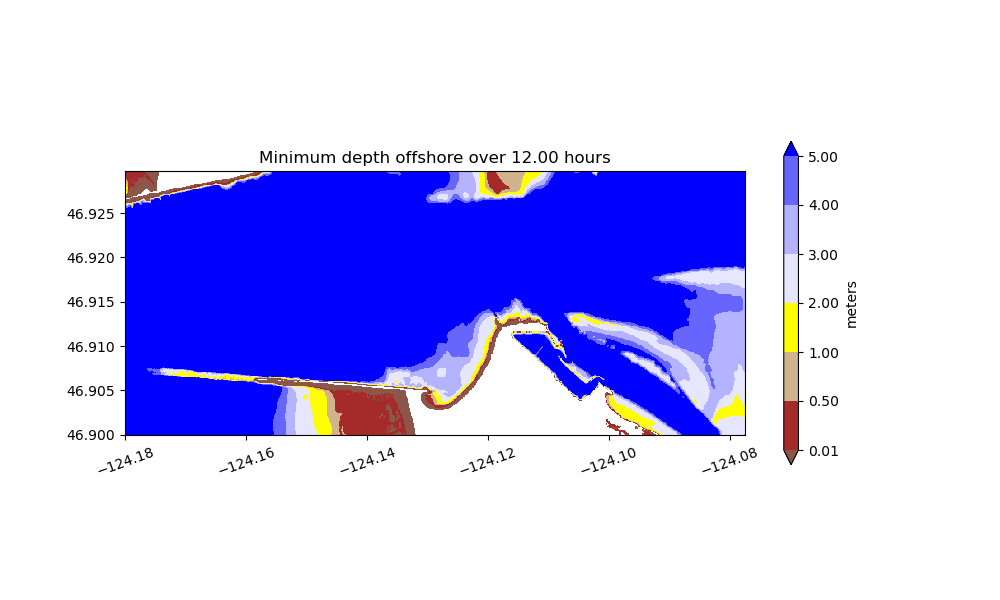

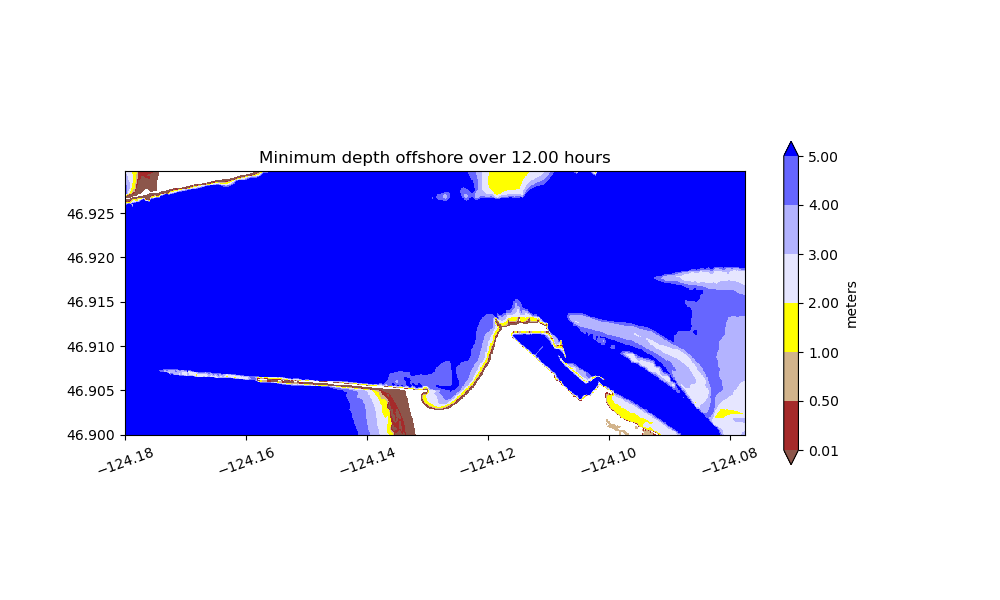

    Fgmax 1: hmin offshore (MHW,MLW)





AKMaxWA results

AKMaxWA at MHW:    Plot index for time frames and gauges    Gauges Report

AKMaxWA at MLW:    Plot index for time frames and gauges    Gauges Report

AKMaxWA at SL150 (150cm above MHW, e.g. King Tide):    Plot index for time frames and gauges    Gauges Report



    Fgmax 2: Geoclaw Topo

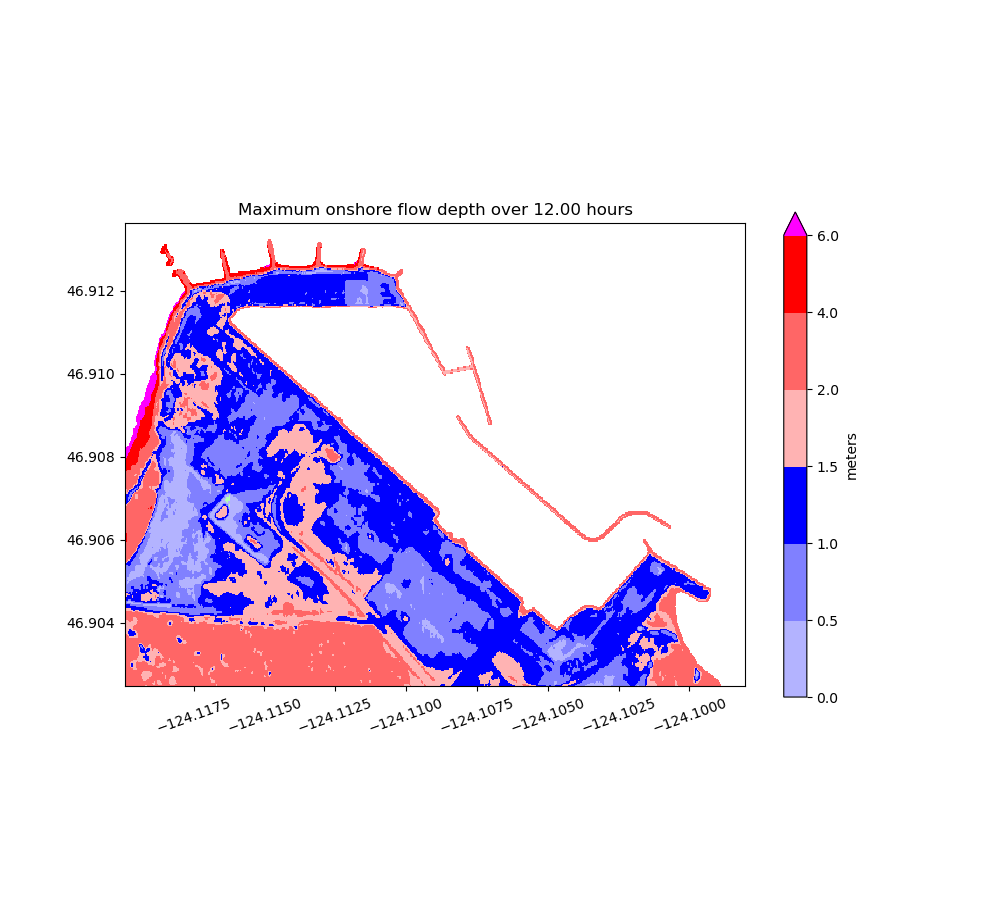

    Fgmax 2: h onshore (MHW, MLW, SL150)

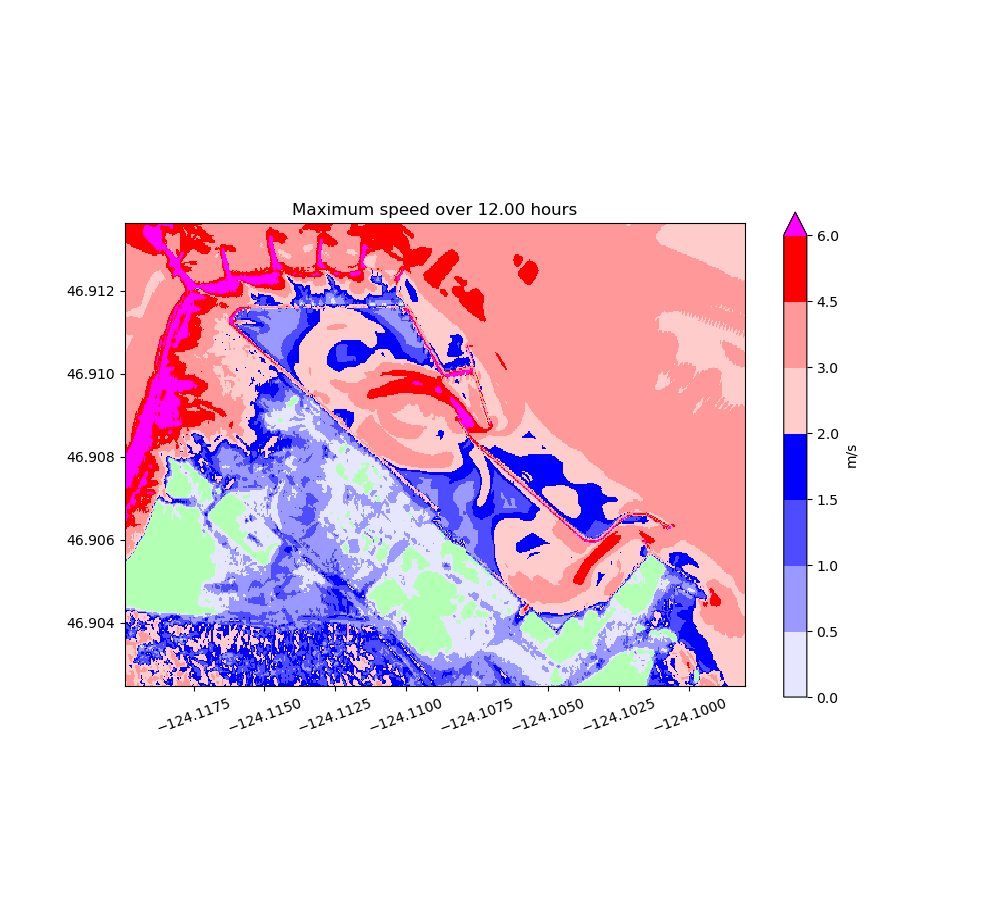

    Fgmax 2: speed (MHW, MLW, SL150)

    Fgmax 2: eta offshore (MHW, MLW, SL150)

    Fgmax 2: hmin offshore (MHW, MLW, SL150)



    Fgmax 1: Geoclaw Topo

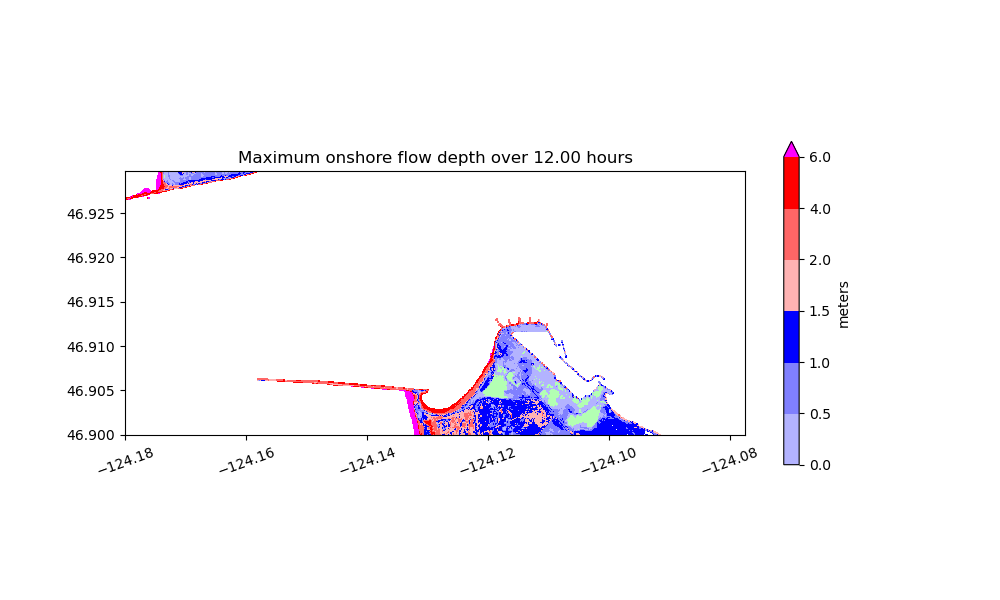

    Fgmax 1: h onshore (MHW, MLW, SL150)

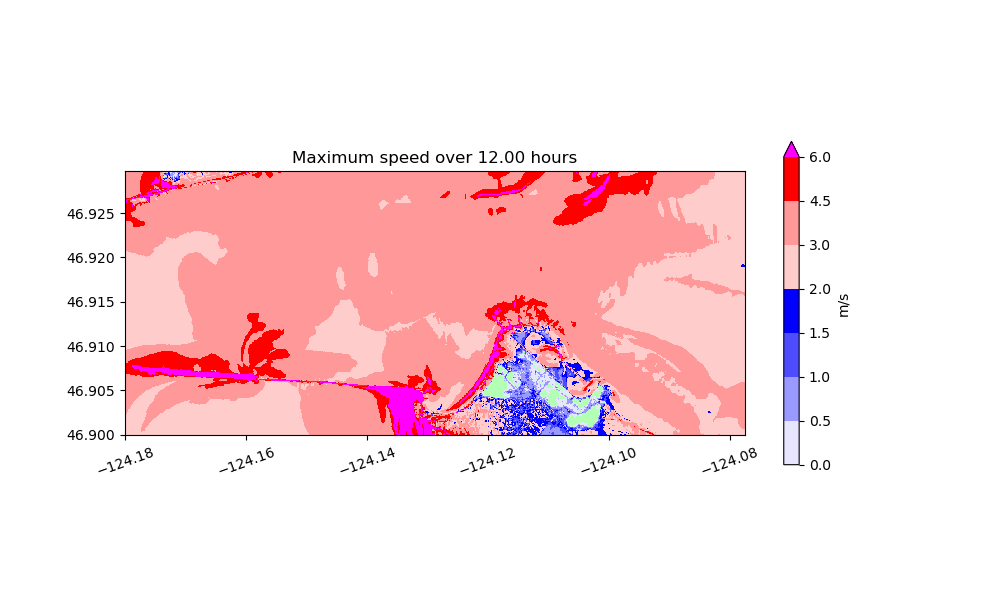

    Fgmax 1: speed (MHW, MLW, SL150)

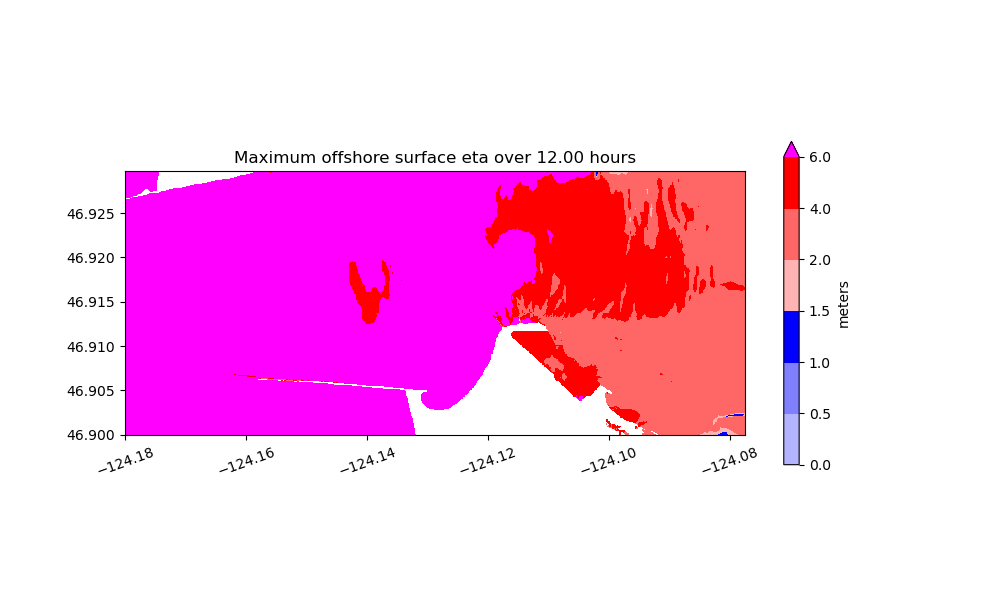

    Fgmax 1: eta offshore (MHW, MLW, SL150)

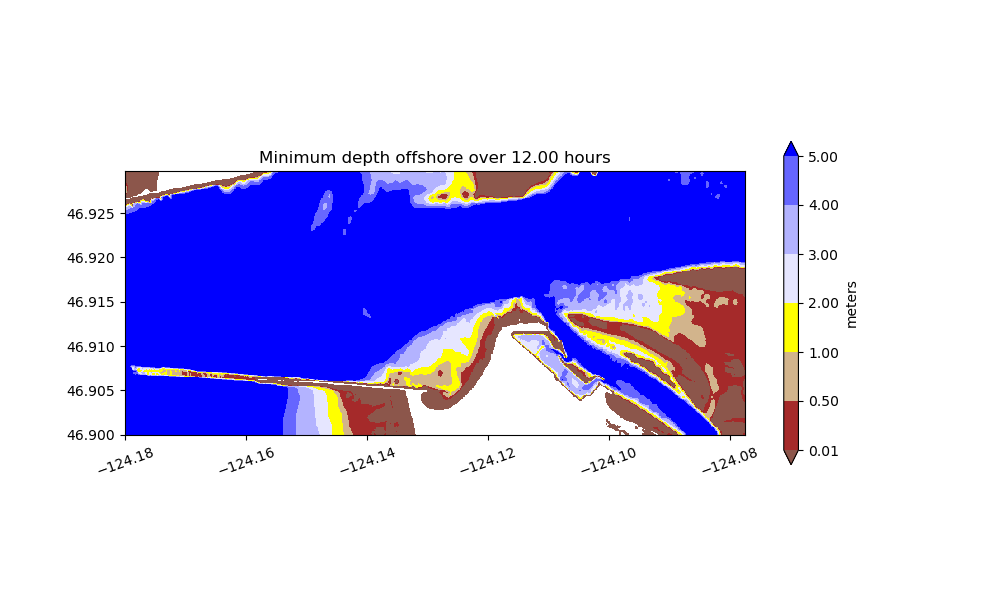

    Fgmax 1: hmin offshore (MHW, MLW, SL150)

Animations of particle tracking (under construction)

Massless tracer particles help visualize the water motion and how lightweight floating objects might move with it. This is not a realistic model for the motion of large-scale debris or boats, whose motion depends on its mass, drag factors, etc. and which might be grounded and stationary in sufficiently shallow water.

  • AK_westport_15min.mp4 -- AKmaxWA at MHW, 15 minutes on Fgmax region 1 with mass and grounding added to the red particles that start on land. The blue ones in the water are massless tracer particles.

  • AK_marina_1hr.mp4 -- AKmaxWA at MHW, 60 minutes on Fgmax region 2 (marina). Tracer particles with length.

  • CSZ_L1 on West Coast -- No particles.

  • CSZ_L1_westport_1hr.mp4 -- CSZ L1 at MHW, 60 minutes on Fgmax region 1 with mass and grounding added to the red particles that start on land. The blue ones in the water are massless tracer particles.

  • CSZ_L1_marina_1hr.mp4 -- CSZ L1 at MHW, 60 minutes on Fgmax region 2 (marina). Tracer particles with length.

Note: Graphics and animations on this page are for research and development purposes only, official maps will eventually be published by Washington State as part of their Maritime Guidance.
