Go to the source code of this file.
Functions/Subroutines | |
| recursive subroutine | filrecur (level, nvar, valbig, aux, naux, t, mitot, mjtot, nrowst, ncolst, ilo, ihi, jlo, jhi, patchOnly, msrc) |
| Fill a region (patch) described by: More... | |
| integer pure function | coarse_index (n, i, j) |
| logical pure function | sticksout (iplo, iphi, jplo, jphi) |
Function/Subroutine Documentation
| integer pure function filrecur::coarse_index | ( | integer, intent(in) | n, |
| integer, intent(in) | i, | ||
| integer, intent(in) | j | ||
| ) |
Definition at line 342 of file filpatch.f90.
Referenced by coarse_index(), and filrecur().

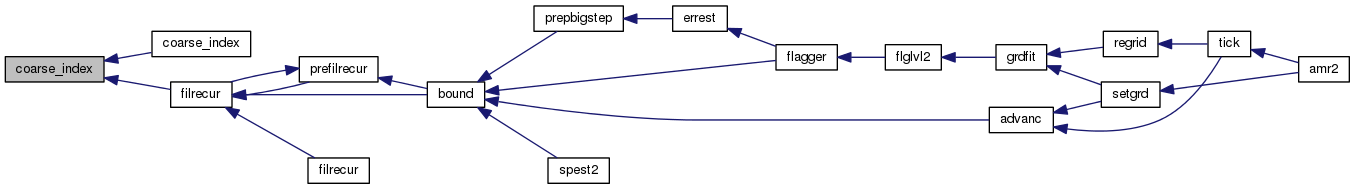

Here is the caller graph for this function:
| recursive subroutine filrecur | ( | integer, intent(in) | level, |
| integer, intent(in) | nvar, | ||
| real(kind=8), dimension(nvar,mitot,mjtot), intent(inout) | valbig, | ||
| real(kind=8), dimension(naux,mitot,mjtot), intent(inout) | aux, | ||
| integer, intent(in) | naux, | ||
| real(kind=8), intent(in) | t, | ||
| integer, intent(in) | mitot, | ||
| integer, intent(in) | mjtot, | ||
| integer, intent(in) | nrowst, | ||
| integer, intent(in) | ncolst, | ||
| integer, intent(in) | ilo, | ||
| integer, intent(in) | ihi, | ||
| integer, intent(in) | jlo, | ||
| integer, intent(in) | jhi, | ||
| logical | patchOnly, | ||
| integer, intent(in) | msrc | ||
| ) |
Fill a region (patch) described by:
- global indices of its lower left corner: (ilo, jlo).
- global indices of its upper right corner: (ihi, jhi).
The patch is on grid msrc and starts from row nrowst and column ncolst of the grid.
It first fills the patch with values obtainable from level level grids. if any left unfilled, then enlarge remaining rectangle of unfilled values by 1 (for later linear interp), and recusively obtain the remaining values from coarser levels.
Algorithm
procedure filrecur(level, patch_fine, val_fine, firstCall)
fill patch_fine as much as possible by copy values from other level "level" grids
values on patch_fine is stored in array val_fine after the filling
if this is first call to filrecur() (firstCall == true)
don't fill cells outside the computational domain (it will be handled elsewhere)
else
this is a sencond or higher-level (recursive) call to filrecur()
fill cells outside the computational domain by calling bc2amr since they are used for interpolation for finer cells above them
end if
if not all cells in patch_fine is filled (set)
find the smallest rectangular patch on level "level-1", patch_coarse, that contains all unset fine cells in patch_fine
filrecur(level-1, patch_coarse, val_coarse, firstCall=false)
for each unset fine cells in patch_fine
interpolate from val_coarse to fill all unset cells on patch_fine
end for
end if
- Parameters
-
level AMR level the patch is on nvar number of equations for the system valbig data array for solution
(cover the whole grid msrc) aux data array for auxiliary variables naux number of auxiliary variables t fill the patch with value at time t mitot number of cells in i direction on grid msrc mjtot number of cells in j direction on grid msrc nrowst local i index (relative to lower-left corner of grid msrc) of the left-most cell of the patch to be filled ncolst local j index (relative to lower-left corner of grid msrc) of the lower-most cell of the patch to be filled ilo global i index of left-most cell of this patch ihi global i index of right-most cell of this patch jlo global j index of lower-most cell of this patch jhi global j index of upper-most cell of this patch patchOnly This is 1) false if this is a first level call to filrecur() and won't set bounday cells outside domain; 2) true if this is a second or higher level (recursive) call to filrecur() and will call bc2amr() to get values for cells outside domain (these cells are only for interpolation to fill cells in first level call to filrecur() msrc index of the grid
Definition at line 71 of file filpatch.f90.
References bc2amr(), coarse_index(), intfil(), prefilrecur(), setaux(), sticksout(), and trimbd().
Referenced by bound(), filrecur(), and prefilrecur().

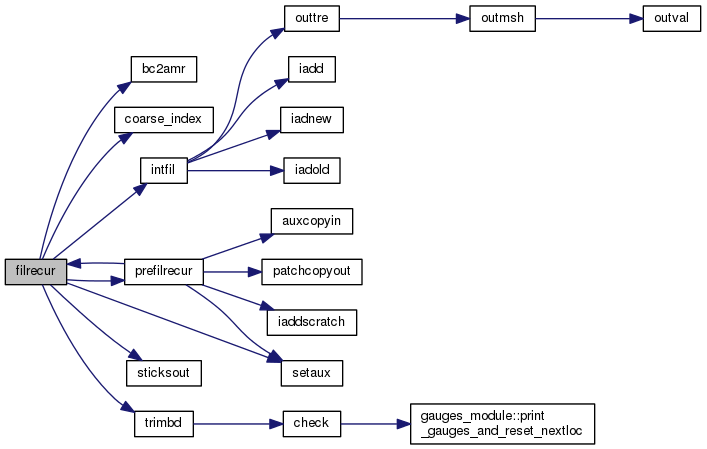

Here is the call graph for this function:

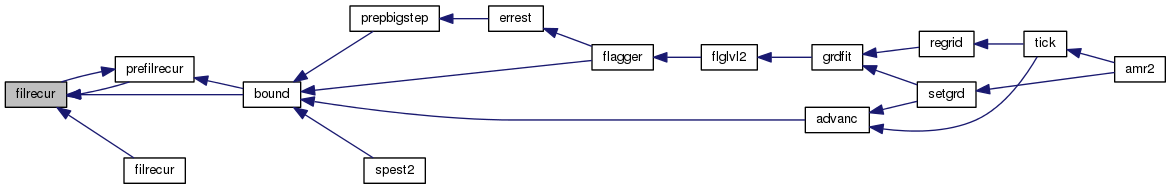

Here is the caller graph for this function:
| logical pure function filrecur::sticksout | ( | integer, intent(in) | iplo, |
| integer, intent(in) | iphi, | ||
| integer, intent(in) | jplo, | ||
| integer, intent(in) | jphi | ||
| ) |
Definition at line 348 of file filpatch.f90.
Referenced by filrecur(), saveqc(), and sticksout().

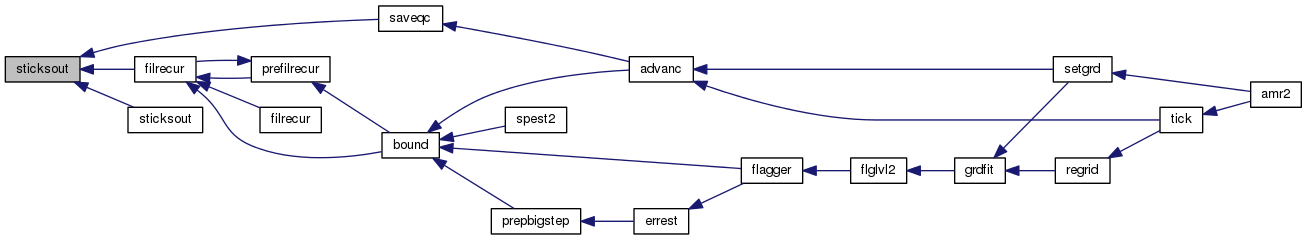

Here is the caller graph for this function:
