The plots below show the gauge output for the 5 synthetic gauges, for
the event BL13M, for both the kinematic (KinOkada) and static (Okada for the
final deformation) ruptures.
Note that the results are very similar except for the timing: waves arrive earlier for the “instant” version where the total deformation happens at time 1 second.
Gauge locations¶
If you want to put synthetic gauges at the same locations as shown in the plots below for comparison, the coordinates are found in Table 1 and that page also shows Google Earth images with their locations.
Zip file of sample gauge output¶
Download this zip file of the time series if you want to plot them together with your own results.
The files included in this zip file are in the format needed for comparing results on the webtool described in the next section, and consist of a header followed by lines with three columns for the time series at the gauge:
time (seconds), depth (m), surface elevation (m)Web tool for comparing results¶
See the Code Verification Platform webtool for comparison page for instructions on using a webtool to compare your results with the sample results computed with GeoClaw, or with results computed by other users with different software packages.
You are not required to use this tool, but it is something we are experimenting with for future use in benchmarking workshops and we would also be happy to get feedback on how well it works.
Sample plots¶
The plots and animations below were computed using the GeoClaw software
(version 5.14.0) with the setup archived in the github repository
in the directory
LagoonCreekTsunamis

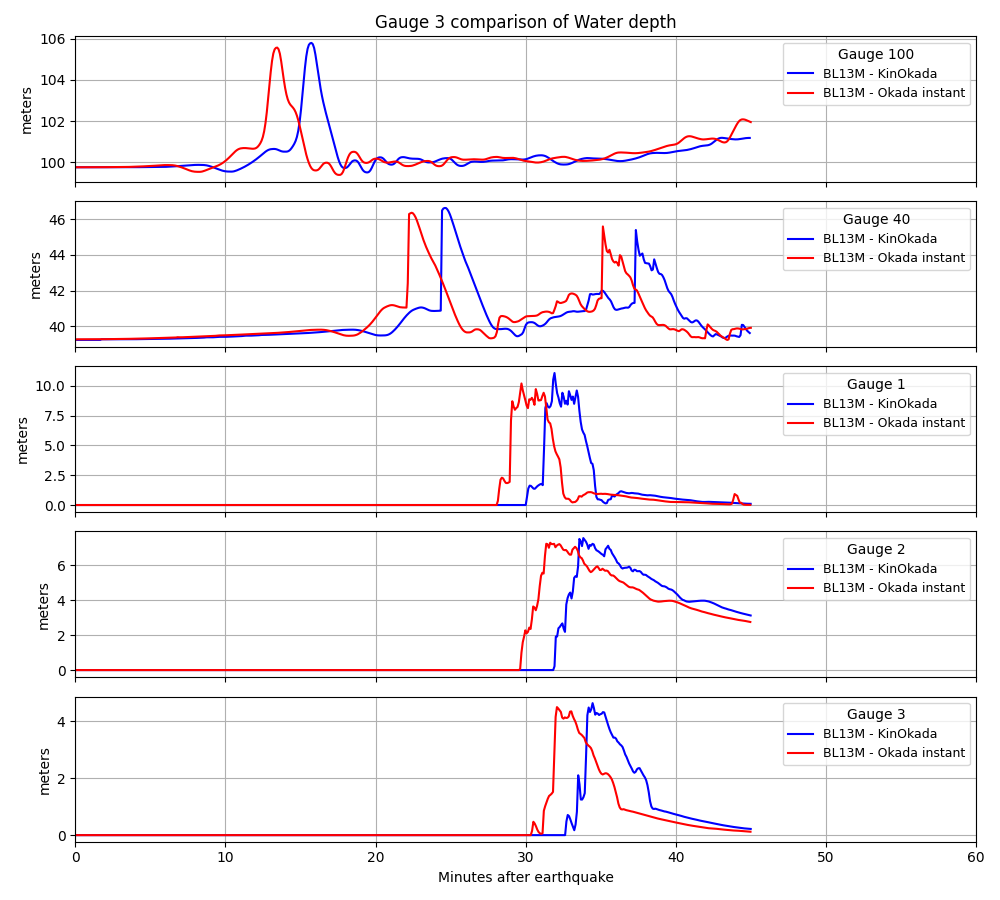

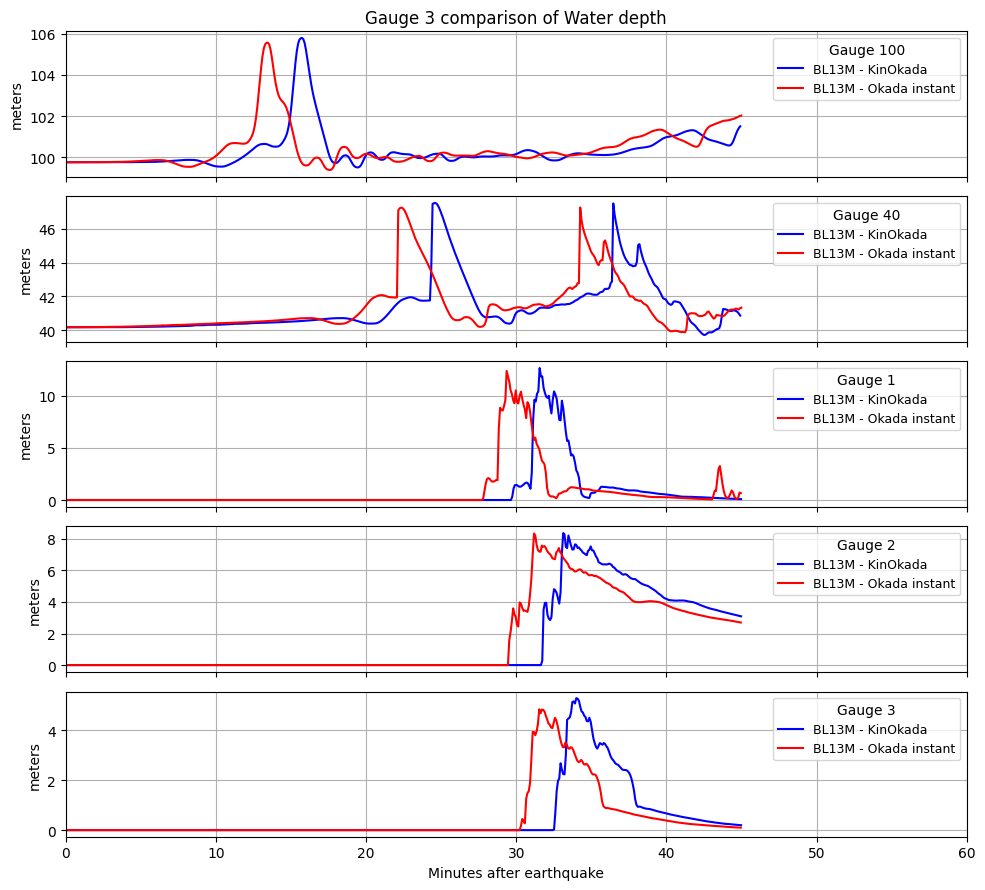

Water depth¶
The first set of plots shows the water depth at each gauge. Note that gauges 100, 40 are offshore (at water depths of roughly 100m and 40m), while gauges 1, 2, 3 are onshore. See Lagoon Creek Topography files for figures showing their locations.
Note that the water depth does not change during the earthquake itself, since the water moves up and down with the land initially.

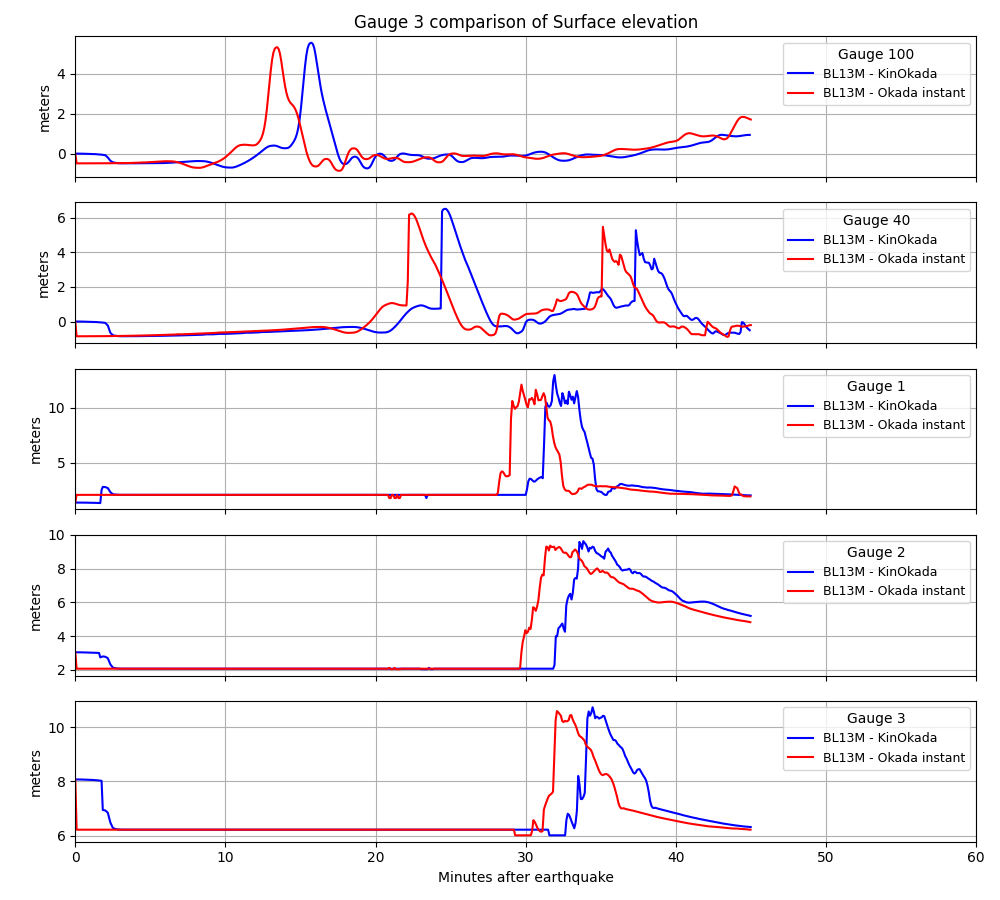

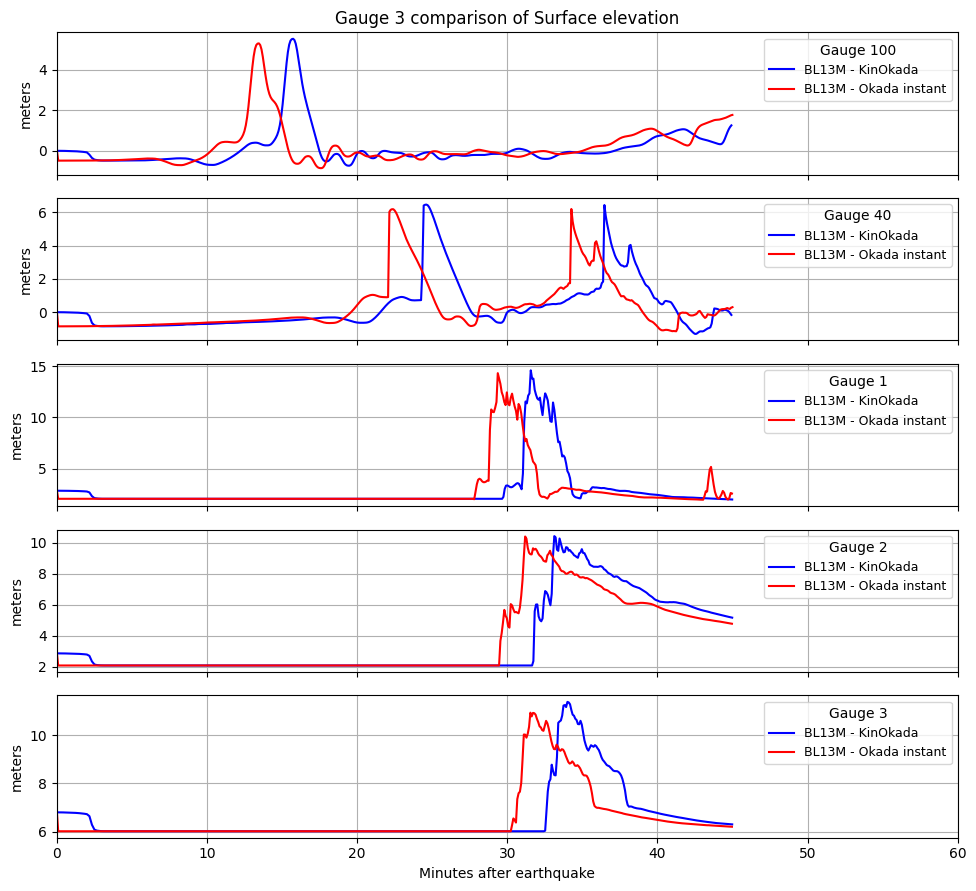

Surface elevation¶
The next set of plots shows the surface elevation eta = B + h where B is
the topography (which varies with time during the rupture) and h is the
water depth. (On dry land where h = 0, the surface is simply B, the land
surface elevation.)
Note that the KinOkada (kinematic rupture) plots illustrate the co-seismic subsidence of the land (and water surface) during the earthquake. In the “instant” ruptures this motion takes place in the first 1 second and is hard to see on these plots.
Animations¶
The animations below were made using GeoClaw and may be useful for comparing against your results. (To bring up the Loop Controls, click the middle mouse button or 2-finger click.)
