psychophysics

Attention: Spatial Cueing

Spatial Cueing testing takes place in CHDD in Room 370

  • Ensure that Linux system is ready - with Chin Rest set-up
  • Perform Vision Test
  • Open Terminal. Type “ptb3-matlab”, then enter the password.
  • MatLab will load. Navigate to the Code directory
cd /.../code
  • Ensure the script shows the correct monitor “CHDD” and the subject number is correct.

Introduction

In this task you are going to play a game, and your goal is to win as many points as possible. This game is a vision game and will test your powers of attention and detection.

Introduce the Single Stimulus

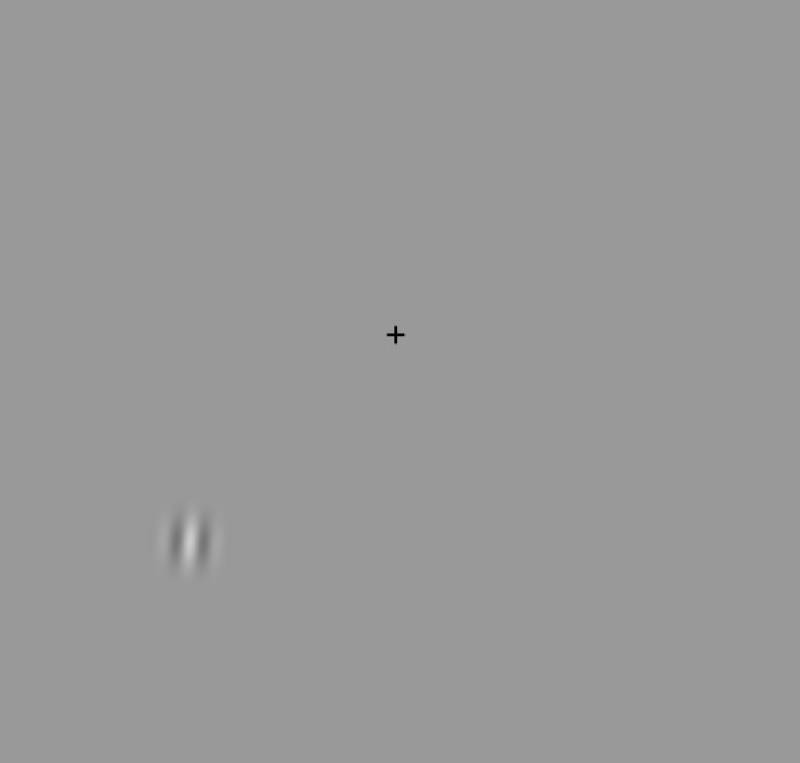

The first part of the game looks like this: singlestim3.jpg The stripe patch is going to flash on the screen in one of eight spots around the screen and your job is to say which way the stripes are tilted by pressing the correct button on the keyboard. If they are tilted like this* towards this* corner of the screen, press the Left arrow. If they are tilted like this* towards the other corner of the screen, press the Right arrow instead. singlesmalltilt2.jpg When you're playing the game, you're going to rest your chin here, and focus on the + in the middle of the screen.

  • During demonstration, use your hand to show the tilt of the stripes, pointing them toward the corners of the monitor, avoiding descriptions of Left or Right, or Clockwise or Counter-Clockwise

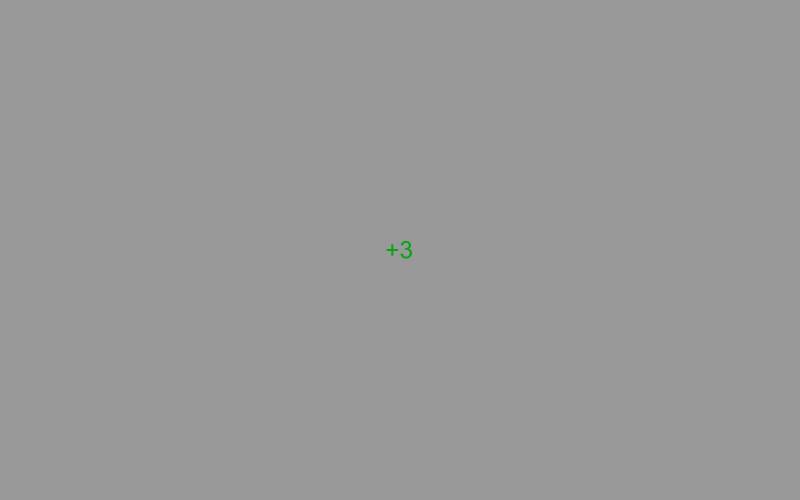

It doesn't matter where the patch of stripes is located on the screen, it only matters which way the stripes are tilted. If you get it right, you will hear a short ding and see a +3 in green at the center of the screen. This is what it looks like: feedbackpointscorrect.jpg If you get it wrong, you will hear a different sound and +0 in the middle of the screen in red. feedbackpointserror.jpg Any questions? Ready to try a practice round of this part?

Practice Single Stimulus

Follow embedded instructions, specifying that it is practice [y], the single stimulus version [2], the shorter version [n], and initialize the tilt level in degrees [ex. 30]
NOTE: If you need to exit the task at any time, press the 'Q' key instead of a Left/Right Arrow response

Uncued task

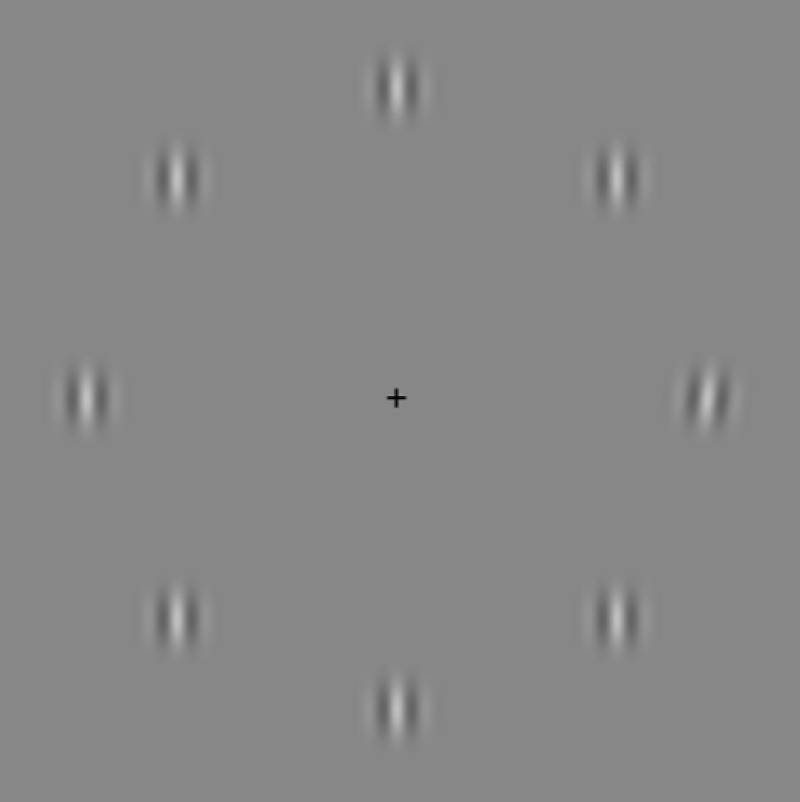

In the second part of the game, we're going to make it a bit harder. This time there will be 8 of those stripe patches, arranged in a circle. All but one of them are oriented vertically, or pointed straight upwards. Your task will be to pay close attention to all of the stripes, find which one is tilted, and press the correct button to say whether that one patch of stipes was titled left or right. It will be especially important to keep your eyes fixed on that +, so that you can see all of the patches, since you don't know which one is going to be different. This is what they look like? gaborscloseup.jpg As you can see all eight of the stripes are the same except for one. gabors2.jpg It doesn't matter which side of the screen the tilted stripes are on, so even if they are on the right side of the screen, you would still press the Left Arrow since the tops of the stripes are pointing toward the Left Corner of the Monitor. It may seem easy now, but the tricky part of the task is that it gets harder and harder to tell which way the stripes are tilted, to the point that you have to pay extra close attention. Which one is different in this picture? smalltilt.jpg

Uncued Practice

Run CueingDL1.m
Follow embedded instructions, specifying that it is practice [y], the uncued version [0], the long version [y], and initialize the tilt level in degrees [ex. 30]
NOTE: If you need to exit the task at any time, press the 'Q' key instead of a Left/Right Arrow response

Introduce the Cued task

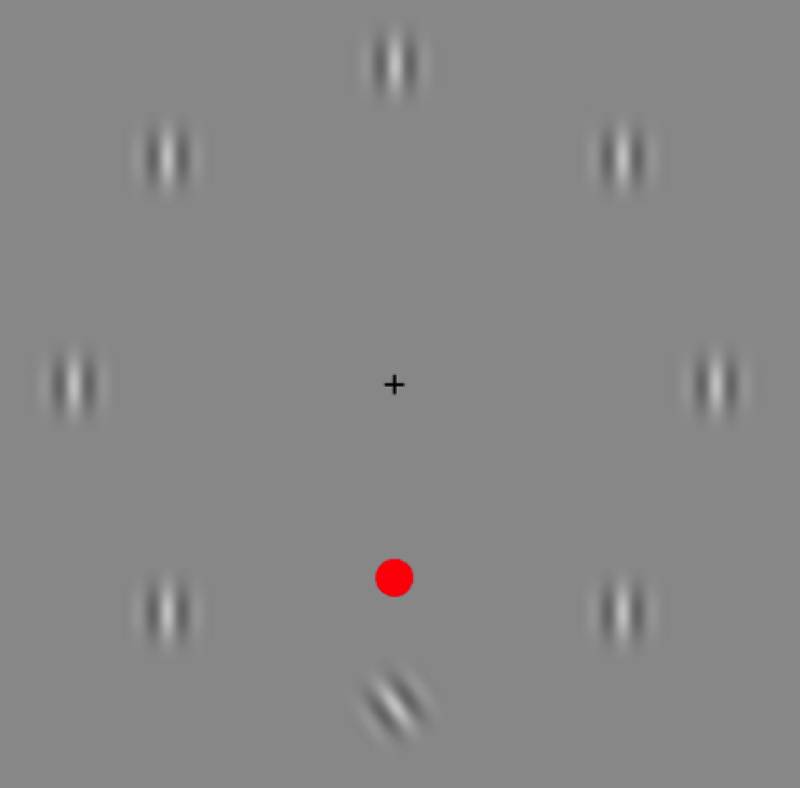

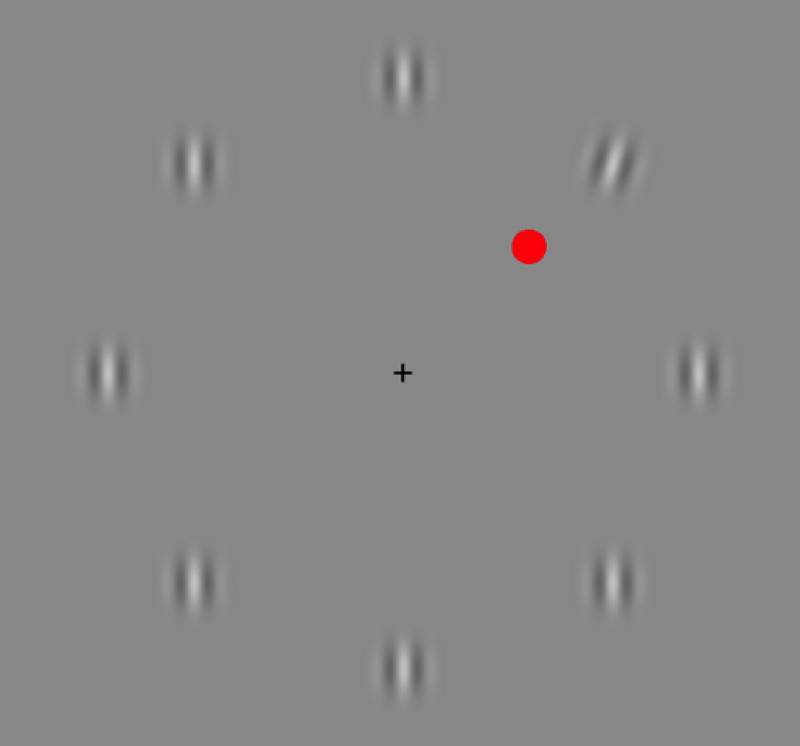

In the next part of the game, we help you out and show a red dot next to the one patch of stripes that will be tilted. Your job will be to find that red dot, see the stripes that are tilted, and press the correct button. It's important to note that in this game the red dot will ALWAYS be next to the stripes that are tilted and will appear just a split-second before the stripe patches. This is what it will look like: cuedgabor.jpg Or this: cuedgabor2.jpg Let's practice this version! Remember to keep you chin on the rest, and focus on that +!

Cued Practice

Continue embedded instructions, specifying that it is another practice [y], the cued version [1], the long/short version, and initialize the tilt level in degrees [ex. 30]
NOTE: If you need to exit the task at any time, press the 'Q' key instead of a Left/Right Arrow response

Additional Practice

This is a subjective decision following the above practice to add additional practice rounds based on how the subject is feeling and performing on each stimulus type. Regardless, at minimum, the subject should perform the uncued task with an initial tilt level at 15 or below. Run a few iterations of the practice rounds, at short duration.

Block Series

Now that you're done with the practice and proven yourself an expert, lets put those skills to the test. In the real game, you will play the different tasks in this order: single path, uncued, cued, uncued, cued, single patch. Each game is going to have more of each task and we're going to add a feature to make it a bit harder. This game is designed so that every time you get the right answer, the next one is going to be a bit harder by making the tilt harder and harder to see*.

  • demonstrate with your hand that the tilt angle will get progressively shallower.

The game works the opposite way too - if you get one wrong, the next one is going to be a bit easier. You might have noticed that when you were doing the practice every time you got a correct answer you saw a +3 in the middle of the screen, and every time you got it wrong you got a +0. In the practice the points didn't matter, but now that we're starting the real game, the challenge is to see how many points you can get! To win the game, you need to get more than 700 points! The stripe patches show up quickly, but this is not a game of speed! You can take your time and there's no rush to respond. Don't take too long though - you might forget what you saw! <br> Remember, keep your chin on the rest and focus hard on that + in the middle of the screen to give your eyes the best chance of detecting which stripes are not like the others!

Run the Series

Determine in script the number of blocks.
Run CueingDL1.m
Follow embedded instruction, specifying that it is NOT practice [n] and set the threshold level at a level based on the performance during practice - somewhere in the range of 15-20 should be ideal.

Version 3

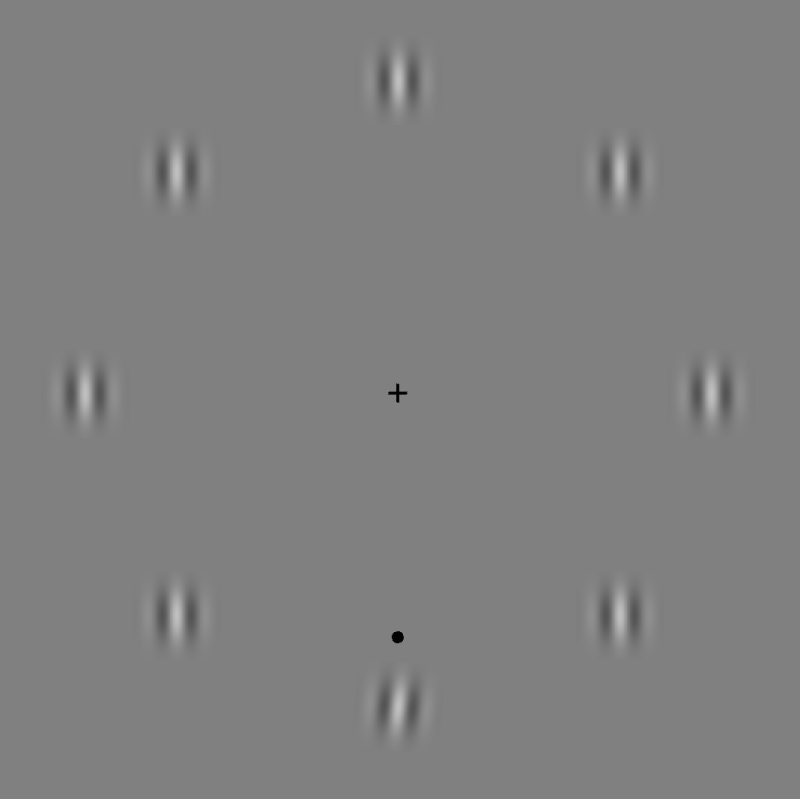

In version 3, there are now 8 blocks: 2 single stimulus, 2 uncued, 2 with a red cue, and 2 with a small black R&H cue. This is what the small black R&H cue looks like:
